VGYAR958211N Wireless LAN CARD

W W M M C C - - N N D D 0 0 7 7 D D M M i i n n i i P P C C I I - - e e W W i i r r e e l l e e s s s s C C a a r r d d Operation Manual Version: 1.0 Date: 22/05/2013 WMC-ND07D is a 802.11a/b/g/n 2x2 DB PCI Express Mini Card. It is based on Quaclomm Atheros chipset AR9582 that complied with IEEE 802.11n from 2.4/5GHz, and it is also backward compatible to comply with IEEE 802.11g and IEEE 802.11b standard to connect your existed 802.11 b/g wireless LAN device. Warranty We warrant to the original end user (purchaser) that the modem will be free from any defects in workmanship or materials for a period of one (1) year from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we deem necessary tore-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the right to revise the manual and online documentation and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. European Community Declarations Manufacturer: DrayTek Corp. Address: No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu, Taiwan 303 Product: WMC-ND07D DrayTek Corp. declares that WMC-ND07D is in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B. The product conforms to the requirements of Low Voltage (LVD) Directive 2006/95/EC by complying with the requirements set forth in EN60950-1. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device may accept any interference received, including interference that may cause undesired operation. This product is designed for the 2.4GHz/5GHz WLAN network throughout the EC region and Switzerland with restrictions in France. The operation frequency of the device in the 5150-5250 MHz band is for indoor use only. 低功率電波輻性電機管理辦法 第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變 更原設計之特性及功能。 第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至 無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射頻電機須忍受合法通信 或工業、科學及醫療用電波輻性電機設備之干擾。

DrayTek Corp.

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: _VGYAR9582_____ Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes, please see file:(WMC- ND07D)IntPho 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes,please see the schematic ,location: [U5B] 3. The modular transmitter must have its own power supply regulation. Yes,please see the schematic ,location: [VR1] 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Yes, please see file: (WMC- ND07D)IntPho 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes, please see file: (WMC- ND07D)Tsup 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Yes, please see file: (WMC- ND07D)Label Sample 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes, please see file: (WMC- ND07D)User Manual 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Yes Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA).

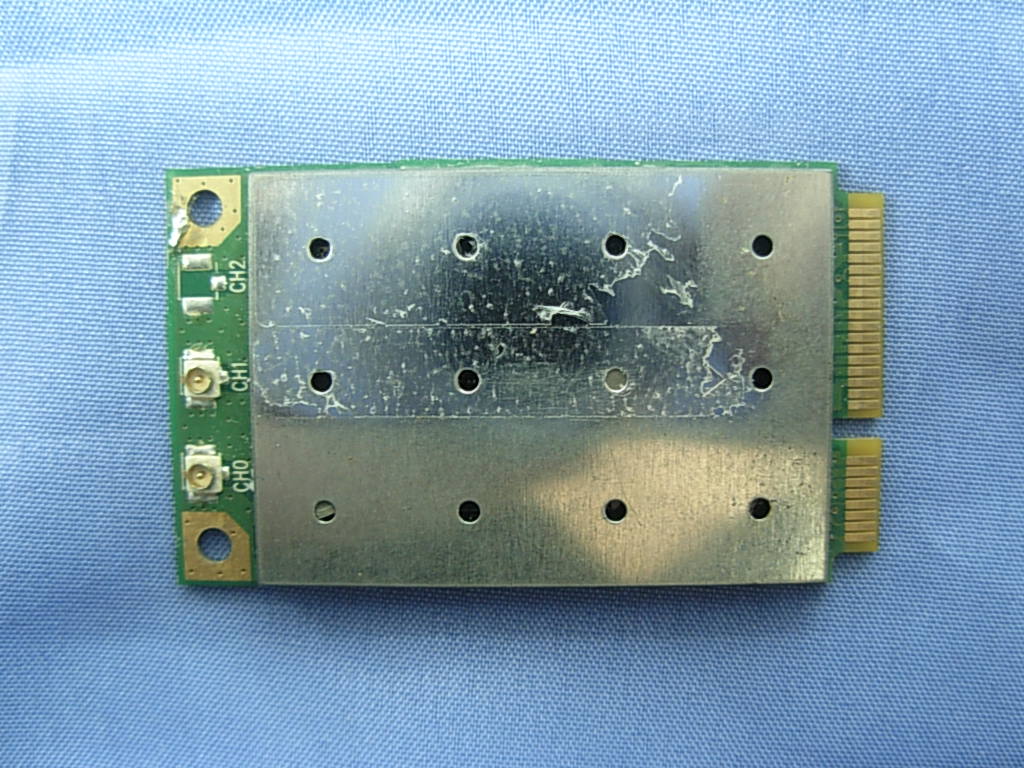

Report No： 132290R-RFUSP42V01 Page: 314 of 318 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo Report No： 132290R-RFUSP42V01 Page: 316 of 318 (5) EUT Photo (Module Model: WMC-ND07D) (6) EUT Photo (Module Model: WMC-ND07D)

FCC ID.: VGYAR9582 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. 11N Wireless LAN CARD Model No.: WMC-ND07D FCC ID : VGYAR9582 S/N: Made in Taiwan Trade name: DrayTek Model number.: WMC-ND07D

Report No： 132290R-RFUSP42V01 Page: 315 of 318 (3) EUT Photo (4) EUT Photo Report No： 132290R-RFUSP42V01 Page: 316 of 318 (5) EUT Photo (6) EUT Photo Report No： 132290R-RFUSP42V01 Page: 317 of 318 (7) EUT Photo Report No： 132290R-RFUSP42V01 Page: 318 of 318 (8) EUT Photo (9) EUT Photo

Report No. 132290R-RF-US-Exp Page: 1 of 7 RF Exposure Evaluation Declaration Product Name ：11N Wireless LAN CARD Model No. ：WMC-ND07D FCC ID. ：VGYAR9582 Applicant : DrayTek Corp. Address : No.26 Fu Shing Rd., HuKou County,Hsin-Chu Industrial Park,Hsin-Chu,Taiwan 303 R.O.C Date of Receipt : 2013/02/23 Date of Declaration : 2013/05/17 Report No. : 132290R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 132290R-RF-US-Exp Page: 2 of 7 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 132290R-RF-US-Exp Page: 3 of 7 1.3. Test Result of RF Exposure Evaluation Product 11N Wireless LAN CARD Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.95dBi or 1.57 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 90.1571 0.02816 6 2437 86.2979 0.02695 11 2462 97.2747 0.03038 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 65.9174 0.02059 6 2437 96.8278 0.03024 11 2462 43.9542 0.01373 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 132290R-RF-US-Exp Page: 4 of 7 Product 11N Wireless LAN CARD Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.71dBi or 2.35 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) (ANT 0+1) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 62.3735 0.03201 6 2437 104.2317 0.05350 11 2462 55.8470 0.02866 IEEE 802.11n (40MHz) (ANT 0+1) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 57.2796 0.02940 6 2437 69.0240 0.03543 9 2452 46.5586 0.02390 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 132290R-RF-US-Exp Page: 5 of 7 Product 11N Wireless LAN CARD Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.12dBi or 2.58dBi in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 3.1696 0.00163 40 5220 3.2137 0.00165 44 5240 3.2584 0.00167 IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 16.9044 0.00868 157 5785 21.2324 0.01090 165 5825 22.9087 0.01176 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 132290R-RF-US-Exp Page: 6 of 7 Product 11N Wireless LAN CARD Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.12dBi or 2.58dBi in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(20MHz) (ANT 0+1) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 3.0620 0.00157 40 5220 2.8973 0.00149 44 5240 3.0061 0.00154 IEEE 802.11 n(20MHz) (ANT 0+1) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 101.8591 0.05228 157 5785 116.6810 0.05989 165 5825 128.2331 0.06582 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 132290R-RF-US-Exp Page: 7 of 7 Product 11N Wireless LAN CARD Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.12dBi or 2.58dBi in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) (ANT 0+1) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 38 5190 5.0119 0.00257 46 5230 5.0119 0.00257 IEEE 802.11 n(40MHz) (ANT 0+1) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density…

Text truncated - open the document above for the full version.

Report No： 132290R-RFUSP42V01 Page: 1 of 318 FCC Test Report Product Name：11N Wireless LAN CARD Model No. ：WMC-ND07D FCC ID. ：VGYAR9582 Applicant ： DrayTek Corp. Address ： No.26 Fu Shing Rd., HuKou County,Hsin-Chu Industrial Park,Hsin-Chu,Taiwan 303 R.O.C Date of Receipt： 2013/02/23 Issued Date ：2013/05/17 Report No. ：132290R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 132290R-RFUSP42V01 Page: 2 of 318 Test Report Certification Issued Date : 2013/05/17 Report No. : 132290R-RFUSP42V01 Product Name ： 11N Wireless LAN CARD Applicant ： DrayTek Corp. Address ： No.26 Fu Shing Rd., HuKou County,Hsin-Chu Industrial Park,Hsin-Chu,Taiwan 303 R.O.C Manufacturer : DrayTek Corp. Model No. ： WMC-ND07D FCC ID. ： VGYAR9582 EUT Voltage : DC 3.3V ±5% from host equipment Trade Name ： DrayTek Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247:2012 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Adm. Specialist) Tested By : ( JuBo Shen / Engineer) Approved By : ( Roy Wang / Manager ) Report No： 132290R-RFUSP42V01 Page: 3 of 318 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 132290R-RFUSP42V01 Page: 4 of 318 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description ................................................................................................ 10 1.3. Test Mode ..................................................................................................................... 11 1.4. Tested System Details .................................................................................................. 12 1.5. Configuration of tested System .................................................................................... 13 1.6. EUT Exercise Software ................................................................................................ 14 1.7. Test Facility...................................................................................................................15 2. Conducted Emission .......................................................................................................... 16 2.1. Test Equipment............................................................................................................. 16 2.2. Test Setup .................................................................................................................... 16 2.3. Limits ............................................................................................................................ 17 2.4. Test Procedure ............................................................................................................. 17 2.5. Test Specification.......................................................................................................... 17 2.6. Uncertainty ................................................................................................................... 17 2.7. Test Result....................................................................................................................18 2.8. Test Photo .................................................................................................................... 22 3. Peak Power Output ............................................................................................................ 23 3.1. Test Equipment............................................................................................................. 23 3.2. Test Setup .................................................................................................................... 23 3.3. Test procedures ............................................................................................................ 23 3.4. Limits ............................................................................................................................ 23 3.5. Test Specification.......................................................................................................... 23 3.6. Uncertainty ................................................................................................................... 23 3.7. Test Result......................................................................................................…

Text truncated - open the document above for the full version.

Report No： 132290R-RFUSP42V01 Page: 181 of 318 6. Band Edge 6.1. Test Equipment The following test equipments are used during the test: Band Edge / CB1 Instrument Manufacturer Model No. Serial No Next Cal. Date Double Ridged Guide Horn Antenna Schwarzback BBHA 9120 D743 2014/02/17 Spectrum Analyzer Agilent E4440A MY46187335 2014/01/27 k Type Cable Huber Suhner Sucoflex 102 25623/2 2014/02/21 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 6.2. Test Setup Report No： 132290R-RFUSP42V01 Page: 182 of 318 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. 6.4. Test Procedure The EUT was setup according to ANSI C63.4: 2009 and tested according to DTS test procedure of Jan. 2012 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT and its simulators are placed on a turn table which is 0.8 meter above ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna can move up and down between 1 meter and 4 meters to find out the maximum emission level. Both horizontal and vertical polarization of the antenna are set on measurement. In order to find the maximum emission, all of the interface cables must be manipulated according to ANSI C63.4: 2009 on radiated measurement. 6.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2012 6.6. Uncertainty The measurement uncertainty ± 3.9 dB above 1GHz Report No： 132290R-RFUSP42V01 Page: 183 of 318 6.7. Test Result Radiated is defined as Site : CB1 Time : 2013/04/01 - 16:57 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : DC 3.3V ±5% from host equipment EUT : 11N Wireless LAN CARD Note : 802.11b_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 12310.00027.00025.40452.404-21.59674.000PEAK 2*2366.60027.21626.05153.267-20.73374.000PEAK 32390.00027.30525.52952.834-21.16674.000PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 132290R-RFUSP42V01 Page: 184 of 318 Site : CB1 Time : 2013/04/01 - 16:58 Limit : FCC_SpartC_15.209_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : DC 3.3V ±5% from host equipment EUT : 11N Wireless LAN CARD Note : 802.11b_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 12310.00027.00011.98938.989-15.01154.000AVERAGE 22389.80027.30413.58940.894-13.10654.000AVERAGE 3*2390.00027.30513.66740.972-13.02854.000AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 132290R-RFUSP42V01 Page: 185 of 318 Site : CB1 Time : 2013/04/01 - 17:03 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : DC 3.3V ±5% from host equipment EUT : 11N Wireless LAN CARD Note : 802.11b_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 12310.00027.00026.62953.629-20.37174.000PEAK 2*2389.40027.30332.37459.677-14.32374.000PEAK 32390.00027.30531.96659.271-14.72974.000PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 132290R-RFUSP42V01 Page: 186 of 318 Site : CB1 Time : 2013/04/01 - 17:03 Limit : FCC_SpartC_15.209_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - VERTICAL Power : DC 3.3V ±5% from host equipment EUT : 11N Wireless LAN CARD Note : 802.11b_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 12310.00027.00014.61641.616-12.38454.000AVERAGE 22389.80027.30420.23847.543-6.45754.000AVERAGE 3*2390.00027.30520.38347.688-6.31254.000AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 132290R-RFUSP42V01 Page: 187 of 318 Site : CB1 Time : 2013/04/01 - 17:09 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : DC 3.3V ±5% from host equipment EUT : 11N Wireless LAN CARD Note : 802.11b_2462MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB…

Text truncated - open the document above for the full version.

Report No： 132290R-RFUSP42V01 Page: 22 of 318 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No： 132290R-RFUSP42V01 Page: 142 of 318 4.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 132290R-RFUSP42V01 Page: 143 of 318 Test Mode ： Mode 1: Transmit Description： Radiated Emission Test Setup (Bi-Log) Report No： 132290R-RFUSP42V01 Page: 144 of 318 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Horn) Report No： 132290R-RFUSP42V01 Page: 145 of 318 Test Mode ： Mode 1: Transmit Description： Radiated Emission Test Setup (Horn)
