VGYV2760VNVDSL2 Router with WLAN/VoIP

Vigor2760 Series Quick Start Guide i Vigor2760 Series Quick Start Guide ii Vigor2760 Series Quick Start Guide iii Vigor2760 Series High Speed VDSL2 Router Quick Start Guide Version: 1.0 Firmware Version:1.0.0.0_RC5 Date: 03/07/2012 Vigor2760 Series Quick Start Guide i Copyright Information Copyright Declarations Copyright 2012 All rights reserved. This publication contains information that is protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. Trademarks The following trademarks are used in this document: z Microsoft is a registered trademark of Microsoft Corp. z Windows, Windows 95, 98, Me, NT, 2000, XP, Vista and Explorer are trademarks of Microsoft Corp. z Apple and Mac OS are registered trademarks of Apple Inc. z Other products may be trademarks or registered trademarks of their respective manufacturers. Safety Instructions and Approval Safety Instructions z Read the installation guide thoroughly before you set up the router. z The router is a complicated electronic unit that may be repaired only be authorized and qualified personnel. Do not try to open or repair the router yourself. z Do not place the router in a damp or humid place, e.g. a bathroom. z Do not stack the routers. z The router should be used in a sheltered area, within a temperature range of +5 to +40 Celsius. z Do not expose the router to direct sunlight or other heat sources. The housing and electronic components may be damaged by direct sunlight or heat sources. z Do not deploy the cable for LAN connection outdoor to prevent electronic shock hazards. z Keep the package out of reach of children. z When you want to dispose of the router, please follow local regulations on conservation of the environment. Warranty We warrant to the original end user (purchaser) that the router will be free from any defects in workmanship or materials for a period of two (2) years from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we deem necessary tore-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the right to revise the manual and online documentation and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. Be a Registered Owner Web registration is preferred. You can register your Vigor router via http://www.draytek.com. Firmware & Tools Updates Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. http://www.draytek.com Vigor2760 Series Quick Start Guide ii European Community Declarations Manufacturer: DrayTek Corp. Address: No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu, Taiwan 303 Product: Vigor2760 Series Router DrayTek Corp. declares that Vigor2760 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B. The product conforms to the requirements of Low Voltage (LVD) Directive 2006/95/EC by complying with the requirements set forth in EN60950-1. Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device may accept any interference received, including interference that may cause undesired operation. R R F F E E x x p p o o s s u u r r e e W W a a r r n n i i n n g g This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not b…

Text truncated - open the document above for the full version.

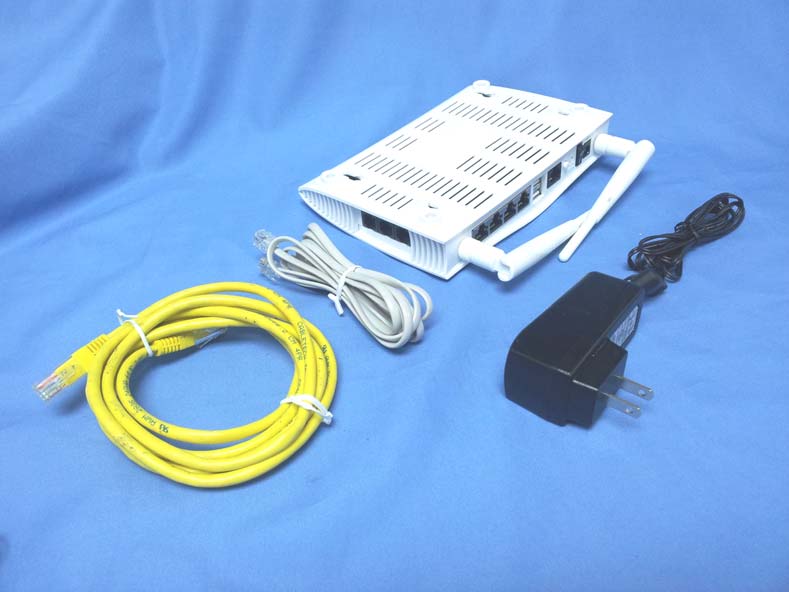

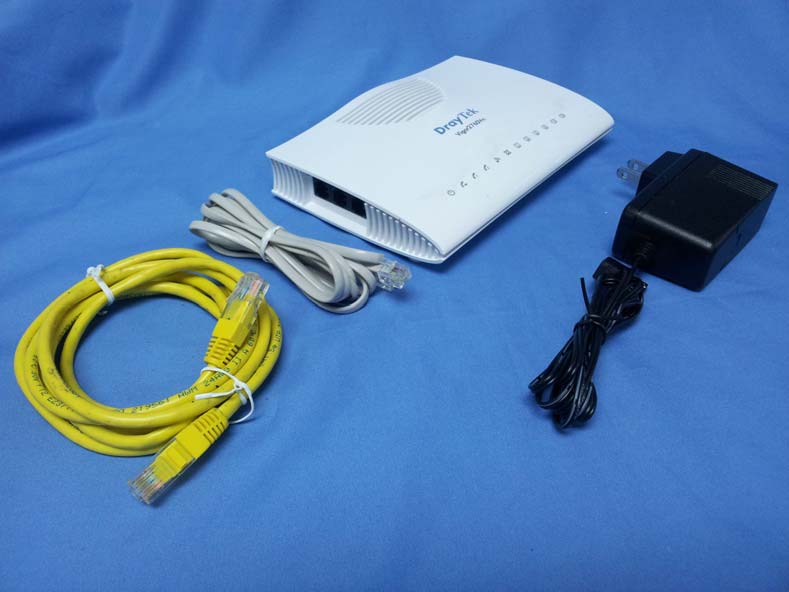

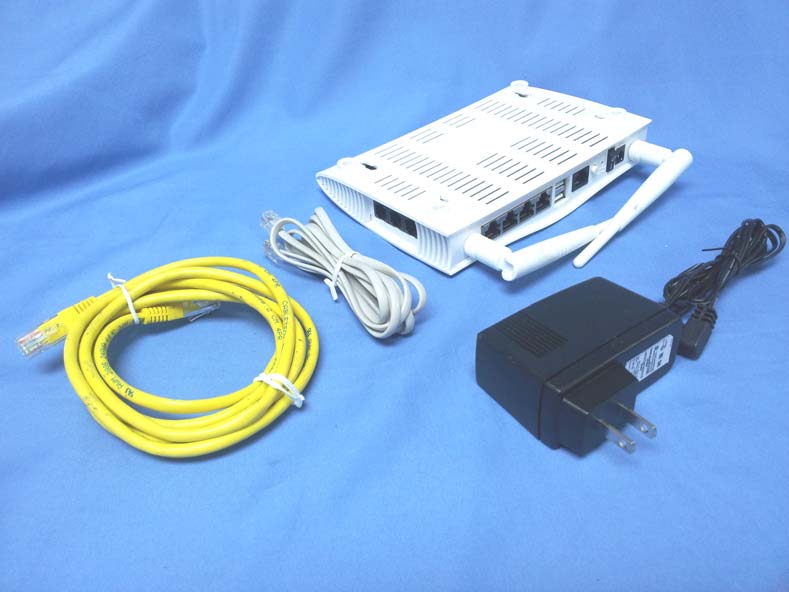

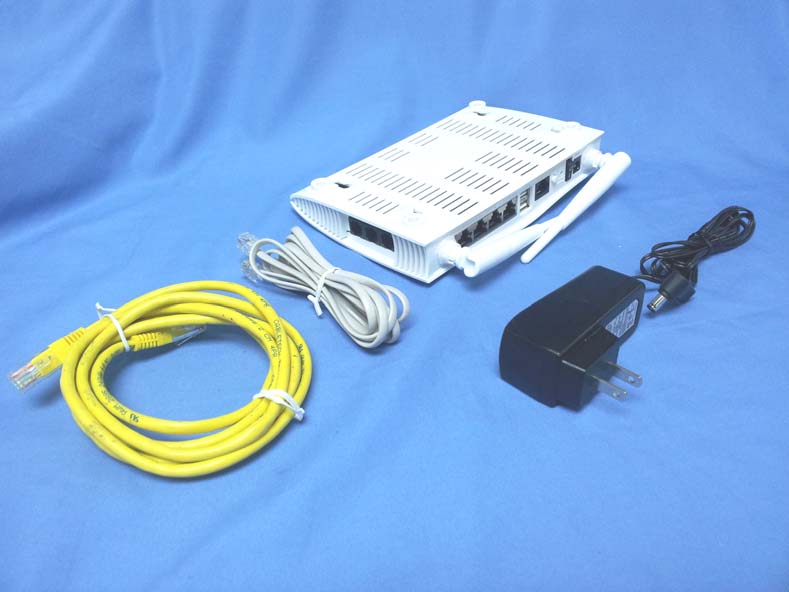

Report No： 123390R-RFUSP42V01 Page: 284 of 302 Attachement EUT Photograph (1) EUT Photo (Internal Antenna; Power Adapter: CWT, SAG024F 3) (2) EUT Photo Report No： 123390R-RFUSP42V01 Page: 285 of 302 (3) EUT Photo (Internal Antenna; Power Adapter: CWT, CAP018121) (4) EUT Photo Report No： 123390R-RFUSP42V01 Page: 289 of 302 (11) EUT Photo (External Antenna (Reverse SMA Connector); Power Adapter: CWT, SAG024F 3) (12) EUT Photo Report No： 123390R-RFUSP42V01 Page: 290 of 302 (13) EUT Photo (External Antenna (Reverse SMA Connector); Power Adapter: CWT, CAP018121) (14) EUT Photo Report No： 123390R-RFUSP42V01 Page: 295 of 302 (22) EUT Photo (External Antenna (Fixed with IPEX Cable); Power Adapter: CWT, SAG024F 3) (23) EUT Photo Report No： 123390R-RFUSP42V01 Page: 296 of 302 (24) EUT Photo (External Antenna (Fixed with IPEX Cable); Power Adapter: CWT, CAP018121) (25) EUT Photo Report No： 123390R-RFUSP42V01 Page: 302 of 302 (36) EUT Photo (Power Adapter: CWT, SAG024F 3) (37) EUT Photo (Power Adapter: CWT, CAP018121)

FCC ID.: VGYV2760VN FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. VDSL2 Router with WLAN/VoIP Model No.: Vigor2760, Vigor2760n, Vigor2760Vn F F C C C C I I D D : : VGYV2760VN This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: DrayTek Model number.: Vigor2760, Vigor2760n, Vigor2760Vn

FCC ID.: VGYV2760VN FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. VDSL2 Router with WLAN/VoIP Model No.: Vigor2760, Vigor2760n, Vigor2760Vn F F C C C C I I D D : : VGYV2760VN This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: DrayTek Model number.: Vigor2760, Vigor2760n, Vigor2760Vn

Report No： 123390R-RFUSP42V01 Page: 286 of 302 (5) EUT Photo (Internal Antenna) (6) EUT Photo Report No： 123390R-RFUSP42V01 Page: 287 of 302 (7) EUT Photo (8) EUT Photo Report No： 123390R-RFUSP42V01 Page: 288 of 302 (9) EUT Photo (10) EUT Photo (Ant.) Report No： 123390R-RFUSP42V01 Page: 291 of 302 (15) EUT Photo (External Antenna (Reverse SMA Connector) (16) EUT Photo Report No： 123390R-RFUSP42V01 Page: 292 of 302 (17) EUT Photo (18) EUT Photo Report No： 123390R-RFUSP42V01 Page: 293 of 302 (19) EUT Photo (20) EUT Photo (Ant.) Report No： 123390R-RFUSP42V01 Page: 294 of 302 (21) EUT Photo (Ant.) Report No： 123390R-RFUSP42V01 Page: 297 of 302 (26) EUT Photo (External Antenna (Fixed with IPEX Cable)) (27) EUT Photo Report No： 123390R-RFUSP42V01 Page: 298 of 302 (28) EUT Photo (29) EUT Photo Report No： 123390R-RFUSP42V01 Page: 299 of 302 (30) EUT Photo (31) EUT Photo (Ant.) Report No： 123390R-RFUSP42V01 Page: 300 of 302 (32) EUT Photo (33) EUT Photo Report No： 123390R-RFUSP42V01 Page: 301 of 302 (34) EUT Photo (35) EUT Photo (MB)

Report No. 123390R-RF-US-Exp Page: 1 of 4 RF Exposure Evaluation declaration Product Name ： VDSL2 Router with WLAN/VoIP Model No. ： Vigor2760, Vigor2760n, Vigor2760Vn FCC ID. ： VGYV2760VN Applicant : DrayTek Corp. Address : No.26 Fu Shing Rd., HuKou County,Hsin-Chu Industrial Park,Hsin-Chu,Taiwan 303 R.O.C Date of Receipt : 2012/03/24 Date of Declaration : 2012/07/11 Report No. : 123390R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 123390R-RF-US-Exp Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 123390R-RF-US-Exp Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product VDSL2 Router with WLAN/VoIP Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber are 2.60dBi or 1.82 in linear scale.. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 3.8282 0.00139 6 2437 3.6644 0.00133 11 2462 3.2285 0.00117 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 4.0458 0.00146 6 2437 3.8459 0.00139 11 2462 3.6308 0.00131 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 123390R-RF-US-Exp Page: 4 of 4 Product VDSL2 Router with WLAN/VoIP Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber are 2.60dBi or 1.82 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 23.1739 0.00839 6 2437 17.8649 0.00647 11 2462 16.2181 0.00587 IEEE 802.11n (40M) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 20.0447 0.00726 6 2437 15.7036 0.00569 9 2452 18.7068 0.00677 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 123390R-RFUSP42V01 Page: 1 of 302 Test Report Product Name ： VDSL2 Router with WLAN/VoIP Model No. ： Vigor2760, Vigor2760n, Vigor2760Vn FCC ID. ： VGYV2760VN Applicant ： DrayTek Corp. Address ： No.26 Fu Shing Rd., HuKou County,Hsin-Chu Industrial Park,Hsin-Chu,Taiwan 303 R.O.C Date of Receipt：2012/03/24 Issued Date ：2012/07/11 Report No. ：123390R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 123390R-RFUSP42V01 Page: 2 of 302 Test Report Certification Issued Date : 2012/07/11 Report No. : 123390R-RFUSP42V01 Product Name ： VDSL2 Router with WLAN/VoIP Applicant ： DrayTek Corp. Address ： No.26 Fu Shing Rd., HuKou County,Hsin-Chu Industrial Park,Hsin-Chu,Taiwan 303 R.O.C Manufacturer ： DrayTek Corp. Model No. ： Vigor2760, Vigor2760n, Vigor2760Vn FCC ID. ： VGYV2760VN EUT Voltage : AC 100-240V/47~63Hz Trade Name ： DrayTek Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247:2011 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Engineering Adm. Specialist ) Reviewed By : ( JuBo Shen / Assistant Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 123390R-RFUSP42V01 Page: 3 of 302 TABLE OF CONTENTS Description Page 1. General Information...................................................................................................................... 5 1.1. EUT Description ...................................................................................................................... 5 1.2. Operational Description ......................................................................................................... 10 1.3. Test Mode .............................................................................................................................. 11 1.4. Tested System Details ........................................................................................................... 12 1.5. Configuration of tested System ............................................................................................. 13 1.6. EUT Exercise Software.......................................................................................................... 14 1.7. Test Facility ............................................................................................................................ 15 2. Conducted Emission .................................................................................................................. 17 2.1. Test Equipment ...................................................................................................................... 17 2.2. Test Setup.............................................................................................................................. 17 2.3. Limits ..................................................................................................................................... 18 2.4. Test Procedure ...................................................................................................................... 18 2.5. Test Specification................................................................................................................... 18 2.6. Uncertainty ............................................................................................................................ 18 2.7. Test Result............................................................................................................................. 19 2.8. Test Photo.............................................................................................................................. 23 3. Peak Power Output ..................................................................................................................... 25 3.1. Test Equipment ...................................................................................................................... 25 3.2. Test Setup.............................................................................................................................. 25 3.3. Test procedures ..................................................................................................................... 25 3.4. Limits ..................................................................................................................................... 25 3.5. Test Specification................................................................................................................... 25 3.6. Uncertainty ............................................................................................................................ 25 3.7. Test Result............................................................................................................................. 26 4. Radiated Emission...................................................................................................................... 52 4.1. Test Equipment ...................................................................................................................... 52 4.2. Test Setup.............................................................................................................................. 52 4.3. Limits ..................................................................................................................................... 53 4.4. Test Procedure ...................................................................................................................... 53 4.5. Test Specification................................................................................................................... 53 4.6. Uncertainty ......................................................…

Text truncated - open the document above for the full version.

Report No： 123390R-RFUSP42V01 Page: 178 of 302 6. Radiated Emission Band Edge 6.1. Test Equipment The following test equipments are used during the test: Band Edge / CB1 Instrument Manufacturer Model No. Serial No Next Cal. Date Double Ridged Guide Horn Antenna Schwarzback BBHA 9120D 743 2013/02/02 Spectrum Analyzer Agilent E4440A MY46187335 2013/02/07 Coaxial Cable Huber+Suhner AG Sucoflex 102 25623/2 2013/03/04 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 6.2. Test Setup RF Radiated Measurement: Report No： 123390R-RFUSP42V01 Page: 179 of 302 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. 6.4. Test Procedure The EUT was setup according to ANSI C63.4: 2009 and tested according to DTS test procedure of Jan. 2012 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT and its simulators are placed on a turn table which is 0.8 meter above ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna can move up and down between 1 meter and 4 meters to find out the maximum emission level. Both horizontal and vertical polarization of the antenna are set on measurement. In order to find the maximum emission, all of the interface cables must be manipulated according to ANSI C63.4: 2009 on radiated measurement. 6.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2011 6.6. Uncertainty The measurement uncertainty ± 3.9 dB above 1GHz Report No： 123390R-RFUSP42V01 Page: 180 of 302 6.7. Test Result Radiated is defined as Site : Site1 Time : 2012/06/06 - 18:37 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : AC 120V/60Hz EUT : VDSL2 Router with WLAN/VoIP Note : Mode 1: Transmit (Internal Antenna, Adapter: SAG024F 3)802.11b_CH01 Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 21.67151.450-22.550 74.000 PEAK 2 * 2383.780 30.516 24.77855.294-18.706 74.000 PEAK 3 2390.000 30.578 21.81652.394-21.606 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 123390R-RFUSP42V01 Page: 181 of 302 Site : Site1 Time : 2012/06/06 - 18:39 Limit : FCC_SpartC_15.209_03M_AV Margin : 6 Probe : FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : AC 120V/60Hz EUT : VDSL2 Router with WLAN/VoIP Note : Mode 1: Transmit (Internal Antenna, Adapter: SAG024F 3)802.11b_CH01 Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 13.13442.913-11.087 54.000 AVERAGE 2 2382.644 30.504 12.84243.346-10.654 54.000 AVERAGE 3 * 2390.000 30.578 12.81243.390-10.610 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 123390R-RFUSP42V01 Page: 182 of 302 Site : Site1 Time : 2012/06/06 - 18:44 Limit : FCC_SpartC_15.209_03M_PK Margin : 6 Probe : FCC_EFS_1-18G-1_0901 - VERTICAL Power : AC 120V/60Hz EUT : VDSL2 Router with WLAN/VoIP Note : Mode 1: Transmit (Internal Antenna, Adapter: SAG024F 3)802.11b_CH01 Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 23.69653.475-20.525 74.000 PEAK 2 * 2374.408 30.423 24.59655.018-18.982 74.000 PEAK 3 2390.000 30.578 23.18553.763-20.237 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 123390R-RFUSP42V01 Page: 183 of 302 Site : Site1 Time : 2012/06/06 - 18:45 Limit : FCC_SpartC_15.209_03M_AV Margin : 6 Probe : FCC_EFS_1-18G-1_0901 - VERTICAL Power : AC 120V/60Hz EUT : VDSL2 Router with WLAN/VoIP Note : Mode 1: Transmit (Internal Antenna, Adapter: SAG024F 3)802.11b_CH01 Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 29.779 12.40142.180-11.820 54.000 AVERAGE 2 2386.336 30.541 12.40642.947-11.053 54.000 AVERAGE 3 * 2390.000 30.578 12.44543.023-10.977 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 123390R-RFUSP42V01 Page: 184 of 302 Site : Site1 Time : 2012/06/06 - 18:48 Limit : …

Text truncated - open the document above for the full version.

Report No： 123390R-RFUSP42V01 Page: 23 of 302 2.8. Test Photo Test Mode ： Mode 1: Transmit (Internal Antenna, Adapter: SAG024F 3) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit (Internal Antenna, Adapter: SAG024F 3) Description： Back View of Conducted Emission Test Setup Report No： 123390R-RFUSP42V01 Page: 24 of 302 Test Mode ： Mode 2: Transmit (Internal Antenna, Adapter: CAP018121) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 2: Transmit (Internal Antenna, Adapter: CAP018121) Description： Back View of Conducted Emission Test Setup Report No： 123390R-RFUSP42V01 Page: 134 of 302 4.8. Test Photo Test Mode ： Mode 1: Transmit (Internal Antenna, Adapter: SAG024F 3) Description： Front View of Radiated Emission Test Setup (Bilog) Test Mode ： Mode 1: Transmit (Internal Antenna, Adapter: SAG024F 3) Description： Back View of Radiated Emission Test Setup (Bilog) Report No： 123390R-RFUSP42V01 Page: 135 of 302 Test Mode ： Mode 2: Transmit (Internal Antenna, Adapter: CAP018121) Description： Front View of Radiated Emission Test Setup (Bilog) Test Mode ： Mode 2: Transmit (Internal Antenna, Adapter: CAP018121) Description： Back View of Radiated Emission Test Setup (Bilog) Report No： 123390R-RFUSP42V01 Page: 136 of 302 Test Mode ： Mode 3: Transmit (External Antenna, Adapter: SAG024F 3) Description： Front View of Radiated Emission Test Setup (Bilog) Test Mode ： Mode 3: Transmit (External Antenna, Adapter: SAG024F 3) Description： Back View of Radiated Emission Test Setup (Bilog) Report No： 123390R-RFUSP42V01 Page: 137 of 302 Test Mode ： Mode 4: Transmit (External Antenna, Adapter: CAP018121) Description： Front View of Radiated Emission Test Setup (Bilog) Test Mode ： Mode 4: Transmit (External Antenna, Adapter: CAP018121) Description： Back View of Radiated Emission Test Setup (Bilog) Report No： 123390R-RFUSP42V01 Page: 138 of 302 Test Mode ： Mode 1: Transmit (Internal Antenna, Adapter: SAG024F 3) Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit (Internal Antenna, Adapter: SAG024F 3) Description： Back View of Radiated Emission Test Setup (Horn) Report No： 123390R-RFUSP42V01 Page: 139 of 302 Test Mode ： Mode 3: Transmit (External Antenna, Adapter: SAG024F 3) Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 3: Transmit (External Antenna, Adapter: SAG024F 3) Description： Back View of Radiated Emission Test Setup (Horn)
