VGYV2860VNVDSL2 Security Firewall

Vigor2860 Series Quick Start Guidei Vigor2860 Series VDSL2 Security Firewall Quick Start Guide Version: 1.0 Firmware Version: V3.7.1_RC3 (For future update, please visit DrayTek web site) Date: 17/01/2013 Vigor2860 Series Quick Start Guidei Copyright Information Copyright Declarations Copyright 2013 All rights reserved. This publication contains information that is protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. Trademarks The following trademarks are used in this document:
Microsoft is a registered trademark of Microsoft Corp.
Windows, Windows 95, 98, Me, NT, 2000, XP, 7 and Explorer are trademarks of Microsoft Corp.
Apple and Mac OS are registered trademarks of Apple Computer Inc.
Other products may be trademarks or registered trademarks of their respective manufacturers. Safety Instructions and Approval Safety Instructions
Read the installation guide thoroughly before you set up the router.
The router is a complicated electronic unit that may be repaired only be authorized and qualified personnel. Do not try to open or repair the router yourself.
Do not place the router in a damp or humid place, e.g. a bathroom.
Do not stack the routers.
The router should be used in a sheltered area, within a temperature range of +5 to +40 Celsius.
Do not expose the router to direct sunlight or other heat sources. The housing and electronic components may be damaged by direct sunlight or heat sources.
Do not deploy the cable for LAN connection outdoor to prevent electronic shock hazards.
Keep the package out of reach of children.
When you want to dispose of the router, please follow local regulations on conservation of the environment. Warranty We warrant to the original end user (purchaser) that the router will be free from any defects in workmanship or materials for a period of two (2) years from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we deem necessary tore-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the right to revise the manual and online documentation and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. Be a Registered Owner Web registration is preferred. You can register your Vigor router via http://www.draytek.com. Firmware & Tools Updates Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. http://www.draytek.com Vigor2860 Series Quick Start Guidei European Community Declarations Manufacturer: DrayTek Corp. Address: No. 26, Fu Shing Road, Hukou Township, Hsinchu Industrial Park, Hsinchu County, Taiwan 303 Product: Vigor2860 Series Router DrayTek Corp. declares that Vigor2860 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE 1999/5/EC, ErP 2009/125/EC and RoHS 2011/65/EU . The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EEC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B. The product conforms to the requirements of Low Voltage (LVD) Directive 2006/95/EC by complying with the requirements set forth in EN60950-1. Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device may accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications of this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. This equipment must be i…

Text truncated - open the document above for the full version.

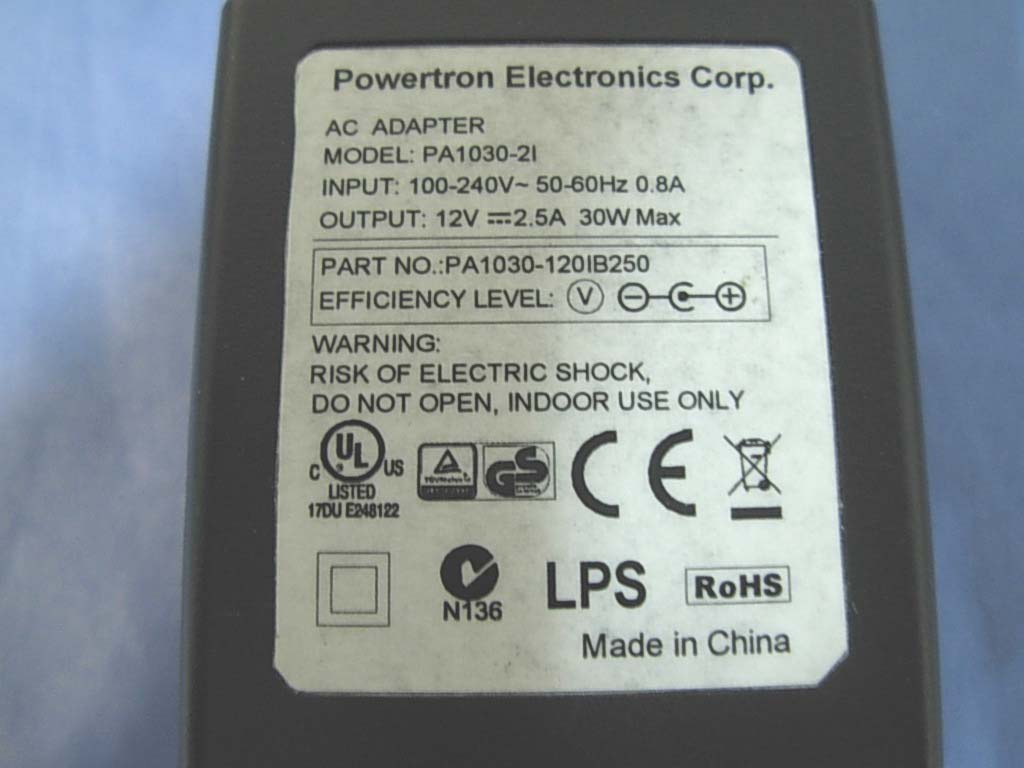

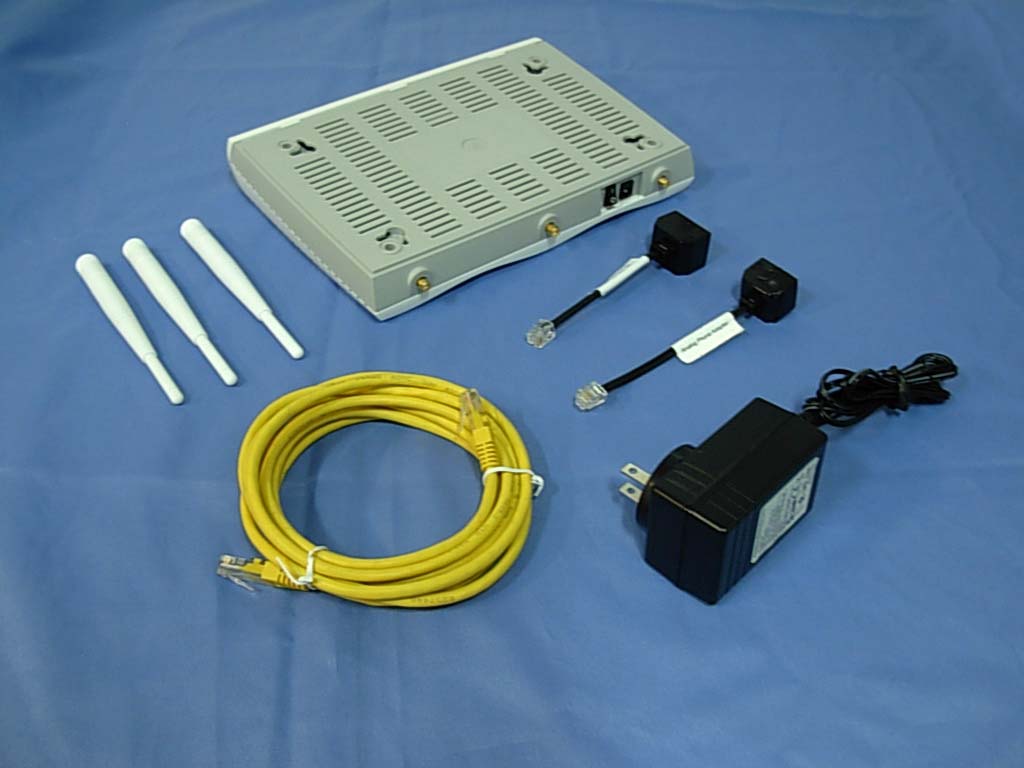

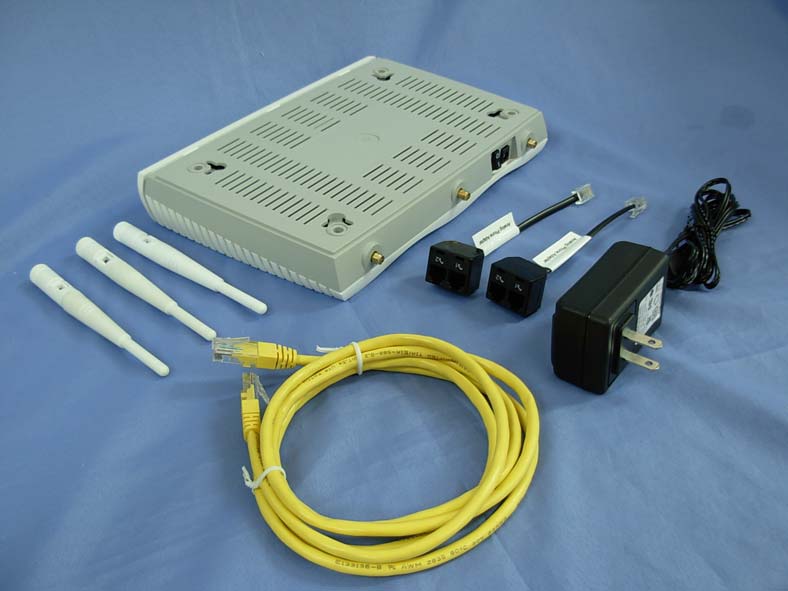

Report No： 134094R-RFUSP42V01 Page: 195 of 209 10. Attachment 2 EUT Photograph (1) EUT Photo (Power Adatper: Powertron Electronics, PA1030-2I) (2) EUT Photo Report No： 134094R-RFUSP42V01 Page: 196 of 209 (3) EUT Photo Report No： 134094R-RFUSP42V01 Page: 197 of 209 (4) EUT Photo (Power Adatper: HON-KW ANG, HK-AX-120A200-US) (5) EUT Photo Report No： 134094R-RFUSP42V01 Page: 198 of 209 (6) EUT Photo

FCC ID.: VGYV2860VN FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. VDSL2 Security Firewall Model No.: Vigor2860 FCC ID : VGYV2860VN S/N: Made in Taiwan Trade name: DrayTek Model number.: Vigor2860

FCC ID.: VGYV2860VN FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. VDSL2 Security Firewall Model No.: Vigor2860 FCC ID : VGYV2860VN S/N: Made in Taiwan Trade name: DrayTek Model number.: Vigor2860

Report No： 134094R-RFUSP42V01 Page: 199 of 209 (7) EUT Photo (8) EUT Photo Report No： 134094R-RFUSP42V01 Page: 200 of 209 (9) EUT Photo (10) EUT Photo Report No： 134094R-RFUSP42V01 Page: 201 of 209 (11) EUT Photo (12) EUT Photo Report No： 134094R-RFUSP42V01 Page: 202 of 209 (13) EUT Photo (14) EUT Photo Report No： 134094R-RFUSP42V01 Page: 203 of 209 (15) EUT Photo (16) EUT Photo Report No： 134094R-RFUSP42V01 Page: 204 of 209 (17) EUT Photo (18) EUT Photo Report No： 134094R-RFUSP42V01 Page: 205 of 209 (19) EUT Photo (2.4G MB) Report No： 134094R-RFUSP42V01 Page: 206 of 209 (20) EUT Photo (21) EUT Photo Report No： 134094R-RFUSP42V01 Page: 207 of 209 (22) EUT Photo (23) EUT Photo Report No： 134094R-RFUSP42V01 Page: 208 of 209 (24) EUT Photo (5G MB) Report No： 134094R-RFUSP42V01 Page: 209 of 209 (25) EUT Photo (Dipole Antenna) (26) EUT Photo (Dipole Antenna)

Report No. 134094R-RF-US-Exp Page: 1 of 6 RF Exposure Evaluation Declaration Product Name ： VDSL2 Security Firewall Model No. ： Vigor2860, Other models please refer to the report attachment 1 FCC ID. ： VGYV2860VN Applicant : DrayTek Corp. Address : No.26 Fu Shing Rd., HuKou County,Hsin-Chu Industrial Park,Hsin-Chu,Taiwan 303 R.O.C Date of Receipt : 2013/03/27 Issued Date : 2013/11/29 Report No. : 134094R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 134094R-RF-US-Exp Page: 2 of 6 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 134094R-RF-US-Exp Page: 3 of 6 1.3. Test Result of RF Exposure Evaluation Product VDSL2 Security Firewall Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.95dBi or 1.57 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 38.9045 0.01215 6 2437 36.1410 0.01129 11 2462 28.7740 0.00899 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 55.0808 0.01720 6 2437 51.6416 0.01613 11 2462 44.9780 0.01405 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 134094R-RF-US-Exp Page: 4 of 6 Product VDSL2 Security Firewall Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.95dBi or 1.57 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) (ANT 0+1) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 53.2108 0.01662 6 2437 46.2381 0.01444 11 2462 40.9261 0.01278 IEEE 802.11n (40MHz) (ANT 0+1) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 44.7713 0.01398 6 2437 45.7088 0.01428 9 2452 43.4510 0.01357 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 134094R-RF-US-Exp Page: 5 of 6 Attachment 1 EUT Detailed Model Number and Detailed Difference Mode Model-name VDSL2 #1 (RJ11) VDSL2 #2 (RJ11) FXS (RJ11) FXO (RJ11) WLAN-1 WLAN-2 WLAN mode WAN #1 RJ45 Port #1~6 USB 2.0 x 2 1 Vigor2860 V RJ45 LAN#1~6(RJ45)V 2 Vigor2860n V V (2.4G) 1 RJ45 LAN#1~6(RJ45)V 3 Vigor2860V V V V RJ45 LAN#1~6(RJ45)V 4 Vigor2860Vn V V V V (2.4G) 1 RJ45 LAN#1~6(RJ45)V 5 Vigor2862 V V(dual) RJ45 LAN#1~6(RJ45)V 6 Vigor2862n V V(dual) V (2.4G) 1 RJ45 LAN#1~6(RJ45)V 7 Vigor2862V V V(dual) V V RJ45 LAN#1~6(RJ45)V 8 Vigor2862Vn V V(dual) V V V (2.4G) 1 RJ45 LAN#1~6(RJ45)V 9 Vigor2863 V V (bond) RJ45 LAN#1~6(RJ45)V 10 Vigor2863n V V (bond) V (2.4G) 1 RJ45 LAN#1~6(RJ45)V 11 Vigor2863V V V (bond) V V RJ45 LAN#1~6(RJ45)V 12 Vigor2863Vn V V (bond) V V V (2.4G) 1 RJ45 LAN#1~6(RJ45)V 13 Vigor2925 RJ45 WAN#2/LAN#1~5 (RJ45) V 14 Vigor2925n V (2.4G) 1 RJ45 WAN#2/LAN#1~5 (RJ45) V 15 Vigor2925V V V RJ45 WAN#2/LAN#1~5 (RJ45) V 16 Vigor2925Vn V V V (2.4G) 1 RJ45 WAN#2/LAN#1~5 (RJ45) V 17 Vigor2925F SFP WAN#2/LAN#1~5 (RJ45) V 18 Vigor2925Fn V (2.4G) 1 SFP WAN#2/LAN#1~5 (RJ45) V 19 Vigor2925FV V V SFP WAN#2/LAN#1~5 (RJ45) V 20 Vigor2925FVn V V V (2.4G) 1 SFP WAN#2/LAN#1~5 (RJ45) V 21 Vigor2860F V SFP LAN#1~6(RJ45)V 22 Vigor2860Fn V V (2.4G) 1 SFP LAN#1~6(RJ45)V 23 Vigor2860FV V V V SFP LAN#1~6(RJ45)V Report No. 134094R-RF-US-Exp Page: 6 of 6 Mode Model-name VDSL2 #1 (RJ11) VDSL2 #2 (RJ11) FXS (RJ11) FXO (RJ11) WLAN-1 WLAN-2 WLAN mode WAN #1 RJ45 Port #1~6 USB 2.0 x 2 24 Vigor2860FVn V V V V (2.4G) 1 SFP LAN#1~6(RJ45)V 25 VigorIPPBX2860 V V V RJ45 LAN#1~6(RJ45)V 26 VigorIPPBX2860n V V V V (2.4G) 1 RJ45 LAN#1~6(RJ45)V 27 Vigor3220 RJ45 LAN#2/WAN#1~5 (RJ45) V 28 Vigor3220n V (2.4G) 1 RJ45 LAN#2/WAN#1~5 (RJ45) V 29 Vigor3220V V V RJ45 LAN#2/WAN#1~5 (RJ45) V 30 Vigor3220Vn V V V (2.4G) 1 RJ45 LAN#2/WAN#1~5 (RJ45) V 31 Vigor3220F SFP LAN#2/WAN#1~5 (RJ45) V 32 Vigor3220Fn V (2.4G) 1 SFP LAN#2/WAN#1~5 (RJ45) V 33 Vigor3220FV V V SFP LAN#2/WAN#1~5 (RJ45) V 34 Vigor3220FVn V V V (2.4G) 1 SFP LAN#2/WAN#1~5 (RJ45) V

Report No： 134094R-RFUSP42V01 Page: 1 of 209 FCC Test Report Product Name ： VDSL2 Security Firewall Model No. ： Vigor2860, Other models please refer to the report attachment 1 FCC ID. ： VGYV2860VN Applicant ： DrayTek Corp. Address ： No.26 Fu Shing Rd., HuKou County,Hsin-Chu Industrial Park,Hsin-Chu,Taiwan 303 R.O.C Date of Receipt： 2013/03/27 Issued Date ：2013/11/29 Report No. ：134094R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 134094R-RFUSP42V01 Page: 2 of 209 Test Report Certification Issued Date : 2013/11/29 Report No. : 134094R-RFUSP42V01 Product Name ： VDSL2 Security Firewall Applicant ： DrayTek Corp. Address ： No.26 Fu Shing Rd., HuKou County,Hsin-Chu Industrial Park,Hsin-Chu,Taiwan 303 R.O.C Manufacturer : DrayTek Corp. Model No. ： Vigor2860, Other models please refer to the report attachment 1 FCC ID. ： VGYV2860VN EUT Voltage : AC 100-240V, 50-60Hz Trade Name ： DrayTek Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247:2012 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Adm. Specialist) Tested By : ( JuBo Shen / Engineer) Approved By : ( Roy Wang / Assistant Manager) Report No： 134094R-RFUSP42V01 Page: 3 of 209 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 134094R-RFUSP42V01 Page: 4 of 209 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description ................................................................................................ 10 1.3. Test Mode ..................................................................................................................... 11 1.4. Tested System Details .................................................................................................. 12 1.5. Configuration of tested System .................................................................................... 13 1.6. EUT Exercise Software ................................................................................................ 13 1.7. Test Facility...................................................................................................................14 2. Conducted Emission .......................................................................................................... 15 2.1. Test Equipment............................................................................................................. 15 2.2. Test Setup .................................................................................................................... 15 2.3. Limits ............................................................................................................................ 16 2.4. Test Procedure ............................................................................................................. 16 2.5. Test Specification.......................................................................................................... 16 2.6. Uncertainty ................................................................................................................... 16 2.7. Test Result....................................................................................................................17 2.8. Test Photo .................................................................................................................... 21 3. Peak Power Output ............................................................................................................ 23 3.1. Test Equipment............................................................................................................. 23 3.2. Test Setup .................................................................................................................... 23 3.3. Test procedures ............................................................................................................ 23 3.4. Limits ............................................................................................................................ 23 3.5. Test Specification.......................................................................................................... 23 3.6. Uncertainty ................................................................................................................... 23 3.…

Text truncated - open the document above for the full version.

Report No： 134094R-RFUSP42V01 Page: 21 of 209 2.8. Test Photo Test Mode ： Mode 1: Transmit(Adapter:PA1030-21) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit(Adapter:PA1030-21) Description： Back View of Conducted Emission Test Setup Report No： 134094R-RFUSP42V01 Page: 22 of 209 Test Mode ： Mode2: Transmit (Adapter: HK-AX-120A200-US) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode2: Transmit (Adapter: HK-AX-120A200-US) Description： Back View of Conducted Emission Test Setup Report No： 134094R-RFUSP42V01 Page: 94 of 209 4.8. Test Photo Test Mode ： Mode 1: Transmit(Adapter:PA1030-21) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit(Adapter:PA1030-21) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 134094R-RFUSP42V01 Page: 95 of 209 Test Mode ： Mode 1: Transmit(Adapter:PA1030-21) Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit(Adapter:PA1030-21) Description： Back View of Radiated Emission Test Setup (Horn) Report No： 134094R-RFUSP42V01 Page: 96 of 209 Test Mode ： Mode 2: Transmit (Adapter: HK-AX-120A200-US) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 2: Transmit (Adapter: HK-AX-120A200-US) Description： Back View of Radiated Emission Test Setup (Bi-Log)
