VGYV2912NDual-WAN Security Router

Vigor2912 Series Quick Start Guide i Vigor2912 Series Quick Start Guide ii Vigor2912 Series Quick Start Guide i Vigor2912 Series Dual-WAN Security Router Quick Start Guide Version: 1.0 Firmware Version: V3.7.1_RC4a (For future update, please visit DrayTek web site) Date: 20/06/2013 Vigor2912 Series Quick Start Guide ii Copyright Information Copyright Declarations Copyright 2013 All rights reserved. This publication contains information that is protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. Trademarks The following trademarks are used in this document:
Microsoft is a registered trademark of Microsoft Corp.
Windows, Windows 95, 98, Me, NT, 2000, XP, 7 and Explorer are trademarks of Microsoft Corp.
Apple and Mac OS are registered trademarks of Apple Computer Inc.
Other products may be trademarks or registered trademarks of their respective manufacturers. Safety Instructions and Approval Safety Instructions
Read the installation guide thoroughly before you set up the router.
The router is a complicated electronic unit that may be repaired only be authorized and qualified personnel. Do not try to open or repair the router yourself.
Do not place the router in a damp or humid place, e.g. a bathroom.
Do not stack the routers.
The router should be used in a sheltered area, within a temperature range of +5 to +40 Celsius.
Do not expose the router to direct sunlight or other heat sources. The housing and electronic components may be damaged by direct sunlight or heat sources.
Do not deploy the cable for LAN connection outdoor to prevent electronic shock hazards.
Keep the package out of reach of children.
When you want to dispose of the router, please follow local regulations on conservation of the environment. Warranty We warrant to the original end user (purchaser) that the router will be free from any defects in workmanship or materials for a period of two (2) years from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we deem necessary tore-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the right to revise the manual and online documentation and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. Be a Registered Owner Web registration is preferred. You can register your Vigor router via http://www.draytek.com. Firmware & Tools Updates Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. http://www.draytek.com Vigor2912 Series Quick Start Guide iii European Community Declarations Manufacturer: DrayTek Corp. Address: No. 26, Fu Shing Road, Hukou Township, Hsinchu Industrial Park, Hsinchu County, Taiwan 303 Product: Vigor2912 Series Router DrayTek Corp. declares that Vigor2912 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE 1999/5/EC, ErP 2009/125/EC and RoHS 2011/65/EU . The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EEC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B. The product conforms to the requirements of Low Voltage (LVD) Directive 2006/95/EC by complying with the requirements set forth in EN60950-1. This product is designed for the 2.4GHz WLAN network throughout the EC region. Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device may accept any interference received, including interference that may cause undesired operation. This equipment complies with RFCC radiation exposure limits set forth for an uncontrolled environment. The antenna/transmitter sh…

Text truncated - open the document above for the full version.

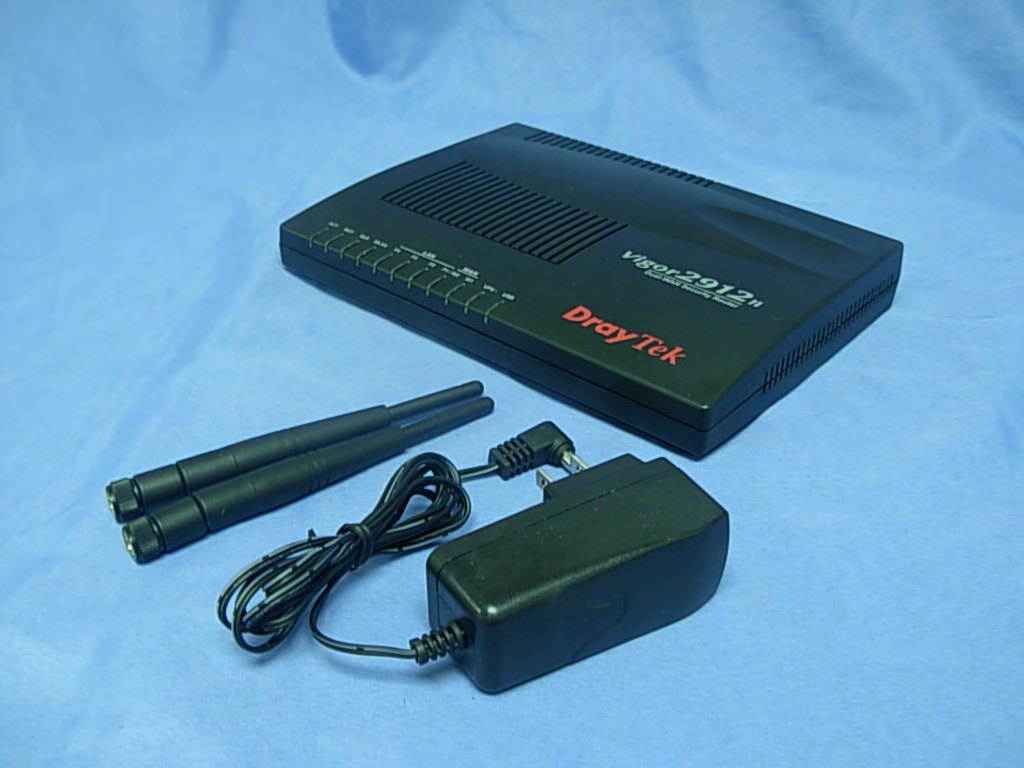

Report No： 138169R-RFUSP42V01 Page: 244 of 253 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

No.26 Fu Shing Rd., HuKou County,Hsin-Chu Industrial Park,Hsin-Chu,Taiwan 303 R.O.C. FCC ID.: VGYV2912N FCC ID AND DoC Label

Report No： 138169R-RFUSP42V01 Page: 245 of 253 (3) EUT Photo (4) EUT Photo Report No： 138169R-RFUSP42V01 Page: 246 of 253 (5) EUT Photo (6) EUT Photo Report No： 138169R-RFUSP42V01 Page: 247 of 253 (7) EUT Photo (8) EUT Photo Report No： 138169R-RFUSP42V01 Page: 248 of 253 (9) EUT Photo (10) EUT Photo Report No： 138169R-RFUSP42V01 Page: 249 of 253 (11) EUT Photo (12) EUT Photo Report No： 138169R-RFUSP42V01 Page: 250 of 253 (13) EUT Photo (14) EUT Photo Report No： 138169R-RFUSP42V01 Page: 251 of 253 (15) EUT Photo (16) EUT Photo (2.4G MB) Report No： 138169R-RFUSP42V01 Page: 252 of 253 (17) EUT Photo (18) EUT Photo (ANT) Report No： 138169R-RFUSP42V01 Page: 253 of 253 (19) EUT Photo (ANT)

Report No. 138169R-RF-US-Exp Page: 1 of 5 RF Exposure Evaluation Declaration Product Name ： Dual-WAN Security Router Model No. ： Vigor2912n, Vigor2913n, Vigor2915n FCC ID. ： VGYV2912N Applicant : DrayTek Corp. Address : No.26 Fu Shing Rd., HuKou County, Hsin-Chu Industrial Park, Hsin-Chu,Taiwan 303 R.O.C. Date of Receipt : 2013/08/06 Date of Declaration : 2014/01/28 Report No. : 138169R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 138169R-RF-US-Exp Page: 2 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 138169R-RF-US-Exp Page: 3 of 5 1.3. Test Result of RF Exposure Evaluation Product Dual-WAN Security Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 81.6582 0.02567 6 2437 66.9885 0.02106 11 2462 51.4044 0.01616 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 42.9536 0.01350 6 2437 36.6438 0.01152 11 2462 11.4551 0.00360 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 138169R-RF-US-Exp Page: 4 of 5 Product Dual-WAN Security Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 53.3826 0.01678 6 2437 43.1221 0.01355 11 2462 27.5043 0.00865 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 138169R-RF-US-Exp Page: 5 of 5 Product Dual-WAN Security Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (40MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 15.6243 0.00491 6 2437 15.6531 0.00492 9 2452 14.2889 0.00449 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 138169R-RFUSP42V01 Page: 1 of 253 FCC Test Report Product Name ： Dual-WAN Security Router Model No. ： Vigor2912n, Vigor2913n, Vigor2915n FCC ID. ： VGYV2912N Applicant： DrayTek Corp. Address ： No.26 Fu Shing Rd., HuKou County, Hsin-Chu Industrial Park, Hsin-Chu,Taiwan 303 R.O.C. Date of Receipt：2013/08/06 Issued Date ：2014/01/28 Report No. ：138169R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 138169R-RFUSP42V01 Page: 2 of 253 Test Report Certification Issued Date : 2014/01/28 Report No. : 138169R-RFUSP42V01 Product Name ： Dual-WAN Security Router Applicant ： DrayTek Corp. Address ： No.26 Fu Shing Rd., HuKou County, Hsin-Chu Industrial Park, Hsin-Chu,Taiwan 303 R.O.C. Model No. ： Vigor2912n, Vigor2913n, Vigor2915n FCC ID. ： VGYV2912N EUT Test Voltage : AC 100-240V, 50/60Hz Trade Name ： DrayTek Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2012 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Demi Chang / Engineering Adm. Specialist ) Reviewed By : ( Bruno Tsai / Assistant Engineer) Approved By : ( Roy Wang / Director ) Report No： 138169R-RFUSP42V01 Page: 3 of 253 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 NCC, Certificate No : NCC-RCB-07 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 138169R-RFUSP42V01 Page: 4 of 253 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description ................................................................................................ 10 1.3. Test Mode ..................................................................................................................... 11 1.4. Tested System Details .................................................................................................. 12 1.5. Configuration of tested System .................................................................................... 13 1.6. EUT Exercise Software ................................................................................................ 13 1.7. Test Facility...................................................................................................................14 2. Conducted Emission .......................................................................................................... 15 2.1. Test Equipment............................................................................................................. 15 2.2. Test Setup .................................................................................................................... 15 2.3. Limits ............................................................................................................................ 16 2.4. Test Procedure ............................................................................................................. 16 2.5. Test Specification.......................................................................................................... 16 2.6. Uncertainty ................................................................................................................... 16 2.7. Test Result....................................................................................................................17 2.8. Test Photo .................................................................................................................... 19 3. Peak Power Output ............................................................................................................ 20 3.1. Test Equipment............................................................................................................. 20 3.2. Test Setup .................................................................................................................... 20 3.3. Test procedures ............................................................................................................ 20 3.4. Limits ............................................................................................................................ 20 3.5. Test Specification.......................................................................................................... 20 3.6. Uncertainty ................................................................................................................... 20 3.7. Test Result............…

Text truncated - open the document above for the full version.

Report No： 138169R-RFUSP42V01 Page: 149 of 253 2422MHz (30MHz-1GHz)-802.11n(40MHz) (Ant 0) 2422MHz (1GHz-5GHz) -802.11n(40MHz) (Ant 0) Report No： 138169R-RFUSP42V01 Page: 150 of 253 2422MHz (5GHz-9GHz)-802.11n(40MHz) (Ant 0) 2422MHz (9GHz-13GHz) -802.11n(40MHz) (Ant 0) Report No： 138169R-RFUSP42V01 Page: 151 of 253 2422MHz (13GHz-17GHz)-802.11n(40MHz) (Ant 0) 2422MHz (17GHz-21GHz) -802.11n(40MHz) (Ant 0) Report No： 138169R-RFUSP42V01 Page: 152 of 253 2422MHz (21GHz-25GHz)-802.11n(40MHz) (Ant 0) 2422MHz (30MHz-1GHz)-802.11n(40MHz) (Ant 1) Report No： 138169R-RFUSP42V01 Page: 153 of 253 2422MHz (1GHz-5GHz) -802.11n(40MHz) (Ant 1) 2422MHz (5GHz-9GHz)-802.11n(40MHz) (Ant 1) Report No： 138169R-RFUSP42V01 Page: 154 of 253 2422MHz (9GHz-13GHz) -802.11n(40MHz) (Ant 1) 2422MHz (13GHz-17GHz)-802.11n(40MHz) (Ant 1) Report No： 138169R-RFUSP42V01 Page: 155 of 253 2422MHz (17GHz-21GHz) -802.11n(40MHz) (Ant 1) 2422MHz (21GHz-25GHz)-802.11n(40MHz) (Ant 1) Report No： 138169R-RFUSP42V01 Page: 156 of 253 2437MHz (30MHz-1GHz) -802.11n(40MHz) (Ant 0) 2437MHz (1GHz-5GHz) -802.11n(40MHz) (Ant 0) Report No： 138169R-RFUSP42V01 Page: 157 of 253 2437MHz (5GHz-9GHz) -802.11n(40MHz) (Ant 0) 2437MHz (9GHz-13GHz) -802.11n(40MHz) (Ant 0) Report No： 138169R-RFUSP42V01 Page: 158 of 253 2437MHz (13GHz-17GHz) -802.11n(40MHz) (Ant 0) 2437MHz (17GHz-21GHz) -802.11n(40MHz) (Ant 0) Report No： 138169R-RFUSP42V01 Page: 159 of 253 2437MHz (21GHz-25GHz) -802.11n(40MHz) (Ant 0) 2437MHz (30MHz-1GHz) -802.11n(40MHz) (Ant 1) Report No： 138169R-RFUSP42V01 Page: 160 of 253 2437MHz (1GHz-5GHz) -802.11n(40MHz) (Ant 1) 2437MHz (5GHz-9GHz) -802.11n(40MHz) (Ant 1) Report No： 138169R-RFUSP42V01 Page: 161 of 253 2437MHz (9GHz-13GHz) -802.11n(40MHz) (Ant 1) 2437MHz (13GHz-17GHz) -802.11n(40MHz) (Ant 1) Report No： 138169R-RFUSP42V01 Page: 162 of 253 2437MHz (17GHz-21GHz) -802.11n(40MHz) (Ant 1) 2437MHz (21GHz-25GHz) -802.11n(40MHz) (Ant 1) Report No： 138169R-RFUSP42V01 Page: 163 of 253 2452MHz (30MHz-1GHz)-802.11n(40MHz) (Ant 0) 2452MHz (1GHz-5GHz) -802.11n(40MHz) (Ant 0) Report No： 138169R-RFUSP42V01 Page: 164 of 253 2452MHz (5GHz-9GHz)-802.11n(40MHz) (Ant 0) 2452MHz (9GHz-13GHz) -802.11n(40MHz) (Ant 0) Report No： 138169R-RFUSP42V01 Page: 165 of 253 2452MHz (13GHz-17GHz)-802.11n(40MHz) (Ant 0) 2452MHz (17GHz-21GHz) -802.11n(40MHz) (Ant 0) Report No： 138169R-RFUSP42V01 Page: 166 of 253 2452MHz (21GHz-25GHz)-802.11n(40MHz) (Ant 0) 2452MHz (30MHz-1GHz)-802.11n(40MHz) (Ant 1) Report No： 138169R-RFUSP42V01 Page: 167 of 253 2452MHz (1GHz-5GHz) -802.11n(40MHz) (Ant 1) 2452MHz (5GHz-9GHz)-802.11n(40MHz) (Ant 1) Report No： 138169R-RFUSP42V01 Page: 168 of 253 2452MHz (9GHz-13GHz) -802.11n(40MHz) (Ant 1) 2452MHz (13GHz-17GHz)-802.11n(40MHz) (Ant 1) Report No： 138169R-RFUSP42V01 Page: 169 of 253 2452MHz (17GHz-21GHz) -802.11n(40MHz) (Ant 1) 2452MHz (21GHz-25GHz)-802.11n(40MHz) (Ant 1) Report No： 138169R-RFUSP42V01 Page: 170 of 253 6. Radiated Emission Band Edge 6.1. Test Equipment The following test equipments are used during the test: Radiated Emission Band Edge / CB1 Instrument Manufacturer Model No. Serial No Next Cal. Date Double Ridged Guide Horn Antenna Schwarzback BBHA 9120 D743 2014/02/17 Spectrum Analyzer Agilent E4440A MY46187335 2015/01/12 k Type Cable Huber Suhner Sucoflex 102 25623/2 2014/02/21 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 6.2. Test Setup Report No： 138169R-RFUSP42V01 Page: 171 of 253 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. 6.4. Test Procedure The EUT was setup according to ANSI C63.4: 2009 and tested according to DTS test procedure of KDB558074 v03r01 for compliance to FCC 47CFR 15.247 requirements. The EUT and its simulators are placed on a turn table which is 0.8 meter above ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna can move up and down between 1 meter and 4 meters to find out the maximum emission level. Both horizontal and vertical polarization of the antenna are set on measurement. In order to find the maximum emission, all of the interface cables must be manipulated according to ANSI C63.4: 2009 on radiated measurement. 6.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2012 6.6. Uncertainty The measurement uncertainty ± 3.9 dB above 1GHz Report No： 138169R-RFUSP42V01 Page: 172 of 253 6.7. Test Result Radiated is defined as Site : CB1 Time : 2013/10/16 - 11:06 Limit : FCC_SpartC_15.247_H_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : AC 120V/60Hz EUT : Dual-WAN Security Router Note : Mode 1: Transmit_802.11b_2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 30.059 24.01054.069-19.931 74.000 PEAK 2 2385.000 30.836 25.72056.556-17.444 74.000 PEAK 3 2390.000 30.888 25.13456.022-17.978 74.000 PEAK 4 * 2411.400 31.110 68.999100.10926.109 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 138169R-RFUSP42V01 Page: 173 of 253 Site : CB1 Time : 2013/10/16 - 11:06 Limit : FCC_SpartC_15.247_H_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G-1_0901 - HORIZONTAL Power : AC 120V/60Hz EUT : Dual-WAN Security Router Note : Mode 1: Transmit_802.11b_2412MHz Frequency (MHz) Correct F…

Text truncated - open the document above for the full version.

Report No： 138169R-RFUSP42V01 Page: 19 of 253 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No： 138169R-RFUSP42V01 Page: 85 of 253 4.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 138169R-RFUSP42V01 Page: 86 of 253 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Horn)
