V V i i g g o o r r A A P P 8 8 1 1 0 0 8 8 0 0 2 2 . . 1 1 1 1 n n A A c c c c e e s s s s P P o o i i n n t t Quick Start Guide Version: 1.0 (For future update, please visit DrayTek web site) Date: Dec. 13, 2013 Warranty We warrant to the original end user (purchaser) that the router will be free from any defects in workmanship or materials for a period of two (2) years from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we deem necessary tore-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the right to revise the manual and online documentation and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. European Community Declarations Manufacturer: DrayTek Corp. Address: No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu, Taiwan 303 Product: VigorAP 810 DrayTek Corp. declares that VigorAP 810 is in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B. The product conforms to the requirements of Low Voltage (LVD) Directive 2006/95/EC by complying with the requirements set forth in EN60950-1. This product is designed for 2.4GHz WLAN network throughout the EC region and Switzerland with restrictions in France. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device may accept any interference received, including interference that may cause undesired operation. FCC Exposure notice This equipment complies with RFCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum 20cm between the radiator and your body. Package Content Quick Start Guide CD RJ-45 Cable (Ethernet) Antenna The type of the power adapter depends on the country that the router will be installed: UK-type power adapter EU-type power adapter USA/Taiwan-type power adapter AU/NZ-type Power Adapter Descriptions of Components LED Status Explanation ACT Off The system is not ready or is failed. Blinking The system is ready and can work normally. USB On A USB device is connected and active. Blinking The data is transmitting. LAN B On A normal connection is through its corresponding port. Off LAN is disconnected. Blinking Data is transmitting (sending/receiving). LAN A1 - A4 On A normal connection is through its corresponding port. Off LAN is disconnected. Blinking Data is transmitting (sending/receiving). WLAN (Green LED) on WLAN button On Press the button and release it within 2 seconds. When the wireless function is ready, the green LED will be on. Off Press the button and release it within 2 seconds to turn off the WLAN function. When the wireless function is not ready, the LED will be off. Blinking (Green) Data is transmitting (sending/receiving). WPS (Orange LED) on WLAN button Blinking (Orange) When WPS function is enabled by web user interface, press this button for more than 2 seconds to wait for client’s device making network connection through WPS. When the orange LED blinks with 1 second cycle for 2 minutes, it means that the AP is waiting for wireless client to connect with it. USB Connector for a printer. Interface Description LAN B Connecter for xDSL / Cable modem or router. LAN A1 (PoE) - A4 Connecter for xDSL / Cable modem or router. Restore the default settings. Usage: Turn on the router. Press the button and keep for more than 10 seconds. Then the router will restart with the factory default configuration. ON/OFF: Power switch. PWR: Connecter for a power adapter. Installing Your Router This section will guide you to install the AP through hardware connection and configure the settings through web browser. Before starting to conf…

Text truncated - open the document above for the full version.

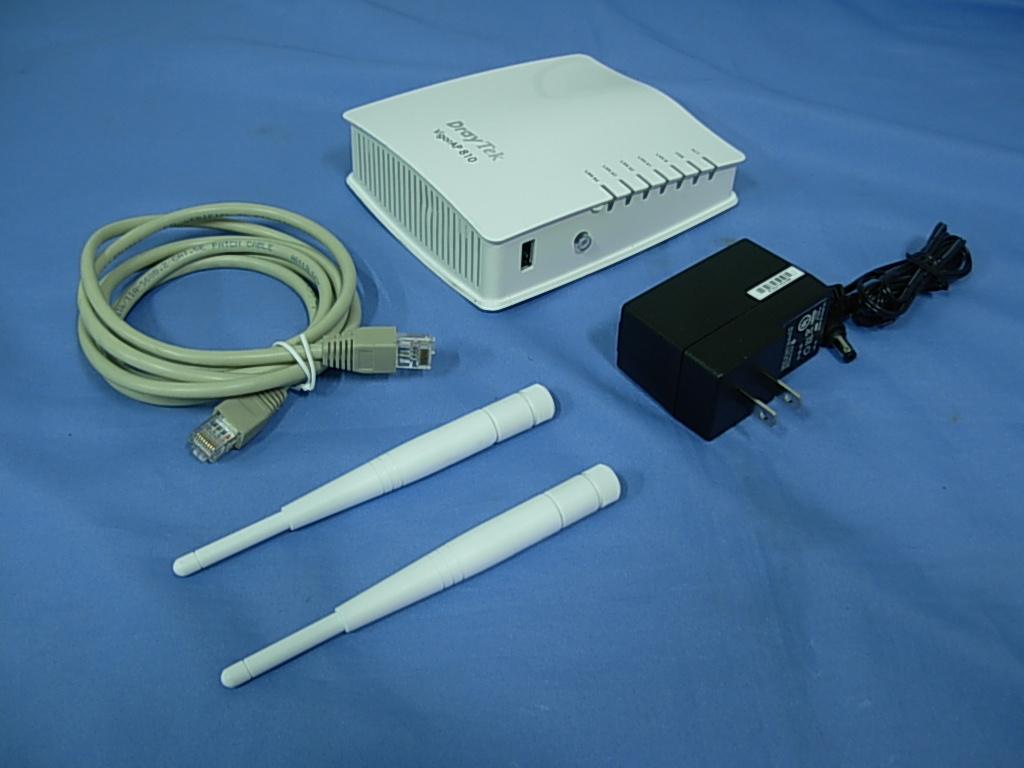

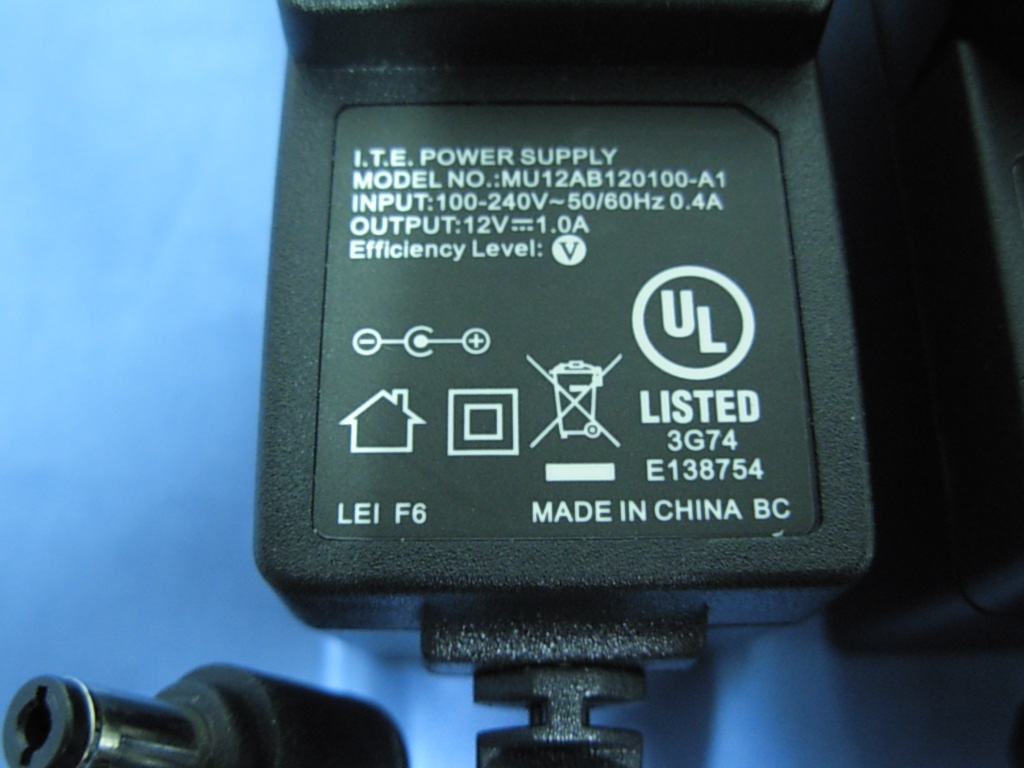

Report No： 13C0398R-RFUSP27V00 Page: 327 of 340 Attachement EUT Photograph (1) EUT Photo (Antenna: Walsin / PI_RFDPA131300SBAB802 , EUT: VigorAP820, VigorAP810) (2) EUT Photo Report No： 13C0398R-RFUSP27V00 Page: 328 of 340 (3) EUT Photo (Adapter) (4) EUT Photo (Antenna: Walsin / PI_RFDPA131300SBAB802 , EUT: VigorAP820, VigorAP810 ) Report No： 13C0398R-RFUSP27V00 Page: 329 of 340 (5) EUT Photo ( Walsin / PI_RFDPA131300SBAB802, EUT: VigorAP710 ) (6) EUT Photo Report No： 13C0398R-RFUSP27V00 Page: 330 of 340 (7) EUT Photo (Adapter) (8) EUT Photo ( Walsin / PI_RFDPA131300SBAB802, EUT: VigorAP710 ) Report No： 13C0398R-RFUSP27V00 Page: 331 of 340 (9) EUT Photo (Antenna: Walsin / PI_RFDPA131311NNAB301, EUT: FLY-215 ) (10) EUT Photo Report No： 13C0398R-RFUSP27V00 Page: 332 of 340 (11) EUT Photo (Adapter) (12) EUT Photo (Antenna: Walsin / PI_RFDPA131311NNAB301 , EUT: FLY-215 ) Report No： 13C0398R-RFUSP27V00 Page: 333 of 340 (13) EUT Photo (Antenna: Walsin / PI_RFDPA131307NNAB301 , EUT: FLY-215 ) (14) EUT Photo Report No： 13C0398R-RFUSP27V00 Page: 334 of 340 (15) EUT Photo (Adapter) (16) EUT Photo (Antenna: Walsin / PI_RFDPA131307NNAB301 , EUT: FLY-215 )

DrayTek Corp. No.26 Fu Shing Rd., HuKou County, Hsin-Chu Industrial Park, Hsin-Chu, Taiwan 303 R.O.C. FCC ID.: VGYVAP810 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Access Point Model No.: VigorAP820, VigorAP810, VigorAP710, VigorFly215 FCC ID : VGYVAP810 S/N: Made in Taiwan Trade name: DrayTek Model number.: VigorAP820, VigorAP810, VigorAP710, VigorFly215

Report No： 13C0398R-RFUSP27V00 Page: 335 of 340 (17) EUT Photo (18) EUT Photo Report No： 13C0398R-RFUSP27V00 Page: 336 of 340 (19) EUT Photo (20) EUT Photo Report No： 13C0398R-RFUSP27V00 Page: 337 of 340 (21) EUT Photo (22) EUT Photo Report No： 13C0398R-RFUSP27V00 Page: 338 of 340 (23) EUT Photo (MB) (24) EUT Photo (Antenna: Walsin / PI_RFDPA131300SBAB802) Report No： 13C0398R-RFUSP27V00 Page: 339 of 340 (25) EUT Photo (Antenna: Walsin / PI_RFDPA131300SBAB802) (26) EUT Photo (Antenna: Walsin / PI_RFDPA131307NNAB301(Short), PI_RFDPA131311NNAB301(Long) ) Report No： 13C0398R-RFUSP27V00 Page: 340 of 340 (27) EUT Photo (Antenna: Walsin / PI_RFDPA131307NNAB301(Short), PI_RFDPA131311NNAB301(Long) )

Report No. 13C0398R-RF-US-Exp Page: 1 of 4 RF Exposure Evaluation declaration Product Name ： Access Point Model No. ： VigorAP820, VigorAP810, VigorAP710, VigorFly215 FCC ID. ： VGYVAP810 Applicant : DrayTek Corp. Address : No.26 Fu Shing Rd., HuKou County, Hsin-Chu Industrial Park, Hsin-Chu, Taiwan 303 R.O.C. Date of Receipt : 2013/12/13 Date of Declaration : 2014/01/22 Report No. : 13C0398R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 13C0398R-RF-US-Exp Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 13C0398R-RF-US-Exp Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product Access Point Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.2dBi or 1.66 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 284.4461 0.09394 6 2437 238.7811 0.07886 11 2462 242.1029 0.07995 IEEE 802.11g ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 226.9865 0.07496 6 2437 797.9947 0.26353 11 2462 119.6741 0.03952 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 13C0398R-RF-US-Exp Page: 4 of 4 Product Access Point Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.2dBi or 1.66 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 267.3006 0.08827 6 2437 922.5714 0.30468 11 2462 104.4720 0.03450 IEEE 802.11n (40MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 201.3724 0.06650 6 2437 170.6082 0.05634 9 2452 82.2243 0.02715 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report NoǺ 13C0398R-RFUSP27V00 Page: 1 of 340 FCC Test Report Product Name Ǻ Access Point Model No. Ǻ VigorAP820, VigorAP810, VigorAP710, VigorFly215 FCC ID. Ǻ VGYVAP810 ApplicantǺ DrayTek Corp. AddressǺ No.26 Fu Shing Rd., HuKou County, Hsin-Chu Industrial Park, Hsin-Chu, Taiwan 303 R.O.C. Date of ReceiptǺ2013/12/03 Issued Date Ǻ2014/01/22 Report No. Ǻ13C0398R-RFUSP27V00 Report Version ǺV1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report NoǺ 13C0398R-RFUSP27V00 Page: 2 of 340 Test Report Certification Issued Date : 2014/01/22 Report No. : 13C0398R-RFUSP27V00 Product Name Κ Access Point Applicant ǺDrayTek Corp. Address ǺNo.26 Fu Shing Rd., HuKou County, Hsin-Chu Industrial Park, Hsin-Chu, Taiwan 303 R.O.C. Manufacturer ǺDrayTek Corp. Model No. ǺVigorAP820, VigorAP810, VigorAP710, VigorFly215 FCC ID. ǺVGYVAP810 EUT Voltage :AC 100-240V, 50-60Hz Trade Name ǺDrayTek Applicable Standard ǺFCC CFR Title 47 Part 15 Subpart C Section 15.247: 2012 ANSI C63.4: 2009 Test Result ǺComplied Thetest results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Fonbo Fang / Engineering Adm. Assistant ) Reviewed By : ( JuBo Shen / Engineer) Approved By : ( Roy Wang / Director ) Report NoǺ 13C0398R-RFUSP27V00 Page: 3 of 340 Laboratory Information We,QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. :TAF, Accreditation Number: 1313 USA:FCC, Registration Number: 365520 Canada:IC, Submission No: 150981 Report NoǺ 13C0398R-RFUSP27V00 Page: 4 of 340 TABLE OF CONTENTS Description Page 1.General Information........................................................................................................ 6 1.1.EUT Description .............................................................................................................6 1.2.Operational Description ................................................................................................ 10 1.3.Test Mode ..................................................................................................................... 11 1.4.Tested System Details .................................................................................................. 12 1.5.Configuration of tested System .................................................................................... 12 1.6.EUT Exercise Software ................................................................................................ 13 1.7.Test Facility................................................................................................................... 14 2.Conducted Emission .................................................................................................... 15 2.1.Test Equipment............................................................................................................. 15 2.2.Test Setup .................................................................................................................... 15 2.3.Limits ............................................................................................................................ 16 2.4.Test Procedure ............................................................................................................. 16 2.5.Test Specification..........................................................................................................16 2.6.Uncertainty ................................................................................................................... 16 2.7.Test Result.................................................................................................................... 17 2.8.Test Photo .................................................................................................................... 19 3.Peak Power Output ...................................................................................................... 20 3.1.Test Equipment............................................................................................................. 20 3.2.Test Setup .................................................................................................................... 20 3.3.Test procedures ............................................................................................................ 20 3.4.Limits ............................................................................................................................ 20 3.5.Test Specification..........................................................................................................20 3.6.Uncertainty ................................................................................................................... 20 3.7.Test Result....................................................................................…

Text truncated - open the document above for the full version.

Report NoǺ 13C0398R-RFUSP27V00 Page: 117 of 340 5. RF antenna conducted test 5.1. Test Equipment The following test equipments are used during the test: RF antenna conducted test / SR7 InstrumentManufacturerModel No. Serial No Next Cal. Date Spectrum Analyzer Agilent N9010A-EXA US47140172 2014/08/05 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 5.2. Test Setup RF Antenna Conducted Measurement: Report NoǺ 13C0398R-RFUSP27V00 Page: 118 of 340 5.3. Limits In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on an RF conducted or radiated measurement. Attenuation below the general limits specified in Section 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the radiated emission limits specified in Section 15.209(a) (see Section 15.205(c)). 5.4. Test Procedure The EUT was setup according to ANSI C63.4: 2009 and tested according to DTS test procedure of KDB558074 v03r01 for compliance to FCC 47CFR 15.247 requirements Set RBW = 100 kHz, Set VBW Њ 3xRBW, scan up through 10th harmonic. 5.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2012 5.6. Uncertainty Conducted is defined as ± 1.27dB Report NoǺ 13C0398R-RFUSP27V00 Page: 119 of 340 5.7. Test Result ProductAccess Point Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/12/05 Test Site SR7 IEEE 802.11b, ANT 0, Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 1 2412 53.403 20Њ Pass 6 2437 56.512 20Њ Pass 11 2462 55.854 20Њ Pass Channel 01 (2412MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 120 of 340 Channel 6 (2437MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 121 of 340 Channel 11 (2462MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 122 of 340 Product Access Point Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/12/05Test Site SR7 IEEE 802.11b, ANT 1, Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 1 2412 53.933 20Њ Pass 6 2437 55.647 20Њ Pass 11 2462 56.190 20Њ Pass Channel 01 (2412MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 123 of 340 Channel 6 (2437MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 124 of 340 Channel 11 (2462MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 125 of 340 ProductAccess Point Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/12/05 Test Site SR7 IEEE 802.11g, ANT 0, Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 1 2412 43.085 20Њ Pass 6 2437 54.189 20Њ Pass 11 2462 52.253 20Њ Pass Channel 01 (2412MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 126 of 340 Channel 6 (2437MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 127 of 340 Channel 11 (2462MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 128 of 340 Product Access Point Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/12/05Test Site SR7 IEEE 802.11g, ANT 1, Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 1 2412 41.380 20Њ Pass 6 2437 54.274 20Њ Pass 11 2462 45.550 20Њ Pass Channel 01 (2412MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 129 of 340 Channel 6 (2437MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 130 of 340 Channel 11 (2462MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 131 of 340 Product Access Point Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/12/05Test Site SR7 IEEE 802.11n (20MHz), ANT 0, Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 1 2412 43.431 20Њ Pass 6 2437 54.884 20Њ Pass 11 2462 50.079 20Њ Pass Channel 01 (2412MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 132 of 340 Channel 6 (2437MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 133 of 340 Channel 11 (2462MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 134 of 340 Product Access Point Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/12/05Test Site SR7 IEEE 802.11n (20MHz), ANT 1, Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 1 2412 43.854 20Њ Pass 6 2437 56.831 20Њ Pass 11 2462 48.792 20Њ Pass Channel 01 (2412MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 135 of 340 Channel 6 (2437MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 136 of 340 Channel 11 (2462MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 137 of 340 Product Access Point Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/12/05Test Site SR7 IEEE 802.11n (40MHz), ANT 0, Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 3 2422 38.009 20Њ Pass 6 2437 39.027 20Њ Pass 9 2452 45.893 20Њ Pass Channel 3 (2422MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 138 of 340 Channel 6 (2437MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 139 of 340 Channel 9 (2452MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 140 of 340 Product Access Point Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/12/05Test Site SR7 IEEE 802.11n (40MHz), ANT 1, Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 3 2422 37.407 20Њ Pass 6 2437 42.601 20Њ Pass 9 2452 43.282 20Њ Pass Channel 3 (2422MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 141 of 340 Channel 6 (2437MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 142 of 340 Channel 9 (2452MHz) Report NoǺ 13C0398R-RFUSP27V00 Page: 143 of 340 ProductAccess Point Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/12/05Test Site SR7 2412MHz (30MHz-1GHz)-802.11b (ANT 0) 2412MHz (1GHz-5GHz) -802.11b (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 144 of 340 2412MHz (5GHz-9GHz) -802.11b (ANT 0) 2412MHz (9GHz-13GHz) -802.11b (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 145 of 340 2412MHz (13GHz-17…

Text truncated - open the document above for the full version.

Report NoǺ 13C0398R-RFUSP27V00 Page: 180 of 340 2412MHz (5GHz-9GHz) -802.11g (ANT 1) 2412MHz (9GHz-13GHz) -802.11g (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 181 of 340 2412MHz (13GHz-17GHz) -802.11g (ANT 1) 2412MHz (17GHz-21GHz) -802.11g (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 182 of 340 2412MHz (21GHz-25GHz) -802.11g (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 183 of 340 2437MHz (30MHz-1GHz)-802.11g (ANT 1) 2437MHz (1GHz-5GHz) -802.11g (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 184 of 340 2437MHz (5GHz-9GHz) -802.11g (ANT 1) 2437MHz (9GHz-13GHz) -802.11g (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 185 of 340 2437MHz (13GHz-17GHz) -802.11g (ANT 1) 2437MHz (17GHz-21GHz) -802.11g (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 186 of 340 2437MHz (21GHz-25GHz) -802.11g (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 187 of 340 2462MHz (30MHz-1GHz)-802.11g (ANT 1) 2462MHz (1GHz-5GHz) -802.11g (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 188 of 340 2462MHz (5GHz-9GHz) -802.11g (ANT 1) 2462MHz (9GHz-13GHz) -802.11g (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 189 of 340 2462MHz (13GHz-17GHz) -802.11g (ANT 1) 2462MHz (17GHz-21GHz) -802.11g (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 190 of 340 2462MHz (21GHz-25GHz) -802.11g (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 191 of 340 2412MHz (30MHz-1GHz)- 802.11n (20MHz) (ANT 0) 2412MHz (1GHz-5GHz) -802.11n (20MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 192 of 340 2412MHz (5GHz-9GHz) -802.11n (20MHz) (ANT 0) 2412MHz (9GHz-13GHz) -802.11n (20MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 193 of 340 2412MHz (13GHz-17GHz) -802.11n (20MHz) (ANT 0) 2412MHz (17GHz-21GHz) -802.11n (20MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 194 of 340 2412MHz (21GHz-25GHz) -802.11n (20MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 195 of 340 2437MHz (30MHz-1GHz)- 802.11n (20MHz) (ANT 0) 2437MHz (1GHz-5GHz) -802.11n (20MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 196 of 340 2437MHz (5GHz-9GHz) -802.11n (20MHz) (ANT 0) 2437MHz (9GHz-13GHz) -802.11n (20MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 197 of 340 2437MHz (13GHz-17GHz) -802.11n (20MHz) (ANT 0) 2437MHz (17GHz-21GHz) -802.11n (20MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 198 of 340 2437MHz (21GHz-25GHz) -802.11n (20MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 199 of 340 2462MHz (30MHz-1GHz)- 802.11n (20MHz) (ANT 0) 2462MHz (1GHz-5GHz) -802.11n (20MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 200 of 340 2462MHz (5GHz-9GHz) -802.11n (20MHz) (ANT 0) 2462MHz (9GHz-13GHz) -802.11n (20MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 201 of 340 2462MHz (13GHz-17GHz) -802.11n (20MHz) (ANT 0) 2462MHz (17GHz-21GHz) -802.11n (20MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 202 of 340 2462MHz (21GHz-25GHz) -802.11n (20MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 203 of 340 2412MHz (30MHz-1GHz)- 802.11n (20MHz) (ANT 1) 2412MHz (1GHz-5GHz) -802.11n (20MHz) (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 204 of 340 2412MHz (5GHz-9GHz) -802.11n (20MHz) (ANT 1) 2412MHz (9GHz-13GHz) -802.11n (20MHz) (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 205 of 340 2412MHz (13GHz-17GHz) -802.11n (20MHz) (ANT 1) 2412MHz (17GHz-21GHz) -802.11n (20MHz) (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 206 of 340 2412MHz (21GHz-25GHz) -802.11n (20MHz) (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 207 of 340 2437MHz (30MHz-1GHz)- 802.11n (20MHz) (ANT 1) 2437MHz (1GHz-5GHz) -802.11n (20MHz) (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 208 of 340 2437MHz (5GHz-9GHz) -802.11n (20MHz) (ANT 1) 2437MHz (9GHz-13GHz) -802.11n (20MHz) (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 209 of 340 2437MHz (13GHz-17GHz) -802.11n (20MHz) (ANT 1) 2437MHz (17GHz-21GHz) -802.11n (20MHz) (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 210 of 340 2437MHz (21GHz-25GHz) -802.11n (20MHz) (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 211 of 340 2462MHz (30MHz-1GHz)- 802.11n (20MHz) (ANT 1) 2462MHz (1GHz-5GHz) -802.11n (20MHz) (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 212 of 340 2462MHz (5GHz-9GHz) -802.11n (20MHz) (ANT 1) 2462MHz (9GHz-13GHz) -802.11n (20MHz) (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 213 of 340 2462MHz (13GHz-17GHz) -802.11n (20MHz) (ANT 1) 2462MHz (17GHz-21GHz) -802.11n (20MHz) (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 214 of 340 2462MHz (21GHz-25GHz) -802.11n (20MHz) (ANT 1) Report NoǺ 13C0398R-RFUSP27V00 Page: 215 of 340 2422MHz (30MHz-1GHz)- 802.11n (40MHz) (ANT 0) 2422MHz (1GHz-5GHz) -802.11n (40MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 216 of 340 2422MHz (5GHz-9GHz) -802.11n (40MHz) (ANT 0) 2422MHz (9GHz-13GHz) -802.11n (40MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 217 of 340 2422MHz (13GHz-17GHz) -802.11n (40MHz) (ANT 0) 2422MHz (17GHz-21GHz) -802.11n (40MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 218 of 340 2422MHz (21GHz-25GHz) -802.11n (40MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 219 of 340 2437MHz (30MHz-1GHz)- 802.11n (40MHz) (ANT 0) 2437MHz (1GHz-5GHz) -802.11n (40MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 220 of 340 2437MHz (5GHz-9GHz) -802.11n (40MHz) (ANT 0) 2437MHz (9GHz-13GHz) -802.11n (40MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 221 of 340 2437MHz (13GHz-17GHz) -802.11n (40MHz) (ANT 0) 2437MHz (17GHz-21GHz) -802.11n (40MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 222 of 340 2437MHz (21GHz-25GHz) -802.11n (40MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 223 of 340 2452MHz (30MHz-1GHz)- 802.11n (40MHz) (ANT 0) 2452MHz (1GHz-5GHz) -802.11n (40MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 224 of 340 2452MHz (5GHz-9GHz) -802.11n (40MHz) (ANT 0) 2452MHz (9GHz-13GHz) -802.11n (40MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 225 of 340 2452MHz (13GHz-17GHz) -802.11n (40MHz) (ANT 0) 2452MHz (17GHz-21GHz) -802.11n (40MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 226 of 340 2452MHz (21GHz-25GHz) -802.11n (40MHz) (ANT 0) Report NoǺ 13C0398R-RFUSP27V00 Page: 227 of 340 2422MHz (30MHz-1GHz)- 802.11n (40MHz) (ANT 1) 2422MHz (1GHz-5GHz)…

Text truncated - open the document above for the full version.

Report NoǺ 13C0398…
