VGZMSP15-26WCFL

Instruction manual Model No: MDESLMSP15W-E26, MDESLMSP18W-E26, MDESLMSP23W-E26, MDESLMSP26W-E26 1. The compact florescent energy saving lamp fit easily into any socket. But the voltage must be AC120V/60Hz. 2. It uses 5 times less energy than incandescent bulb. 3. Risk of electric shock; use in dry location only. 4. When the line power is applied, don’t touch the glass bulb with your fingers, otherwise the hot blob may burn your fingers. 5. The CFL not for use with dimmer. 6. Not for use in totally enclosed recessed fixture. 7. Please hold the plastic encl sure fit the lamp into any standard lighting socket, because the long bulb may be broken by holding force. 8. Usage environmental temperature :-10°C～50°C 9. Usage Circumstance: Be suitable for family, hotel, restaurant, office, supermarket etc. 10. Warning: This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz. Variations of this language are permitted provided all the points of the statement are addressed and may be presented in any legible font or text style.

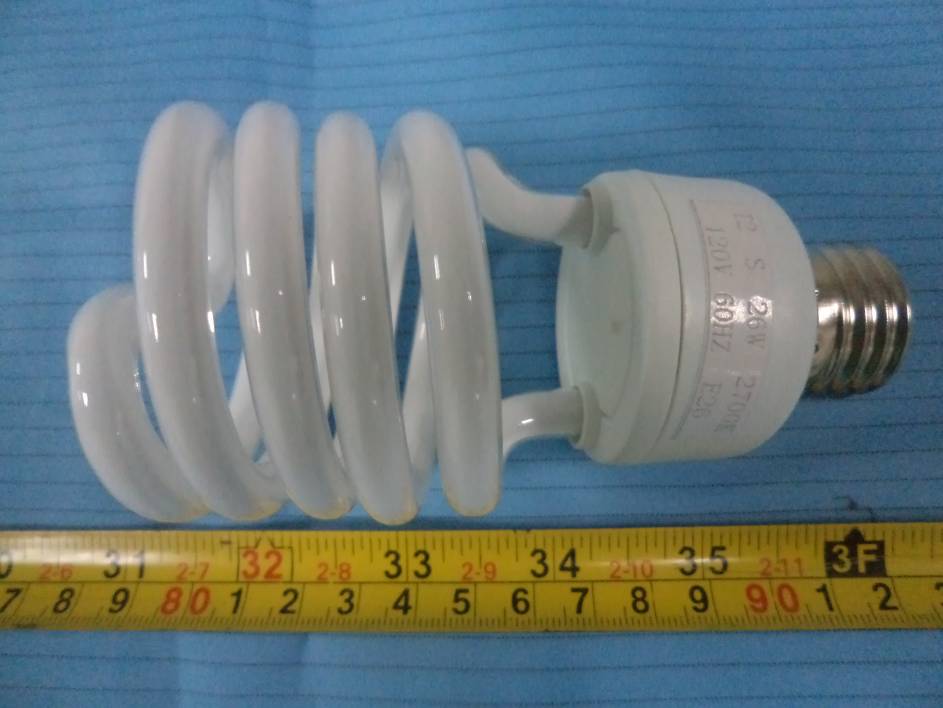

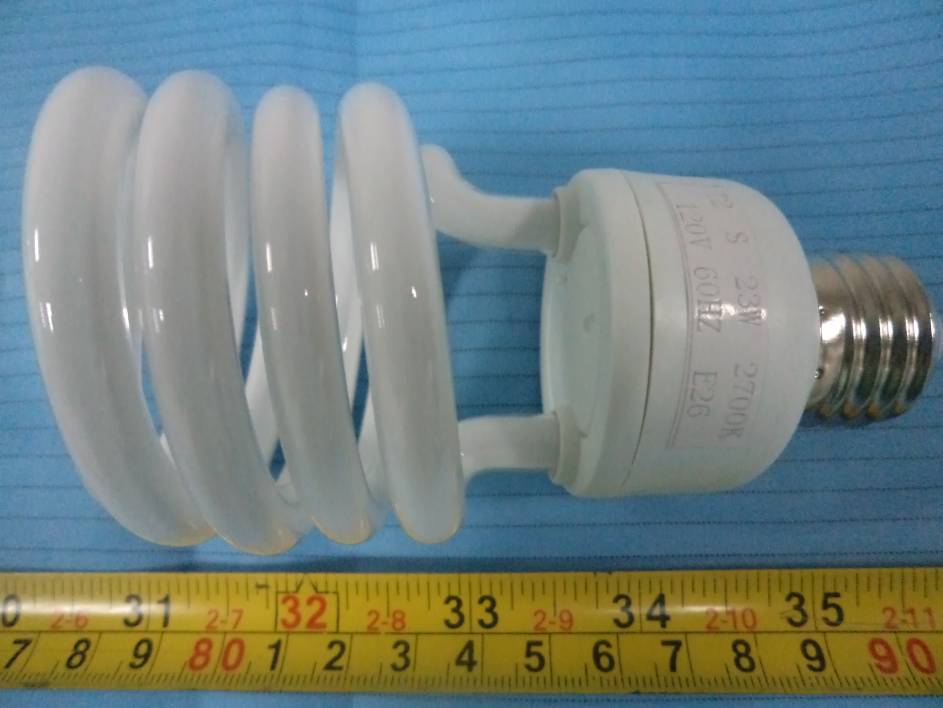

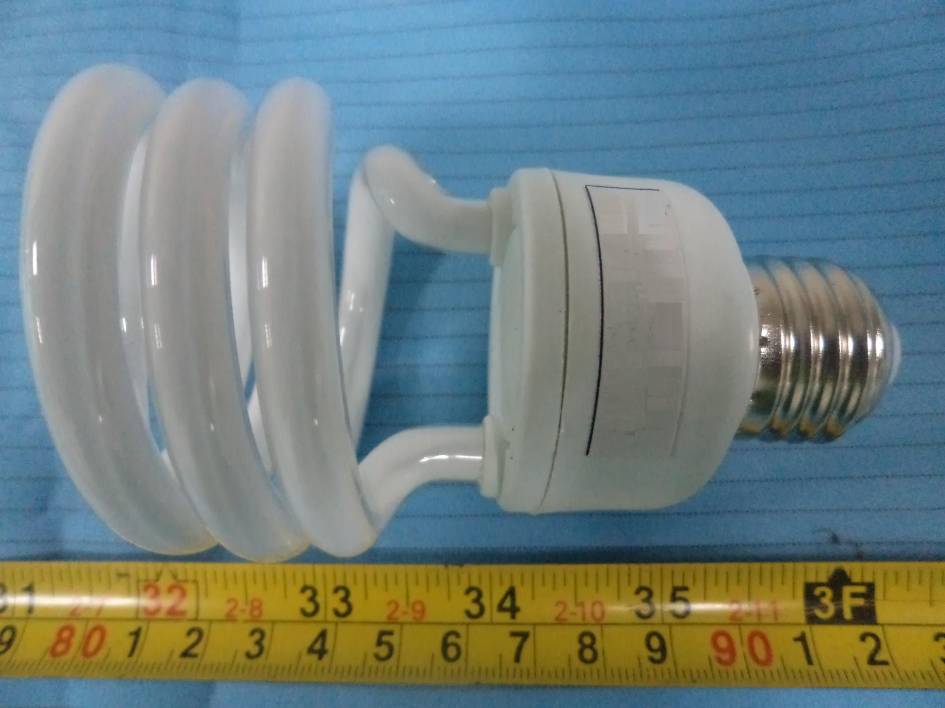

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 1 of 2 EXHIBIT B - EUT EXTERNAL PHOTOGRAPH EUT View MDESLMSP15W-E26 MDESLMSP18W-E26 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 2 of 2 MDESLMSP23W-E26 MDESLMSP26W-E26

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Specifications : Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Model: MDESLMSP15W-E26 Model: MDESLMSP18W-E26 Model: MDESLMSP23W-E26 Model: MDESLMSP26W-E26

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 1 of 6 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS MDESLMSP15W-E26 EUT – Cover off View EUT – Main Board Top View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 2 of 6 EUT – Main Board Bottom View MDESLMSP18W-E26 EUT – Cover off View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 3 of 6 EUT – Main Board Top View EUT – Main Board Bottom View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 4 of 6 MDESLMSP23W-E26 EUT – Cover off View EUT – Main Board Top View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 5 of 6 EUT – Main Board Bottom View MDESLMSP26W-E26 EUT – Cover off View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 6 of 6 EUT – Main Board Top View EUT – Main Board Bottom View

No. Code Componet Sepcification Qty Unit Manufactory 1 Lamp FluorescentLamp tube Spiral/ φ 7.5/15W/2.75T/OD:60mm/Pin pitch:31mm/2700K/4 Ω /fee lead/Solid mercury/GY02 1 pcs Jiangxi Midea Guiya LightingCo.,Ltd 2 PCB PCB Signal sided/MG-E42/H:1.6mm/PFR-1/V-0 1 pcs Pan an pcb factory ,China 3 Base E26 type/Copper or copper alloy, plated with nickel 1 pcs Dongguan Casun LampbaseIndustrial Co., Ltd. φ 7.5/S/E27/PBT/130 °C /V-0 / φ 45/top enclosure 1 pcs φ 7.5/S/E27/PBT/130 °C /V-0 / φ 45/bottom enclosure 1 pcs 5 Q1 、 Q2 Transistor BJT100SD/TO-126/Vceo ＞ 200V/ β :20-25/Ts:2.0-2.5-3.0/1.6*1.6mm/5±0.5mm 2 pcs Shenzhen SYS semiconductors co.,ltd 6 D1-D5 SMD Diode M7/1000V/1A/1.02*1.02 3 pcs Changzhou galaxy electrical co.,ltd. 7 DB3 Diode DB3 DB3/28V-36V/2A/0.45*0.45 1 pcs Changzhou galaxy electrical co.,ltd. 8 C1/C6 Capacitor CL21-473±5%-250V-P7.5 2 pcs Zhejiang Qixing CapacitorCo.,Ltd. 9 C4 Capacitor CL11-152±5%-1200V-3.5-4MM P5 1 pcs Zhejiang Qixing Capacitor Co.,Ltd. 10 C5/C7 Capacitor CL11-102±5%-1000V -3.5-4MM P4.5 1 pcs Zhejiang Qixing Capacitor Co.,Ltd. 11 C3 SMT Capacitor 223±5%-100V -0805 1 pcs Zhejiang Qixing CapacitorCo.,Ltd. 12 C2 ElectrolyticCapacitor 15uF±20%-200V-105 °C -10000h- Φ 10*16 1 pcs Yiyang zijiang electronic elementco., ltd 13 R1 、 R2 SMD Resistor 330K Ω ±5%/1/4W-1206 2 pcs Guangdong Fenghua AdvancedTechnology (Holding) Co., Ltd. 14 R3 、 R4 SMD Resistor 22 Ω ±5%/1/4W-1206 2 pcs Guangdong Fenghua AdvancedTechnology (Holding) Co., Ltd. 15 T1(A,B,C) Ring CoilTransformer 5K/ φ 10*6*3/L:1.7-1.9/3:8:3 /QA-2/130 °C / Φ 0.30/with bobbin 1 pcs Jiangxi Midea Guiya LightingCo.,Ltd 16 L2 ChokeTransformer EE16/1.75-1.95mH/179T±5T/QA-2/155 °C / φ 0.25 1 pcs Jiangxi Midea Guiya LightingCo.,Ltd 17 L1 Line Filter EE16/1.75-1.95mH/179T±5T/QA-2/155 °C / φ 0.25 1 pcs Zhejiang tongxiang yaorundz Co.,Ltd 18 N Lead wire 24AWG/1015/UL/105 °C /600V/L=60±1.0mm 2 pcs shanghai plastic wire factory 19 Fuse Resistor RXF-1W/0.47 Ω /1W/ φ :3.5mm/L:80mm 1 pcs SHENZHEN GREAT ELECTRONICS CO LTD 20 Fiber glasssleeving Φ 1*16mm/>1.5KV/190 °C 1 pcs Shenzhen wahchangwei industrialco.,ltd 21 Fiber glassFleeving φ 2.5*40mm/>1.5KV/190 °C 4 pcs Shenzhen wahchangwei industrialco.,ltd 22 P1 ， P2 ， P3 ， P4 Steel Pin 0.65*0.65 L=9mm 0.8*0.8 4 pcs Jiangxi Midea Guiya LightingCo.,Ltd Doc.No. ： 2010-12-12 GY02 Model No MDESLMSP15W-E26 4 L NANTONG ZHONGLAN ENGINEERINGPLASTICS CO LTD;KINGFA SCI & TECHCO LTD Plasticsenclosure No. Code Componet Sepcification Qty Unit Manufactory 1 Lamp FluorescentLam p tube Spiral/ φ 8/18W/3T/OD:60mm/Pin pitch:31mm/2700K/4 Ω /fee lead/Solid mercur y 1 pcs Jiangxi Midea Guiya LightingCo.,Ltd 2 PCB PCB Signal sided/MG-E42/H:1.6mm/PFR-1/V-0 1 pcs Pan an pcb factory ,China 3 Base E26 type/Copper or copper alloy, plated with nickel 1 pcs Dongguan Casun LampbaseIndustrial Co., Ltd. φ 7.5/S/E27/PBT/130 °C /V-0 / φ 45/top enclosure 1 pcs φ 7.5/S/E27/PBT/130 °C /V-0 / φ 45/bottom enclosure 1 pcs 5 Q1 、 Q2 Transistor 3DD13003W6D/TO-126/Vceo ＞ 200V/ β :15-20/Ts:2.0-2.5-3.0/1.61*1.61mm/5 ±0.5mm 2 pcs Shenzhen SYS semiconductors co.,ltd 6 D1-D5 SMD Diode M7/1000V/1A/1.02*1.02 3 pcs Changzhou galaxy electrical co.,ltd. 7 DB3 Diode DB3 DB3/28V-36V/2A/0.45*0.45 1 pcs Changzhou galaxy electrical co.,ltd. 8 C1 Capacitor CL21-473±5%-250V-P7.5 1 pcs Zhejiang Qixing CapacitorCo.,Ltd. 9C2 ElectrolyticCa p acitor 22uF±20%-200V-105 °C -8000h- Φ 10*20 1 pcs Yiyang zijiang electronic elementco., ltd 10 C3 SMT Capacitor X7R223±10%-100V -0805 1 pcs Zhejiang Qixing CapacitorCo.,Ltd. 11 C4 Capacitor CL11-152±5%-1200V-3.5-4MM P5 1 pcs Zhejiang Qixing Capacitor Co.,Ltd. 12 C5 Capacitor CL16-472±5%-1200V -3.5-4MM P7 1 pcs Zhejiang Qixing Capacitor Co.,Ltd. 13 C6 Capacitor CL21-473±5%-400V-3.5-4MM 7.5 1 pcs Zhejiang Qixing Capacitor Co.,Ltd. 14 C7 Capacitor CBB28-332±5%-1250V -3.5-4MMP10 1 pcs Zhejiang Qixing Capacitor Co.,Ltd. 15 R1 、 R2 SMD Resistor 330K Ω ±5%/1/4W-1206 2 pcs Guangdong Fenghua AdvancedTechnology (Holding) Co., Ltd. 16 R3 、 R4 SMD Resistor 22 Ω ±5%/1/4W-1206 2 pcs Guangdong Fenghua AdvancedTechnology (Holding) Co., Ltd. 17 T1(A,B,C) Ring CoilTransformer φ 10*6*3/S:300-350 μ H/4:8:4/QA-2/130 °C / φ 0.30/with bobbin 1 pcs Jiangxi Midea Guiya LightingCo.,Ltd 18 L2 ChokeTransformer EE19/1.8-1.9MH / 190T±5T / QA-2/155 °C / φ 0.1*8 1 pcs Jiangxi Midea Guiya LightingCo.,Ltd 19 L1 Line Filter φ 8*10/1mH±0.06mH/166T±5T/QA-2/155 °C / φ 0.23/P=5mm/3.5-4.0mm 1 pcs Zhejiang tongxiang yaorundz Co.,Ltd 20 N Lead wire 24AWG/1015/UL/105 °C /600V/L=60±1.0mm 2 pcs shanghai plastic wire factory 21 Fuse Resistor RXF-1W/3.9 Ω /1W/ φ :3.5mm/L:80mm 1 pcs SHENZHEN GREAT ELECTRONICS CO LTD 22 Fiber glasssleevin g Φ 1*16mm/>1.5KV/190 °C 1 pcs Shenzhen wahchangwei industrialco.,ltd 23 Fiber glassFleevin g φ 2.5*40mm/>1.5KV/190 °C 4 pcs Shenzhen wahchangwei industrialco.,ltd 23 P1~P4 Steel Pin 0.65*0.65 L=9mm 0.8*0.8 4 pcs Jiangxi Midea Guiya LightingCo.,Ltd 4 L NANTONG ZHONGLAN ENGINEERINGPLASTICS CO LTD;KINGFA SCI & TECHCO LTD Plasticsenclosure Doc.No. ： 2010-12-12 GY02 Model No MDESLMSP18W-E26 No. Code Componet Sepcification Qty Unit Manufactory 1 Lamp FluorescentLamp tube Spiral/ φ 8/23W/4T/OD:60mm/Pin pitch:31mm/2700K/4 Ω /fee lead/Solid mercury 1 pcs Jiangxi Midea Guiya LightingCo.,Ltd 2 PCB PCB Signal sided/MG-E42/H:1.6mm/PFR-1/V-0 1 pcs Pan an pcb factory ,China 3 Base E26 type/Copper or copper alloy, plated with nickel 1 pcs Dongguan Casun LampbaseIndustrial Co., Ltd. φ 7.5/S/E27/PBT/130 °C /V-0 / φ 45/top enclosure 1 pcs φ 7.5/S/E27/PBT/130 °C /V-0 / φ 45/bottom enclosure 1 pcs 5 Q1 、 Q2 Transistor 3DD128F/TO-126F/Vceo ＞ 200V/ β :15-20/Ts:2.0-2.5-3.0/2.13*2.13mm 2 pcs Shenzhen SYS semiconductors co.,ltd 6 D1-D5 SMD Diode M7/1000V/1A/1.02*1.02 3 pcs Changzhou galaxy electrical co.,ltd. 8 DB3 Diode DB3 DB3/28V-36V/2A/0.45*0.45 1 pcs Changzhou galaxy electrical co.,ltd. 9 C1/C6 Capacitor CL21-104±5%-400V - 3.5-4MM P7.5 2 pcs Zhejiang Qixing CapacitorCo.,Ltd. 15 C2 ElectrolyticCapacitor 22uF±20%-200V-105 °C -10000h- Φ 10*20 1 pc…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 18 TEST REPORT For Jiangxi Midea Guiya Green Lighting Electrical Co., Ltd. Guixi Industrial District, Guixi, Jiangxi, China FCC ID: VGZMSP15-26W Report Type: Original Report Product Type: CFL Test Engineer: Phase Zhang Report Number: RSZ110921535-00 Report Date: 2011-11-18 Reviewed By: Lisa Zhu EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 2 of 21 TABLE OF CONTENTS GENERAL INFORMATION ...................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................ 3 TEST METHODOLOGY.................................................................................................................................................. 3 TEST FACILITY............................................................................................................................................................ 3 SYSTEM TEST CONFIGURATION ......................................................................................................................... 5 JUSTIFICATION............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE.......................................................................................................................................... 5 SPECIAL ACCESSORIES................................................................................................................................................ 5 EQUIPMENT MODIFICATIONS....................................................................................................................................... 5 EXTERNAL CABLE....................................................................................................................................................... 5 CONFIGURATION OF TEST SETUP................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 FCC §18.307 - AC LINE CONDUCTED EMISSIONS ............................................................................................. 7 APPLICABLE STANDARD.............................................................................................................................................. 7 MEASUREMENT UNCERTAINTY................................................................................................................................... 7 EUT SETUP................................................................................................................................................................. 7 EMI TEST RECEIVER SETUP........................................................................................................................................ 8 TEST PROCEDURE........................................................................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS.......................................................................................................................... 8 TEST RESULTS SUMMARY........................................................................................................................................... 8 TEST DATA.................................................................................................................................................................. 9 FCC §18.305 – FIELD STRENGTH ......................................................................................................................... 17 MEASUREMENT UNCERTAINTY................................................................................................................................. 17 EUT SETUP............................................................................................................................................................... 17 EMI TEST RECEIVER SETUP AND SPECTRUM ANALYZER SETUP............................................................................... 18 TEST PROCEDURE...................................................................................................................................................... 18 TEST EQUIPMENT LIST AND DETAILS........................................................................................................................ 18 CORRECTED AMPLITUDE CALCULATION................................................................................................................... 18 TEST DATA............…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 1 of 8 EXHIBIT D - TEST SETUP PHOTOGRAPHS MDESLMSP15W-E26 AC Line Conduction Emissions - Front View AC Line Conduction Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 2 of 8 Radiated Emissions - Front View Radiated Emissions - Rear View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 3 of 8 MDESLMSP18W-E26 AC Line Conduction Emissions - Front View AC Line Conduction Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 4 of 8 Radiated Emissions - Front View Radiated Emissions - Rear View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 5 of 8 MDESLMSP23W-E26 AC Line Conduction Emissions - Front View AC Line Conduction Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 6 of 8 Radiated Emissions - Front View Radiated Emissions - Rear View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 7 of 8 MDESLMSP26W-E26 AC Line Conduction Emissions - Front View AC Line Conduction Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921535-00 FCC Part 18 Page 8 of 8 Radiated Emissions - Front View Radiated Emissions - Rear View
