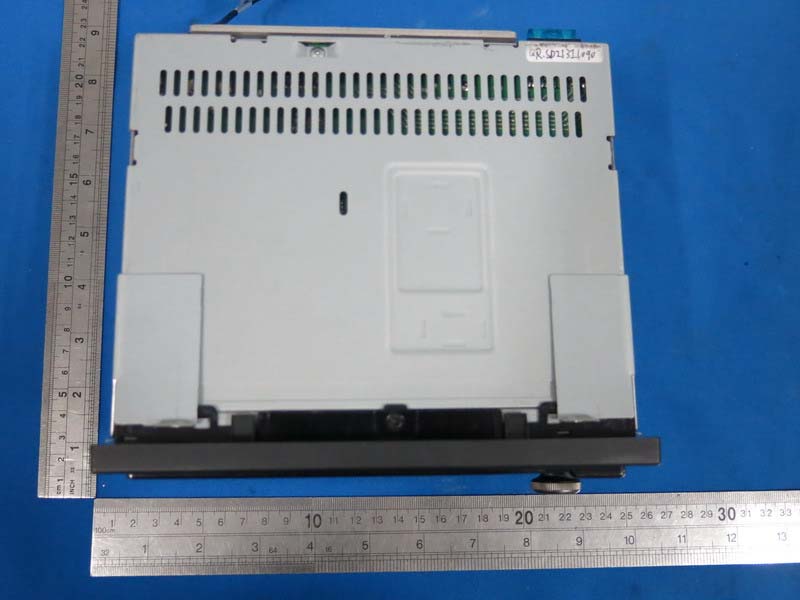

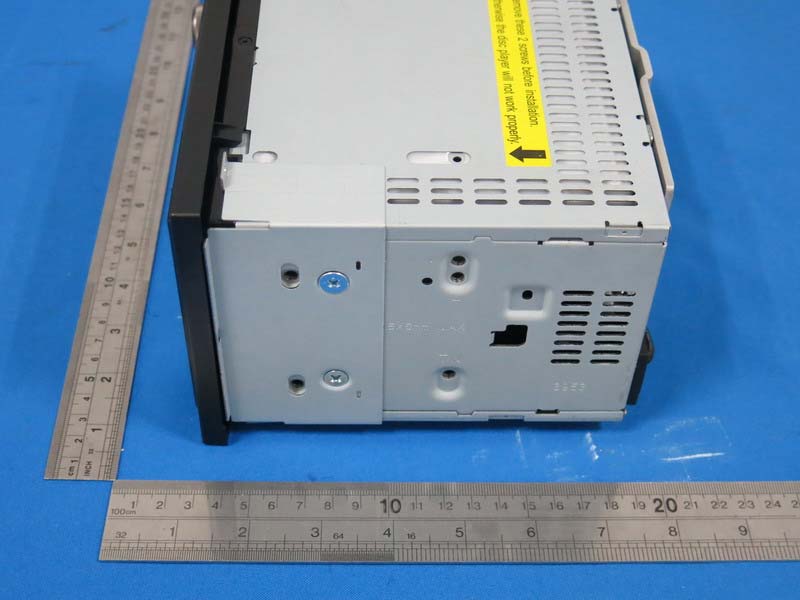

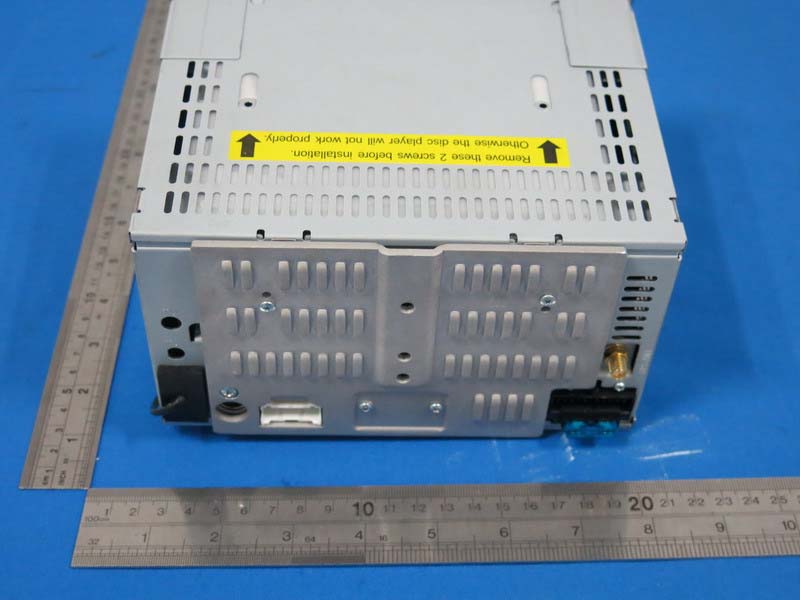

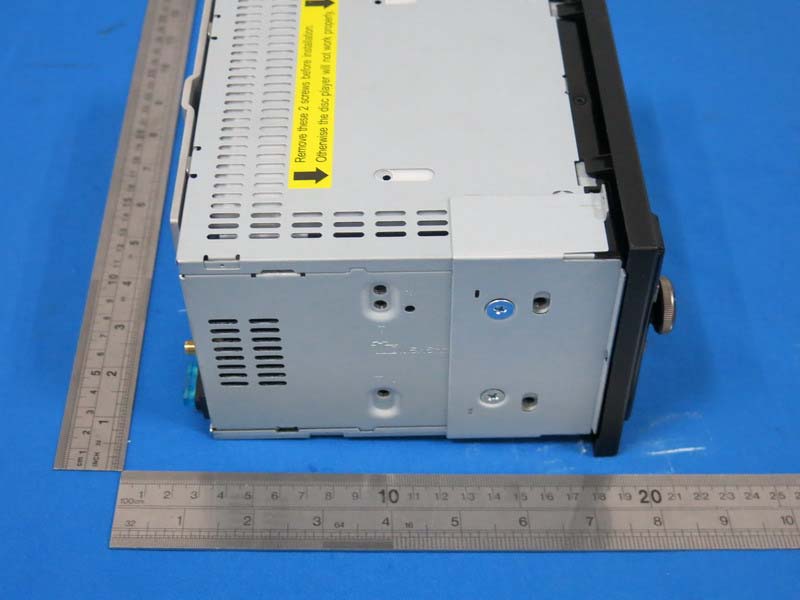

VIP-CE4K01CAR DVD PLAYER

DVD/VCD/CD/MP3/USB/SD PLAYER, WITH FM/AM TUNER GPS & BLUETOOTH & DVR CE4K01 1 Safety Precautions Never expose this unit, amplifier, and speakers to moisture or water to prevent electric sparks or fire. Please don't change the fuse on the power cord without professional guidance, using improper fuse may cause damage to this unit or even cause fire. Please contact your nearest dealer if one of the following symptoms is experienced: (a). Water or other objects enters the unit. (b). There is smoke. (c). Peculiar smell. Only connect the unit to a 12-volt power supply with negative grounding. MUTE OK MUTE OK Never install this unit where the operation & condition for safety driving is restrained. Never use the video display function in the front when driving to prevent the violation of laws & regulations and also to reduce the risk of traffic accident except for using rear view video camera. MUTE OK MUTE OK MUTE OK MUTE OK Thank you for purchasing this product. Please read through these operating instructions so you will know how to operate your model properly. After you’ve finished reading the instructions, keep this manual in a safe place for future reference. To ensure safe driving, please adjust the volume to a safe and comfort level in case of emergency situations. 2 1. Never disassemble or adjust the unit without any professional guidance. For details, please consult any professional car shop / dealer for inquiry. 2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to wipe off the spot. Using a rough cloth and non-neutral detergent such as alcohol for cleaning may result in scratching or decoloration to the monitor. 3. If any abnormal behavior of the unit is found, please refer to trouble shooting guide of this manual. If no relevant information is found, please press the [RESET] key on the front panel to resume factory default. 4. If you have parked the car in hot or cold weather for a long time, please wait until the temperature in the car becomes normal before operating the unit. 5. Using the car heater in low temperature environment may result in moisture inside the unit, DO NOT use the unit in this situation. Eject the disc and wipe off the moisture on the disc. If the unit still doesn't work after a few hours, please contact the service center. 6. Do not impact the LCD monitor which could cause damage. 7. To prevent damage to the screen, avoid touching it with sharp objects. 8. To provide a clear demonstration and an alternative for easy understanding to the operation of this unit, graphic illustrations are used. However, some illustrations are different from the actual images displayed on the screen. 9. Operate the unit correctly according to this manual to prevent unnecessary problem. The guarantee won't be valid if the problem is caused by inappropriate operation. Safety Precautions Note: The items listed outside of the frame are the commercial products generally sold. Expanding Systems 3 Declarations FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 4 Contents Safety Precautions ...................................1 Before Using .............................................4 Front Panel .............................................4 Remote Control.......................................5 Notes on Remote Control Usage ............6 Uninstall Battery......................................6 Install Battery ..........................................6 Basic Operations ......................................7 Parking Brake Inhibit...............................7 Mute ........................................................7 Power On / Off ........................................7 Audible Beep Confirmation .....................7 Playing Source Selection ........................7 Volume Adjustment.................................7 EQ Menu.................................................7 Select Preset Equalizer ..........................8 Adjust EQ Parameters ............................8 Adjust Fader/Balance .............................8 Basic Operations ......................................9 Set Date /Time ........................................9 Set Date ..................................................9 Set Clock Mode ......................................9 Set Ti…

Text truncated - open the document above for the full version.

Declaration on model difference Page 1 of 1 We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; the only differences are the trade mark and model no. for trading purpose. „ Production name Trade name INPUT Model no. CAR DVD PLAYER ADAYO DC 10.5-15.8V CE4K01, CE4K02 CAR DVD PLAYER HKD DC 10.5-15.8V HK-D7002 Confirmed by: Name in full:_Chris Hu______________ Authorzed signature:______ ________ Position:__Engineer________________ Date:_2013-12-12__________

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.

Label’s Location on EUT

Antenna

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID：VIP-CE4K01 EUT Specification EUT CAR DVD PLAYER Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 2.52dBm (0.001786W) Antenna gain (Max) 0 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m ) Magnetic Field Strength(A/m ) Power Density(mW/cm 2 ) Averag e Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Operating Mode Channel Frequency (MHz) Output Peak power (mW) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) op-mode 1 2402 1.265 0 0.000252 1 op-mode 2 2441 1.714 0 0.000341 1 op-mode 3 2480 1.786 0 0.000355 1 op-mode 6 2402 0.817 0 0.000163 1 op-mode 7 2441 1.197 0 0.000238 1 op-mode 8 2480 1.239 0 0.000246 1 op-mode 10 2402 0.805 0 0.000160 1 op-mode 11 2441 1.146 0 0.000228 1 op-mode 12 2480 1.164 0 0.000232 1 Signature: Print: Sam Lv Title: Manager Company: DONGGUAN EMTEK CO., LTD. Address: No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China Date: 2013-12-12

TRF No. FCC 15.247/A Page 1 of 57 Report No.: KAD131112025E Rev1.0 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF CAR DVD PLAYER MODEL No.: CE4K01, CE4K02, HK-D7002 BRAND NAME: ADAYO, HKD FCC ID: VIP-CE4K01 REPORT NO: KAD131112025E ISSUE DATE: December 10, 2013 Prepared for HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD. NO.6 Zhongkai Songshan Industrial District, Huizhou, Guangdong, China Prepared by DONGGUAN EMTEK CO., LTD. No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 TRF No. FCC 15.247/A Page 2 of 57 Report No.: KAD131112025E Rev1.0 VERIFICATION OF COMPLIANCE Applicant: HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD. NO.6 Zhongkai Songshan Industrial District, Huizhou, Guangdong, China Manufacturer: HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD. NO.6 Zhongkai Songshan Industrial District, Huizhou, Guangdong, China Product Description: CAR DVD PLAYER Brand Name: ADAYO, HKD Model Number: CE4K01, CE4K02, HK-D7002 (Note: The samples are the same except trade mark and model number. So we prepare CE4K01 for EMC test.) Kind of Device: Bluetooth Ver. 2.1+EDR File Number: KAD131112025E Date of Test: November 12, 2013 to November 25, 2013 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247(2013). The test results of this report relate only to the tested sample identified in this report. Approved By Sam Lv / Q.A. Manager DONGGUAN EMTEK CO., LTD. TRF No. FCC 15.247/A Page 3 of 57 Report No.: KAD131112025E Rev1.0 Modified History Rev. Summary Date of Rev. Report No. V1.0 Original Report 2013-12-10 KAD131112025E TRF No. FCC 15.247/A Page 4 of 57 Report No.: KAD131112025E Rev1.0 Table of Contents 1. GENERAL INFORMATION ....................................................................................... 6 1.1 PRODUCT DESCRIPTION............................................................................................................... 6 1.2 RELATED SUBMITTAL(S) / GRANT (S)............................................................................................ 6 1.3 TEST METHODOLOGY.................................................................................................................. 6 1.4 SPECIAL ACCESSORIES................................................................................................................ 6 1.5 EQUIPMENT MODIFICATIONS........................................................................................................ 6 1.6 TEST FACILITY............................................................................................................................. 7 2. SYSTEM TEST CONFIGURATION ........................................................................... 8 2.1 EUT CONFIGURATION.................................................................................................................. 8 2.2 EUT EXERCISE............................................................................................................................ 8 2.3 TEST PROCEDURE....................................................................................................................... 8 2.4 LIMITATION.................................................................................................................................. 8 2.5 CONFIGURATION OF TESTED SYSTEM........................................................................................ 12 3. SUMMARY OF TEST RESULTS ............................................................................. 13 4. DESCRIPTION OF TEST MODES........................................................................... 13 5. RADIATED EMISSION TEST .................................................................................. 14 5.1 MEASUREMENT PROCEDURE..................................................................................................... 14 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 15 5.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 16 5.4 MEASUREMENT RESULT............................................................................................................. 16 5.5 RADIATED MEASUREMENT PHOTOS:........................................................................................... 22 6. CHANNEL SEPARATION TEST ............................................................................. 23 6.1 MEASUREMENT PROCEDURE..................................................................................................... 23 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 23 6.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 23 6.4 MEASUREMENT RESULTS:.......................................................................................................... 23 7. 20DB BANDWIDTH TEST ....................................................................................... 29 7.1 MEASUREMENT PROCEDURE..................................................................................................... 29 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 29 7.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 29 7.4 MEASUREMENT RESULTS:........................................................................…

Text truncated - open the document above for the full version.
