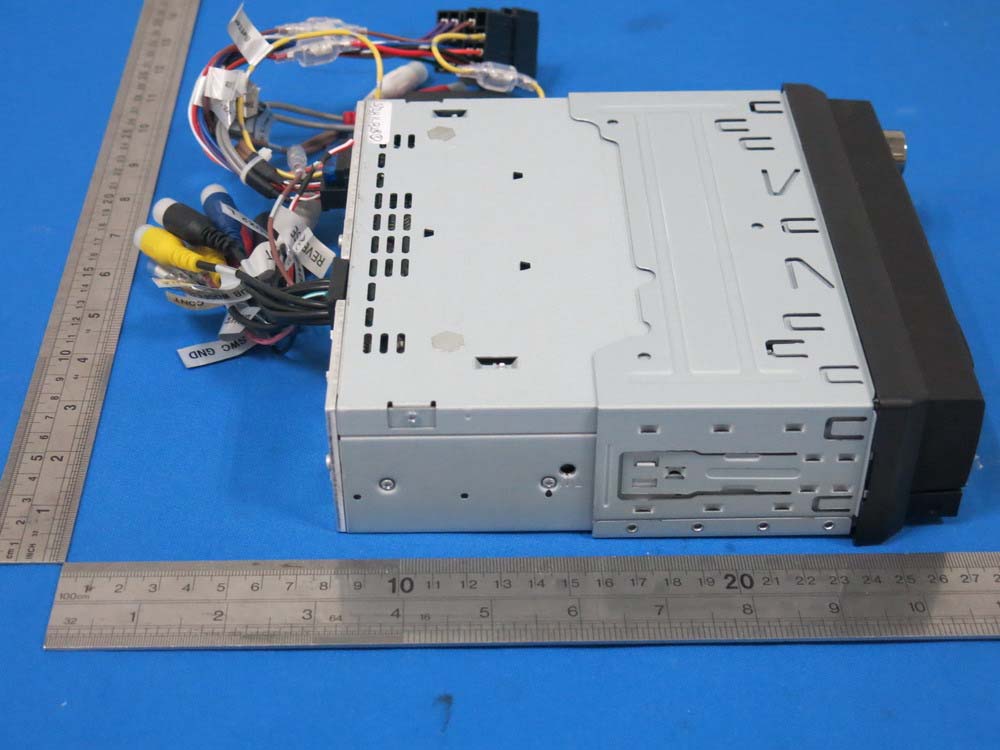

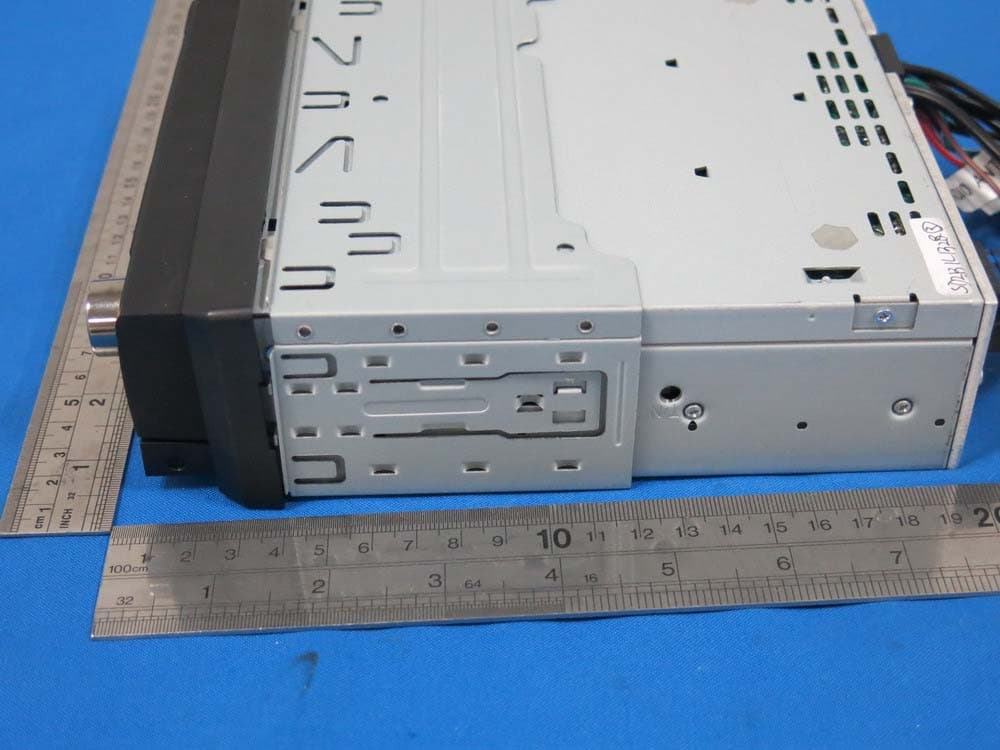

VIP-DV7B01CAR DVD PLAYER

DVD/CD/VCD/MP3/WMA/USB PLAYER BLUETOOTH WITH FM/AM TUNER DV7B01 Operation Instructions 1. Only connect this unit to a 12V DC power supply with negative grounding. 2. Never install this unit where the operation for safety driving is restrained. 3. Never use the video display function in the front when driving to prevent the violation of laws & regulations and also to reduce the risk of traffic accident except using the rear view video camera. 4. Never expose this unit, amplifier, speakers to moisture or water to prevent electronic sparks or fires. Warnings 5. Please don't change the fuse in the power cord without professional guidance, improper fuse may cause damage to this using unit or even cause fire. 6. Please power off this unit at once and send it back to the after-sales service center or the dealer / distributor you purchased from if one of the following symptoms is found: (a) No audio output; (b) No image output; (c) Water or other obstacle enters the unit; (d) Smoking; (e) Peculiar smell. 7. To ensure safe driving, please adjust the volume to a safe and comfort level in case of emergency situations. 1 2 3 4 5 6 Precautions 1. Never disassemble or adjust the unit without any professional guide. For details, please consult any professional car shop / dealer for inquiry. 2. If the front panel or TFT monitor is squalid, please use a clean silicone cloth and neutral detergent to wipe off the spot. Using a rough cloth and non-neutral detergent such as alcohol for cleaning may result in scratching or decoloration to the applicant. 3. If any abnormal behavior of the unit is found, please refer to trouble shooting g u i d e o f t h i s m a n u a l . I f n o r e l e v a n t information is found,please press the [RESET] key on the front panel to resume factory default. 4. If you have parked the car in hot or cold weather for a long time, please wait until the temperature in the car becomes normal before operating the unit. 5. Using in-car heater in low temperature environment may result in beads coagulate inside the unit, Do not use the unit in this situation, eject the disc and wipe off the bead on the disc. If the unit still doesn't work after a few hours, please contact with after-sales service center. 6. No fierce impact to the LCD monitor when it is in open position for preventing the damage to any mechanisms inside. 7. To prevent the damage to the screen, avoid touching it with sharp objects. 8. The monitor employs auto motorizing mechanism, please don't push, pull, or swivel the monitor manually to prevent damage to the core mechanism. 9. To provide a clear demonstration and an alternative for easy understanding to the operation of this unit, graphic illustrations areused.However, these illustrations are some different from the actual images displayed on the screen. 10.During operating the unit, “ ” will display if the current operation is not available or illegal. 11.Operate the unit correctly according to this manual to prevent unnecessary problem. The guarantee won't be valid if the problem is caused by inappropriate operation. Declaration This product incorporates copyright protection technology that is protected by U.S patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. Cautions of disc using 1. DO NOT use irregular shaped disc 2. Disc Cleaning Use a dry, soft cloth to wipe the disc from center to edge, only neutral detergent can be used. 3. When playing a new disc New disc may have some rough spots around the inner and outer edges. If such a disc is used, remove these rough spots with a pencil or ball-point pen, etc. Contents Before using Front panel .............................................1 Remote Control ......................................2 Basic operations Power on / off .........................................4 Audible beep confirmation ......................4 Mute .......................................................4 Open SOURCE MENU ..........................4 Playing source selection ........................4 Volume adjustment .................................4 Using the TFT Monitor ...........................4 System reset ..........................................4 Change aspect ratio ...............................4 Image settings ........................................4 Radio mode Select radio as playing source ...............5 Select one radio band ............................5 Tune .......................................................5 Manual tuning .........................................5 Preset station .........................................5 Search Stations Automatically ................5 EQ Selection ..........................................5 Playback Insert a disc ............................................6 Eject the disc ..........................................6 Touch screen controls ............................6 Controlling Playback ..............................6 Connect an USB Device ........................6 Play ........................................................6 Pause .....................................................6 Stop ........................................................6 Previous/Next .........................................6 Search for a Folder ................................6 Repeat playback ....................................7 Repeat A-B .............................................7 Shuffle (Random) Play ...........................7 PBC function ..........................................7 Select Audio Mode .................................7 Select Subtitle Language .......................7 Change Viewing Angle ...........................7 Playback Information ..............................8 For DVD .................................................8 For VCD ......................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012

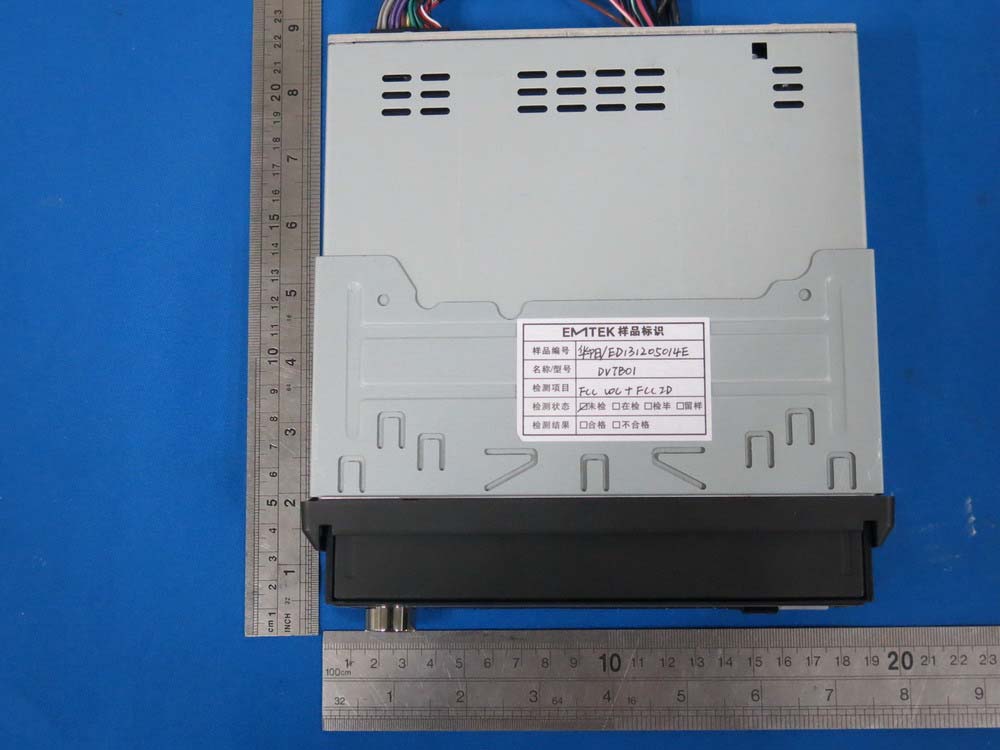

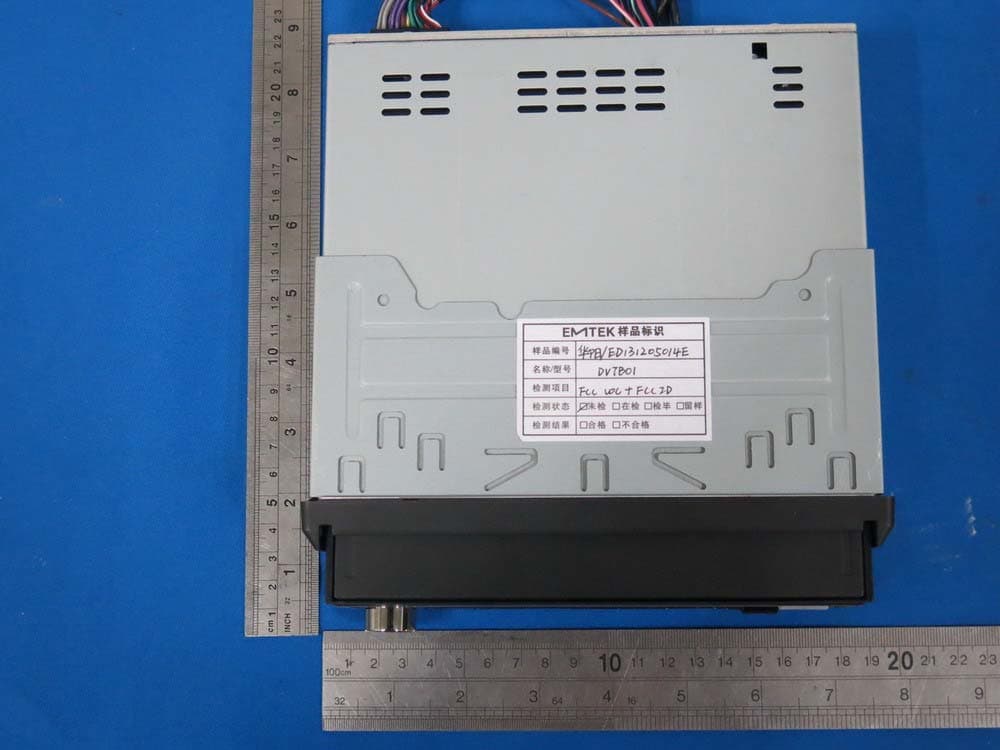

Label’s Location on EUT

Antenna

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID：VIP-DV7B01 EUT Specification EUT CAR DVD PLAYER Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power -2.55dBm (0.556mW) Antenna gain (Max) 0 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m ) Magnetic Field Strength(A/m ) Power Density(mW/cm 2 ) Averag e Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Operating Mode Channel Frequency (MHz) Output Peak power (mW) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) op-mode 1 2402 0.556 0 0.000111 1 op-mode 2 2441 0.502 0 0.000100 1 op-mode 3 2480 0.460 0 0.000092 1 op-mode 6 2402 0.456 0 0.000091 1 op-mode 7 2441 0.283 0 0.000056 1 op-mode 8 2480 0.308 0 0.000061 1 op-mode 10 2402 0.513 0 0.000102 1 op-mode 11 2441 0.349 0 0.000069 1 op-mode 12 2480 0.288 0 0.000057 1 Signature:

TRF No. FCC 15.247/A Page 1 of 57 Report No.: KAD131205007E Rev1.0 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF CAR DVD PLAYER MODEL No.: DV7B01 BRAND NAME: ADAYO FCC ID: VIP-DV7B01 REPORT NO: KAD131205007E ISSUE DATE: January 02, 2014 Prepared for HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD. NO.6 Zhongkai Songshan Industrial District, Huizhou, Guangdong, China Prepared by DONGGUAN EMTEK CO., LTD. No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 TRF No. FCC 15.247/A Page 2 of 57 Report No.: KAD131205007E Rev1.0 VERIFICATION OF COMPLIANCE Applicant: HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD. NO.6 Zhongkai Songshan Industrial District, Huizhou, Guangdong, China Manufacturer: HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD. NO.6 Zhongkai Songshan Industrial District, Huizhou, Guangdong, China Product Description: CAR DVD PLAYER Brand Name: ADAYO Model Number: DV7B01 Kind of Device: Bluetooth Ver. 2.1+EDR File Number: KAD131205007E Date of Test: December 05, 2013 to December 25, 2013 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247(2013). The test results of this report relate only to the tested sample identified in this report. Approved By Sam Lv / Q.A. Manager DONGGUAN EMTEK CO., LTD. TRF No. FCC 15.247/A Page 3 of 57 Report No.: KAD131205007E Rev1.0 Modified History Rev. Summary Date of Rev. Report No. V1.0 Original Report 2014-01-02 KAD131205007E TRF No. FCC 15.247/A Page 4 of 57 Report No.: KAD131205007E Rev1.0 Table of Contents 1. GENERAL INFORMATION ....................................................................................... 6 1.1 PRODUCT DESCRIPTION............................................................................................................... 6 1.2 RELATED SUBMITTAL(S) / GRANT (S)............................................................................................ 6 1.3 TEST METHODOLOGY.................................................................................................................. 6 1.4 SPECIAL ACCESSORIES................................................................................................................ 6 1.5 EQUIPMENT MODIFICATIONS........................................................................................................ 6 1.6 TEST FACILITY............................................................................................................................. 7 2. SYSTEM TEST CONFIGURATION ........................................................................... 8 2.1 EUT CONFIGURATION.................................................................................................................. 8 2.2 EUT EXERCISE............................................................................................................................ 8 2.3 TEST PROCEDURE....................................................................................................................... 8 2.4 LIMITATION.................................................................................................................................. 8 2.5 CONFIGURATION OF TESTED SYSTEM........................................................................................ 12 3. SUMMARY OF TEST RESULTS ............................................................................. 13 4. DESCRIPTION OF TEST MODES........................................................................... 13 5. RADIATED EMISSION TEST .................................................................................. 14 5.1 MEASUREMENT PROCEDURE..................................................................................................... 14 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 15 5.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 16 5.4 MEASUREMENT RESULT............................................................................................................. 16 5.5 RADIATED MEASUREMENT PHOTOS:........................................................................................... 22 6. CHANNEL SEPARATION TEST ............................................................................. 23 6.1 MEASUREMENT PROCEDURE..................................................................................................... 23 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 23 6.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 23 6.4 MEASUREMENT RESULTS:.......................................................................................................... 23 7. 20DB BANDWIDTH TEST ....................................................................................... 29 7.1 MEASUREMENT PROCEDURE..................................................................................................... 29 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 29 7.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 29 7.4 MEASUREMENT RESULTS:.......................................................................................................... 29 8. QUANTITY OF HOPPING CHANNEL TEST ........................................................... 35 8.1 MEASUREMEN…

Text truncated - open the document above for the full version.
