VIPFGEDV6310CAR DVD RECEIVER

Caution content for VM9022 Caution content: changes or modifications not expressly approved by the party reponsible for compliance could void the user's authority to operate the equipment For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. 240 ® DIV Watts Peak Watts en Crête Vatios el Máximo 60W x 4 VM9022 Installation and Operation Manual video i CONTENTSThank you for choosing a Jensen product. We hope y ou will find the instructions in this owner’s manual clear and easy to follow. If you take a few mi nutes to look through it, you’ll learn how to use all the features of your new Jensen VM 9022 Mobile Multimedia Receiver for maximum enjoyment.Preparation.................................................................................................................... ........ 1 Installation ................................................................................................................... .......... 5 Anti-Theft Feature ............................................................................................................. .... 7 Controls and Indicators ........................................................................................................ . 8 Remote Control ................................................................................................................. .. 10 Using the TFT Monitor ........................................................................................................ 1 3 Operating Instructions ......................................................................................................... 14 Multi-ZONE Operation......................................................................................................... 1 6 Setup Menu ..................................................................................................................... .... 17 Tuner Operation ................................................................................................................ .. 20 Satellite Radio Operation .................................................................................................... 2 2 DVD/VCD Video Operation ................................................................................................. 24DVD/CD Audio Operation ................................................................................................... 27MP3/WMA Operation .......................................................................................................... 29iPod Operation ................................................................................................................. ... 31 Bluetooth Operation ............................................................................................................ 32 Troubleshooting ................................................................................................................ .. 35 Specifications ................................................................................................................. ..... 38 ii 1 VM9022 PREPARATIONCongratulations on your pur chase of the Jensen VM9022 Mobile Multimedia Receiver.It’s a good idea to read all of the instructions before beginning the installation. We recommend having your Jensen VM9022 installed by a reputable installation shop.FeaturesDVD• Aspect Ratio – Cinema and Normal • Fast Forward / Reverse – 2X, 4X, 8X and 32X • Play, Pause, Stop, Next Chapter and Previous Chapter • ESP – 2MB Buffer CD / MP3 / WMA• ID3 Tag Compatible • Directory Search (MP3 / WMA Only) • Direct Track Access via Remote control • Burn up to 1500 MP3 and WMA Files onto a DVD+R / RW • Audible Forward / Reverse Track Search • Random, Repeat and Intro • Play, Pause, Stop, Next Track and Previous Track • ESP – 2MB Buffer AM-FM • USA/Europe/Latin America/Asia Frequency Spacing • 30 Station Presets (18 FM, 12 AM) • Auto Stereo/Mono • Local/Distance • Auto Store/Preview Scan • RDS (Radio Data System) Sat Radio Ready• Compatible with XM and Sirius Tuners (Sold Separately) • Requires XMDJEN100 or JXMC Cables (Sold Separately) • Satellite Channel Name, Artist, Song and Categories Displayed on TFT Screen iPod• jLinkDirect - High Speed Direct Connect Interface to Access iPod Playlist s, Artists, Albums, Songs, *Photos and *Video (*Requires Photo or Video iPod) • Power Management Charges iPod while Connected MediaLink 4 • Under Dash Interface Allows Portable Media Devices to be Connected • MediaLink 4 Includes the Following Connectivity: • USB – Supports Flash Memory and Hard Drives with Audio Files • LinkDirect iPod Connectivity• 3.5mm Audio Only Input• RCA Audio /Video Input Chassis• 2.0 DIN (Import / ISO-DIN Mountable) • Motorized Swing-Down LCD Screen • 6.5" TFT Active Matrix LCD with Anti-Glare Coatin…

Text truncated - open the document above for the full version.

HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD. TEL: +86-752-2616689 FAX: +86-752-2616679 AGENCY AUTHORIZATION LETTER FCC ID: VIPFGEDV6310 Date: Nov.25,2007 To whom it may concern: We,the undersigned,hereby authorize NS Technology Co., Ltd (NS) of Dongguan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by NS within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Joey Zhang/ Engineer Engineering Dept. HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD. TEL: +86-752-2616689 FAX: +86-752-2616679 e-mail: [email protected]

HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD. TEL: +86-752-2616689 FAX: +86-752-2616679 Date: Nov. 25, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: VIPFGEDV6310 Confidentiality Request : Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: The item’s PCB Schematics. .The item’s PCB Block Diagram. The item’s PCB Operational description. The above materials contain trade secrets and proprietary information not customarily release to the public. The public disclosure of these matters might be harmful to the Applicant and Provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the data of the Grant for this application. Sincerely, Joey Zhang/ Engineer Engineering Dept. HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 7, 2008 RE: HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD FCC ID: VIPFGEDV6310 I have a few comments on this application. Depending on your responses, kindly understand there may be additional comments. ” 1. It is needed to show the frequency of the oscillators used in the bluetooth module. “FCC 2.1031 (5) A block diagram showing the frequency of all oscillators in the device. The signal path and frequency shall be indicated at each block. 2. Please indicate where I may find FCC part 15.105 information to user statement in the user manual. “15.105 (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. 3. Please show what RBW and VBW were used on 4.1. Maximum Peak Conducted Output Power measurement. 4. The test procedure page 11 shows RBW=10KHz, but plots show RBW=100KHz on 20 dB bandwidth measurement. Please correct. 5. FYI: According to FCC approved procedure DA00-705 on 20dB bandwidth measurement. The RBW should be set to RBW ≥ 1% of occupied bandwidth, which should be about 10KHz and span should be approximately 2 to 3 times the 20dB bandwidth, but the plots shows RBW=100KHz and span=5MHz, which are too large. 6. According to FCC approved procedure on dwell time measurement, RBW=1MHz should be set in the spectrum analyzer but not RBW=100KHz on page 13.. 7. The plots page 24 for bandedge test should include frequency starting from 30MHz to 24.8GHz. Best regards, ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ George Chen z Page 2 January 7, 2008 ~ mailto:[email protected] ~ Taiwan Mobile: +886 930600123 ~ SKYPE: georgeshirley ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

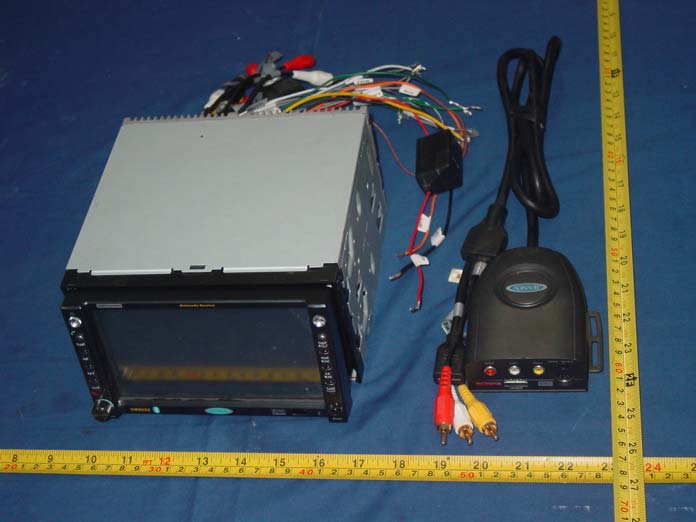

FCC ID: VIPFGEDV6310 External photos 1 External photos 2

FCC ID: VIPFGEDV6310 Internal photos 1 Internal photos 2 FCC ID: VIPFGEDV6310 Internal photos 3 Internal photos 4 Bluetooth PCB board ANT FCC ID: VIPFGEDV6310 Internal photos 5 Internal photos 6 FCC ID: VIPFGEDV6310 Internal photos 7 Internal photos 8 FCC ID: VIPFGEDV6310 Internal photos 9 Internal photos 10 FCC ID: VIPFGEDV6310 Internal photos 11 Internal photos 12 FCC ID: VIPFGEDV6310 Internal photos 13 Internal photos 14 FCC ID: VIPFGEDV6310 Internal photos 15 Internal photos 16 FCC ID: VIPFGEDV6310 Internal photos 17 Internal photos 18 FCC ID: VIPFGEDV6310 Internal photos 19 Internal photos 20 FCC ID: VIPFGEDV6310 Internal photos 21 Internal photos 22 FCC ID: VIPFGEDV6310 Internal photos 23 Internal photos 24 Bluetooth top picture FCC ID: VIPFGEDV6310 Internal photos 25 Bluetooth bottom picture

FCC ID: VIPFGEDV6310 NS Technology Co.,Ltd.. Report No. NSE-F07121737 Page 1 of 29 FCC COMPLIANCE REPORT for HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD CAR DVD RECEIVER Model Number: VM9022(JENSEN; VME9122TS(AUDIOVOX); AMM12N(ADVENT);DV6310(FORYOU) Prepared for : HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD Address : No.6 Zhongkai Songshan Industrial Distric, Huizhou Guangdong,China Prepared By : NS Technology Co., Ltd. Address : Chenwu Industrial Zone, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-85935656 Fax: +86-769-85991080 Report Number : NSE-F07121737 Date of Test : Nov. 26,2007~Jan. 2,2008 Date of Report : Jan. 2,2008 FCC ID: VIPFGEDV6310 NS Technology Co.,Ltd.. Report No. NSE-F07121737 Page 2 of 29 TABLE OF CONTENTS Test Report Declaration Page 1. TEST SITES...................................................................................................................... 4 1.1. Product Function ........................................................................................................................ 4 1.2. Description of Device (EUT) ..................................................................................................... 4 1.3. Different between Model Number ......................................................................4 1.4. Independent Operation Modes... ............................................................................................... 4 1.5. Test Supporting System......................................................................... 4 2. TEST SITES...................................................................................................................... 6 2.1. Test Facilities............................................................................................................................. 6 2.2. List of Test and Measurement Instruments ............................................................................... 7 3. TEST SET-UP AND OPERATION MODES ................................................................ 8 3.1. Principle of Configuration Selection......................................................................................... 8 3.2. Block Diagram of Test Set-up................................................................................................... 8 3.3. Test Operation Mode and Test Software................................................................................... 8 3.4. Special Accessories and Auxiliary Equipment ......................................................................... 8 3.5. Countermeasures to Achieve EMC Compliance ....................................................................... 8 4. EMISSION TEST RESULTS........................................................................................ 9 4.1. Maximum conducted output power ..........................................................................................9 4.2. 20dB Occupied Bandwidth...................................................................................................... 11 4.3. Dwell Time.......................................................................................13 4.4. Adjacent Channel Separation ................................................................................................ 15 4.5. Channel Number........................................................................ .......17 4.6. Radiation Emission.............................................................................19 4.7. Band Edge.......................................................................................24 4.8. Antenna requirement...........................................................................25 FCC ID: VIPFGEDV6310 NS Technology Co.,Ltd.. Report No. NSE-F07121737 Page 3 of 29 NS Technology Co., Ltd. Applicant: Address: HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD No.6 Zhongkai Songshan Industrial Distric, Huizhou Guangdong,China Manufacturer: Address: HUIZHOU FORYOU GENERAL ELECTRONICS CO., LTD No.6 Zhongkai Songshan Industrial Distric, Huizhou Guangdong,China E.U.T: CAR DVD RECEIVER Model Number: VM9022(JENSEN); VME9122TS(AUDIOVOX);AMM12N(ADVENT); DV6310(FORYOU) Trade Name: FORYOU Operating Frequency: 2402MHz~2480MHz Date of Receipt: Nov. 26,2007 Date of Test: Nov. 26,2007~Jan. 2,2008 Test Specification: FCC Part 15 Subpart C: February, 2006 ANSI C63.4:2003 DA 00-705 Test Result: The equipment under test was found to be compliance with the requirements of the standards applied. Issue Date: Jan. 2,2008 Tested by: Reviewed by: Approved by: Kelly / Engineer Chris Du / Supervisor Steven Lee / Manager Other Aspects: None. Abbreviations: OK/P=passed fail/F=failed n.a/N=not applicable E.U.T=equipment under tested This test report is based on a single evaluation of one sample of above mentioned products ,It is not permitted to be duplicated in extracts without written approval of NS Technology Co., Ltd. FCC ID: VIPFGEDV6310 NS Technology Co.,Ltd.. Report No. NSE-F07121737 Page 4 of 29 1. GENERAL PRODUCT INFORMATION 1.1. Product Function This is car DVD player with a standard bluetooth function. It can make a short distant wireless connection with the other bluetooth products. For example, mobile handset and earphone with bluetooth. Details please refer to Technical Construction Form and User Manual. 1.2. Description of Device (EUT) E.U.T. : CAR DVD RECEIVER Model No. : VM9022(JENSEN); VME9122TS(AUDIOVOX); AMM12N(ADVENT);DV6310(FORYOU) Type of the Equipment : Combined Equipment Operating Frequency : 2400MHz to 2483.5MHz Number of Channels : 79 Channels Channel Separation : 1MHz Type of Modulation : FHSS(Frequency Hopping Spread Spectrum); Adaptive Frequency Hopping(AFH) is used. Dwell time : Each channel is less than 0.4S. Antenna Type : Integral System Input Voltage : Nominal Voltage: DC 12V Temperature Range(Operating) : +15 ~+ 35°C 1.3. Difference between Model Numbers All models number use identical circuit, PCB layout. and only the model…

Text truncated - open the document above for the full version.

FCC ID: VIPFGEDV6310 Test setup photo:
