American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 27, 2007 RE: MARTEC Serpe-lesm FCC ID: VIQKAUTO and VIQKMANUALPLUS I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Please note that many of the documents for which Confidentiality are requested are not normally permitted without significant justification. It is impossible for the ‘FCC ID Artwork’, ‘Label Location’ and application ‘Form 731’ to ever be considered for confidential treatment. It is also highly unlikely that the Commission would ever approve confidentiality for ‘Internal Photographs’ either without a substantial rationale. Kindly consider revisions to your Confidentiality Request letter. 2.) Please provide a ‘Tune Up’ document as required by 2.1033(c)(9). For this case, a description of how and to what tolerance the power is adjusted during manufacturing will be sufficient. This document can be held confidential if properly listed on the Confidentiality Request letter. 3.) Please provide the DC currents and DC voltages into the final output stage as required by 2.1033(c)(8) for both the 121 and 406 MHz radio sections. 4.) Because of the complexity of this filing, it would be appreciated if a summary sheet be provided indicating the page numbers or report sections that specifically correspond to 2.1046 through 2.1055 of the Rules. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 4, 2007 TO: FCC FROM: American TCB RE: FCC ID: VIQ-KMANUALPLUS Request for correction of original grant. Thank you for placing incorrect ID (VIQKMANUALPLUS) in audit so that we may correct grant to VIQ- KMANUALPLUS. The labels on file for this one were correct however there are too many. Please delete label location and artwork (these are for the VIQ-KAUTO. Please leave location 2 and artwork 2. Thank you Marianne Bosley American TCB Inc. Direct – 717-676-3203

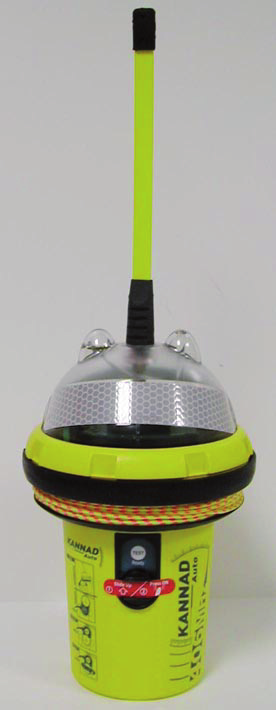

Page 1/2 External Photos REF: ATCB 14AUTO DATE: JUL 23/2007 REV: 00 KANNAD AUTO with GPS Option KANNAD AUTO without GPS Option Auto label Auto label GPS sticker Page 2/2 External Photos REF: ATCB Q14AUTO DATE: JUL12/2007 REV: 00 KANNAD AUTO without GPS Option Beside containerBeside container Inside container Inside container KANNAD AUTO with GPS Option

Page 1/1 KANNAD MANUAL+ & MANUAL+ GPS Note: Drawings of labels are at scale 1 FCC ID ARTWORK REF: ATCB 07M+ DATE: JUL 23/2007 REV: 00 FCC ID: VIQ-KMANUALPLUS Label 4 This device complies with the GMDSS Provisions of the FCC Rules In the USA, register ID with SARSAT Beacon Registration E/SP3, RM 3320, FB-4 NOAA/NESDIS 5200 Auth Rd. Suitland, MD 20746-4304 Tel 888 212 7283 Fax 301 568 8649 FCC ID: VIQ-KMANUALPLUS APPROVALS

KANNAD MANUAL+ & MANUAL+ GPS Page 1 / 1 LABELS LOCATION REF: ATCB 08M+ DATE: JUL 23/2007 REV: 00 Label 1 Label 2 Label 3 Label 4 This device complies with the GMDSS Provisions of the FCC Rules In the USA, register ID with SARSAT Beacon Registration E/SP3, RM 3320, FB-4 NOAA/NESDIS 5200 Auth Rd. Suitland, MD 20746-4304 Tel 888 212 7283 Fax 301 568 8649 FCC ID: VIQ-KMANUALPLUS APPROVALS

Mechanical assembly of Beacons (1) Page 1/6 Housing assembly Upper cover assembly Locking nut Mounting rack All the beacons use the same devices except that: - A GPS sticker is affixed here for GPS version (see ATCB 14AUTO page 1 external photos) - The name Auto is written beside KANNAD (see ATCB 14AUTO , page 1 external photos) - The PCB is fitted with a GPS module and antenna (see page 5 of this document) Internal Photos REF: ATCB 15AUTO DATE: JUL 23/2007 REV: 00 Mechanical assembly of Beacon (2) Page 2/6 Housing assembly Upper cover assembly Locking nut Mounting rack Battery pack Electronic PCB Antenna All the beacons are fitted with the same internal devices except electronic PCB which is fitted on its upper part with a GPS module and antenna for GPS versions (see page 5 of this document) Internal Photos REF: ATCB 15AUTO DATE: JUL 23/2007 REV: 00 Mechanical assembly of mounting rack Page 3/6 Mounting rack Battery pack Electronic PCB Battery coupler board Desiccant capsule Battery connector All the beacons are fitted with the same internal devices except electronic PCB which is fitted on its upper part with a GPS module and antenna for GPS versions (see page 5 of this document) Internal Photos REF: ATCB 15AUTO DATE: JUL 23/2007 REV: 00 Page 4/6 Water switch sensors Emergency deactivation switch Test mock-up connector Fuse Power input connector Buzzer Electronic PCB (View from bellow) The electronic PCB, viewed from below is identical for all versions Internal Photos REF: ATCB 15AUTO DATE: JUL 23/2007 REV: 00 Page 5/6 Electronic PCB Electronic PCB (View from above) Strap for protection against permanent transmissions Flash connector Keyboard connector RF output GPS Module + GPS antenna (for GPS versions) ILS Beacon control lamp Water switch sensors GPS Module + GPS antenna KANNAD AUTO with Option GPS KANNAD AUTO without Option GPS Internal Photos REF: ATCB 15AUTO DATE: JUL 23/2007 REV: 00 Page 6/6 Container Empty container Lower housing of container with Auto or Auto GPS beacon KANNAD AUTO with GPS Option KANNAD AUTO without GPS Option Internal Photos REF: ATCB 15AUTO DATE: JUL 23/2007 REV: 00

REPORTS SUMMARY SHEET ATCB Q4-1 REV. 00 JULY 27/2007 Meas. required 47 CFR §. INTESPACE Test report reference RF Output power 2.1046 Summary: A10 Spurious_A12 Cospas-Sarsat-A13 Ops Life.pdf page 7 Chapter 3 Detail: A12 Initial Cos-Sar Type App.pdf pages 14 to 16 and page 20, 23, 26 Chapter 3 Modulation Characteristics 2.1047 Summary: A10 Spurious_A12 Cospas-Sarsat-A13 Ops Life.pdf, page 9 Chapter 3 Detail: A10 Spurious_A12 Cospas-Sarsat-A13 Ops Life.pdf pages 17 to 26 Chapter 3 Occupied band width 2.1049 Summary for 406 MHz: A10 Spurious_A12 Cospas-Sarsat-A13 Ops Life.pdf, page9 (Please see § 6- Spurious emission) Detail for 406 MHz: A10 Spurious_A12 Cospas-Sarsat-A13 Ops Life.pdf, page 27 to 30 Summary and detail for 121.5 MHz: A17 Auxillary Radio-Locating Transmitter.pdf Spurious emissions at antenna terminal 2.1051 Summary: A10 Spurious_A12 Cospas-Sarsat-A13 Ops Life.pdf page 6/8 Chapter 1 Detail: A10 Spurious_A12 Cospas-Sarsat-A13 Ops Life.pdf Chapter 2 pages1/8 to 8/8 Field strength Spurious radiation 2.1053 Summary: A10 Spurious_A12 Cospas-Sarsat-A13 Ops Life.pdf page 6/8 Chapter 1 Detail: A10 Spurious_A12 Cospas-Sarsat-A13 Ops Life.pdf Chapter 2 pages1/8 to 8/8 and Summary for 406 MHz : A10 Spurious_A12 Cospas-Sarsat-A13 Ops Life.pdf, page9 Detail for 406 MHz: A10 Spurious_A12 Cospas-Sarsat-A13 Ops Life.pdf, page 27 to 30 Frequency stability 2.1055 Summary: A10 Spurious_A12 Cospas-Sarsat-A13 Ops Life.pdf, page 9 Chapter 3 Detail: A10 Spurious_A12 Cospas-Sarsat-A13 Ops Life.pdf, page 18, 21, 24 Chapter 3

Manufacturer : MARTEC. B e a c o n Mo d e l : Kannad Au t o / Au t o GP S / Ma n u a l / Ma n u a l GP S / Ma n u a l + / Ma n u a l + GP S INTESPACE Reference E6668-ETS/IEC
Page 1/ of chapter 25
CHAPTER 25 R F F I E L D I MMU N I T Y T E S T Manufacturer : MARTEC. B e a c o n Mo d e l : Kannad Au t o / Au t o GP S / Ma n u a l / Ma n u a l GP S / Ma n u a l + / Ma n u a l + GP S INTESPACE Reference E6668-ETS/IEC
Page 2/ of chapter 25
25.1 TEST SPECIFICATIONS AND PROGRAMME Following IEC 1000-4-3 (Clause 10.4 of IEC 60945): Severity level : 3 ( following IEC 1000-4-3) = 10 V/m. Calibration at 6 V/m. Calculation of the offset : offset = 20 log (10/6) = 4,44 dB. Suceptibility criteria : The test was run with EPIRB in Ready position without its bracket . During the test the Epirb was endded with video camera if it was running ( flash ). Only the accessible faces of Epirb was tested . Note : This test is more restricting than the IEC specification because the EPIRB is normally protected by its bracket 25.2 EQUIPMENT UNDER TEST Beacon Unit : 5/7 Manufacturer : MARTEC Type : KANNAD AUTO/AUTO GPS/MANUAL/MANUAL GPS/MANUAL+/MANUAL+GPS Number : 57990 Class : II
21.3. DATES : RS Test start on : December 14 th , 2005 RS End of test : December 15 th , 2005 25.4 TEST SITE Toulouse Space Center (CST) - INTESPACE Laboratory. Hight Field Anechoïc Chamber Manufacturer : MARTEC. B e a c o n Mo d e l : Kannad Au t o / Au t o GP S / Ma n u a l / Ma n u a l GP S / Ma n u a l + / Ma n u a l + GP S INTESPACE Reference E6668-ETS/IEC
Page 3/ of chapter 25
25.5 TEST EQUIPMENT Generator : Name & SN Frequency Range Calibration validity RS SMG 100kHz-1GHz 06/2006 Amplificator : Name & SN Frequency Range Calibration validity AR 2000L 10kHz-220MHz 12/2005 AR 1000HA 220MHz-400MHz 12/2005 KALMUS LA500UE 400MHz-500MHz 02/2006 KALMUS 722FC 500MHz-1GHz 02/2006 Field sensor : Name & SN Frequency Range Calibration validity HOLADAY 3004 30MHz-1GHz 01/2006 HOLADAY Hi 3113 30MHz-1GHz 01/2006 Power meter : Name & SN Frequency Range Calibration validity NAP+sonde 350W 25MHz-1GHz 08/2006+02/2006 HP438+sonde8482A 100kHz-4,2GHz 04/2006+04/2006 Coupleur : Name & SN Frequency Range Calibration validity AR DC2000 NS1715 08/2006 Antenna : Name & SN Frequency Range Last calibration date Biconique 3109 NS2068 30MHz-200MHz 03/2006 LOG PER R&S HUF-Z3 200MHz-1GHz 10/2006 Manufacturer : MARTEC. B e a c o n Mo d e l : Kannad Au t o / Au t o GP S / Ma n u a l / Ma n u a l GP S / Ma n u a l + / Ma n u a l + GP S INTESPACE Reference E6668-ETS/IEC
Page 4/ of chapter 25
25.6 RESULTS No susceptibility were detected on the equipment .
25.7 SELF TEST CONTROL


Nothing abnormal to note See Photos and Aliveness Test Result next page Manufacturer : MARTEC. B e a c o n Mo d e l : Kannad Au t o / Au t o GP S / Ma n u a l / Ma n u a l GP S / Ma n u a l + / Ma n u a l + GP S INTESPACE Reference E6668-ETS/IEC
Page 5/ of chapter 25
Test photos Manufacturer : MARTEC. B e a c o n Mo d e l : Kannad Au t o / Au t o GP S / Ma n u a l / Ma n u a l GP S / Ma n u a l + / Ma n u a l + GP S INTESPACE Reference E6668-ETS/IEC
Page 6/ of chapter 25

Manufacturer : MARTEC. B e a c o n Mo d e l : Kannad Au t o / Au t o GP S / Ma n u a l / Ma n u a l GP S / Ma n u a l + / Ma n u a l + GP S INTESPACE Reference E6668-ETS/IEC
Page 7/ of chapter 25

Manufacturer : MARTEC. B e a c o n Mo d e l : Kannad Auto/Auto GPS/Manual/Manual GPS/Manual+/Manual+ GPS INTESPACE Reference E6668-ETS/IEC
Page 1/1 of chapter 26 C HAPTER 26 E L E C T R O S T A T I C D I S C H A R G E I MMU N I T Y T E S T Manufacturer : MARTEC. B e a c o n Mo d e l : Kannad Auto/Auto GPS/Manual/Manual GPS/Manual+/Manual+ GPS INTESPACE Reference E6668-ETS/IEC
Page 2/2 of chapter 26 26.1 TEST SPECIFICATIONS AND PROGRAMME Following IEC 1000-4-2 (Clause 10.9.2 of EN60945): Severity level : 3 ( According IEC 1000-4-2) = 6 kV by «contact » = 8 kV on « Air » Susceptibility criteria : The test has been performed in standby mode; susceptibility criteria is that the operate mode do not appear. 26.2 EQUIPMENT UNDER TEST Beacon Unit : 5/7 Manufacturer : MARTEC Type : KANNAD AUTO/AUTO GPS/MANUAL/MANUAL GPS/MANUAL+/MANUAL+GPS Number : 57990 Class : II 26.3. DATES : ESD Test start on : December 13 th , 2005 ESD End of test : December 14 th , 2005 26.3 TEST SITE Toulouse Space Center (CST) - INTESPACE Laboratory. 26.4 TEST EQUIPMENT Name SN Last calibration date ESD Tester PSD 258 05/2005 26.5 INJECTION METHOD Two kinds of injection were aplied on the equipment :
A series of positve poing and negative going polarity « Air » discharges at 8 kV were applied to all operator accessible fixtures.
 A series of positve poing and negative going polarity « Contact » discharges at 6 kV were applied to all operator accessible fixtures. Manufacturer : MARTEC. B e a c o n Mo d e l : Kannad Auto/Auto GPS/Manual/Manual GPS/Manual+/Manual+ GPS INTESPACE Reference E6668-ETS/IEC
Page 3/3 of chapter 26 26.6. RESULTS No susceptibility were detected on the equipment. 26.7 SELF TEST ON : Date: December 15 th , 2005 Beacon Unit : 5/7 Manufacturer : MARTEC Type : KANNAD AUTO/AUTO GPS/MANUAL/MANUAL GPS/MANUAL+/MANUAL+GPS Number : 57990 Result : Self Test pass 26.8 ALIVENESS TEST RESULTS AFTER EDI TEST Date: December 15 th , 2005 Beacon Unit : 5/7 Manufacturer : MARTEC Type : KANNAD AUTO/AUTO GPS/MANUAL/MANUAL GPS/MANUAL+/MANUAL+GPS Number : 57990 Result : Aliveness Test pass See aliveness test data next page Manufacturer : MARTEC. B e a c o n Mo d e l : Kannad Auto/Auto GPS/Manual/Manual GPS/Manual+/Manual+ GPS INTESPACE Reference E6668-ETS/IEC
Page 4/4 of chapter 26 Manufacturer : MARTEC. B e a c o n Mo d e l : Kannad Auto/Auto GPS/Manual/Manual GPS/Manual+/Manual+ GPS INTESPACE Reference E6668-ETS/IEC
Page 5/5 of chapter 26
