VIQ-SAFELINK2SafeLink Distress Beacon

DOC09028A Ref. 0146130A Date : 20/10/2009 Z.I. des Cinq Chemins 56520 GUIDEL - FRANCE Telephone: +33 (0)2 97 02 49 49 Fax: +33 (0)2 97 65 00 20 Web : http://www.kannad.com - E-mail : [email protected] Support: [email protected] Tel.: +33 (0)2 97 02 49 00 SAFELINK © KANNAD CAT 1 - CAT 2 Classe 2 / Class 2 Manuel Utilisateur / User Manual SafeLink Auto Categorie 1 / Category 1 SafeLink Manual+ Categorie 2 / Category 2 ATTENTION Balise de détresse Utilisation prohibée en dehors de toute situation de détresse Avant toute utilisation, cette balise doit être enregistrée auprès des autorités locales WARNING Distress beacon Use only in situations of grave and imminent danger Register beacon with national authority before use DOC09028A ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS LANG7 LANG8 LANG9 LANG10 LANG11 LANG12 SOMMAIRE 1 . INTRODUCTION .....................................................................................................1 1.1. Présentation du système COSPAS-SARSAT .......................................................1 1.2. Déclenchement de l’alerte et calcul de la position ................................................1 2 . PRESENTATION ....................................................................................................2 2.1. Description du conteneur et du support mural ......................................................2 2.2. Description de la balise .........................................................................................3 3 . INSTRUCTIONS DE TESTS ...................................................................................5 4 . UTILISATION ..........................................................................................................5 4.1. Activation automatique .........................................................................................5 4.2. Activation manuelle ...............................................................................................5 5 . FAUSSES ALARMES .............................................................................................7 5.1. Prévention des fausses alarmes ...........................................................................7 5.2. Désactivation de la balise .....................................................................................7 6 . INSTALLATION DE LA BALISE ..............................................................................8 6.1. Montage de la plaquette d’instructions .................................................................8 6.2. SafeLink Auto Catégorie 1 (Pont) .........................................................................9 6.3. SafeLink Manual+ catégorie 2 (Survie) ................................................................11 7 . SPECIFICATIONS TECHNIQUES ..........................................................................13 8 . DECLARATION D'ENREGISTREMENT .................................................................13 8.1. Général .................................................................................................................13 8.2. Enregistrement au Canada ...................................................................................13 8.3. Licence radio au Canada ......................................................................................14 9 . MAINTENANCE ......................................................................................................14 10 . REMPLACEMENT DES PILES .............................................................................14 10.1. Démontage du pack piles .....................................................................................14 10.2. Remontage du pack piles .....................................................................................15 11 . REMPLACEMENT DU LARGUEUR HYDROSTATIQUE ....................................15 11.1. Description ............................................................................................................15 11.2. Remplacement ......................................................................................................15 11.3. Carnet d’interventions............................................................................................34 11.4. Garantie .................................................................................................................38 DOC09028A ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS LANG7 LANG8 LANG9 LANG10 LANG11 LANG12 CONTENTS 1 . INTRODUCTION .................................................................................................... 17 1.1. COSPAS-SARSAT system description ................................................................ 17 1.2. Immediate alerting and location calculation ......................................................... 17 2 . DESCRIPTION ....................................................................................................... 18 2.1. Container and mounting bracket description ....................................................... 18 2.2. Beacon description .............................................................................................. 19 3 . TEST INSTRUCTIONS .......................................................................................... 21 4 . INSTRUCTIONS FOR USE .................................................................................... 21 4.1. Automatic activation ............................................................................................. 21 4.2. Manual activation ................................................................................................. 21 5 . FALSE ALARMS .................................................................................................... 23 5.1. False alarms prevention ....................................................................................... 23 5.2. Beacon de-activation ................................................…

Text truncated - open the document above for the full version.

INSTRUCTIONS PLATE FOR SAFELINK 1 & SAFELINK 2 3 2 1 WARNING USE ONLY DURING SITUATIONS OF GRAVE AND IMMINENT DANGER Test only within the first 5 mn of any hour M A N U A L ON LINK TEST OFF D i str ess Onl y Distr ess On l y WARNING USE ONLY DURING SITUATIONS OF GRAVE AND IMMINENT DANGER Test only within the first 5 mn of any hour M A N U A L ON LINK TEST OFF D is t res s O n l y Di st ress On l y 63 mm (2.48") 74 mm (2.91") 134 mm (5.27")

Telephone ()_____________________ ()_____________________ ()_____________________ ()_____________________ Area Code Area Code Area Code Area Code HomeWork CellularFaxOther HomeWork CellularFaxOther HomeWork CellularFaxOther HomeWork CellularFaxOther Telephone ()_____________________ ()_____________________ ()_____________________ ()_____________________ Area Code Area Code Area Code Area Code HomeWork CellularFaxOther HomeWork CellularFaxOther HomeWork CellularFaxOther HomeWork CellularFaxOther Telephone ()_____________________ ()_____________________ ()_____________________ ()_____________________ Area Code Area Code Area Code Area Code HomeWork CellularFaxOther HomeWork CellularFaxOther HomeWork CellularFaxOther HomeWork CellularFaxOther Owner/Operator Information Name______________________________________________ Mailing Address ______________________________________ ___________________________________________________ City _____________________ State/Province _____________ ZIP (Postal) Code __________ Country ___________________ E-mail ______________________________________________ (Last, First, Middle Initial) Official 406 MHz EPIRB Registration Form Category I (Automatic Deployment) Category II (Manual Deployment) EPIRB Information Beacon ID (Unique Identifier Number) (15 digit character ID provided by EPIRB manufacturer) Vessel Information Mail or Fax to: NOAA/SARSAT NSOF, E/SP3 4231 Suitland Road Suitland, MD 20746 Fax No. 301-817-4565 If you have any questions about this form or with EPIRB registration in general, please call 1-888-212-SAVE (7283) or 301-817-4515. For information on the U.S. Search & Rescue Satellite-Aided Tracking system, please visit: www.sarsat.noaa.gov EPIRB Information EPIRB Registration New EPIRB RegistrationReplacement of EPIRB Decal Renewal of EPIRB Registration Check here if this EPIRB is a replacement for a previously registered EPIRB. Change of EPIRB Information or OwnershipPlease enter the old EPIRB unique ID number ________________________ Crew and Passengers Marina/Dock Usage:CommercialNon-commercial Government MilitaryGovernment Non-military Type Sail: Number of Masts ____________________ Power: Fishing Tug Cargo Tanker Pleasure Craft Other ____________________ Non-power: Life Boat Life Raft Other__________________ Vessel Name_____________________________________ Vessel Color____________ Survival Craft(s) on Vessel: Life Boat _____ Life Raft_____ Is your EPIRB equipped with a Simplified Voyage Data Recorder (SVDR)? Radio Equipment (Check all that apply) VHF MF HF SSB Other ___________________ Vessel Telephone Numbers Radio Call Sign ______________ INMARSAT _____________________ Cellular ____________________ MMSI Number ___________________ Federal / State Registration Number__________________ Length Overall (ft)____________Capacity_____________ Homeport________________________________________ ________________________ ________________________ Additional Data___________________________________ _________________________________________________ No. of CityState Emergency Contact Information(Please indicate someone other than the owner) Name of Primary24-Hour Emergency Contact: Name of Alternate24-Hour Emergency Contact: __________________________________________________________________________________________________ EPIRB Manufacturer __________________________________ Model No. ________________________________________ Signature __________________________________________ Date ____________________________________________ Save Time! Register your beacon online at: www.beaconregistration.noaa.gov No. of YesNo OMB Auth. (0648-0295) Expires: 30JUN2011 Important Notice -Please Read Before Completing Registration Registration is an important facet for all Cospas-Sarsat 406 MHz emergency beacons. Not only is it required by Federal Regulations but the information you furnish is used by Search And Rescue (SAR) agencies in the event of beacon activation. The registration information is an important tool to assist the United States Coast Guard, United States Air Force, and other SAR agencies in locating and quickly responding to you, your vessel, or your aircraft. Failure to register your beacon may delay a rescue response. Accurate, up-to-date registration information will also be used to conserve resources by helping to eliminate false alert deployments, as an inadvertent activation can be resolved with a phone call. There is no charge for beacon registration. This is a service provided by the U.S. National Oceanic and Atmospheric Administration (NOAA). All online registrations will be entered into the National 406 MHz Beacon Registration Database on the same day of entry. Registration forms received via postal mail will be entered within 2 business days of receipt. For online registrations, a confirmation letter with your completed registration information form will be sent immediately via e-mail or fax (if provided). Confirmation letters sent via postal mail should arrive within two weeks. Once your registration confirmation is received, please review all information. Any changes or updates to your registration information can be done via the internet, fax, e-mail or postal mail. If you do not receive your registration confirmation from NOAA on the same day you submit it over the internet or within two weeks if you submit it by postal mail, please call NOAA toll-free at: 1-888-212-SAVE (7283) or 301-817-4515 for assistance. After initial registration (or re-registration) you will receive a NOAA Proof of Registration Decal by postal mail. This decal is to be affixed to the beacon and should be placed in such a way that it is clearly visible. If for some reason you do not receive the registration decal within two weeks, please call NOAA toll-free at: 1-888-212-SAVE (7283) or 301-817-4515. Failure to register, re-register (as required every two years), or to notify NOAA of any changes to the status of your 406 MHz beacon could result in penalties and/or fines bei…

Text truncated - open the document above for the full version.

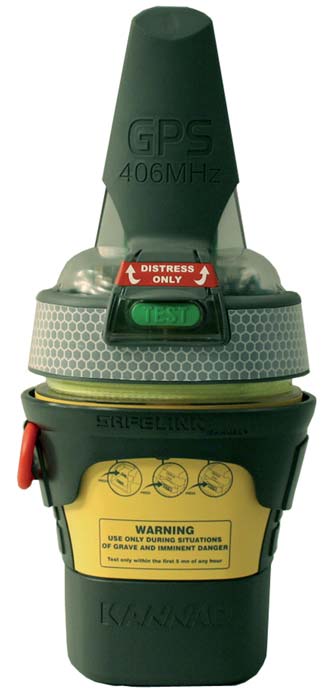

Page 1/1 External Photos REF: ATCB 14 MANUAL+ DATE: MAR 23/2010 REV: 00 CATEGORY 2 FCC ID: VIQ-SAFELINK2 IC:1159A-SAFELINKE2 Front view Rear view View with mounting bracket SAFELINK MANUAL+ (CATEGORY 2) Beacon Name: SAFELINK MANUAL+ Side view with location for NOAA Label

FCC ID: VIQ-SAFELINK2 IC: 1159A-SAFELINKE2 BV 0062 09 Page 1/ 1 FCC ID ARTWORK REF: ATCB 07 MANUAL+ DATE: MARCH 24/2010 REV: 00 Label for Category 2

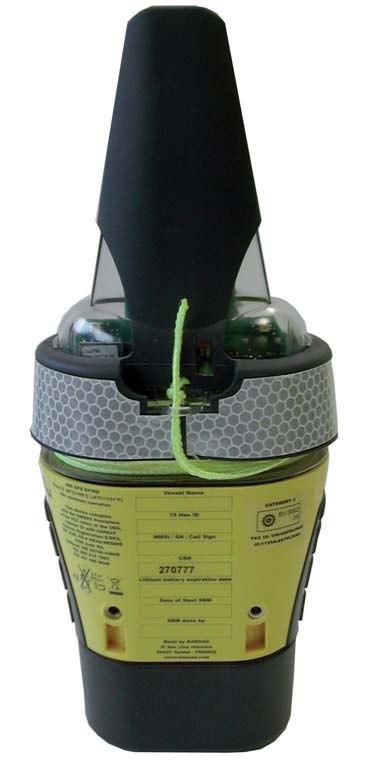

Page 1 / 3 LABELS LOCATION REF: ATCB MANUAL+ 08 DATE: MAR 24/2010 REV: 00 WARNING USE ONLY DURING SITUATIONS OF GRAVE AND IMMINENT DANGER Test only within the first 5 mn of any hour M A N U A L ON LINK TEST OFF Distress Only Distress Onl y Front face of beacon FCC ID: VIQ-SAFELINK2 IC: 1159A-SAFELINKE2 BV 0062 09 Page 2 / 3 LABELS LOCATION REF: ATCB MANUAL+ 08 DATE: MAR 24/2010 REV: 00 Vessel Name 15 Hex ID MMSI / SN / Call Sign CSN Lithium battery expiration date Next SBM Last SBM done by Made by KANNAD ZI des cinq chemins 56520 Guidel - FRANCE Rear part of beacon Label for Category 2 This device complies with the GMDSS Provisions of the FCC rules. In the USA, the owner of this 406.037 MHz EPIRB must register the NOAA identification code contained on this label with the National Oceanic and Atmospheric Administration whose address is: Direct Services Division E/SP3, RM 3320, FB-4 NOAA, NESDIS 5200 Auth Road Suitland MD 20746-4304 406 GPS EPIRB Class 2 -20°C/+55°C (-4°F/+131°F) 48h minimum operation Warning to alert user for registring the EPIRB with NOAA Caption to affix NOAA label Page 3 / 3 LABELS LOCATION REF: ATCB MANUAL+ 08 DATE: MAR 24/2010 REV: 00 FRONT FACE OF MOUNTING BRACKET

Page 1/1 PCB Views (Detail) REF: ATCB 15 MANUAL+ DATE: APR 06/2010 REV: 00 Views of PCB with Integral Antenna Integral Antenna

Mechanical assembly of Beacon Page 1/1 Internal Photos REF: ATCB 15 MANUAL+ DATE: MAR 23/2010 REV: 00 Cover of Battery Housing PCB + Battery Housing Dome with PCB and integral antenna Dome Protecting Cover Internal view of Battery Housing Battery Pack Internal view of PCB Housing Views of PCB with In t eg r al A nt e nna

Page 1 / 1 TUNE UP PROCEDURE REF: ATCB 06 DATE: MAR 24/2010 REV: 00 As required by 2.1033(c)(9 a “Tune Up” document must be provided, i.e. a description of how and to what tolerance the power is adjusted during manufacturing. Not applicable in our case: This product is factory tuned, opeartes only on fixed frequencies and contains no user-tunable components Each beacon is checked in manufacturing: - 406 MHz must be 37 dBm ± 2dB - 121.5 MHz must be 17 dBm ± 3dB A final inspection is performed on each beacon and Acceptance Test Reports are filled to prove that they are compliant with these specifications before release.

Ref :E9788-CSPage 2 1 - ADMINISRATION 1.1. WORK ORDER Manufacturer : KANNAD Address : ZI des Cinq Chemins, BP23, 56520 GUIDEL Represented by : Mr Stephane JINCHELEAU 1.2. INTESPACE TEST CENTER The test operations have been conducted by : Gérard PEYROU 1.3. SCHEDULE Start of test:22 June 2009 End of test :15 September 2009 1.4. WORK REFERENCE : E9788-CS 1.5. EQUIPMENT UNDER TEST The results from this test report concern only the equipment here after referenced : - Beacon Manufacturer : KANNAD - Beacon Model : SafeLink Auto/Manual+ - Other Model Name : SafeLink Manual+ - Sérial number: EUT 12 2 - TEST FACILITIES - Intespace ARGOS - COSPAS/SARSAT Certification Test Bench. - Intespace Anechoic chamber for antenna test . - CST CNES MCC . Ref :E9788-CSPage 3 3 -TEST OBJECTIVE To perform a Cospas/Sarsat Type approval Test Sequence 4 - STANDARDS AND TEST PROCEDURES APPLICABLE COSPAS-SARSAT standards : - "C/S T. 001- Issue 3 - Revision 9 - November 2008 " - "C/S T. 007- Issue 4 - Revision 3 - October 2008" INTESPACE Radio Beacon Test Procédures : - " COSPAS-SARSAT Certification Test"Réf. ITS : PO 572 -" 406 MHz Caracteristic Antenna Test " Réf. ITS : PO 566 - " Radio Beacon Test Report " Réf. ITS : 579 5 - RESULTS See the following pages : - C/S Annex G : Application form for a COSPAS-SARSAT 406 MHz beacon Type Approval Certificate , - Summary of 406 MHz beacon test results - Operational Temperature Test results : data and graphs - Satellite Qualitative Test Report - AntennaTest Report - Navigation System Test Report - Annex I : List of Test Laboratory Equipments and Table of Laboratory Measurement Uncertainties - Annex II : C/S Annex L - Beacon Quality Assurance Plan - Annex III : Manufacturer technical data - Ref DOC09060 - Estimate of Medium Term Frequency Stability Ageing following C/S Interim Procedure Ref :E9788-CSPage 4 ANNEX G APPLICATION FOR A COSPAS - SARSAT 406 MHz BEACON TYPE APPROVAL CERTIFICATE G.1 INFORMATION PROVIDED BY THE BEACON MANUFACTUREUR Ref :E9788-CSPage 5 Ref :E9788-CSPage 6 Ref :E9788-CSPage 7 Ref :E9788-CSPage 8 Ref :E9788-CSPage 9 G.2 INFORMATION PROVIDED BY THE COSPAS-SARSAT ACEPTED TEST FACILITY Name and Location of Beacon Test Facility:INTESPACE Date of submission for Testing:22 June 2009 Applicable C/S Standards:DocumentIssueRevision C/S T.00139 C/S T.00743 I herebyconfirm that the 406 MHz beacon described above has been successfully tested in accordance with the COSPAS-SARSAT 406 MHz Beacon Type Approval Standard (C/S T.007) and complies with the Specification for Cospas-Sarsat 406 MHz Distress Beacons (C/S T.001) as demonstrated in the attached report. Dated : 15 September 2009Signed : Gérard PEYROU Intespace Distress Beacon Test Responsible Table F.1: Overall Summary of 406 MHz Beacon Test R esults Ref : E9788-CS PARAMÈTRES TO BE MEASURED RANGE OF UNITS TEST RESULT S DURING TESTS SPECIFICATION T min. T amb. T max. COMMENTS -20°C (±3) 22°C (±3) 55°C (±3) 1 - POWER OUTPUTo transmitter power output 35 - 39 dBm 36,7 36,5 35,9 o Power output rise time < 5 ms 0,47 0,56 1,58 Graphs p, 25, 28 and 31 o power output 1 ms before burst < -10 dBm √ 1 111 √ √ √ Graphs pages 18 to 21 2 - DIGITAL MESSAGE Data and graphs Bits number pages 23 to 31 o bit sync 1-15 15 bits "1" √ √ √ √ o frame sync 16-24 9 bits (000101111) √ √ √ √ o format flag 25 1 bit bit value 1 1 1 o protocol flag 26 1 bit bit value 0 0 0 o identification/position code 27-85 59 bits √ √ √ √ o BCH code 86-106 21 bits √ √ √ √ o emerg. code/nat. use/supplem. data 107-112 6 bits b it value 110111 110111 110111 o additional data/BCH (if applicable) 113-144 32 bit s √ √ √ √ o position error (if applicable) < 5 km 0,060 km 0,060 km 0,080 km 1 Indicate that testing demonstrated conformance to the requirements by placing the √ symbol in Table F.1. Page 10 Table F.1: Overall Summary of 406 MHz Beacon Test R esults Ref : E9788-CS PARAMÈTRES TO BE MEASURED RANGE OF UNITS TEST RESULT S DURING TESTS SPECIFICATION T min. T amb. T max. COMMENTS -20°C (±3) 22°C (±3) 55°C (±3) 3 - DIGITAL MESSAGE GENERATOR Data and graphs o repetition rate T R : pages 23 to 31 average T R = 48,5 - 51,5 sec 49,81 50,09 49,91 minimum T R = 47,5 ≤ T R ≤ 48,0 sec 47,7 47,7 47,9 maximum T R = 52,0 ≤ T R ≤ 52,5 sec 52,2 52,2 52,1 standard deviation = 0,5 - 2,0 sec 1,30 1,31 1,38 o bit rate minimum f b = ≥ 396 bits/sec 401,04 401,06 401,52 maximum f b = ≤ 404 bits/sec 401,06 401,09 401,55 o total transmission time : short message = 435.6 - 444.4 ms long message = 514.8 - 525.2 ms 520,13 520,15 519,34 o unmodulated carrier minimum T 1 = ≥ 158,4 ms 159,72 159,72 159,34 maximum T 1 = ≤ 161,6 ms 159,72 159,73 159,37 o first burst delay ≥ 47,5 sec 60,5 sec 61,3 sec 59,7 sec Page 11 Table F.1: Overall Summary of 406 MHz Beacon Test R esults Ref : E9788-CS PARAMÈTRES TO BE MEASURED RANGE OF UNITS TEST RESULT S DURING TESTS SPECIFICATION T min. T amb. T max. COMMENTS -20°C (±3) 22°C (±3) 55°C (±3) 4 - MODULATION Data and graphs pages o biphase-L √ √ √ √ pages 23 to 31 o rise time 50 - 250 μ sec 100 120 100 o fall time 50 - 250 μ sec 100 110 100 o phase deviation : positive + (1.0 to 1.2) radians + 1,08 + 1,08 + 1,08 o phase deviation : negative - (1.0 to 1.2) radians - 1,08 - 1,08 - 1,08 o symmetry measurement ≤ 0.05 √ √ √ √ 5 - 406 MHz TRANSMITTED FREQUENCY Data pages 23, 26 and 29 o nominal value C/S T.001 MHz 406,0379327 406,0379129 406,0379186 o short term stability ≤ 2 x 10 -9 /100 ms 1,14E-10 2,66E-10 1,06E-10 o medium term stability . slope ( -1 to +1 ) x 10 -9 /min 1,04E-12 1,30E-11 2,23E-11 . residual frequency variation ≤ 3 x 10 -9 1,26E-10 1,10E-10 1,02E-10 6 - SPURIOUS EMISSION 1 See graphs pages (into 50 ohms) C/S T.001 mask √ √ √ √ 32 to 35 o in-band (406.0 - 406.1 MHz) 1 Include spectral plots of the 406,0-406,1 MHz ban d, showing the transmit signal and emission mask as defined in C/S T.001. Page 12 Table F.1: Overall Summary of 406 MHz Beacon Test R esults Ref : E9788-CS PARAMÈTRES TO BE MEASURED RANGE OF UNITS TEST RESULT S DURING TESTS SPECI…

Text truncated - open the document above for the full version.

Ref : E9788-CS Annex III ANNEX III MANUFACTURER DOCUMENTATION SafeLink DOC09060 Indice B Z.I. des Cinq Chemins - 56520 GUIDEL Téléphone: +33 2 97 02 49 49 / Télécopie: +33 2 97 65 00 20 PAGE : 1/76 DATE : 16/09/2009 INDICE : B REF. : DOC09060 Copyright @ KANNAD. Tous droits réservés. SafeLink Technical data SafeLink Technical data PAGE : 2/76 DATE : 16/09/2009 INDICE : B REF. : DOC09060 Copyright @ KANNAD. Tous droits réservés. EVOLUTIONS Ref. Date Modifications descriptions A 11/05/2009 Original document B 16/09/2009 Photos SafeLink Technical data PAGE : 3/76 DATE : 16/09/2009 INDICE : B REF. : DOC09060 Copyright @ KANNAD. Tous droits réservés. CONTENTS 1 Introduction. ........................................................................................................................................................................... 6 2 Application form for a COSPAS-SARSAT 406 MHz Beacon type approval certificate (Annex G). .................................... 7 2.1 List of operational configurations supported. ................................................................................................................. 9 2.1.1 Antenna test configuration requirements. ............................................................................................................... 9 2.1.2 Satellite qualitative test and position acquisition time and position accuracy test configuration requirements. .... 9 2.2 Details of the beacon battery and battery pack. .............................................................................................................. 9 2.3 Details on the special features of the beacon. ................................................................................................................. 9 2.3.1 Homer. .................................................................................................................................................................... 9 2.4 Beacon navigation system. ........................................................................................................................................... 10 2.4.1 GPS module datasheet. ......................................................................................................................................... 10 2.4.2 GPS functioning. .................................................................................................................................................. 12 2.4.3 406 MHz signal versus GPS failure. .................................................................................................................... 12 2.4.4 Position clearance after deactivation. ................................................................................................................... 12 2.5 Self test mode characteristics. ...................................................................................................................................... 13 3 Summary of the beacon antenna test results. ........................................................................................................................ 14 3.1 Satellite qualitative test results. .................................................................................................................................... 14 3.2 Beacon antenna test results. .......................................................................................................................................... 14 3.3 Navigation system test results as per Appendix C to annex F. ..................................................................................... 15 3.3.1 Standard Location : EPIRB with MMSI ............................................................................................................... 16 3.3.1.1 Coding values for the message. ........................................................................................................................ 16 3.3.1.2 Position data encoding results. ......................................................................................................................... 16 3.3.1.3 First message decoded. ..................................................................................................................................... 18 3.3.2 Standard Location : EPIRB with serial number.................................................................................................... 19 3.3.2.1 Coding values for the message. ........................................................................................................................ 19 3.3.2.2 Position data encoding results. ......................................................................................................................... 19 3.3.2.3 First message decoded. ..................................................................................................................................... 21 3.3.3 National Location : EPIRB ................................................................................................................................... 22 3.3.3.1 Coding values for the message. ........................................................................................................................ 22 3.3.3.2 Position data encoding results. ......................................................................................................................... 22 3.3.3.3 First message decoded. ..................................................................................................................................... 24 3.3.4 Maritime User Protocol with MMSI..................................................................................................................... 25 3.3.4.1 Coding values for the message. ........................................................................................................................ 25 3.3.4.2 Position data encoding results. ....................................…

Text truncated - open the document above for the full version.

Equipment in test KANNAD SAFELINK INTESPACE Reference E.09788.B Page 2 / 11 of chapter 16 16.1 - ELECTRICAL AND FUNCTIONAL TEST OF 121,5 MHZ AT CONSTANT TEMPERATURE Equipment in test KANNAD SAFELINK INTESPACE Reference E.09788.B Page 3 / 11 of chapter 16 16.1.1 TEST SPECIFICATIONS AND PROGRAMME Following - Section A17.0 of RTCM Recommended Standards for 406 MHz Satellite EPIRBs (Version 2.1 June 20, 2002) - Section A17.0 of TP4522(E) Performance Standards for 406 MHz Satellite EPIRBs • Perform following measurements. - Carrier frequency - Modulation frequency - Transmitter duty cycle - Sweep repetition rate - Modulation duty cycle - Modulation factor Note : These tests are performed during the COSPAS-SARSAT Type Approval tests (chapter 11) 16.1.2 EQUIPMENT UNDER TEST Beacon Unit Name : KANNAD Type : SAFELINK Number : 12 16.1.3 TEST SITE Toulouse Space Center (CST) - INTESPACE Laboratory. 16.1.4 TEST EQUIPMENT • Climatic chamber : CLIMATS F.C.H. – Type: Austral 137H60/1,5E - S/N: S4880. • Argos - Cospas/Sarsat Test Bench Equipment in test KANNAD SAFELINK INTESPACE Reference E.09788.B Page 4 / 11 of chapter 16 16.1.5. RESULTS OF HOMING TRANSMITTER TESTS 1 - OPERATING LIFETIME AT MINIMUM TEMPERATURE 2 - CARRIER FREQUENCY * 3 - PEAK ENVELOPE OUTPUT POWER ** ( into 50 Ohms load ) 4 - TRANSMITTER DUTY CYCLE 5 - MODULATION FREQUENCY 6 - MODULATION DUTY CYCLE 7 - MODULATION FACTOR 8 - SWEEP REPETITION RATE 9 - HOMING TRANSMISSION CODING * 24H 121500 kHz± 5 kHz 14 dBm + 6/- 2 dBm continuous 300 to 1 600 Hz 33 % - 55 % > 0.85 2 Hz - 4 Hz Bits 112 = 1 T min. - 20° C ≈ 50 h 121.5028 15.5 dBm Cont. 490 to 1330 41 % . > 0.85 2.85 Hz 1 T amb. 22° C 121.5017 16.4 dBm Cont. 510 to 1330 40 % > 0.85 2.88 Hz 1 T max + 55° C 121.5008 16.6 dBm Cont. 500 to 1330 40 % > 0.85 2.91 Hz 1 * See data and graphs of results on chapter 13 “ Cospas-Sarsat Type Approval Tests Report ” 16.1.6. SPECTRUM MEASUREMENT RESULTS See graphs of results on chapter 11 "Cospas-Sarsat Type Approval Tests Report" and chapter 9 "Spurious Emission Test" Equipment in test KANNAD SAFELINK INTESPACE Reference E.09788.B Page 5 / 11 of chapter 16 16.2- HOMING RADIATED OUTPUT POWER Equipment in test KANNAD SAFELINK INTESPACE Reference E.09788.B Page 6 / 11 of chapter 16 16.2.1 - ADMINISTRATION 16.2.1.1 WORK ORDER : E.09788 16.2.1.2 TEST TEAM : G. PEYROU 16.2.1.3 SCHEDULE : 26/06/2009 16.2.2 - PURPOSE The radiation tests of the dedicated radio beacon are performed in INTESPACE EMC Laboratory in compliance with the test methods described in : - Section A17.0 of RTCM Recommended Standards for 406 MHz Satellite EPIRBs (Version 2.1, 2002) Frequency tested : 121.5 MHz. 16.2.3 - RADIO BEACON IDENTIFICATIONS Beacon Unit Name : KANNAD Type : SAFELINK Number : 9 16.2.4 - TEST SITE DESCRIPTION Tests are performed in an anechoic chamber (size 16 m x 10 m x 11 m) . Walls, ceilin…
