VL6JA80AWireless outdoor siren

JA-80A wireless outdoor siren MHV51101_c1 1 The JA-80A wireless outdoor siren The JA-80A is a component of Jablotron’s Oasis 80 system. It is designed to sound an external alarm and to indicate any tampering it experiences. It is powered by a long-life lithium battery and communicates wireless using Jablotron Oasis protocol. BAT - 80 100 158 1 6 0 2 3 0 Installation The siren should be installed by a certified installer. It should be located on a vertical wall with its flashing light facing downwards. The siren should not be shielded by any metal which could block radio communication. 1. Open the siren cover (2 screws on the bottom side) 2. Remove the internal transparent cover (release its screw and push it to the right) 3. Attach the siren to the desired location (3 screws) 4. Select the desired optional features via the internal jumpers (see the following description) 5. Enroll the siren to the control panel as follows: a) Set the control panel to Service mode and key in 1 to enter enrollment mode (the desired address can be selected by using the arrow keys) b) Connect up the battery cable in the siren – (the light will flash and after a while it will turn off = enrollment finished) c) Exit enrollment mode by pressing the # key 6. Reinstall the internal and external covers Notes: • Multiple sirens can be enrolled to the control panel • If the siren continues flashing it has not been enrolled – check if the control panel is in enrollment mode and if it has its antenna connected. The siren should be at least 2 meters away from the control panel during enrollment. Jumpers 50 / 25 selects how often the siren checks the status of the system. In normal operation the siren saves battery power by turning its receiver off. It then turns on again periodically to check for alarms in the system approximately every 25 or 60 seconds (selectable). The 60 second period not only extends the siren’s maximum reaction delay but also its battery life. LED ON / OFF enables short flashes of the siren every 60 seconds (= position ON). If OFF is selected, the siren will flash only while indicating an alarm. Siren connector (beware of high voltages) LEDs Top cover sensor Siren removal sensor Battery connector enabled disabled communication interval 25s interval 60s LED indication antenna Function If there is an external alarm in the control panel, the siren will start sounding and flashing (can be delayed – see the 50/25 jumper). The siren will sound for a maximum of 3 minutes (unless the control panel alarm period is shorter) and its light will flash 30 minutes longer. Siren indication can also be stopped by ending the alarm in the control panel. If tampered with, the siren will send a tamper signal to the system Warning – beware of electrical shocks when the siren sounds (it generates a high AC voltage – do not touch any internal parts). Switch the system to Service mode before performing any maintenance on the siren. Remember, that the siren can start sounding and flashing anytime when its battery is connected. Testing If you trigger an external alarm in the system, the siren should start working within 25 (or 60) seconds. To measure the siren’s signal strength select signal measurement mode in the control panel and activate the siren tamper sensor by opening its cover. Battery replacement The siren checks its battery status and if it is going to be discharged soon it will inform the system (which will notify the user and service technician). The siren will continue to work, but its battery should be replaced within 2 weeks. Only use a Jablotron BAT-80 battery as a replacement. Never try to charge the battery. When disposing of the used battery always follow local regulations. Removing the siren from the system If you want to uninstall the siren, do not forget to erase it in the control panel to avoid any indication of lost communication with the siren. Specifications power lithium battery BAT-80 Jablotron battery life time calculated for max 5 years (60 sec supervision) communication band 868 MHz, Oasis protocol communicating distance up to 300m (open area) siren piezo electric, 112 dB/1m max. duration of the audible alarm 3 minutes max. duration of flashing during alarms 30 minutes enclosure IP34D EN 50131-1 grade 2 dimensions 230 x 158 x 75 mm working temperature -25 to +60°C operating environment class IV. can be operated according to ERC REC 70-03 FCC ID: VL6JA80A Jablotron Ltd. hereby declares that the JA-80A is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and complies with part 15 of the FCC rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference, 2. This device must accept any interference received, including interference that may cause undesired operation, and 3 the jumper 25/50 must be set to 50. CAUTION: Changes or modifications no expressly approved by Jablotron could void the user ́s authority to operate the equipment. The original of the conformity assessment can be found at www.jablotron.com, Technical Support section Note: Although this product does not contain any harmful materials we suggest you return the product to the dealer or directly to the producer after use.

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] Account: KomerčnÌ banka Jablonec n.N 17409-451/0100 Entrepreneurial permit number: CZ14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren Attention: Application Examiner Re: Request for confidentiality Applicant: JABLOTRON Ltd. FCC ID: VL6JA80A To whom it may concern, Request is hereby submitted by JABLOTRON to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams Rationale for request for confidentiality: JABLOTRON has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] No: 7DO014 Konto: KomerčnÌ banka Jablonec n.N 17409-451/0100 IČO: 14864959 DIČ: 187-14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren July 30, 2007 To whom it may concern, Letter of Agency I, an officer of Jablotron company do hereby authorize Intertek Deutschland GmbH to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 of the FCC Rules until further notice. I further certify that no party (as defined in ß1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, By: Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager ____________________

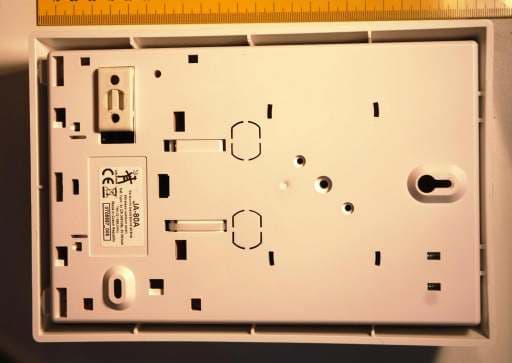

External Photos Front view Rear view

The position of the FCC label : rear side of the device above the company label as shown on the drawing.

Internal Photos Device in plastic enclosure PCB front view PCB rear view

Jablotron s.r.o. / JA-80A 2-23 07KFE007857-N-FCC-01 / 07-12-17 R_FCC 06-04 Table of Contents 1. General description.............................................................................................. 4 1.1. Product description ............................................................................................ 4 1.2. Related submittal(s) Grants................................................................................ 4 1.3. Test Methodology............................................................................................... 4 1.4. Test Facility ........................................................................................................ 4 1.5. List of exhibits .................................................................................................... 5 2. Measurements And Test Specifications............................................................. 6 3. Description Of EUT .............................................................................................. 7 3.1. Configuration / Operating Conditions ................................................................. 7 3.2. Major Subassemblies Or Internal Peripherals .................................................... 7 3.3. Peripheral Devices Used For Testing................................................................. 7 3.4. Supply- And Interconnecting Cables .................................................................. 7 4. Test Results - Overview ....................................................................................... 8 5. Measurement results detailed ............................................................................ 9 5.1. Duty cycle and Averaging factor......................................................................... 9 5.2. Bandwidth ........................................................................................................ 11 5.3. Radiated Emission Transmitter 30 MHz – 10 GHz.......................................... 12 5.3.1. Field strength calculation..................................................................................................... 12 5.3.2. Normative references .......................................................................................................... 13 5.3.3. Emission Test results .......................................................................................................... 14 5.4. Radiated Emission Receiver 30 MHz – 3 GHz............................................... 18 5.4.1. Radiated Emission Receiver 30 MHz – 3 GHz................................................................... 18 5.4.2. Radiated Emission Receiver Table 30 MHz – 3 GHz ........................................................ 19 6. Test setup Photo documentation...................................................................... 21 7. EUT Photo documentation ................................................................................ 23 Jablotron s.r.o. / JA-80A 3-23 07KFE007857-N-FCC-01 / 07-12-17 R_FCC 06-04 8. Technical specification ...................................................................................... 23 8.1. Block Diagram Of The EUT..............................................................................23 8.2. Circuit Diagram Of The Layout.........................................................................23 8.3. Instruction manual............................................................................................ 23 8.4. Product Labelling ............................................................................................. 23 Jablotron s.r.o. / JA-80A 4-23 07KFE007857-N-FCC-01 / 07-12-17 R_FCC 06-04 1. General description 1.1. Product description The JA-80A is a component of Jablotron’s Oasis 80 system. It is designed to sound an external alarm and to indicate any tampering it experiences. It is powered by a long-life lithium battery and communicates wireless using Jablotron Oasis protocol. lithium battery BAT-80 Jablotron. Antenna type : Internal Under normal operating conditions (no alarm state) the device transmits 30 ms data pulse to control unit once in 60 s. The purpose is system integrity check. The device includes the receiver with local oscillator frequency f = 868.5 MHz. Measured radiated field data of receiver for verification purposes are included in this report. 1.2. Related submittal(s) Grants This is application for certification of the transmitter. No related devices are present. 1.3. Test Methodology The test setup and test was done according to: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. The test setup and test was done according to: CISPR 22: 1998 + Corrigendum: 2003 + A1: 2000 + A2: 2003 and ANSI C63.4: 2003 Compliance with CISPR 22 is being used to demonstrate conformity with FCC DoC requirements. This conforms with FCC Part 15.109(g). The test results detailed in this report apply only to the JA-80A with the test setup described. Any modification such as a change, addition to or inclusion of another device into this product will require an additional evaluation. The support equipment listed as part of the emission tests is required to properly exercise and test the device under test. 1.4. Test Facility The test site was semi-anechoic chamber Intertek Germany (PM KF 1150). Measurement distance EUT – Antenna was d = 3 m. Jablotron s.r.o. / JA-80A 5-23 07KFE007857-N-FCC-01 / 07-12-17 R_FCC 06-04 1.5. List of exhibits Following exhibits are delivered as separate pdf files. The name of file corresponds with description of exhibit with extension .pdf EXHIBIT 1 Test setup photo documentation EXHIBIT 2 External Photos EXHIBIT 3 Internal Photos EXHIBIT 4 Operational description EXHIBIT 5 Block diagram EXHIBIT 6 Circuit diagram EXHIBIT 7 Instruction manual EXHIBIT 8 Product label EXHIBIT …

Text truncated - open the document above for the full version.

Test setup Photo documentation Front view Rear view 1
