VL6JA80HOutdoor keypad and RFID card reader

The JA-80H outdoor keypad and RFID card reader MKM51100FCC 1 The JA-80H outdoor keypad and RFID card reader The JA-80H is a component of Jablotron’s Oasis 80 alarm system. It is designed to control access (door lock) or to control a security system and connects to the Oasis control panel via a WJ-80 interface. Alternatively it can be connected to an AS-80 unit as a part of a stand-alone access system. The keypad sends data in Wiegand 26b format. Installation Installation shall only be undertaken by technicians holding a certificate issued by an authorized distributor. It is usually placed near an entrance door (equipped with an electric lock). The keypad can be used outdoors (conforms to IP-65). 1. Open the rear cover by unscrewing the screw 2. Prepare a hole in the wall for the keypad cable to pass through, where the keypad will be located. 3. Attach the rear cover to the desired location (the tamper spring must be properly pressed) 4. Pull the keypad cable through the wall hole and to the interface unit’s box (WJ-80, AS-80) 5. Attach the keypad to the rear cover and secure it using the screw 6. Connecting and setting up the keypad is described in the WJ-80 or AS-80 manuals. Cabling wire signal red +12V (power supply, 60mA) green D0 (Wiegand 26b data output) brown D1 (Wiegand 26b data output) white TMP (normally closed tamper contact) grey TMP (normally closed tamper contact) yellow BZR (input controlling keypad sound – connecting to GND generates a beep on the keypad) blue GND (common ground) pink not connected Configuring the keypad for operation with the WJ-80 If the JA-80H keypad is connected to an Oasis control panel via a WJ-80 and it does not work as described in the manual, then it is not set to the correct (factory default) operational mode. In such a case: 1. Switch the Oasis control panel to service mode 2. Disconnect the power from the control panel (mains and battery) 3. Disconnect the yellow and brown keypad wires from the terminals and connect them together. 4. Power-up the control panel (keypad starts beeping) 5. Disconnect the yellow and brown wires (beeping will terminate) 6. On the JA-80H keypad, press button 4 (beeps once) and then button 3 (beeps several times) 7. Disconnect the power from the control panel, connect the yellow and brown wires back up, power-up the control panel and check the proper functioning of the JA-80H keypad Technical specifications Power supply 10 to 16V Stand-by consumption typically 60mA Housing IP65 (EN 60529) Mechanical resistance IK08 (EN 50102) Working environment class IV(EN 50131-1) Operational temperature -25 to +60°C RFID card Jablotron PC-01 or PC-02 (EM UNIQUE 125 kHz) Dimensions 46 x 150.5 x 22.5mm Length of the connection cable 1m Complies with grade 2 (EN 50131-1, TS 50131-3) Complies with ANSI C63.4 Can be operated according to ERC REC 70-03, FCC Part 15 FCC ID VL6JA80H Jablotron Ltd. hereby declares that the JA-80H is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and complies with part 15 of the FCC rules. Operation is subject the the following two conditions: 1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. The original of the conformity assessment can be found at www.jablotron.com, Technical Support section CAUTION: Changes or modifications no expressly approved by Jablotron could void the user ́s authority to operate the equipment Note: Although this product does not contain any harmful materials we suggest you return the product to the dealer or directly to the producer after use. TAMPER 22,545 151,5 87,5 cca 1 m Note: The red LED is lit in Oasis normal operating mode. Pressing a button is confirmed by a flash from the orange LED. How to set up the JA-80H keypad for the AS-80 access system is described in the AS-80 manual.

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] No: 7DO014 Konto: KomerčnÌ banka Jablonec n.N 17409-451/0100 IČO: 14864959 DIČ: 187-14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren July 30, 2007 To whom it may concern, Letter of Agency I, an officer of Jablotron company do hereby authorize Intertek Deutschland GmbH to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 of the FCC Rules until further notice. I further certify that no party (as defined in ß1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, By: Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager ____________________

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] Account: KomerčnÌ banka Jablonec n.N 17409-451/0100 Entrepreneurial permit number: CZ14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren Attention: Application Examiner Re: Request for confidentiality Applicant: JABLOTRON Ltd. FCC ID: VL6JA80H To whom it may concern, Request is hereby submitted by JABLOTRON to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams Rationale for request for confidentiality: JABLOTRON has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager

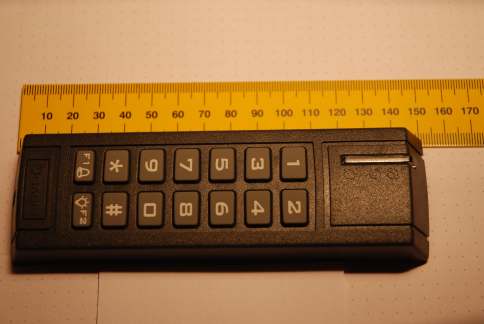

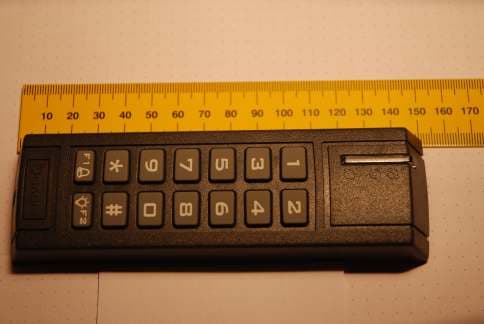

External Photos Front view Rear view

The position of the FCC label : rear side of the device above the company label as shown on the drawing above.

Internal Photos Front view Rear view

The JA-80H outdoor keypad and RFID card reader MKM51100FCC 1 Operational description The JA-80H is a component of Jablotron’s Oasis 80 alarm system. It is designed to control access (door lock) or to control a security system and connects to the Oasis control panel via a WJ-80 interface. The TX frequency of the card reader is 125 kHz. It is powered from the WJ-80 interface. The keypad sends data in Wiegand 26b format.

Jablotron s.r.o. / JA-80H 2-20 07KFE007857-M-FCC-01 / 07-11-19 R_FCC 06-04 Table of Contents 1. General description.............................................................................................. 4 1.1. Product description ............................................................................................ 4 1.2. Related submittal(s) Grants................................................................................ 4 1.3. Test Methodology............................................................................................... 4 1.4. Test Facility ........................................................................................................ 5 1.5. List of exhibits .................................................................................................... 5 2. Measurements And Test Specifications............................................................. 6 3. Description Of EUT .............................................................................................. 7 3.1. Configuration / Operating Conditions ................................................................. 7 3.2. Major Subassemblies Or Internal Peripherals .................................................... 7 3.3. Peripheral Devices Used For Testing................................................................. 7 3.4. Supply- And Interconnecting Cables .................................................................. 7 4. Test Results - Overview ....................................................................................... 8 5. Measurement results detailed ............................................................................ 9 5.1. Duty cycle and Averaging factor......................................................................... 9 5.2. Bandwidth .......................................................................................................... 9 5.3. Extreme conditions........................................................................................... 10 5.4. Radiated Emission 9 kHz – 1 GHz ................................................................... 12 5.3.1. Field strength calculation..................................................................................................... 12 5.3.2. Normative references .......................................................................................................... 13 5.3.3. Emission Test results .......................................................................................................... 14 6. Test setup Photo documentation...................................................................... 18 7. EUT Photo documentation ................................................................................ 19 Jablotron s.r.o. / JA-80H 3-20 07KFE007857-M-FCC-01 / 07-11-19 R_FCC 06-04 8. Technical specification ...................................................................................... 19 8.1. Block Diagram Of The EUT..............................................................................19 8.2. Circuit Diagram Of The Layout.........................................................................19 8.3. Instruction manual............................................................................................ 20 8.4. Product Labelling ............................................................................................. 20 Jablotron s.r.o. / JA-80H 4-20 07KFE007857-L-FCC-01 / 07-11-19 R_FCC 06-04 1. General description 1.1. Product description The JA-80H is a component of Jablotron’s Oasis 80 alarm system. It is designed to control access and door lock or to control a security system and connects to the Oasis control panel via a WJ-80 interface. Alternatively it can be connected to an AS-80 unit as a part of a stand-alone access system. The keypad sends data in Wiegand 26b format. The operating frequency of the card reader is f = 125 kHz. The card / tag is passive. The device is wire connected to WJ-80 interface and further by means of OASIS bus to the control unit. The device is powered from the WJ-80 interface. Antenna type : Internal, Integral Duty cycle : no duty cycle, no periodic transmission. 1.2. Related submittal(s) Grants This is application for certification of the transmitter. No related devices are present. 1.3. Test Methodology The test setup and test was done according to: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. The test setup and test was done according to: CISPR 22: 1998 + Corrigendum: 2003 + A1: 2000 + A2: 2003 and ANSI C63.4: 2003 Compliance with CISPR 22 is being used to demonstrate conformity with FCC DoC requirements. This conforms with FCC Part 15.109(g). The test results detailed in this report apply only to the JA-80H with the test setup described. Any modification such as a change, addition to or inclusion of another device into this product will require an additional evaluation. The support equipment listed as part of the emission tests is required to properly exercise and test the device under test. Jablotron s.r.o. / JA-80H 5-20 07KFE007857-L-FCC-01 / 07-11-19 R_FCC 06-04 1.4. Test Facility The test site was semi-anechoic chamber Intertek Germany (PM KF 1150). Measurement distance EUT – Antenna was d = 3 m. 1.5. List of exhibits Following exhibits are delivered as separate pdf files. The name of file corresponds with description of exhibit with extension .pdf EXHIBIT 1 Test setup photo documentation EXHIBIT 2 External Photos EXHIBIT 3 Internal Photos EXHIBIT 4 Operational description EXHIBIT 5 Block diagram EXHIBIT 6 Circuit diagram EXHIBIT 7 Instruction manual EXHIBIT 8 Product label EXHIBIT 9 Confidentiality request Jablotron s.r.o. / JA-80H 6-20 07KFE007857-L-FCC-01 / 07-11-19 R_FCC 06-04 2. Measurements And Test Specifications Emission - Requirements accordi…
