VL6JA80LWireless internal siren

Jablotron Ltd
Wireless internal siren - FCC ID VL6JA80L - Jablotron Ltd

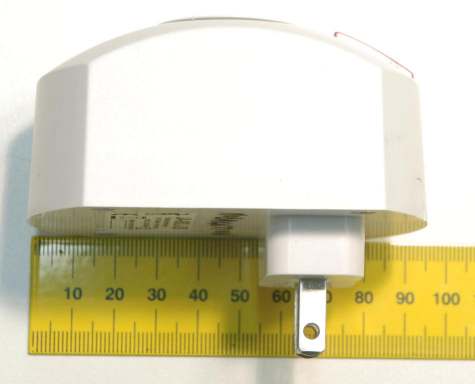

Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Dec 19, 2007
Application Purpose
Original Equipment
Date of Application
Dec 19, 2007
Equipment Note
Wireless internal siren
Frequency Range
868.50000000 - 868.50000000
Company
Jablotron Ltd
Country
Czech Republic

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

The JA-80L-US wireless internal siren MHR52200 1 The JA-80L-US wireless internal siren The JA-80L is a component of Jablotron’s Oasis 80 alarm system. It can be used as the following: • An indoor alarm siren • A wireless door bell • A detector-triggered chime • A sounder for entrance and exit delay beeps • Thief verification The siren is mains-powered and communicates via OASIS wireless protocol. It can form part of an alarm system or be used as a stand-alone device. When used as part of an alarm system, it sounds when an intruder alarm has been triggered and confirms the actual presence of an intruder in the building by sending a tamper signal when it gets unplugged. Installation shall only be undertaken by qualified technicians holding a training certificate issued by an authorized distributor. Enrolling the JA-80L to an Oasis control panel 1. Switch the control panel to service mode and key in 1 (to enter enrollment mode). 2. Plug the siren into a mains socket. The JA-80L indicator will turn on and off which confirms enrollment. 3. Exit enrollment mode by pressing the # key on the system keypad. Notes: a) Several sirens can be enrolled to the control panel if desired. b) If the siren fails to enroll (its indicator will not turn off), check: • Is the control panel in enrollment mode ? • Is the siren set to factory default settings ? If not, reset the siren. c) An enrolled siren generates a siren sound if an alarm is triggered in the control panel, and can generate beeps for entrance and exit delays (programmable in the control panel). d) The siren can be simultaneously used as a wireless doorbell or a detector-triggered chime. To do this the doorbell button and the relevant detectors have to be enrolled to the siren (after the siren has been enrolled to the control panel – see later text). e) If the siren gets unplugged from the mains while sounding an alarm, the siren immediately sends a tamper signal to trigger a tamper alarm in the control panel. The siren’s radio signals can be checked and measured by the control panel in service mode. To make the siren transmit a test signal, press its button. The siren can also indicate setting (arming) the system by a single beep and unsetting (disarming) by two beeps. To enable these beeps press the siren’s button three times in rapid succession. Two beeps confirm the successful activation of this feature. To disable this feature simply press the button three times as before. Confirmation is indicated by a beep. Enrolling a doorbell button to the JA-80L siren. Up to 8 wireless buttons of the type RC-8x can be enrolled to the siren as follows: 1. Plug the siren into a mains socket and if its indicator starts flashing, then enrolling devices to the siren can begin. In this case, the siren still has factory-default settings, i.e. no devices have been enrolled yet. If the indicator is continuously lit after the siren is plugged in, then press and hold it (while it is lit) until it starts flashing. This means that something has already been previously enrolled and the mode being opened now is for adding more devices. 2. An RC-8x can be enrolled by activating it (pressing its button). Successful enrollment is confirmed by a melody sound. By activating the RC-8x repeatedly, you can scroll through the 8 possible melodies which can be linked to RC-8x activation. 3. If all the desired RC-8x units have been enrolled, exit the siren’s enrollment mode by pressing its button. This method allows the buttons to be added to the previously enrolled devices Detector-triggered chime mode If it is desired to indicate the triggering of a wireless JA-8x detector by a chime sound, then enroll the detector to the siren as follows: 1. Plug the siren into a mains socket. If its indicator starts flashing, detector enrollment can proceed immediately (no previously enrolled devices). If however, the indicator lights continuously, press and hold the siren button (while it is lit) until it starts flashing (devices previously enrolled). 2. To enroll a detector, press and release its tamper switch. A sound is then heard (by pressing and releasing the tamper switch you can scroll through the 8 possible melodies for linking to the detector). 3. After all the desired detectors have been enrolled, exit enrollment mode by pressing the siren button. In addition to chime sounds being activated by detector triggering, they can also be activated by a JA-80F keypad’s IN input being triggered (to enroll a keypad, press and release its tamper switch). Maximum number of enrolled devices Up to 8 RC-8x units or detectors, and a single Oasis JA-80 control panel can be enrolled to a single JA-80L siren. Each one of these things can be enrolled to as many sirens or other receivers as desired. Deleting all enrolled devices (RESET) All enrolled devices can be deleted as follows: 1. Unplug the siren from the mains socket. 2. Press and hold the siren button while plugging in the siren again. 3. Keep the button pressed until two beeps are heard which confirm a reset. 4. The indicator keeps flashing (device enrollment mode). 5. To exit enrollment mode, press the siren button (indicator turns off). If the indicator fails to flash after the two reset beeps, it means that the siren is within radio range of the control panel to which it has been previously enrolled. In such a case, all devices previously enrolled to the siren have been deleted except for the control panel. If you deliberately do not want to use the siren with the control panel anymore, it must first be deleted in the control panel before resetting the siren (in control panel enrollment mode select the siren’s address and press and hold key 2 on the system keypad to delete the siren). Sound volume The siren has two selectable sound volume levels. To switch between these two levels, press and hold the siren button while the unit is still plugged into a mains socket (the volume selected is indicated by a sound). This volume setting only has …
