VL6JA80PWireless PIR detector- Component of alarm system

JA-80P wireless PIR motion detector 1 MHP51800FCC The JA-80P wireless PIR motion detector The JA-80P is a component of Jablotron’s Oasis 80 alarm system. It is designed to detect human body movement inside buildings. The detection pattern can be modified by optional lenses. Detector immunity has two selectable levels. The battery-powered detector communicates via OASIS radio protocol. Installation Installation shall only be undertaken by technicians holding a certificate issued by an authorized distributor. The detector can be installed on a flat wall or in the corner of a room. Avoid objects rapidly changing in temperature, such as electrical heaters, gas appliances etc. being positioned within its detection area. Moving objects with a temperature close to that of humans such as curtains moving above a radiator, and pets should also be avoided. Detectors should not face windows or spotlights or be near fast-moving air e.g. near ventilation fans or open windows or doors. There should also be no obstacles blocking the detector’s “view” of the protected area. Keep the detector away from metal objects which could interfere with radio communication. 1. Open the detector cover by pressing the tab. Avoid touching the internal PIR element or damaging the antenna. 2. Remove the PCB which is held by an internal tab. 3. Punch screw holes through the rear plastic cover. At least one screw should penetrate the tamper-sensitive section. 4. Screw the rear cover to the wall, about 2 metres above the floor (vertically, with the tab down). 5. Return the PCB to its original place. 6. Leave the battery disconnected and the cover open and then follow the control panel or receiver manual. The basics of enrollment are: a. Enter enrollment mode on the control panel by keying in “1” in Service mode. b. Install a battery into the detector to activate enrollment. c. Exit enrollment mode by pressing “#” To enroll a detector after having already connected a battery, first disconnect the battery, and press and release the tamper sensor to discharge any remaining charge to ready the device for enrollment. After installing a battery into the detector, allow one minute for stabilisation. During this minute the LED is continuously lit. DIP switches NORM / HIGH: selection of immunity to false alarms. The NORM position combines very good immunity with fast sensor reactions. The HIGH position gives increased immunity with a slower reaction time and is only used for problematic installations. Warning: The most frequent cause of false alarms is bad detector positioning. DEL / INS: DEL provides entrance & exit delays for detectors installed in a building entrance. INS allows the detector to instantly trigger alarm activation if the control panel is armed. This DIP switch (DEL/INS) only has an effect if the detector has a natural reaction assigned to it in the Oasis control panel. It also has no effect when used with a UC-8x or AC-8x receiver. Testing the detector 15 minutes after closing the detector cover, the indicator shows detector activation. The strength and quality of detector signals can be measured by the control panel in Service mode. 5 minutes / 1 minute sleep time To save battery energy, the detector switches to battery-save mode 15 minutes after its cover is closed. During battery-save mode the detector still always watches out for movement. The first movement detected is then signalled to the control panel instantly, and for the next 5 minutes the detector ignores any further movement. After these 5 minutes, the detector then returns to watching out for movement until re-triggered. The sleep time can be shortened to 1 minute by pressing the tamper switch during battery installation. Not pressing the tamper switch gives a sleep time of 5 minutes. Battery replacement The detector monitors its battery voltage and if too low, a transmission is sent to the control panel to inform the installer or user. The detector continues to function and shows each detected movement with a flash of its LED. Battery replacement should not be delayed by more than two weeks. This should be done by a qualified technician with the control panel in Service mode. After battery replacement, the detector needs about 60 secs to stabilise during which its LED lights continuously. After the LED has stopped indicating, test the detector’s functioning. Expired batteries should not be thrown into the garbage, but disposed of according to local regulations. Removing the detector from the system If a detector is removed, the control panel announces the removal. The detector has to be deleted in the control panel before intentional removal. Detection characteristics The default lens supplied covers an angle of 120° and a distance of 12 metres. The area is covered by three beams as shown in the following picture. Side viewTop view The characteristics can be changed by using optional lenses: JS-7904 Suitable for long corridors. The middle beam covers 20 meters. JS-7906 Only employs an upper beam with a 120° angle and a 12 metre range. Ignoring the floor eliminates the effect of the movement of small pets. JS-7901 Has a vertical beam forming a wall-like detection barrier which triggers the detector if someone walks through it. Note: After changing the lens, test that the desired area is protected. Incorrect installation of the lens can disable detection . Auxiliary alarm input There is an input terminal in the detector which, among other things, can be used to detect open doors or windows. Open circuiting the input has the same effect as movement in front of the detector The maximum allowable cable length to connect a normally-closed sensor to the terminal is 3 metres. Short circuit these terminals if the input is not used. Technical parameters Voltage: Lithium battery type CR14505 (AA 3.0V) Typical battery lifetime: approx. 3 years (5 min. sleep mode) Communication band: 868 MHz, Oasis protocol Communication range: approx. 300m –( open area) Recommen…

Text truncated - open the document above for the full version.

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] Account: KomerčnÌ banka Jablonec n.N 17409-451/0100 Entrepreneurial permit number: CZ14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren Attention: Application Examiner Re: Request for confidentiality Applicant: JABLOTRON Ltd. FCC ID: VL6JA80P To whom it may concern, Request is hereby submitted by JABLOTRON to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams Rationale for request for confidentiality: JABLOTRON has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] No: 7DO014 Konto: KomerčnÌ banka Jablonec n.N 17409-451/0100 IČO: 14864959 DIČ: 187-14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren July 30, 2007 To whom it may concern, Letter of Agency I, an officer of Jablotron company do hereby authorize Intertek Deutschland GmbH to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 of the FCC Rules until further notice. I further certify that no party (as defined in ß1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, By: Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager ____________________

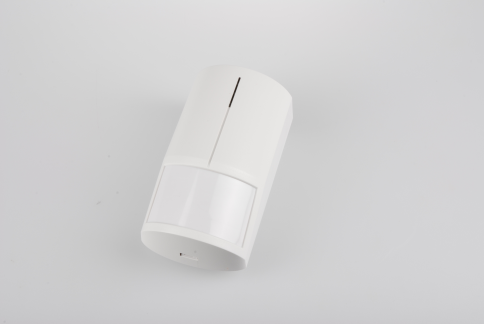

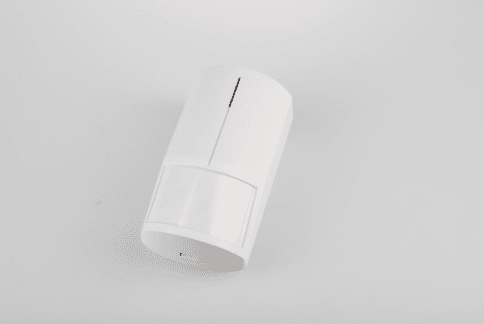

External Photos Front view Rear view 1 Rear view 2

The position of the FCC label : rear side of the device above the company label as shown on the drawing above.

Internal Photos Fig. 3 PCB front view Fig. 4 PCB rear view

Operational description The JA-80P is a component of Jablotron’s Oasis 80 alarm system. It is designed to detect human body movement inside buildings. The detection pattern can be modified by optional lenses. Detector immunity has two selectable levels. The battery-powered detector communicates via OASIS radio protocol with control panel. The transmitter is activated by infra-red signal caused by human body movement. Under normal conditions the transmitter sends periodically 540 s the data pulse (system integrity test). Antenna is internal. Operational frequency : 868,5 MHz Battery : : Lithium battery type CR14505 (AA 3.0V)

Jablotron s.r.o. / JA-80P 2-21 07KFE007857-A-FCC-02 / 07-11-29 R_FCC 06-04 Table of Contents 1. General description.............................................................................................. 4 1.1. Product description ............................................................................................ 4 1.2. Related submittal(s) Grants................................................................................ 4 1.3. Test Methodology............................................................................................... 4 1.4. Test Facility ........................................................................................................ 4 1.5. List of exhibits .................................................................................................... 5 2. Measurements And Test Specifications............................................................. 6 2.1. Changes to Test Report 07KFE007857-A-FCC-01 ............................................ 6 3. Description Of EUT .............................................................................................. 7 3.1. Configuration / Operating Conditions ................................................................. 7 3.2. Major Subassemblies Or Internal Peripherals .................................................... 7 3.3. Peripheral Devices Used For Testing................................................................. 7 3.4. Supply- And Interconnecting Cables .................................................................. 7 4. Test Results - Overview ....................................................................................... 8 5. Measurement results detailed ............................................................................ 9 5.1. Duty cycle and Averaging factor......................................................................... 9 5.2. Bandwidth ........................................................................................................ 12 5.3. Radiated Emission 30 MHz – 10 GHz.............................................................. 13 5.3.1. Field strength calculation..................................................................................................... 13 5.3.2. Normative references .......................................................................................................... 14 5.3.3. Emission Test results .......................................................................................................... 15 6. Test setup Photo documentation...................................................................... 19 7. EUT Photo documentation ................................................................................ 21 Jablotron s.r.o. / JA-80P 3-21 07KFE007857-A-FCC-02 / 07-11-29 R_FCC 06-04 8. Technical specification ...................................................................................... 21 8.1. Block Diagram Of The EUT..............................................................................21 8.2. Circuit Diagram Of The Layout.........................................................................21 8.3. Instruction manual............................................................................................ 21 8.4. Product Labelling ............................................................................................. 21 Jablotron s.r.o. / JA-80P 4-21 07KFE007857-A-FCC-02 / 07-11-29 R_FCC 06-04 1. General description 1.1. Product description The device is PIR (Passive Infra Red) detector module with built – in antenna. It is activated to alarm state when the infra-red sensor detects IR radiation caused by movement. The wireless transmitter (connection to control unit) has operating frequency f = 868.5 MHz. The device is battery operated. The power source delivered by producer and used for testing was a new LiMh accumulator, type CR 14505; U = 3V. Antenna type : Internal, Integral Under normal operating conditions (no alarm state) the device transmits 30 ms data pulse to control unit once in 540 s (9 minutes). 1.2. Related submittal(s) Grants This is application for certification of the transmitter. No related devices are present. 1.3. Test Methodology The test setup and test was done according to: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. The test setup and test was done according to: CISPR 22: 1998 + Corrigendum: 2003 + A1: 2000 + A2: 2003 and ANSI C63.4: 2003 Compliance with CISPR 22 is being used to demonstrate conformity with FCC DoC requirements. This conforms with FCC Part 15.109(g). The test results detailed in this report apply only to the JA-80P with the test setup described. Any modification such as a change, addition to or inclusion of another device into this product will require an additional evaluation. The support equipment listed as part of the emission tests is required to properly exercise and test the device under test. 1.4. Test Facility The test site was semi-anechoic chamber Intertek Germany (PM KF 1150). Measurement distance EUT – Antenna was d = 3 m. Jablotron s.r.o. / JA-80P 5-21 07KFE007857-A-FCC-02 / 07-11-29 R_FCC 06-04 1.5. List of exhibits Following exhibits are delivered as separate pdf files. The name of file corresponds with description of exhibit with extension .pdf EXHIBIT 1 Test setup photo documentation EXHIBIT 2 External Photos EXHIBIT 3 Internal Photos EXHIBIT 4 Operational description EXHIBIT 5 Block diagram EXHIBIT 6 Circuit diagram EXHIBIT 7 Instruction manual EXHIBIT 8 Product label EXHIBIT 9 Confidentiality request Jablotron s.r.o. / JA-80P 6-21 07KFE007857-A-FCC-02 / 07-11-29 R_FCC 06-04 2. Measurements And Test Specifications Emission - Requirements according to FCC, Part 15, Class A, verification FCC, Part 15, Class B, DoC FCC, Part 15, Class B, certification FCC, Part 1…

Text truncated - open the document above for the full version.

Test setup Photo documentation Fig. 1 Front view Fig. 2 Rear view
