VL6RC80Wireless Keyfob - component of alarm system

JA-80P wireless PIR motion detector 1 MHP51800FCC RC-80 wireless keyfob The RC-80 is a component of Jablotron’s Oasis 80 alarm system. It is designed to remotely control setting/unsetting, trigger panic alarms, and control other appliances. The battery-powered keyfob communicates via OASIS radio protocol. Number of buttons The keyfob has two buttons as supplied, but changing its cover (held by a screw on the back) makes four buttons possible: Enrolling the keyfob to an Oasis control panel A pair of the keyfob buttons can be enrolled to a control panel by pressing and holding both buttons. Proceed as follows: 1. Put the control panel into Service mode via the system keypad and press key 1 to enter enrollment mode. Using the arrow keys, select the desired address. 2. Press and hold and or and (the pair of buttons you wish to enroll) simultaneously until three flashes on the keyfob LED are seen. 3. Exit enrollment mode by pressing the # key on the keypad controlling the control panel. • The natural reaction of the pair of buttons is setting and unsetting for each button respectively, and panic alarm triggering by pressing both buttons together. If a reaction other than natural is assigned to the keyfob’s address in the control panel, the reaction will only be triggered by buttons or (according to which pair was enrolled). • If you enroll two pairs of buttons on a single keyfob to two different addresses in the control panel, then different reactions and sections can be assigned to each pair of buttons. This means, for example, one pair could set/unset the complete system, and the other pair could be used for partial setting. • The button pair and can also be enrolled by simply installing a battery into the keyfob. • If a single pair of buttons is enrolled to the control panel, the two remaining buttons can be used to control another device such as e.g. a Jablotron car alarm, or UC-8x and AC-8x receivers. Testing the keyfob The strength and quality of keyfob radio signals can be checked and measured by the control panel in Service mode. Locking the keyfob If all four buttons on the keyfob are used, all keys can be locked or unlocked by pressing a diagonal button pair (+ or +). When the keys are locked, the keyfob LED flashes rapidly if any button is pressed (no signals are sent under these conditions). Using the keyfob with other products In addition to Oasis control panels, the keyfob can also be used with other Jablotron products that communicate via Oasis protocol. Examples are relay receivers type UC-8x and AC-8x. Guidance on using the keyfobs can be found in the manuals of the desired receiver. Battery replacement If the working range of the keyfob begins to reduce, or if functioning stops altogether, then replace the battery. The keyfob can be easily opened by unscrewing the rear screw. Expired batteries should not be thrown into the garbage, but disposed of according to local regulations. Removing the keyfob from the system If you wish to remove the keyfob from the system, e.g. if it has been lost, erase it from its address in the control panel. Technical parameters Voltage: alkaline battery type L1016 (6.0 V) Typical battery lifetime approx. 3 years (5 daily activations) Communication band: 868 MHz, Oasis protocol Communication range approx. 30 metres (open area) Operational environment according to EN 50131-1 II. indoor general Operational temperature range -10 to +40 °C Can be operated according to ERC REC 70-03, FCC Part 15 Complies with ETSI EN 300220, EN 55022, EN 50134-2 EN 50130-4,EN 60950-1, ANSI C63.4 FCC ID VL6RC80 Jablotron Ltd. hereby declares that the RC-80 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and complies with part 15 of the FCC rules. Operation is subject the the following two conditions: 1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. The original of the conformity assessment can be found at www.jablotron.com, Technical Support section CAUTION: Changes or modifications no expressly approved by Jablotron could void the user ́s authority to operate the equipment Note: Although this product does not contain any harmful materials we suggest you return the product to the dealer or directly to the producer after use.

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] Account: KomerčnÌ banka Jablonec n.N 17409-451/0100 Entrepreneurial permit number: CZ14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren Attention: Application Examiner Re: Request for confidentiality Applicant: JABLOTRON Ltd. FCC ID: VL6RC80 To whom it may concern, Request is hereby submitted by JABLOTRON to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams Rationale for request for confidentiality: JABLOTRON has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] No: 7DO014 Konto: KomerčnÌ banka Jablonec n.N 17409-451/0100 IČO: 14864959 DIČ: 187-14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren July 30, 2007 To whom it may concern, Letter of Agency I, an officer of Jablotron company do hereby authorize Intertek Deutschland GmbH to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 of the FCC Rules until further notice. I further certify that no party (as defined in ß1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, By: Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager ____________________

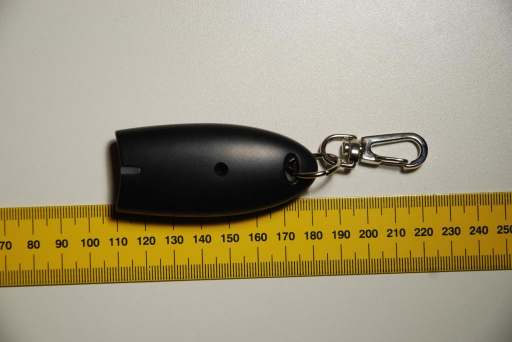

External Photos Front side Rear side

The position of the FCC label : rear side of the device above the company label as shown on the drawing above. Product and FCC Label

Internal Photos After removing the cover – front side PCB Rear side PCB

Operational description The RC-80 is a component of Jablotron’s Oasis 80 alarm system. It is designed to remotely control setting/unsetting, trigger panic alarms, and control other appliances. The battery-powered keyfob communicates via OASIS radio protocol. It is activated to alarm state by pressing the button on front side of the device. The wireless transmitter (connection to control unit) has operating frequency f = 868.5 MHz. The device is battery operated. The power source delivered by producer and used for testing was a new alkaline battery type L1016, U = 6V. Antenna type : Internal, Integral Duty cycle: When activated the device transmits 3 data pulses of width 65 ms in approximately 200 ms interval. The device does not operate periodically.

Jablotron s.r.o. / RC-80 2-20 07KFE007857-G-FCC-01 / 07-09-30 R_FCC 06-04 Table of Contents 1. General description.............................................................................................. 4 1.1. Product description ............................................................................................ 4 1.2. Related submittal(s) Grants................................................................................ 4 1.3. Test Methodology............................................................................................... 4 1.4. Test Facility ........................................................................................................ 4 1.5. List of exhibits .................................................................................................... 5 2. Measurements And Test Specifications............................................................. 6 3. Description Of EUT .............................................................................................. 7 3.1. Configuration / Operating Conditions ................................................................. 7 3.2. Major Subassemblies Or Internal Peripherals .................................................... 7 3.3. Peripheral Devices Used For Testing................................................................. 7 3.4. Supply- And Interconnecting Cables .................................................................. 7 4. Test Results - Overview ....................................................................................... 8 5. Measurement results detailed ............................................................................ 9 5.1. Duty cycle and Averaging factor......................................................................... 9 5.2. Bandwidth ........................................................................................................ 11 5.3. Radiated Emission 30 MHz – 10 GHz.............................................................. 12 5.3.1. Field strength calculation..................................................................................................... 12 5.3.2. Normative references .......................................................................................................... 13 5.3.3. Emission Test results .......................................................................................................... 14 6. Test setup Photo documentation...................................................................... 18 7. EUT Photo documentation ................................................................................ 20 8. Technical specification ...................................................................................... 20 Jablotron s.r.o. / RC-80 3-20 07KFE007857-G-FCC-01 / 07-09-30 R_FCC 06-04 8.1. Block Diagram Of The EUT..............................................................................20 8.2. Circuit Diagram Of The Layout.........................................................................20 8.3. Instruction manual............................................................................................ 20 8.4. Product Labelling ............................................................................................. 20 Jablotron s.r.o. / RC80 4-20 07KFE007857-G-FCC-01 / 07-09-30 R_FCC 06-04 1. General description 1.1. Product description The RC-80 is a component of Jablotron’s Oasis 80 alarm system. It is designed to remotely control setting/unsetting, trigger panic alarms, and control other appliances. The battery-powered keyfob communicates via OASIS radio protocol. It is activated to alarm state by pressing the button. The wireless transmitter (connection to control unit) has operating frequency f = 868.5 MHz. The device is battery operated. The power source delivered by producer and used for testing was a new alkaline battery type L1016, U = 6V. Antenna type : Internal, Integral 1.2. Related submittal(s) Grants This is application for certification of the transmitter. No related devices are present. 1.3. Test Methodology The test setup and test was done according to: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. The test setup and test was done according to: CISPR 22: 1998 + Corrigendum: 2003 + A1: 2000 + A2: 2003 and ANSI C63.4: 2003 Compliance with CISPR 22 is being used to demonstrate conformity with FCC DoC requirements. This conforms with FCC Part 15.109(g). The test results detailed in this report apply only to the RC-80 with the test setup described. Any modification such as a change, addition to or inclusion of another device into this product will require an additional evaluation. The support equipment listed as part of the emission tests is required to properly exercise and test the device under test. 1.4. Test Facility The test site was semi-anechoic chamber Intertek Germany (PM KF 1150). Measurement distance EUT – Antenna was d = 3 m. Jablotron s.r.o. / RC80 5-20 07KFE007857-G-FCC-01 / 07-09-30 R_FCC 06-04 1.5. List of exhibits Following exhibits are delivered as separate pdf files. The name of file corresponds with description of exhibit with extension .pdf EXHIBIT 1 Test setup photo documentation EXHIBIT 2 External Photos EXHIBIT 3 Internal Photos EXHIBIT 4 Operational description EXHIBIT 5 Block diagram EXHIBIT 6 Circuit diagram EXHIBIT 7 Instruction manual EXHIBIT 8 Product label EXHIBIT 9 Confidentiality request Jablotron s.r.o. / RC80 6-20 07KFE007857-G-FCC-01 / 07-09-30 R_FCC 06-04 2. Measurements And Test Specifications Emission - Requirements according to FCC, Part 15, Class A, verification FCC, Part 15, Class B, DoC FCC, Part 15, Class B, certification FCC, Part 15, intentional radiator, certification Jablotron s.r.o. / RC80 7-20 07KFE007857-G-FCC-01 / 07-09-30 R_FCC 06-04 3. Description O…

Text truncated - open the document above for the full version.

Test setup Photo documentation Fig. 1 Front view Fig. 2 Rear view
