VL6RC87Wireless wrist button- Component of alarm system

The RC-87 wireless wrist button MKT 51000_PTS_FCC 1 The RC-87 wireless wrist button The RC-87 is a component of Jablotron’s Oasis 80 alarm system. It allows users to trigger panic alarms or to control appliances remotely. It is especially designed for personal calls for help. The battery- powered wireless button communicates via OASIS radio protocol. The button can be worn on your wrist like a watch or it can hang around your neck (an appropriate strap is supplied in the package). Caution: When hanging around the neck, the strap must be equipped with a mechanical release which disconnects the strap whenever the loading force exceeds 40N. Enrolling to an Oasis control panel The button can be used with an Oasis control panel for triggering panic alarms. Take the following steps to enroll the button: 1. Enter enrollment mode on the control panel by keying in “1” in Service mode (the desired device address can be chosen by the arrow keys). 2. Hold the button until you see the button’s LED flash once. 3. The button will enroll to the chosen position. 4. Exit enrollment mode by pressing “#”. The control panel’s natural reaction to the button is a Panic alarm. A different reaction can be programmed if desired. The wrist button can be enroled by inserting the battery (step 2). Functionality By factory default, the button reacts to pressing with beeps and flashes. This way it is signalled that the time is getting close for alarm triggering. If you re-press the button within 5 seconds, the pre- alarm condition will be cancelled. If no cancellation occurs, an alarm signal will be sent after 5 seconds. This feature allows the user to cancel accidental button pressing. The button can be reconfigured to another function as follows: 1. Open the button unit (release 4 screws from below) and pull out the electronics. 2. Disconnect the battery from the holder (it can be pulled out using a thin tool). Wait for 15 seconds. 3. Press and hold the button with one hand and insert the battery with your other hand. Keep the button pressed until beeps are heard (after 2 seconds approximately). The number of beeps (1, 2 or 3) indicates the mode which has been set, see below. 1 beep The button will beep and flash 5 seconds after being pressed (this mode allows the cancelling of accidental pressing). 2 beeps Respond to a single press instantly by triggering an alarm and sounding a single beep. 3 beeps Respond to a single press instantly and silently by triggering an alarm. Choose the desired function by repeating steps 2 and 3, then reassemble the button. This configuration will not be affected by normal battery replacement (reconfiguration is only possible in the above way). Testing the panic button The signals received by the control panel from the RC-87 can be checked and measured. See the control panel manual for details. Controlling electrical appliances The RC-87 can also be used with other Jablotron products which communicate via Oasis radio protocol, e.g. the JA-80L wireless siren, or relay receiving modules series UC-8x and AC-8x (see the manuals of these particular products for details). The RC-87 transmits the same kind of signal as transmitted when a pair of buttons is pressed simultaneously on an RC-80 keyfob. The RC-87 can be enrolled to several receivers at once, e.g. alarm triggering can also cause lights to be turned on. Battery replacement The button unit monitors its battery voltage and if too low, a report is sent to the control panel to inform the installer or user. A critical voltage level is also indicated by an LED flashing fast 3 times every 5 minutes. The battery should be replaced as soon as possible. As with configuration, the button can be opened by unscrewing the 4 screws from the bottom part. We recommend battery replacement be done by a service technician. Expired batteries should not be thrown into the garbage, but disposed of according to local regulations. Technical specifications Voltage lithium battery type CR 2032 (3.0 V) Typical battery lifetimeapprox. 3 years (for 1 daily activation maximum) Communication band 868 MHz, Oasis protocol Communication range approx. 50 m (open area) Environment external protected Housing IP-44 Operational temperature -25 to +50 °C Can be operated according to ERC REC 70-03, FCC Part 15 Complies with ETSI EN 300220, EN 50130-4, EN 55022, EN 60950-1, EN 50134-2, ANSI C63.4 FCC ID VL6RC87 Jablotron Ltd. hereby declares that the RC-87 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and complies with part 15 of the FCC rules. Operation is subject the the following two conditions: 1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation.. The original of the conformity assessment can be found at www.jablotron.com, Technical Support section Changes or modifications no expressly approved by Jablotron could void the user ́s authority to operate the equipment Note: Although this product does not contain any harmful materials we suggest you return the product to the dealer or directly to the producer after use. See www.jablotron.com for details. 42 46 Internet: www.jablotron.cz Tel.: +420 483 559 999 fax: +420 483 559 993 Pod Skalkou 33 466 01 Jablonec nad Nisou Czech Republic

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] Account: KomerčnÌ banka Jablonec n.N 17409-451/0100 Entrepreneurial permit number: CZ14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren Attention: Application Examiner Re: Request for confidentiality Applicant: JABLOTRON Ltd. FCC ID: VL6RC87 To whom it may concern, Request is hereby submitted by JABLOTRON to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams Rationale for request for confidentiality: JABLOTRON has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] No: 7DO014 Konto: KomerčnÌ banka Jablonec n.N 17409-451/0100 IČO: 14864959 DIČ: 187-14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren July 30, 2007 To whom it may concern, Letter of Agency I, an officer of Jablotron company do hereby authorize Intertek Deutschland GmbH to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 of the FCC Rules until further notice. I further certify that no party (as defined in ß1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, By: Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager ____________________

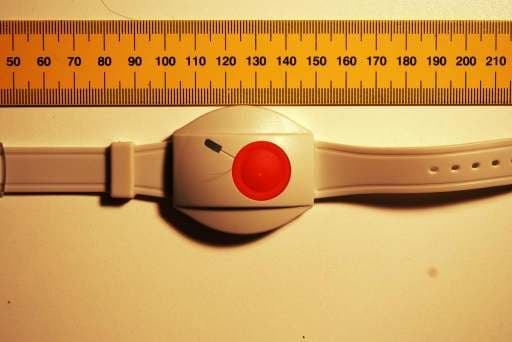

External Photos Face view Rear side view

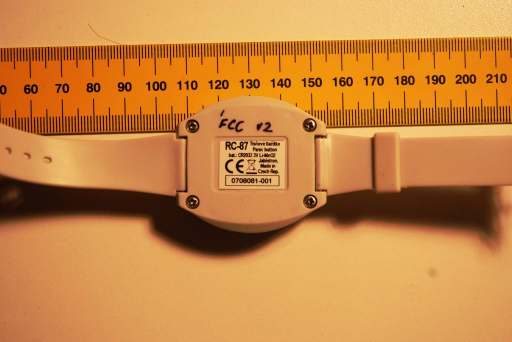

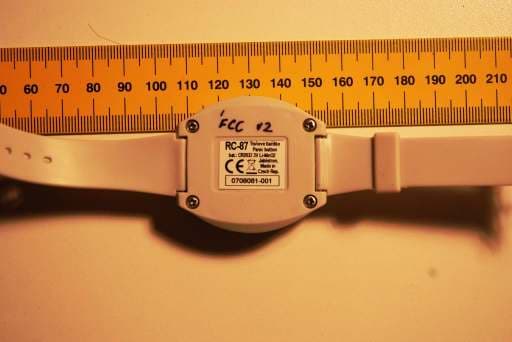

The position of the FCC label : rear side of the device above the company label as shown on the drawing above.

Internal Photos Cover removed – front side PCB – rear (battery) side

Operational description The RC-87 is a component of Jablotron’s Oasis 80 alarm system. It allows users to trigger panic alarms or to control appliances remotely. It is especially designed for personal calls for help. The battery-powered wireless button communicates via OASIS radio protocol. The button can be worn on your wrist like a watch or it can hang around your neck (an appropriate strap is supplied in the package). Caution: When hanging around the neck, the strap must be equipped with a mechanical release which disconnects the strap whenever the loading force exceeds 40N. The device is activated to transmit approximately 6 seconds after pressing the button. After activation it transmits a train of 3 data pulses divided by 210 ms interruption. Duty cycle : no periodic operation. The device is powered by lithium battery type CR 2032 (3V).

Jablotron s.r.o. / RC-87 2-21 07KFE007857-H-FCC-02 / 07-11-29 R_FCC 06-04 Table of Contents 1. General description.............................................................................................. 4 1.1. Product description ............................................................................................ 4 1.2. Related submittal(s) Grants................................................................................ 4 1.3. Test Methodology............................................................................................... 4 1.4. Test Facility ........................................................................................................ 5 1.5. List of exhibits .................................................................................................... 5 2. Measurements And Test Specifications............................................................. 6 2.1. Changes to Test Report 07KFE007857-H-FCC-01............................................ 6 3. Description Of EUT .............................................................................................. 7 3.1. Configuration / Operating Conditions ................................................................. 7 3.2. Major Subassemblies Or Internal Peripherals .................................................... 7 3.3. Peripheral Devices Used For Testing................................................................. 7 3.4. Supply- And Interconnecting Cables .................................................................. 7 4. Test Results - Overview ....................................................................................... 8 5. Measurement results detailed ............................................................................ 9 5.1. Duty cycle and Averaging factor......................................................................... 9 5.2. Bandwidth ........................................................................................................ 12 5.3. Radiated Emission 30 MHz – 10 GHz.............................................................. 13 5.3.1. Field strength calculation..................................................................................................... 13 5.3.2. Normative references .......................................................................................................... 14 5.3.3. Emission Test results .......................................................................................................... 15 6. Test setup Photo documentation...................................................................... 19 7. EUT Photo documentation ................................................................................ 21 Jablotron s.r.o. / RC-87 3-21 07KFE007857-H-FCC-02 / 07-11-29 R_FCC 06-04 8. Technical specification ...................................................................................... 21 8.1. Block Diagram Of The EUT..............................................................................21 8.2. Circuit Diagram Of The Layout.........................................................................21 8.3. Instruction manual............................................................................................ 21 8.4. Product Labelling ............................................................................................. 21 Jablotron s.r.o. / RC80 4-21 07KFE007857-H-FCC-02 / 07-11-29 R_FCC 06-04 1. General description 1.1. Product description The RC-87 is a component of Jablotron’s Oasis 80 alarm system. It allows users to trigger panic alarms or to control appliances remotely. It is especially designed for personal calls for help. The battery-powered wireless button communicates via OASIS radio protocol. The button can be worn on your wrist like a watch or it can hang around your neck (an appropriate strap is supplied in the package). It is activated to alarm state by pressing the button. In that case it transmits 3 pulses each of length 16 ms after delay of about 6 seconds. In the delay period the device beeps and it is possible to deactivate it in order to avoid accidental calls (see 5.1, Fig. 3). The wireless transmitter (connection to control unit) has operating frequency f = 868.5 MHz. The device is battery operated. The power source delivered by producer and used for testing was a new lithium battery type CR2032, U = 3V. Antenna type : Internal, Integral 1.2. Related submittal(s) Grants This is application for certification of the transmitter. No related devices are present. 1.3. Test Methodology The test setup and test was done according to: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. The test setup and test was done according to: CISPR 22: 1998 + Corrigendum: 2003 + A1: 2000 + A2: 2003 and ANSI C63.4: 2003 Compliance with CISPR 22 is being used to demonstrate conformity with FCC DoC requirements. This conforms with FCC Part 15.109(g). The test results detailed in this report apply only to the RC-87 with the test setup described. Any modification such as a change, addition to or inclusion of another device into this product will require an additional evaluation. The support equipment listed as part of the emission tests is required to properly exercise and test the device under test. Jablotron s.r.o. / RC80 5-21 07KFE007857-H-FCC-02 / 07-11-29 R_FCC 06-04 1.4. Test Facility The test site was semi-anechoic chamber Intertek Germany (PM KF 1150). Measurement distance EUT – Antenna was d = 3 m. 1.5. List of exhibits Following exhibits are delivered as separate pdf files. The name of file corresponds with description of exhibit with extension .pdf EXHIBIT 1 Test setup photo documentation EXHIBIT 2 External Photos EXHIBIT 3 Internal Photos EXHIBIT 4 Operational description EXHIBIT 5 Block diagram EXHIBIT 6 Circuit diagram …
