VL6RC88Wireless wall button

The RC-88 wireless wall button MKD51100FCC 1 The RC-88 wireless wall button The RC-88 is a component of Jablotron’s Oasis 80 alarm system. It is designed to be a remote control for setting/unsetting (arming/disarming) an alarm system, triggering panic alarms or remotely controlling other appliances. The battery-powered wireless button communicates via OASIS radio protocol. Installation If it is to be used as a panic button, then it must be installed together with the bottom part of its housing and the tamper contacts must be switched on. Do not install the button on a metal surface (it adversely affects the range of its transmitter). • Remove the top part of the housing (using a screwdriver from the right/left side). • Release the bottom part of the housing by pressing the 4 tabs in the corners. • Install the bottom part to the desired place. • Reunite the housing containing the electronics with the installed part of the housing (the tamper spring should press against the wall where the unit is to be installed, via the hole in the bottom housing). • Configure the functionality using the DIP switches (see the below section called ‘Setting the DIP switches’). • Enroll the RC-88 button to its receiver or control panel according to the relevant manual. • Reunite the top housing with the rest of the housing to complete installation. LITHIUM 3V 1/2 AA + A B 12 O N TOP TOP Setting the DIP switches Set DIP switches #1 and #2 before finally closing the RC-88 unit as below: # OFF ON 1 Tamper contacts, radio communication and low battery supervision switched OFF Tamper contacts, radio communication and low battery supervision switched ON 2 Remote control function - button A (push the button’s top)= set, B (push the button’s bottom) = unset Panic button function (button A or B sends a panic signal, i.e. any pushing) Using the button with an Oasis JA-80K panel When used with a control panel, the tamper contacts should be switched on (DIP switch # 1 in the ON position). 1. Enter enrollment mode on the control panel by keying in “1” in Service mode (the desired device address can be chosen by the arrow keys). 2. Install a battery into the RC-88 to activate enrollment. 3. Exit enrollment mode by pressing “#”. If DIP switch # 2 is OFF, the Natural reaction of the control panel is remote control - button A = set and button B = unset. If any other reaction is set in the control panel, it will only be valid for button A. If DIP switch # 2 is ON, then the natural reaction of the control panel is a panic alarm – triggered by pressing button A or B. Testing the RC-88 using a control panel In service mode, an Oasis control panel can check the radio signal strength of an enrolled RC-88 button (see control panel manual). Using the RC-88 as a doorbell button If the RC-88 is to be used with a JA-80L indoor siren as a door bell button, set DIP switches #1 and #2 to the OFF position. Enrollment is described in the JA-80L manual. Using the RC-88 to control electrical appliances The RC-88 button can also be used with other Jablotron products which communicate via Oasis radio protocol, e.g. relay receiving modules series UC-8x and AC-8x (see the manuals of these particular products for details). For these applications we recommend switching DIP switches #1 and #2 OFF. Note: The RC-88 can be enrolled to several receivers at once. Battery replacement If the button is used with an Oasis control panel and DIP switch # 1 is ON, then the control panel monitors the voltage of the RC-88’s battery and if too low, the control panel informs the installer or user. The button continues to function but battery replacement should not be delayed by more than two weeks. This should be done by a qualified technician with the control panel in Service mode. Expired batteries should not be thrown into the garbage, but disposed of according to local regulations. Always test the proper functioning of the RC-88 after battery replacement. Technical Specifications Voltage: Lithium battery type CR14250SL (1/2AA 3.0V) Typical battery lifetime: - approximately 3 years (DIP switch #1 ON, 20 daily activations) - approximately 5 years (DIP switch #1 OFF, 20 daily activations) Communication band: 868 MHz, Oasis protocol Communication range approx. 300 metres (open area) Dimensions 80 x 80 x 29 mm Operational environment according to EN 50131-1 class II. Indoor general Operational temperature range -10 to + 40 °C Complies with EN 50131-1, EN 50131-5-3 grade 2 ANSI C63.4 Can be operated according to EKC REC 70-03, FCC Part 15 FCC ID VL6RC88 Jablotron Ltd. hereby declares that the RC-88 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and complies with part 15 of the FCC rules. Operation is subject the the following two conditions: 1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. The original of the conformity assessment can be found at www.jablotron.com, Technical Support section CAUTION: Changes or modifications no expressly approved by Jablotron could void the user ́s authority to operate the equipment Note: Although this product does not contain any harmful materials we suggest you return the product to the dealer or directly to the producer after use.

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] No: 7DO014 Konto: KomerčnÌ banka Jablonec n.N 17409-451/0100 IČO: 14864959 DIČ: 187-14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren July 30, 2007 To whom it may concern, Letter of Agency I, an officer of Jablotron company do hereby authorize Intertek Deutschland GmbH to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 of the FCC Rules until further notice. I further certify that no party (as defined in ß1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, By: Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager ____________________

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] Account: KomerčnÌ banka Jablonec n.N 17409-451/0100 Entrepreneurial permit number: CZ14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren Attention: Application Examiner Re: Request for confidentiality Applicant: JABLOTRON Ltd. FCC ID: VL6RC88 To whom it may concern, Request is hereby submitted by JABLOTRON to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams Rationale for request for confidentiality: JABLOTRON has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager

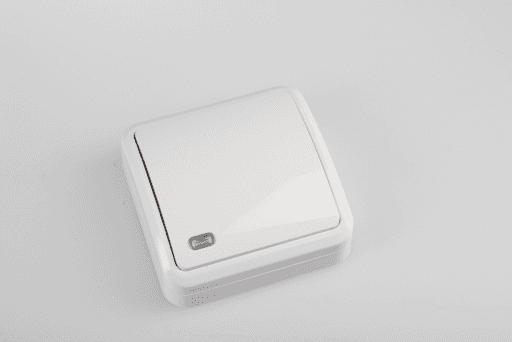

External Photos Front view 1 Front view 2 Rear view

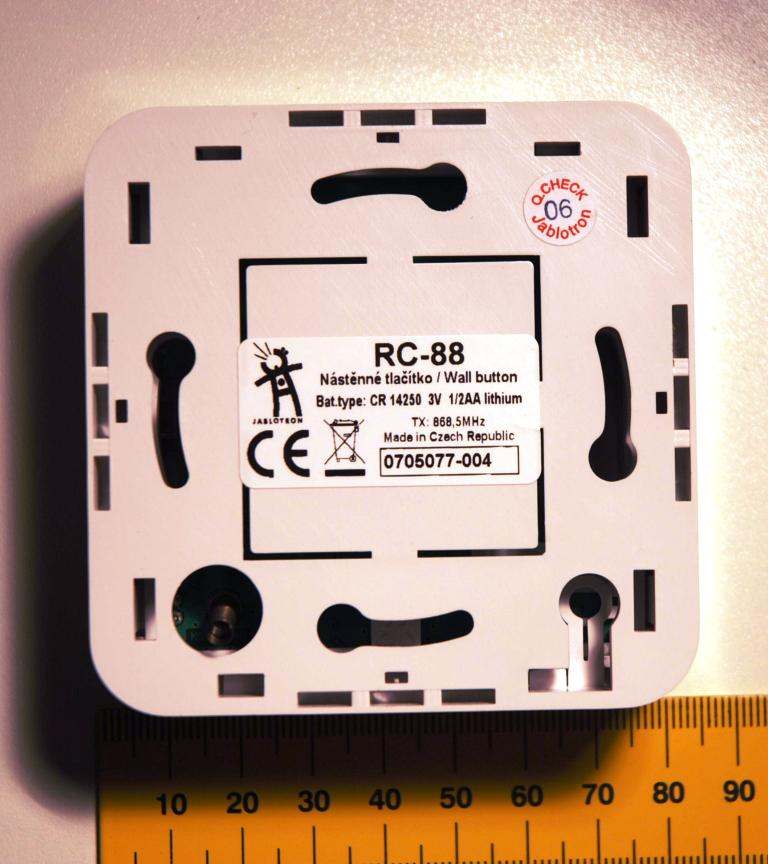

The position of the FCC label : rear side of the device above the company label as shown on the drawing above.

Internal Photos Cover removed – PCB front view PCB rear view

Operational description The RC-88 is a wireless wall button with built in antenna - component of Jablotron’s Oasis 80 alarm system. It is designed to be a remote control for setting/unsetting (arming/disarming) an alarm system, triggering panic alarms or remotely controlling other appliances. The battery-powered wireless button communicates via OASIS radio protocol. The operating frequency is f = 868.5 MHz. The device is activated by pressing the front surface The wall button can work in two modes depending on the state of DIP switch 1 on the PCB. Dip witch 1 OFF: standard operation of button. Pulses are transmitted only after pressing the button, no periodic signal are transmitted. Dip switch 1 ON: TAMPER contacts, supervision of battery status are activated. Normal operation: after activating the pulse train 3 x 30 ms . Duty cycle : to check the system integrity the device sends once in 9 minutes a data pulse. The device is battery operated. The source used for testing was a new battery , type CR 1425; U = 3V delivered with the device. The wireless transmitter (connection to control unit) has operating frequency f = 868.5 MHz. Antenna type : Internal, Integral

Jablotron s.r.o. / RC-88 2-21 07KFE007857-I-FCC-02 / 07-12-04 R_FCC 06-04 Table of Contents 1. General description.............................................................................................. 4 1.1. Product description ............................................................................................ 4 1.2. Related submittal(s) Grants................................................................................ 4 1.3. Test Methodology............................................................................................... 4 1.4. Test Facility ........................................................................................................ 5 1.5. List of exhibits .................................................................................................... 5 2. Measurements And Test Specifications............................................................. 6 2.1. Changes to Test Report 07KFE007857-I-FCC-01 ............................................. 6 3. Description Of EUT .............................................................................................. 7 3.1. Configuration / Operating Conditions ................................................................. 7 3.2. Major Subassemblies Or Internal Peripherals .................................................... 7 3.3. Peripheral Devices Used For Testing................................................................. 7 3.4. Supply- And Interconnecting Cables .................................................................. 7 4. Test Results - Overview ....................................................................................... 8 5. Measurement results detailed ............................................................................ 9 5.1. Duty cycle and Averaging factor......................................................................... 9 5.2. Bandwidth ........................................................................................................ 12 5.3. Radiated Emission 30 MHz – 10 GHz.............................................................. 13 5.3.1. Field strength calculation..................................................................................................... 13 5.3.2. Normative references .......................................................................................................... 14 5.3.3. Emission Test results .......................................................................................................... 15 6. Test setup Photo documentation...................................................................... 19 7. EUT Photo documentation ................................................................................ 21 Jablotron s.r.o. / RC-88 3-21 07KFE007857-I-FCC-02 / 07-12-04 R_FCC 06-04 8. Technical specification ...................................................................................... 21 8.1. Block Diagram Of The EUT..............................................................................21 8.2. Circuit Diagram Of The Layout.........................................................................21 8.3. Instruction manual............................................................................................ 21 8.4. Product Labelling ............................................................................................. 21 Jablotron s.r.o. / RC88 4-21 07KFE007857-I-FCC-02 / 07-12-04 R_FCC 06-04 1. General description 1.1. Product description The device is wireless wall button with built – in antenna. The producer declared operating frequency is f = 868.5 MHz. It is activated by pressing the front surface. After activation the transmitter transmits the pulse train of 3 pulses each 30 ms long. The wall button can work in two modes depending on the state of DIP switch 1 on the PCB. Dip witch 1 OFF: standard operation of button. Pulses are transmitted only after pressing the button, no periodic signal are transmitted. Dip switch 1 ON: TAMPER contacts, supervision of battery status are activated. Periodic operation: 9 minutes interval the pulse train 3 x 30 ms to the control unit. The device is battery operated. The source used for testing was a new battery , type CR 1425; U = 3V delivered with the device. The wireless transmitter (connection to control unit) has operating frequency f = 868.5 MHz. Antenna type : Internal, Integral 1.2. Related submittal(s) Grants This is application for certification of the transmitter. No related devices are present. 1.3. Test Methodology The test setup and test was done according to: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. The test setup and test was done according to: CISPR 22: 1998 + Corrigendum: 2003 + A1: 2000 + A2: 2003 and ANSI C63.4: 2003 Compliance with CISPR 22 is being used to demonstrate conformity with FCC DoC requirements. This conforms with FCC Part 15.109(g). The test results detailed in this report apply only to the RC-88 with the test setup described. Any modification such as a change, addition to or inclusion of another device into this product will require an additional evaluation. The support equipment listed as part of the emission tests is required to properly exercise and test the device under test. Jablotron s.r.o. / RC88 5-21 07KFE007857-I-FCC-02 / 07-12-04 R_FCC 06-04 1.4. Test Facility The test site was semi-anechoic chamber Intertek Germany (PM KF 1150). Measurement distance EUT – Antenna was d = 3 m. 1.5. List of exhibits Following exhibits are delivered as separate pdf files. The name of file corresponds with description of exhibit with extension .pdf EXHIBIT 1 Test setup photo documentation EXHIBIT 2 External Photos EXHIBIT 3 Internal Photos EXHIBIT 4 Operational description EXHIBIT 5 Block diagram EXHIBIT 6 Circuit diagram EXHIBIT 7 Instruction manual EXHI…
