VL6RC89Wireless doorbell button

The RC-89 wireless doorbell button MKD51001FCC 1 The RC-89 wireless doorbell button The RC-89 is a component of Jablotron’s Oasis 80 alarm system. It can be used as a wireless doorbell button or to trigger a panic alarm or to operate various electrical appliances. The battery-powered button communicates via OASIS radio protocol. Installation The button should not be installed on or near metal objects which block radio communication. • Gently open the transparent cover (see the below picture) • Partially unscrew the screw that was located under the cover, stopping before it falls out. • Push the screw in with a screwdriver until the back cover falls out • Install the back cover onto the desired location • Put the button unit onto the rear cover and re-tighten the screw • Put the required name onto the paper slip and replace the transparent cover • Enroll the button to its designated receiver (e.g. wireless siren JA-80L) Using the RC-89 as a doorbell button If the RC-89 is to serve as a wireless doorbell button, it has to be enrolled to a JA-80L wireless indoor siren as follows: 1. Plug the siren into a mains socket. 2. After the siren’s indicator turns on, press and hold the JA-80L button until the indicator starts to flash (enrollment mode). 3. Press the RC-89 button – a doorbell sound is then heard (by pressing the button repeatedly you can scroll through the 8 possible melodies). 4. To exit enrollment mode, press the button on the JA-80L whose indicator will then turn off. Using the RC-89 as a panic button The RC-89 can be enrolled to an Oasis control panel as a panic button as follows: 1. Switch the control panel to service mode and key in 1 to enter enrollment mode. Select the desired address using arrow keys. 2. Press and hold the RC-89 button until you see three quick flashes. 3. The button enrolls to the control panel during these three flashes. 4. Exit enrollment mode by keying in # on the Oasis keypad. Notes: • The natural reaction of the RC-89 is a panic alarm. A different reaction can be programmed in the control panel if desired. • If the RC-89 is physically removed from the system, the control panel (CP) will not be automatically aware of this change as the RC-89 does not signal this event to the CP or check communication with the CP either. According to EU standards, the RC-89 may be used as a portable panic button, but it should not be permanently fixed. If a fixed secured panic button is required which conforms to EU standards, we recommend using the RC-88 in panic button mode. • An alternative way of enrolling the RC-89 to a control panel is to insert its battery. Testing the panic button The signals received by the control panel from the RC-89 can be checked and measured (see control panel manual for details). Controlling electrical appliances The RC-89 can also be used with other Jablotron products which communicate via Oasis radio protocol, e.g. relay receiving modules series UC-8x and AC-8x (see the manuals of these particular products for details). The RC-89 transmits the same kind of signal as transmitted when a pair of buttons are pressed on an RC-80 keyfob. The RC-89 can be enrolled to several receivers at once, e.g. if someone rings the door bell, the JA-80L indoor siren could react by making a sound, and a light at the door could be turned on by an AC- 82 relay receiver. Battery replacement If the RC-89 stops working, replace its battery. To open the unit, unscrew the screw under the transparent cover. Expired batteries should not be thrown into the garbage, but disposed of according to local regulations. Protective roof A protective roof-like housing is supplied with the package, enabling the button to be protected against climatic factors. You can perform installation by putting the button’s little alignment bumps into holes on the roof unit and screwing both parts together on the wall. Be careful not to use too much force while handling the transparent cover. If the cover has to be removed it is advisable to use a tool to grab the jutting out part of the cover and pull it up. Technical specifications Power supply alkaline battery type L1016 (6.0 V) Typical battery lifetime: approx. 2 years (can be shorter outside) Communication band 868 MHz, Oasis protocol Communication range approx. 50 m (open area) Environment according to EN 50131-1 Class III outdoor-sheltered Housing IP-41 Operational temperature -25 to +50 °C Relative air humidity 25 to 75% Operational conditions ERC REC 70-03, FCC Part 15 The RC-89 complies with ETSI EN 300220,EN 55022, EN 50130-4, EN 50134-2,EN 60950-1, ANSI C63.4 FCC ID VL6RC89 Jablotron Ltd. hereby declares that the RC-89 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and complies with part 15 of the FCC rules. Operation is subject the the following two conditions: 1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. The original of the conformity assessment can be found at www.jablotron.com, Technical Support section Note: Although this product does not contain any harmful materials we suggest you return the product to the dealer or directly to the producer after use.

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] No: 7DO014 Konto: KomerčnÌ banka Jablonec n.N 17409-451/0100 IČO: 14864959 DIČ: 187-14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren July 30, 2007 To whom it may concern, Letter of Agency I, an officer of Jablotron company do hereby authorize Intertek Deutschland GmbH to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 of the FCC Rules until further notice. I further certify that no party (as defined in ß1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, By: Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager ____________________

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] Account: KomerčnÌ banka Jablonec n.N 17409-451/0100 Entrepreneurial permit number: CZ14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren Attention: Application Examiner Re: Request for confidentiality Applicant: JABLOTRON Ltd. FCC ID: VL6RC89 To whom it may concern, Request is hereby submitted by JABLOTRON to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams Rationale for request for confidentiality: JABLOTRON has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager

External Photos Front view Rear view

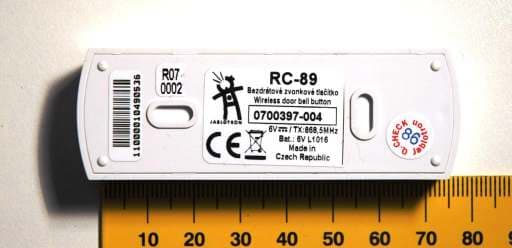

The position of the FCC label : rear side of the device above the company label as shown on the drawing above.

Internal Photos Front view Rear view

Operational description The RC-89 is a component of Jablotron’s Oasis 80 alarm system. It can be used as a wireless doorbell button or to trigger a panic alarm or to operate various electrical appliances. The battery-powered button communicates via OASIS radio protocol. It is activated to alarm state by pressing the button. The wireless transmitter (connection to control unit) has operating frequency f = 868.5 MHz. The device is battery operated. The power source delivered by producer and used for testing was a new alkaline battery type L1016, U = 6V. Under normal operation the transmitter transmits after pressing the button 3 pulses that activate distant bell or other device. Antenna type : Internal, Integral

Jablotron s.r.o. / RC-89 2-20 07KFE007857-J-FCC-01 / 07-11-20 R_FCC 06-04 Table of Contents 1. General description.............................................................................................. 4 1.1. Product description ............................................................................................ 4 1.2. Related submittal(s) Grants................................................................................ 4 1.3. Test Methodology............................................................................................... 4 1.4. Test Facility ........................................................................................................ 4 1.5. List of exhibits .................................................................................................... 5 2. Measurements And Test Specifications............................................................. 6 3. Description Of EUT .............................................................................................. 7 3.1. Configuration / Operating Conditions ................................................................. 7 3.2. Major Subassemblies Or Internal Peripherals .................................................... 7 3.3. Peripheral Devices Used For Testing................................................................. 7 3.4. Supply- And Interconnecting Cables .................................................................. 7 4. Test Results - Overview ....................................................................................... 8 5. Measurement results detailed ............................................................................ 9 5.1. Duty cycle and Averaging factor......................................................................... 9 5.2. Bandwidth ........................................................................................................ 11 5.3. Radiated Emission 30 MHz – 10 GHz.............................................................. 12 5.3.1. Field strength calculation..................................................................................................... 12 5.3.2. Normative references .......................................................................................................... 13 5.3.3. Emission Test results .......................................................................................................... 14 6. Test setup Photo documentation...................................................................... 18 7. EUT Photo documentation ................................................................................ 20 8. Technical specification ...................................................................................... 20 Jablotron s.r.o. / RC-89 3-20 07KFE007857-J-FCC-01 / 07-11-20 R_FCC 06-04 8.1. Block Diagram Of The EUT..............................................................................20 8.2. Circuit Diagram Of The Layout.........................................................................20 8.3. Instruction manual............................................................................................ 20 8.4. Product Labelling ............................................................................................. 20 Jablotron s.r.o. / RC89 4-20 07KFE007857-J-FCC-01 / 07-11-20 R_FCC 06-04 1. General description 1.1. Product description The RC-89 is a component of Jablotron’s Oasis 80 alarm system. It can be used as a wireless doorbell button or to trigger a panic alarm or to operate various electrical appliances. The battery-powered button communicates via OASIS radio protocol. It is activated to alarm state by pressing the button. The wireless transmitter (connection to control unit) has operating frequency f = 868.5 MHz. The device is battery operated. The power source delivered by producer and used for testing was a new alkaline battery type L1016, U = 6V. Antenna type : Internal, Integral 1.2. Related submittal(s) Grants This is application for certification of the transmitter. No related devices are present. 1.3. Test Methodology The test setup and test was done according to: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. The test setup and test was done according to: CISPR 22: 1998 + Corrigendum: 2003 + A1: 2000 + A2: 2003 and ANSI C63.4: 2003 Compliance with CISPR 22 is being used to demonstrate conformity with FCC DoC requirements. This conforms with FCC Part 15.109(g). The test results detailed in this report apply only to the RC-89 with the test setup described. Any modification such as a change, addition to or inclusion of another device into this product will require an additional evaluation. The support equipment listed as part of the emission tests is required to properly exercise and test the device under test. 1.4. Test Facility The test site was semi-anechoic chamber Intertek Germany (PM KF 1150). Measurement distance EUT – Antenna was d = 3 m. Jablotron s.r.o. / RC89 5-20 07KFE007857-J-FCC-01 / 07-11-20 R_FCC 06-04 1.5. List of exhibits Following exhibits are delivered as separate pdf files. The name of file corresponds with description of exhibit with extension .pdf EXHIBIT 1 Test setup photo documentation EXHIBIT 2 External Photos EXHIBIT 3 Internal Photos EXHIBIT 4 Operational description EXHIBIT 5 Block diagram EXHIBIT 6 Circuit diagram EXHIBIT 7 Instruction manual EXHIBIT 8 Product label EXHIBIT 9 Confidentiality request Jablotron s.r.o. / RC89 6-20 07KFE007857-J-FCC-01 / 07-11-20 R_FCC 06-04 2. Measurements And Test Specifications Emission - Requirements according to FCC, Part 15, Class A, verification FCC, Part 15, Class B, DoC FCC, Part 15, Class B, certification FCC, Part 15, intentional radiator, certification Jablotron s.r.o. / RC89 7-20 07KFE007857-J-FCC-01 / 07-11-20 R_FCC 06-04 3. D…

Text truncated - open the document above for the full version.

Test setup Photo documentation Fig. 1 Front view Fig. 2 Rear view
