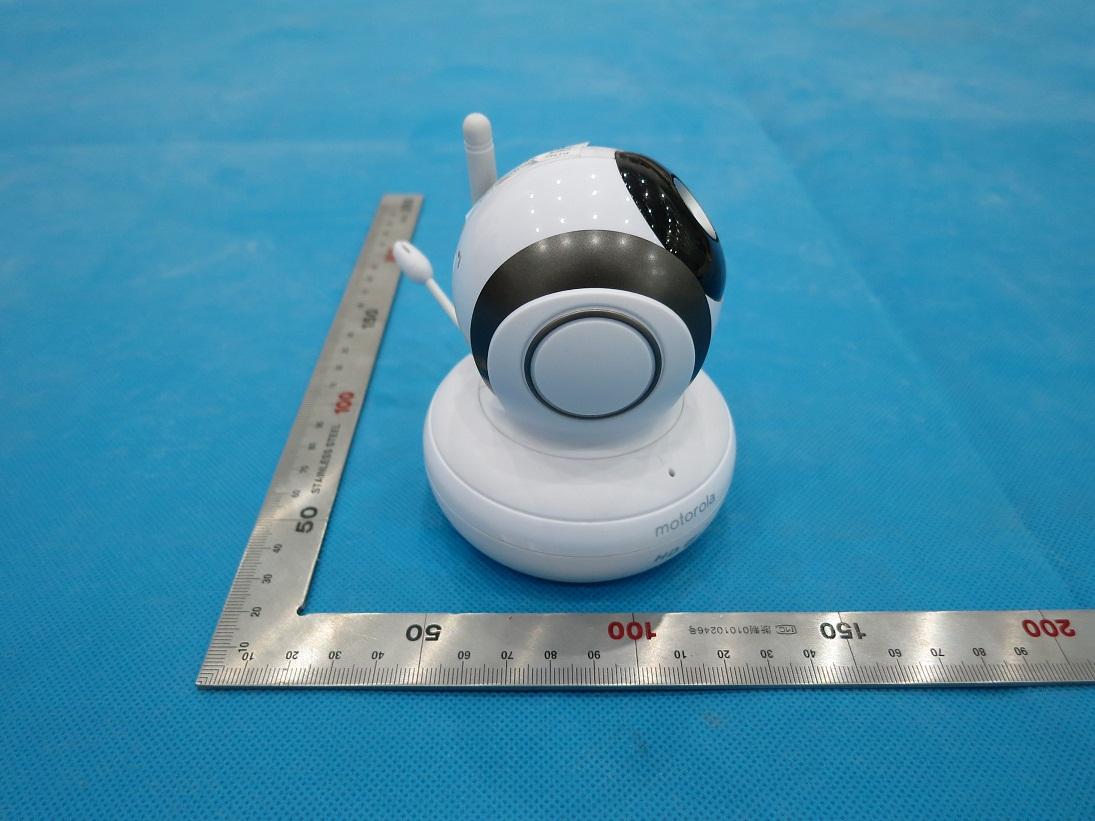

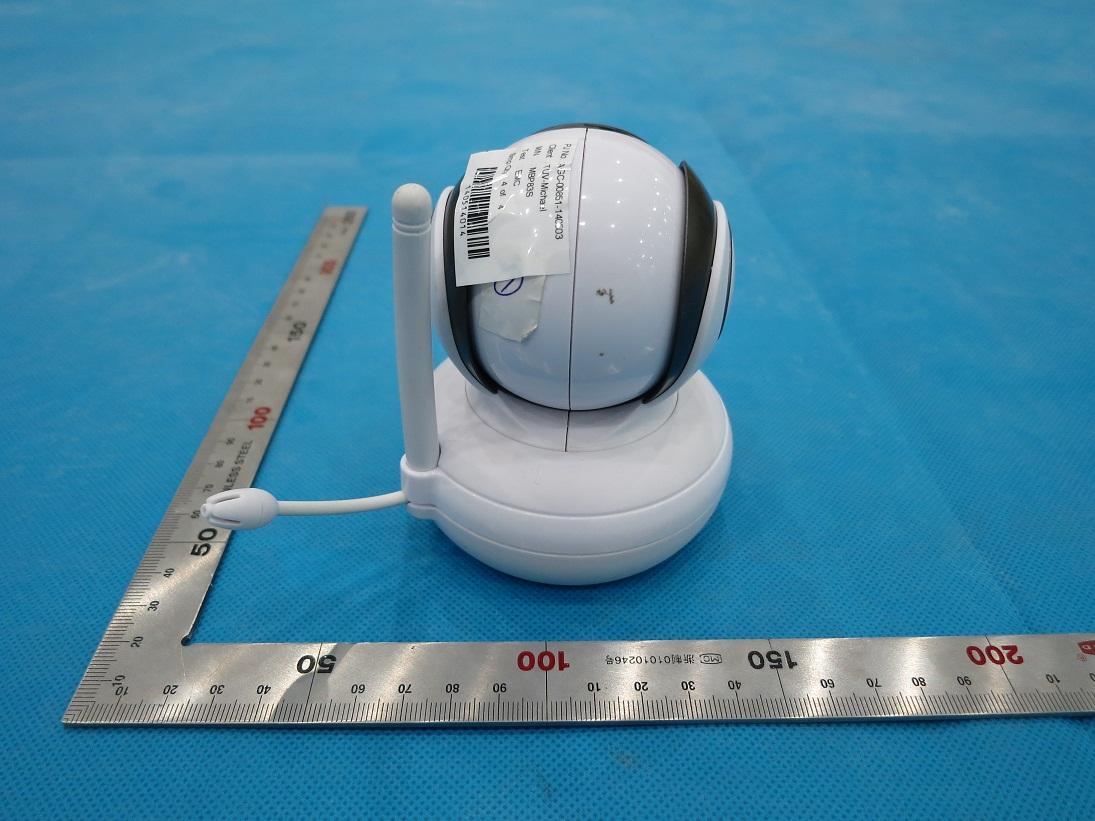

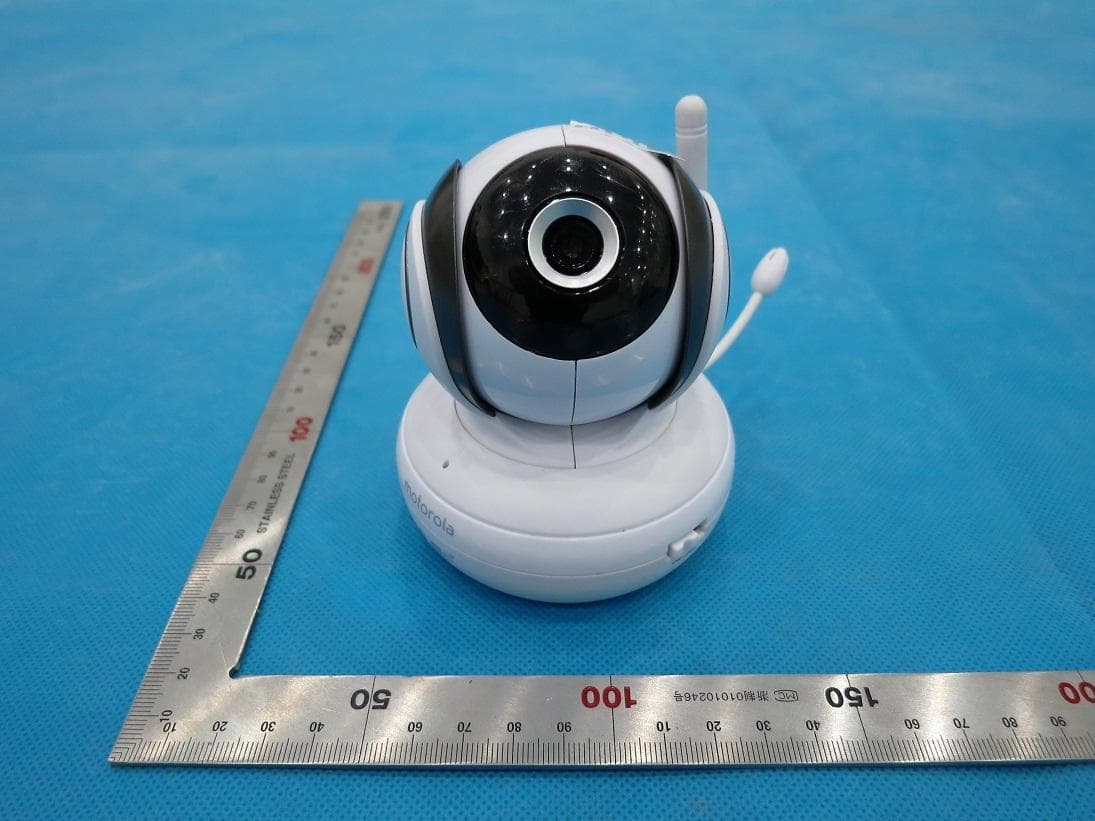

VLJ-BLINK83Digital Video Baby Monitor (Baby Unit)

Models: MBP36HD, MBP36HD-2, MBP36HD-3, MBP36HD-4 User’s Guide Digital Video Baby Monitor The features described in this User’s Guide are subject to modifications without prior notice. Welcome... to your new Motorola Video Baby Monitor! Now you can see and hear your baby sleeping in another room or you can monitor your older children in their playroom. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please call: This User's Guide provides you with all the information you need to get the most from your product. Before you can use the baby monitor, we recommend you insert and fully charge the battery in the parent unit, so that it continues to work if you disconnect it from the power supply to carry it to another location. Please read the Safety Instructions on page 6 before you install the units. Got everything? • 1 x Parent unit • 1 x Baby unit (Camera) • 1 x Rechargeable Ni-MH battery pack • 1 x Power adapter for the Parent unit • 1 x Power adapter(s) for the Baby unit In multi-camera packs, you will find one or more additional camera units with power adapter units and battery packs. US and Canada 1-888-331-3383 Email: [email protected] Thank you for purchasing Motorola Video Baby Monitor. Overview of the Parent Unit 1. Display (LCD screen) 2. Up Key + Normal Mode: Tilt Up Menu Mode: Up 3. Down Key - Normal Mode: Tilt Down Menu Mode: Down 4. Left Key < Normal Mode: Pan Left Menu Mode: Left 5. Right Key > Normal Mode: Pan Right Menu Mode: Right 6. Menu Key M Press to open the Menu options 7. OK Key O 8. Video ON/OFF Key V Press to turn OFF the LCD display Press again to turn ON the LCD display 9. Ta l k K e y T Press and hold to speak to your baby 10. Power Adapter / Battery LED BLUE when mains adapter power on. RED when battery low. 11. Unit ON/OFF LED (Green) 12. Audio Level LED (Green, Orange, Red, Red) 13. Microphone 14. Power Key P Press and Hold to turn the unit ON/OFF 15. Antenna Lift the antenna for optimal reception 16. Battery cover 17. Stand 18. Speaker 19. USB power adapter socket 20. AV out / Audio out POWER 18 15 11 14 13 16 17 19 20 6 7 8 9 2 3 4 5 1012 1 Parent unit menu icons Signal Level (4 Levels) Night Vision Mode (Screen changes to Black/White) Ta l k M o d e Battery Level Control (4 Levels) Pan Left Pan Right Ti l t U p Ti l t D o w n Important guidelines for installing your Baby Monitor • To use your Video Monitor Baby and Parent Units together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. • Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or reinforced concrete between the Baby and Parent Unit may block the radio signal. • The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. • Use of other 2.4 GHz products, such as wireless networks (Wi-Fi ® routers), Bluetooth ® systems, or microwave ovens, may cause interference with this product, so keep the baby monitor away at least 5ft (1.5m) from these types of products, or turn them off if they appear to be causing interference. • If the signal is weak, try lifting up the Parent Unit Antenna, moving the Parent and/or the Baby Unit to different positions in the rooms. 1. Photo Sensor (Night Vision Mode) 6. Speaker 7. ON/OFF Switch 2. Camera Lens8. Power Adapter Socket 3. Infrared LEDs9. Antenna 4. Power LED10. Temperature Sensor 5. Microphone 11. Pair Key Parent unit menu icons (cont’d) Overview of Your Baby Unit Volume Level Control (8 Levels) Zoom Level Control (1X, 2X) Brightness Level Control (8 Levels) Lullaby Control (5 Song Selections) Alarm Setting (6h, 4h, 2h, Off ) Temperature Reading (HH ºC / ºF or LL ºC / ºF) Icon & readings turn RED > 29ºC / 84ºF, and reading display HH ºC / ºF > 36ºC / 97 ºF) Icon & readings turn RED < 14ºC / 57ºF, and reading display LL ºC / ºF < 1ºC / 34 ºF) Cam Control (scan, view, add, delete) Screen viewing mode control (Single Screen, 4-split Screen) Set Video On Timer (5 min, 30 min, 60 min) V 1 9 11 10 8 2 3 6 5 4 7 PAIR Table of contents5 ENGLISH Table of contents 1.Safety Instructions ..................................................................................... 6 2.Getting Started .......................................................................................... 8 2.1Baby Unit Power Supply .............................................................................. 8 2.2Parent Unit Battery Installation .................................................................... 8 2.3Parent Unit Power Supply ........................................................................... 9 2.4Registration (Pairing)................................................................................. 10 2.5View Video Through TV ............................................................................ 10 3.Using the Baby Monitor ........................................................................... 11 3.1Setting up................................................................................................... 11 3.2Pan and Tilt ................................................................................................ 11 3.3Night Vision Mode..................................................................................... 11 3.4Talk Mode .................................................................................................. 11 3.5Video ON/OFF.......................................................................................... 11 3.6Temperature Display (HH °C / °F or LL °C / °F) ...................................... 12 4.Parent Unit Menu Options........…

Text truncated - open the document above for the full version.

Date (27/06/2014) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, (Binatone Electronics International Limited), hereby authorize Ray Cheung (TUV SUD HK LTD) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (27/12/2014]). Sincerely, Company Officer: Karl Heinz Muller Telephone Number: 852 2802 7388 Email: [email protected]

Date (27/06/2014) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID:VLJ-BLINK83, VLJ-MBP36HDPU Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules,(Binatone Electronics International Limited)hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation (Binatone Electronics International Limited) alsohereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of(1 February, 2015)days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer:Karl Heinz Mueller Telephone Number: 852 2802 7388 Email:852 2802 8138

Appendix B Date: 2014-06-16 Report No.: 60.870.14.009.01F Model No.: MBP36HDBU Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2014-06-16 Report No.: 60.870.14.009.01F Model No.: MBP36HDBU Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2014-06-16 Report No.: 60.870.14.009.01F Model No.: MBP36HDBU Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong.

BU

Date: 2014-06-16 Report No.: 60.870.14.009.01S Model No.: MBP36HDBU Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. SAR Evaluation Exemption Compliance Information The device has a standalone transmission. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distances ” 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[ ¥f(GHz)] ” 3.0 The maximum tune-up limit power is 69.5 mW @ 2.462GHz For the head and body SAR, use 50mm as the conservative minimum test separation distance, [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[ ¥f(GHz)] = 0.89 ” 3.0 So standalone SAR measurements are not required for both head and body

TEST REPORT Date: 2014-06-16 Report No.: 60.870.14.009.01F Page 1 of 73 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant:Binatone Electronics International Limited Floor 23, 9 Des Voeux Road West, Sheung Wan, Hong Kong Description of Samples:Model name: Digital Video Baby Monitor (Baby Unit) Brand name: motorola Model no.:MBP36HDBU, FCOUS83-W, FOCUS83-S, FOCUS83-B, SCOUT83, BLINK83-W, BLINK83-S, BLINK83-B FCCID:VLJ-BLINK83 Date Samples Received:2014-05-02 Date Tested:2014-05-03 to 2014-06-15 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:--- Checked by:Approved by:- Ray CheungJeff Pong Project EngineerManager Wireless & Telecom departmentWireless & Telecom department Report No.:60.870.14.009.01F Page 2 of 73 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 73 Content Page 2-3 of 73 1.0General Details 1.1Test Laboratory Page 4 of 73 1.2Applicant Details Page 4 of 73 1.3Equipment Under Test [EUT] Page 5 of 73 1.4 Related Submittal(s) Grants Page 5 of 73 2.0Technical Details 2.1Investigations Requested Page 6 of 73 2.2Test Standards and Results Summary Page 6 of 73 3.0Test Methodology 3.1Radiated Emission Page 7 of 73 3.2Field Strength Calculation Page 7 of 73 3.3Conducted Emission Page 7 of 73 4.0Test Results 4.1 6dB Bandwidth MeasurementPage 9-16 of 73 4.2 Power Spectral Density Page 17-25 of 73 4.3 Band Edge MeasurementPage 26-28 of 73 4.4 Maximum Output Power Page 29-38 of 73 4.5 Out of Band Emissions and Emissions in Restricted BandsPage 39-67 of 73 4.6 Conducted Emission on AC MainsPage 68-72 of 73 Report No.:60.870.14.009.01F Page 3 of 73 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0List of Measurement Equipments Page 73 of 73 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.:60.870.14.009.01F Page 4 of 73 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory Attestation of Global Compliance SZ Co Ltd. 2/F, Building 2,No.1-No.4,Chaxi Sanwei, Technical Industrial Park, Gushu, Xixiang, Shenzhen, China. Registration Number: 259865 Tested By: John Zhi 1.2Applicant Details Applicant Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong Manufacturers VTech (Dongguan) Telecommunications Limited VTech Science Park, Xia Ling Bei Management Zone, Liaobu, Dongguan, Guangdong, China Report No.:60.870.14.009.01F Page 5 of 73 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of EUT Product Description:Digital Video Baby Monitor (Baby Unit) Model No.:MBP36HDBU Multi-listing Model:FOCUS83-W, FOCUS83-S, FOCUS83-B, SCOUT83, BLINK83-W, BLINK83-S, BLINK83-B Brand Name: motorola FCCID: VLJ-BLINK83 Rating: Ten Pao Adaptor Input 100-240Vac Output: 5 VDC, 1.5A CSEC Adaptor Input: 100-240VAC Output: 5 VDC, 2.0A Operated Frequency:2412 – 2462 MHz 2422 – 2452 MHz No. of Operated Channel:11 CH / (802.11b/g/n – HT20) ; 9CH / (802.11n – HT40) Data Rate:802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: MCS0-7, up to 150Mbps Modulation:DSSS (BPSK, QPSK, CCK) and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) Accessories and Auxiliary Equipments: AC/DC power adaptor, ThinkPad Notebook Antenna Type:Integral Antenna Manufacture of Antenna:CVISION HK Limited Antenna Gain:0 dBi Antenna Model:--- General Operation of EUT The Equipment Under Test (EUT) is a Camera of Wireless Monitoring System, which include of a FHSS Module and an 802.11b/g/n module. As per Client Declaration, MBP36HDBU & all multi-list models (multi-list model listed on above) have the same technical construction including Software design, RF module, PCB layout, Circuit design, all electrical construction and basic mechanical construction. Only the outlook color and system grouping are different between the models, so we use MBP36HDBU as a representative model to perform all testing. Report No.:60.870.14.009.01F Page 6 of 73 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Description of Test Modes The EUT has been tested under operating condition. Software used to control the EUT for staying in continuous transmitting and receiving mode is programmed. IEEE802.11b: Channel 1(2412MHz), Channel 6(2437MHz) and Channel 11(2462MHz) with 1Mbps data rate (worst case) are chosen for the final testing. IEEE802.11g: Channel 1(2412MHz), Channel 6(2437MHz) and Channel 11(2462MHz) with 6Mbps data rate (the worst case) are chosen for the final testing. IEEE802.11n – HT20: Channel 1(2412MHz), Channel 6 (2437MHz) and Channel 11 (2462MHz) with MSC0 (worst case) are chosen for the final testing. IEEE802.11n – HT40: Channel 3(2422MHz), Channel 6 (2437MHz) and Channel 9 (2452MHz) with MSC0 (worst case) are chosen for the final testing. 1.4Related Submittal(s) Grants This is a signal application subject to Certificate Authorization. Report No.:60.870.14.009.01F Page 7 of 73 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2009 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 6dB Bandwidth MeasurementSection 15.247 ( a2 ) Power Spectral Density Section 15.247 ( e ) Pseudorandom Hopping Algor…

Text truncated - open the document above for the full version.

Appendix A Date: 2014-06-16 Report No.: 60.870.14.009.01F Model No.: MBP36HDBU Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Radiated Emission Appendix A Date: 2014-06-16 Report No.: 60.870.14.009.01F Model No.: MBP36HDBU Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Conducted Emission
