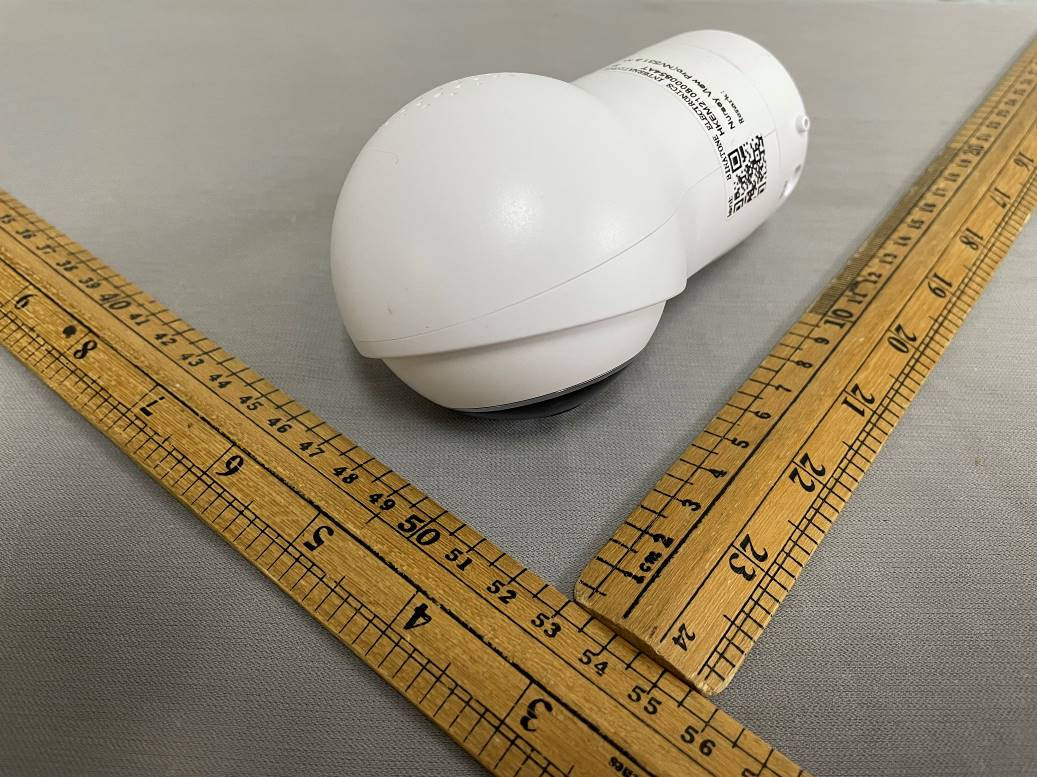

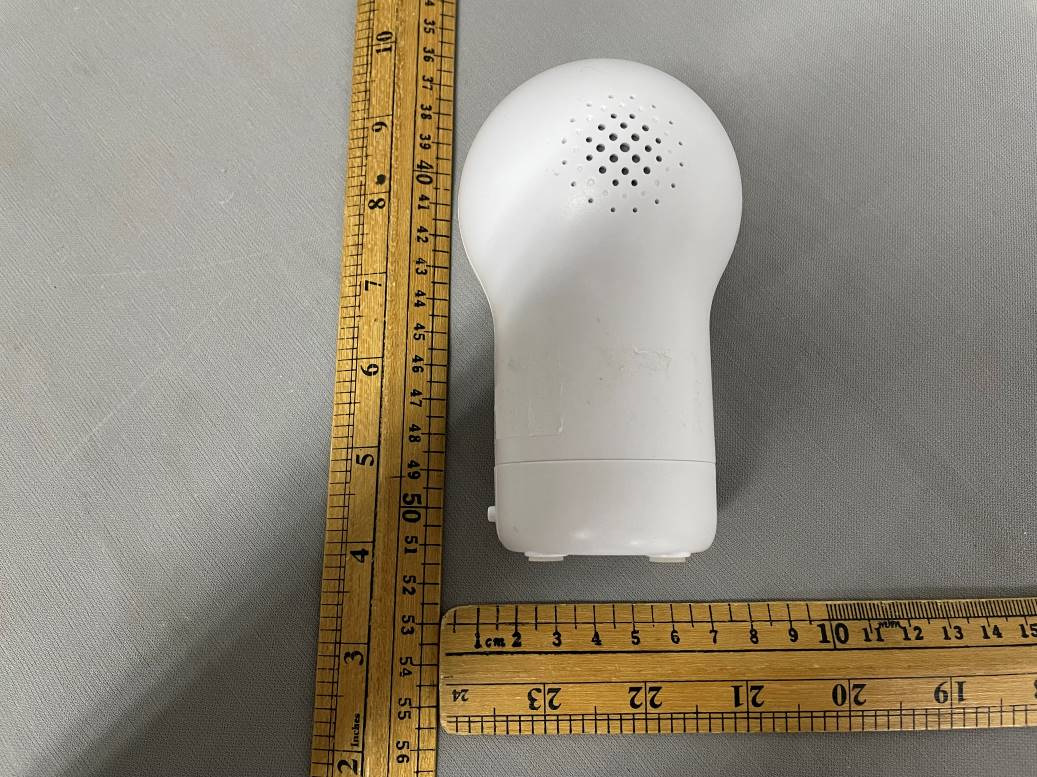

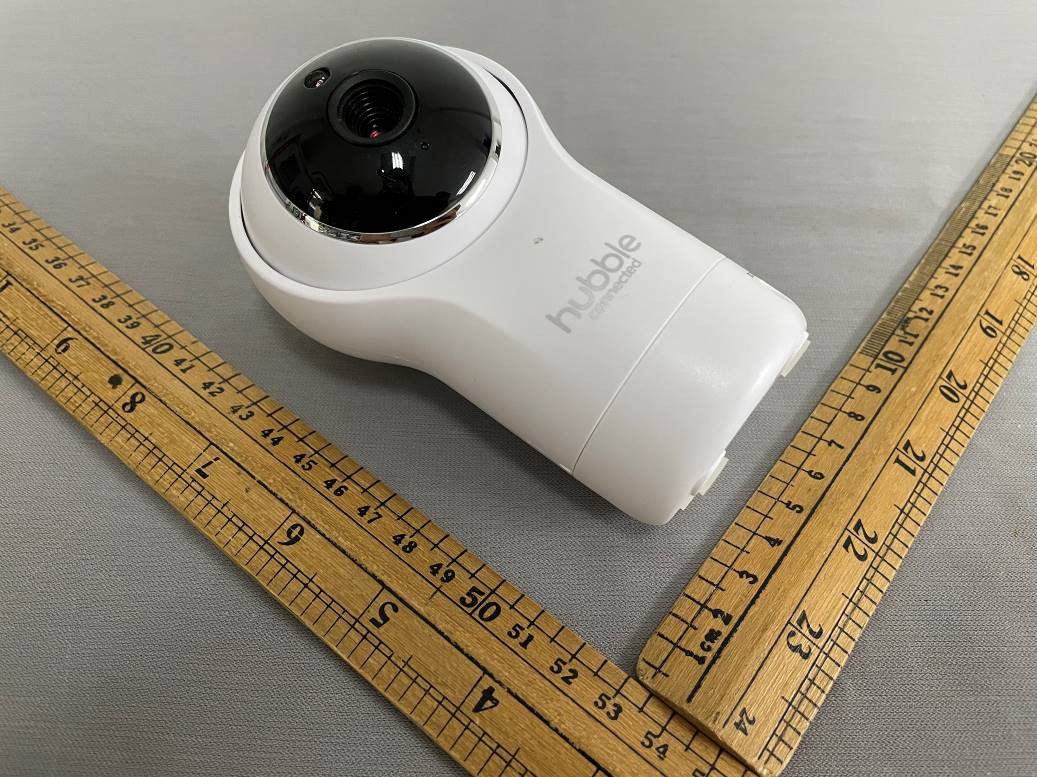

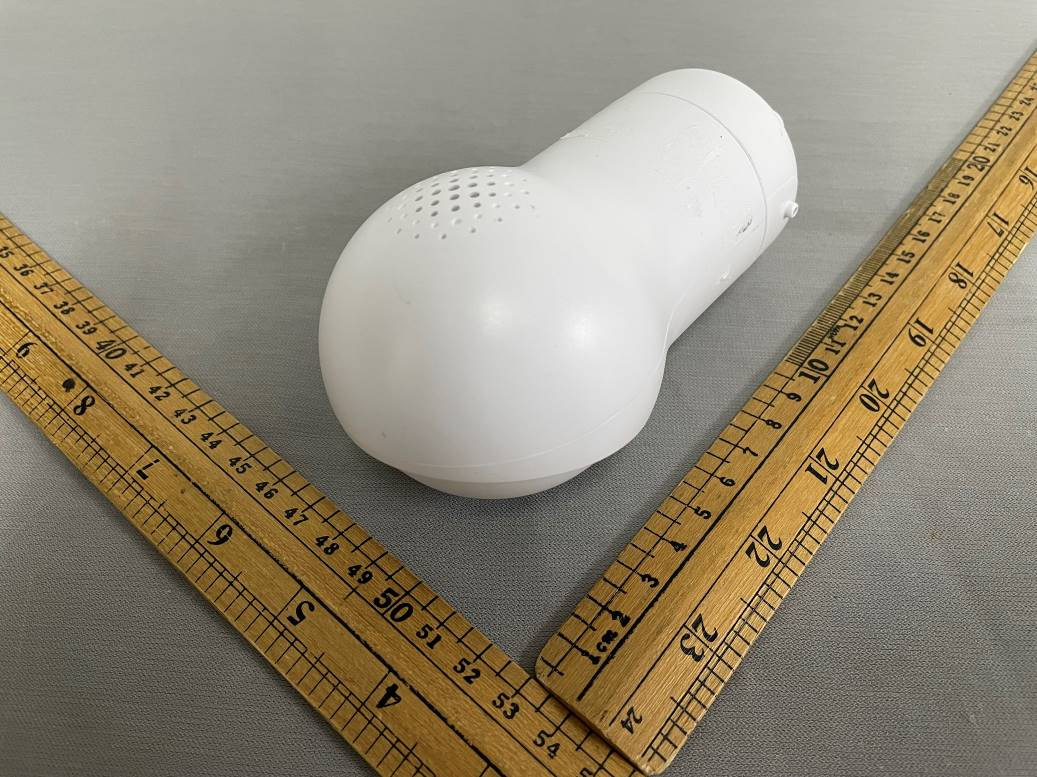

VLJ-NV531BUVideo Baby Monitor

USER’S GUIDE Nursery View Pro, Nursery View Pro Twin The features described in this user’s guide are subject to modifications without prior notice. 5" Video Baby Monitor Welcome... to your new Hubble Video Baby Monitor! Thank you for purchasing your new Hubble Smart Nursery product. Now you can see and hear your baby sleeping in another room or you can monitor your older children in their playroom. Please retain your original dated sales receipt for your records. For warranty service of your Hubble product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please contact: Live Chat: hubbleconnected.com Email: [email protected] https://hubbleconnected.com/warranty https://hubbleconnected.com/apps/product-registration Visit support.hubbleconnected.com to download the User Guide with instructions, answers to frequently asked questions, and more to help you get the most from your product. Inside the Box • 1 x Parent Unit • 1 x Baby Unit (Camera) • 2 x Power adapters (Parent Unit and Baby Unit) • 1 x Quick Start Quide In multi-camera packs, you will find one or more additional Baby Units with power adapters. Overview of the Parent Unit 243 8 10 9 5 6 11 12 13 7 16 17 18 15 14 1 1.Display (LCD screen) 2. Charging LED RED when mains power connected. 3.Parent Unit ON/OFF LED (Gr een) 4.Sound Level indicators (Green, Amber, Red, Red) Show the sound level detected by the Baby Unit - the louder of sound detected, the more LEDs light up. 5.V olume - Pr ess to decrease Volume level. 6. V olume + Pr ess to increase Volume level. 7. Display ON/OFF button Press to turn the LCD screen ON/OFF (Note: audio is maintained.) 8.Microphone 9.MENU button Press to open / close the Menu options. 10.Navigation button + - < > Move Up/Down/Right/Left menu options. 11.OK button 12. TALK button T Press and hold to speak to your baby. 13.Power button 0 Press and Hold to turn the Parent Unit ON/OFF. 14. Antenna 15. RESET pin hole (recessed - use small pin) 16. Speaker 17.Power Socket 18.Stand Parent Unit menu icons Signal Level (4 Levels) Night Vision Mode (Video also changes to Black/White). Talk Mode On. Indicates the screen off timer is set. Volume Level Control (8 Levels). No Baby Unit detected. Battery Level Indication (4 Levels). Zoom Level Control (1X, 2X). LCD Brightness Level Control (8 Levels). Lullaby Control (5 Song Selections). Alarm Setting (6h, 4h, 2h, OFF) On status bar, indicates alarm set, and when flashing, that alarm time has been reached or missed. Temperature scale select (°C/°F) Readings display in BLUE, but turn RED if > 29 °C / 84 °F or < 14 °C / 57 °F. Displays HH °C / °F if >36 °C / 97 °F. Displays LL °C / °F if < 1 °C / 34 °F. Camera Control [ - (delete) / + (add) / (view) / (scan) ]. Set Screen Off Timer (Off , 5 mins, 15 mins, 30 mins). View multiple cameras on screen. Available when you have more than 1 Baby Unit (Camera). Overview of Your Baby Unit Important guidelines for installing your Digital Video Baby Monitor • To use your Baby Unit and Parent Unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. • Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic door or reinforced concrete, between the Baby Unit and Parent Unit may block the radio signal. • The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. • Other 2.4GHz products, such as wireless networks (Wi-Fi® routers), Bluetooth™ systems, microwave ovens or other Baby Monitors, may cause interference with this product, so keep the Baby Monitor at least 5ft (1.5m) away from these types of product, or switch them off if they appear to be causing interference. • If the signal is weak, try moving the Parent and/or the Baby Unit to different positions in the rooms. 6 10 7 8 9 5 1 3 4 2 1. Light Sensor 2. Infrared LEDs (x8, for night vision) 3. Camera Lens 4. High Sensitivity Microphone 5. Power/Link indicatior 6. Power Socket 7. Speaker 8. PAIR button 9. Screw mounting hole 10. Temperature Sensor 6 Table of contents Table of contents 1. Safety Instructions ...............................................................................8 2. Getting Started ...................................................................................11 2.1 Connecting the Power Supply for the Baby Unit .............................11 2.2 Connecting the Power Supply of the Parent Unit ...........................11 2.3 Desktop Stand of the Parent Unit ...................................................12 2.4 Registration (Pairing) ........................................................................13 3. Using the Baby Monitor .....................................................................14 3.1 Setting Up ........................................................................................14 3.2 Night Vision Mode ...........................................................................14 3.3 Pan and Tilt ......................................................................................14 3.4 Talk Mode.........................................................................................14 3.5 Video ON/OFF .................................................................................14 3.6 Temperature Display (HH °C / °F or LL °C / °F) ...............................14 4. Parent Unit Menu Options ................................................................15 4.1 Volume .............................................................................................15 4.2 Brightness ........................................................................................15 4.3 Zoom ........................................................................…

Text truncated - open the document above for the full version.

Binatone Electronics International Ltd. Date: 18. Jan, 2022 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: VLJ-NV531BU To whom it may concern: We, the undersigned, hereby authorize SGS Hong Kong Limited and YW Yung in SGS Hong Kong Limited to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Binatone Electronics International Ltd. This authorization is valid until further written notice from the applicant. Sincerely, Print Name: Sam Lee Title: Senior Product Manager Signature: On behalf of Company: Binatone Electronics International Ltd. Telephone: 852-2802 7388 E-mail:[email protected]

To: Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 From: Binatone Electronics International Limited Regarding: Confidentiality Request regarding application for FCC ID: VLJ-NV531BU LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Print Name: Sam Lee Title: Senior Product Manager Signature: On behalf of Company: Binatone Electronics International Ltd. Telephone: 852-2802 7388 E-mail:[email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Binatone Eletronics International Limited Address 25/F, Guangdong Investment Tower, 148 Connaught Road, Central, Sheung Wan, Hong Kong, China Grantee Code VLJ FCC ID VLJ-4427PU Authorized Contact Name Sam Lee Contact Email [email protected] Contact Phone 852-28027388 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 18 Jan. 2022 Print Name: Sam Lee Title: Senior Product Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Model / Item Confirmation Letter We Binatone Electronics International Ltd declare that our product: Video Baby Monitor and its below model (s) / item(s): Nursery View Pro (BU) are identical on circuitry design, PCB layout, electrical components used, internal wiring and functions with the model/item No.: NV531BU which we chose to be tested by SGS and only different on model name. Company chop: Authorized Signature: Sam Lee Position: Senior Product Manager Date: 18 Jan 2022

This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/T erms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. Appendix A Photographs of EUT Constructional Details for HKEM2108000854AT Appendix A: External Photo of HKEM2108000854AT

Appendix B: Internal Photo of HKEM21008000854AT

Report No.: HKEM210800085403 Page: 1 of 11 Law Man Kit EMC Manager This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request and accessible at http://www.sgs.com/en/Terms-and-conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-conditions.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. The document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. TEST REPORT Application No.: HKEM2108000854AT Applicant: BINATONE ELECTRONICS INTERNATIONAL LIMITED Address of Applicant: 25/F, Guangdong Investment Tower, 148 Connaught Road Central, Sheung Wan, Hong Kong Equipment Under Test (EUT): EUT Name: Video Baby Monitor Model No.: Nursery View Pro (BU), NV531BU (Share NP540PU) Additional Model: Please refer to section 2 of this report which indicates which item was actually tested and which were electrically identical. Trademark: Hubble FCC ID: VLJ-NV531BU IC: 4522A-NV531BU HVIN: NV531BU Standard(s) : 47 CFR Part 1.1307; 47 CFR Part 2.1093 KDB447498D01 General RF Exposure Guidance v06 RSS102 Issue 5 March 2015 Date of Receipt: 2021-08-10 Date of Test: 2021-08-27 to 2021-09-10 Date of Issue: 2021-09-15 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: HKEM210800085403 Page: 2 of 11 Revision Record Version Chapter Date Modifier Remark 01 2021-09-15 Original Authorized for issue by: Leo Xu /Project Engineer Date: 2021-09-15 Law Man Kit /Reviewer Date: 2021-09-15 Report No.: HKEM210800085403 Page: 3 of 11 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result RF Exposure 47 CFR Part 1.1307, 47 CFR Part 2.1093, KDB 447498 D01 KDB447498D01 KDB447498D01 PASS RF Exposure RSS102 Issue 5 RSS-102 Section 2.5.1 RSS102 Issue 5 PASS Declaration of EUT Family Grouping: Item no.: Nursery View Pro (BU), NV531BU (Share NP540PU) According to the confirmation from the applicant, the above models are identical in all electrical aspects in relating to the circuit design, PCB layout, electrical components used, internal wiring and functions. The differences are only the model name. Therefore, only the model Nursery View Pro (BU) was tested in this report. Abbreviation: Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radiated Frequency. CH: In this whole report CH means channel. Volt: In this whole report Volt means Voltage. Temp: In this whole report Temp means Temperature. Humid: In this whole report Humid means humidity. Press: In this whole report Press means Pressure. N/A: In this whole report not application. Report No.: HKEM210800085403 Page: 4 of 11 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY ....................................................................................................................................... 3 3 CONTENTS ................................................................................................................................................ 4 4 GENERAL INFORMATION ........................................................................................................................ 5 4.1 DETAILS OF E.U.T. ............................................................................................................................... 5 4.2 DESCRIPTION OF SUPPORT UNITS ......................................................................................................... 6 4.3 TEST LOCATION .................................................................................................................................... 7 4.4 TEST FACILITY ...................................................................................................................................... 7 4.5 DEVIATION FROM STANDARDS ............................................................................................................... 7 4.6 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................... 7 5 RADIO SPECTRUM TECHNICAL REQUIREMENT ................................................................................. 8 5.1 RF EXPOSURE ..................................................................................................................................... 8 5.1.1 Test Requirement: ......................................................................................................................... 8 5.1.1 IC Radiofrequncy radiation ............................................................................................................ 9 5.1.2 EUT RF Exposure Evaluation ...................................................................................................... 10 6 PHOTOGRAPHS ...................................................................................................................................... 11 Repor…

Text truncated - open the document above for the full version.

Report No.: HKEM210800085402 Page: 1 of 51 Law Man Kit EMC Manager This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request and accessible at http://www.sgs.com/en/Terms-and-conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-conditions.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. The document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. TEST REPORT Application No.: HKEM2108000854AT Applicant: BINATONE ELECTRONICS INTERNATIONAL LIMITED Address of Applicant: 25/F, Guangdong Investment Tower, 148 Connaught Road Central, Sheung Wan, Hong Kong Equipment Under Test (EUT): EUT Name: Video Baby Monitor Model No.: Nursery View Pro (BU), NV531BU (Share NP540PU) Additional Model: Please refer to section 2 of this report which indicates which item was actually tested and which were electrically identical. Trademark: Hubble FCC ID: VLJ-NV531BU IC: 4522A-NV531BU HVIN: NV531BU Standard(s) : 47 CFR Part 15 Subpart C, 2021 RSS-247 Issue 2, February 2017 RSS-Gen: Issue 5, Amdt 2019 Date of Receipt: 2021-08-10 Date of Test: 2021-08-27 to 2021-09-10 Date of Issue: 2021-09-15 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: HKEM210800085402 Page: 2 of 51 Revision Record Version Chapter Date Modifier Remark 01 2021-09-15 Original Authorized for issue by: Leo Xu /Project Engineer Date: 2021-09-15 Law Man Kit /Reviewer Date: 2021-09-15 Report No.: HKEM210800085402 Page: 3 of 51 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.247(a)(1),(g),(h) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.5 47 CFR Part 15, Subpart C 15.247(b)(1) Pass 20dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.7 47 CFR Part 15, Subpart C 15.247(a)(1) Pass Carrier Frequencies Separation 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.2 47 CFR Part 15, Subpart C 15.247a(1) Pass Hopping Channel Number 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.3 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Dwell Time 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.6 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.8 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement RSS-247 Issue 2, February 2017 N/A RSS-Gen Section 6.8 Pass Pseudorandom Frequency Hopping Sequence RSS-247 Issue 2, February 2017 N/A RSS-247 Section 5.1(a) Pass Report No.: HKEM210800085402 Page: 4 of 51 Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) RSS-247 Issue 2, February 2017 ANSI C63.10 (2013) Section 6.2 RSS-Gen Section 8.8 Pass 99% Bandwidth RSS-247 Issue 2, February 2017 ANSI C63.10 (2013) Section 6.9.3 RSS-Gen Section 6.7 Pass Conducted Peak Output Power RSS-247 Issue 2, February 2017 ANSI C63.10 (2013) Section 7.8.5 RSS-247 Section 5.4(b) Pass 20dB Bandwidth RSS-247 Issue 2, February 2017 ANSI C63.10 (2013) Section 6.9.2 RSS-247 Section 5.1(a) Pass Carrier Frequencies Separation RSS-247 Issue 2, February 2017 ANSI C63.10 (2013) Section 7.8.2 RSS-247 Section 5.1(b) Pass Hopping Channel Number RSS-247 Issue 2, February 2017 ANSI C63.10 (2013) Section 7.8.3 RSS-247 Section 5.1(d) Pass Dwell Time RSS-247 Issue 2, February 2017 ANSI C63.10 (2013) Section 7.8.4 RSS-247 Section 5.1(d) Pass Conducted Band Edges Measurement RSS-247 Issue 2, February 2017 ANSI C63.10 (2013) Section7.8.6 RSS-247 Section 5.5 Pass Conducted Spurious Emissions RSS-247 Issue 2, February 2017 ANSI C63.10 (2013) Section 7.8.8 RSS-247 Section 5.5 Pass Radiated Emissions which fall in the restricted bands RSS-247 Issue 2, February 2017 ANSI C63.10 (2013) Section 6.10.5 Section 3.3 & RSS-Gen Section 8.10 Pass Radiated Spurious Emissions RSS-247 Issue 2, February 2017 ANSI C63.10 (2013) Section 6.4&6.5&6.6 Section 3.3 & RSS-Gen Section 8.9 Pass Frequency sta…

Text truncated - open the document above for the full version.

Appendix C: Setup Photo of HKEM2108000854AT Conducted Emissions at Mains Terminals (150kHz-30MHz) Test Setup Radiated Emissions (30MHz-1GHz) Test Setup Radiated Emissions (Above 1GHz) Test Setup Conducted RF Output Power Test Setup
