User’s Guide WIRELESS FENCE PET TRAINING SYSTEM Model: TRAVELFENCE50 The features described in this User's Guide are subject to modifications without prior notice. Welcome... to your new WIRELESS FENCE PET TRAINING SYSTEM Thank you for purchasing the Wireless Fence Pet Training System. Your new Wireless Fence will provide years of freedom, convenience and safety for your dog while traveling away from home. First, be sure to install the Wireless Fence Pet Training System in a portion of your yard at home and teach your dog how to obey the invisible boundary zone before using in other locations. The purpose of the training steps on page 32 is to teach your dog how to avoid correction by respecting the warning beep and backing inside the boundary zone. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please call: This User's Guide provides you with all the information you need to get the most from the product. Please read and follow the instructions in this User’s Guide along with the Safety Instructions on page 10 before you using this product. Got everything? • 1 x Pet Collar Unit and Collar Strap • 1 x Wireless Fence Unit • 1 x Remote Control Unit • 1 x Power Adapter (For Pet Collar Unit) • 1 x Power Adapter (For Wireless Fence Unit) • 1 x Rechargeable Battery Pack (for Wireless Fence Unit) • 1 x Outdoor Stake and Ground Plug • 50 x Boundary Flags • 1 x Test Light for Collar Contacts • 2 Pairs of Collar Contacts - Long & Short (For Pet Collar Unit) • 1x Travel Carry Bag US and Canada 1-888-331-3383 Email: [email protected] Overview of the Pet Collar Unit 1.Pair Key 2.Power Key Press and hold to turn the unit On. The unit vibrates once and the indicator LED lights up in green for 3 seconds. Press and hold to turn the unit Off. The unit vibrates twice and the indicator LED goes off. 3.Collar Contacts 4.Power Adapter Socket 5.Indicator LED Lights up in green for 3 seconds when the unit is powered on and flashes slowly during standby. Lights up in green when delivering static correction. 6.Charging/Battery low LED Lights up in blue when charging. Flashes in red when battery is low. 7.Speaker Delivers tone or voice sent from the Remote Control Unit. 1 2 3 7 5 6 4 Overview of the Wireless Fence Unit and Outdoor Stake 1.Power Key Press and hold to power on the unit. Press and hold to power off the unit. When the unit is powered on, short press to turn fencing mode on or off. 2.Left Key Correction Mode: Decrease level Menu Mode: Move down 3.Right Key Correction Mode: Increase level Menu Mode: Move up 4.Menu Key Press to access menu options. Press again to exit. 5.OK Key Press to select the desired option and lock the setting. 6.Outdoor Stake Connect to the Wireless Fence Unit when using it outdoors. 7.Ground Plug Pound into the ground when using it outdoors. 1 2 4 5 3 6 7 Overview of the Remote Control Unit 1.Display (LCD screen) 2.OK Key Press to select the desired option and lock the setting. 3.Menu Key Press to access menu options, such as pairing, remove collar, etc. 4.Up Key Correction Mode: Increase level Menu Mode: Move up 5.Down Key Correction Mode: Decrease level Menu Mode: Move down 6.To n e K e y Press to send a tone to the Pet Collar Unit. 7.Vibration Key Press to vibrate the Pet Collar Unit. 8.Static Correction Key Press and hold to send static correction to the Pet Collar Unit. 9.Microphone 10.Antenna 11.Ta l k k e y Press and hold to convey verbal commands to your dog through the Pet Collar Unit. 12.Power Key Press and hold to power the unit ON/OFF. 13.Battery Cover 14.Leash Clip OK 2 3 6 7 8 1 4 5 9 11 10 12 13 14 Symbols on the Remote Control and Wireless Fence Unit RF signal strength of the Remote Control Unit against the Pet Collar Unit. Displays when you enter Menu mode. Alert indication on Collar 2 (battery low, out of range, etc). Displays when Fencing mode is activated. Battery level on the Remote Control Unit. Pet Collar Number. Select to REMOVE collar. Select to PAIR collar. Displays when STATIC CORRECTION KEY is pressed (Level 0 to 15). When 0 is displayed, only tone and vibration alerts are sent to the Pet Collar Unit. Displays when TALK KEY is pressed. Displays when VIBRATION KEY is pressed. Displays when TONE KEY is pressed. How the Wireless Fence Pet Training System works The Wireless Fence Pet Training System comes with a portable Wireless Fence Unit that establishes an invisible boundary by transmitting radio signals to the Pet Collar Unit up to a distance of 50 yards line of sight. When your dog reaches the boundary zone (about 2 to 3 feet before the “real” boundary), the Pet Collar Unit that is worn on your dog emits a warning beep followed by static correction to get its attention until it backs away from the boundary zone. The Pet Collar Unit is equipped with a safety feature such that it will stop delivering static correction if your dog stays outside the boundary for more than 30 seconds.The boundary zone can be marked with Boundary Flags as a visual aid for your dog, especially during the training stage. The Wireless Fence Pet Training System also comes with a Remote Control Unit that is paired with the Pet Collar Unit. At the push of the STATIC CORRECTION KEY on the Remote Control Unit, a signal is sent to the Pet Collar Unit, which delivers static correction to your dog to discourage your dog from certain behaviors. The Remote Control Unit is also designed with a TONE KEY , a VIBRATION KEY and a TALK KEY that allows you to give your dog verbal commands through the Pet Collar Unit. Important guidelines when using the Wireless Fence Pet Training System • Included in your Wireless Fence Pet Training System are Collar Contacts in three different lengths (short, medium and long) that deliver static correction to your d…

Text truncated - open the document above for the full version.

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . DATE : 27 Sep 2014 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint NEMKO Shenzhen Daria Liu; Unit CD, Floor 10, Tower 2, Kefa Road 8#, Hi-Technology Park, Nanshan District, Shanzhen, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Binatone Electronics International Ltd., Floor 23A, 9 Des Voeux Road West, Seung Wan, Hong Kong, China. Dated this 27 September 2014 Agency agreement expiration date: Usually Give 8 - 12 Months By: Karl Heinz Mueller Signature Printed Title: Chief Technical Officer On behalf of : Binatone Electronics International Ltd Telephone: 28027388

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . DATE : 27 Sep 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:VLJ-F50Z Product Name: TRAVELFENCE50ZU Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 27 September 2014 Agency agreement expiration date: Usually Give 8 - 12 Months By: Karl Heinz Mueller Signature Printed Title: Chief Technical Officer On behalf of : Binatone Electronics International Ltd Telephone: 28027388

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . DATE : 27 Sep 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:VLJ-F50C Product Name: TRAVELFENCE50CU Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 27 September 2014 Agency agreement expiration date: Usually Give 8 - 12 Months By: Karl Heinz Mueller Signature Printed Title: Chief Technical Officer On behalf of : Binatone Electronics International Ltd Telephone: 28027388 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which youare seeking confidentiality –for example ...) Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. There are two models name for this product: TRAVELFENCE50ZU and WIRELESSFENCE25ZU The two models are electrical identical, only different in the model's name Remote Training system VLJ-F50Z

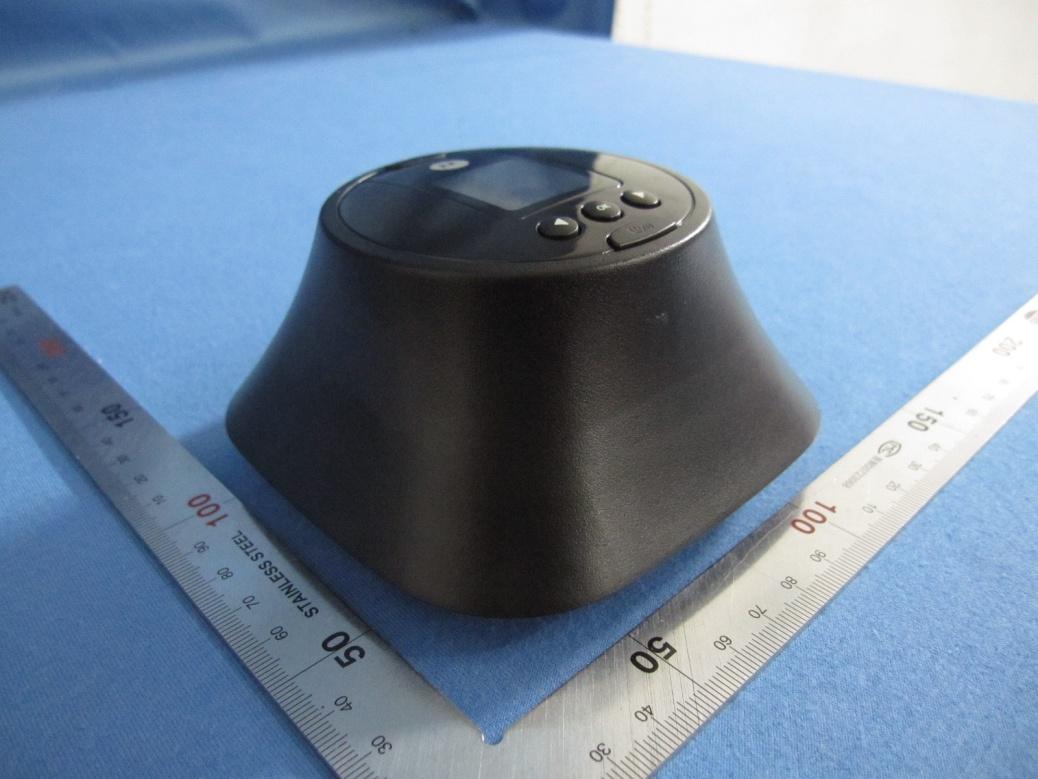

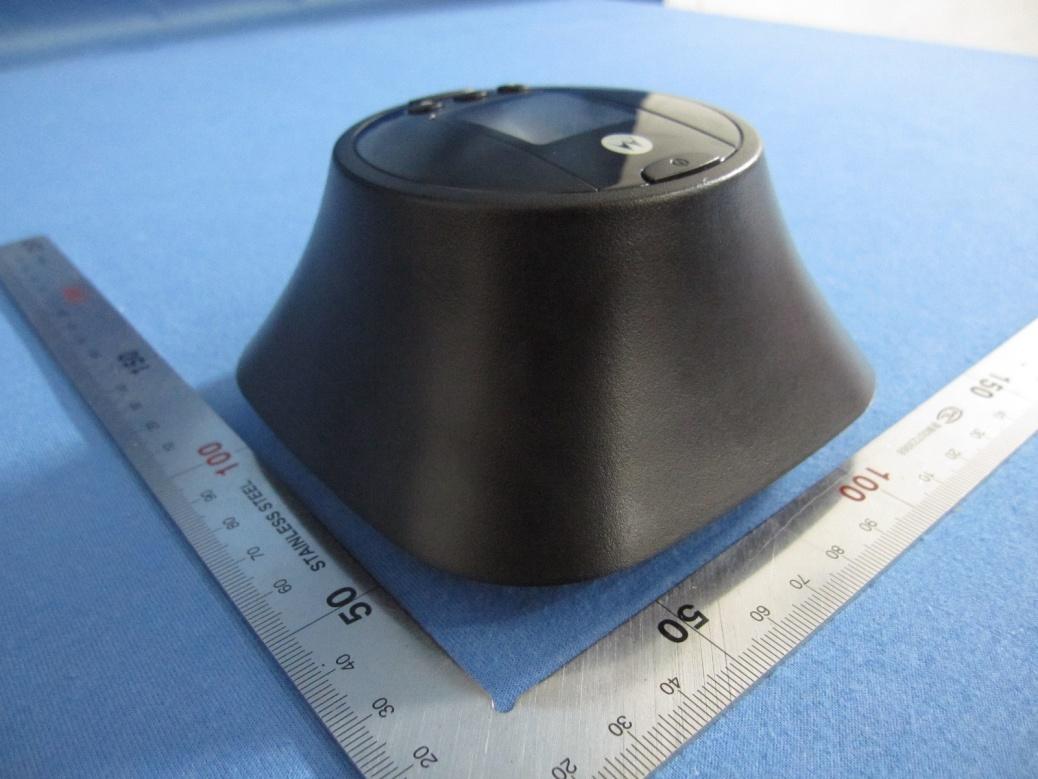

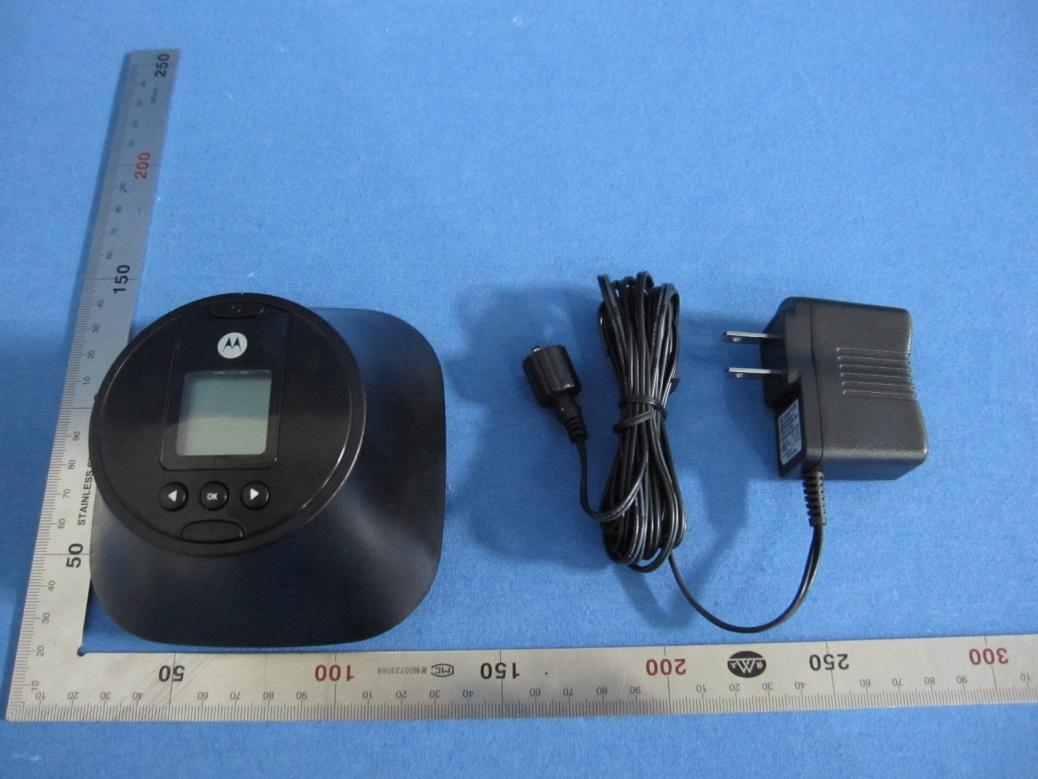

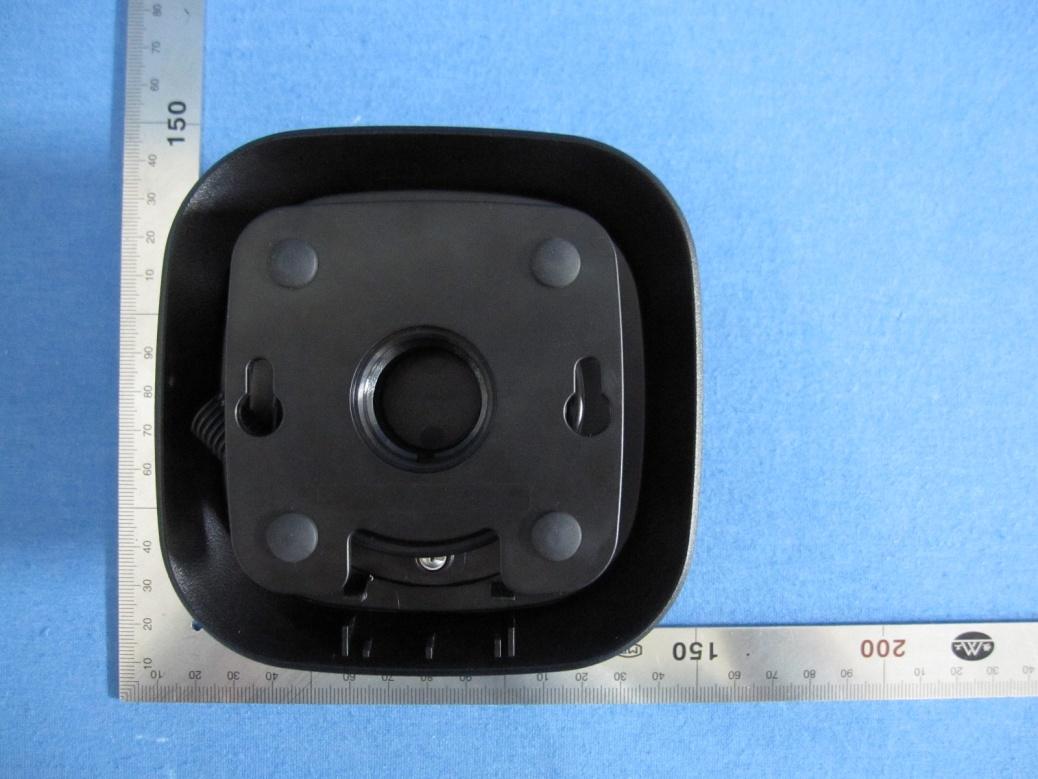

Worldwide Testing and Certification EUT photo -details- Figure 1 EUT External Photo Figure 2 EUT External Photo Worldwide Testing and Certification Figure 3 EUT External Photo Figure 4 EUT External Photo Worldwide Testing and Certification Figure 5 EUT External Photo Figure 6 EUT External Photo

WIRELESSFENCE25ZU WIRELESSFENCE25CU WIRELESSFENCE25CU

Worldwide Testing and Certification EUT photo -details- Figure 1 EUT Internal Photo Figure 2 EUT Internal Photo Worldwide Testing and Certification Figure 3 EUT Internal Photo Figure 4 EUT Internal Photo Worldwide Testing and Certification Figure 5 EUT Internal Photo Figure 6 EUT Internal Photo

PartType RefDes PartDecal Pins Layer Orient. X Y SMD Glued ANT ‐ CON1 ATN1 ANT ‐ CON1 1 Bottom 142.299 ‐ 24.418 39.344 No No ANT ‐ CON1 ATN2 ANT ‐ CON1 1 Top 0 2.234 20.379 No No WE748422245 BA1 WE748422245 6 Top 270 ‐ 16.089 16.555 Yes No WE748422245 BA2 WE748422245 6 Top 270 ‐ 13.086 20.225 Yes No BATTERY BAT1 BATA 2 Top 90 ‐ 45.663 ‐ 2.585 No No BATTERY BAT2 BATTERY 4 Top 0 ‐ 18.276 44.925 Yes No BUZZER1 BUZZER CON5.0X2B 2 Bottom 90 5.434 ‐ 3.07 No No CAPSMT C1 C ‐ 0402 2 Top 180 ‐ 20.603 5.309 Yes No CAPSMT C2 C ‐ 0603A 2 Top 0 ‐ 26.426 19.028 Yes No CAPSMT C3 C ‐ 0402 ‐ 02 2 Top 90 ‐ 29.885 14.921 Yes No CAPSMT C4 C ‐ 0402 2 Top 180 ‐ 9.2 13.325 Yes No CAPSMT C5 C ‐ 0402 2 Top 270 ‐ 17.384 4.663 Yes No CAPSMT C6 C ‐ 0402 2 Top 180 ‐ 9.248 15.417 Yes No CAPSMT C7 C ‐ 0402 2 Top 0 ‐ 9.176 12.274 Yes No CAPSMT C8 C ‐ 0402 2 Top 0 ‐ 9.128 11.273 Yes No CAP ‐ E C9 ECAP ‐ SMT ‐ 7X8 2 Bottom 0 ‐ 48.798 12.243 Yes No CAPSMT C10 C ‐ 0402 ‐ 02 2 Top 90 ‐ 20.689 23.586 Yes No CAPSMT C11 C ‐ 0402 ‐ 02 2 Top 270 ‐ 12.533 18.366 Yes No CAPSMT C12 C ‐ 0402 ‐ 02 2 Top 180 ‐ 19.176 25.717 Yes No CAPSMT C13 C ‐ 0402 2 Top 288.397 1.778 26.382 Yes No CAPSMT C14 C ‐ 0402 2 Top 90 ‐ 11.109 0.612 Yes No CAPSMT C15 C ‐ 0603A 2 Top 90 ‐ 24.856 15.514 Yes No CAPSMT C16 C ‐ 0402 2 Top 270 ‐ 16.476 4.631 Yes No CAPSMT C17 C ‐ 0402 ‐ 02 2 Top 180 ‐ 20.155 22.24 Yes No CAPSMT C18 C ‐ 0402 2 Top 90 ‐ 18.478 15.061 Yes No CAPSMT C19 C ‐ 0402 2 Top 90 ‐ 19.484 15.061 Yes No CAPSMT C20 C ‐ 0402 2 Top 90 ‐ 9.946 4.51 Yes No CAPSMT C21 C ‐ 0402 2 Top 90 ‐ 11.041 4.496 Yes No CAPSMT C22 C ‐ 0402 2 Top 90 ‐ 9.447 7.27 Yes No CAPSMT C23 C ‐ 0402 2 Top 90 ‐ 8.536 7.277 Yes No CAP ‐ E C24 ECAP ‐ SMT ‐ 7X8 2 Bottom 270 ‐ 39.338 1.435 Yes No CAPSMT C25 C ‐ 0402 2 Top 180 ‐ 22.615 34.791 Yes No CAPSMT C26 C ‐ 0402 2 Top 180 ‐ 46.159 17.544 Yes No CAPSMT C27 0402 2 Top 90 ‐ 43.211 12.84 Yes No CAPSMT C28 C1206 ‐ 01 2 Top 90 ‐ 49.521 6.5 Yes No CAPSMT C29 C ‐ 0402 ‐ 02 2 Top 0 ‐ 17.51 27.988 Yes No CAPSMT C30 C ‐ 0402 2 Top 90 ‐ 46.495 20.687 Yes No CAPSMT C31 C ‐ 0402 ‐ 02 2 Top 90 ‐ 18.5 20.86 Yes No CAPSMT C32 C ‐ 0402 ‐ 02 2 Top 90 ‐ 16.883 25.265 Yes No CAPSMT C33 C ‐ 0402 ‐ 02 2 Top 270 ‐ 13.781 25.516 Yes No CAPSMT C34 C ‐ 0402 2 Top 0 ‐ 20.654 10.382 Yes No CAPSMT C35 C ‐ 0402 ‐ 02 2 Top 0 ‐ 13.535 28.089 Yes No CAP ‐ SMT ‐ A C36 C ‐ 0402 2 Top 180 ‐ 24.583 ‐ 9.047 Yes No CAPSMT C37 C ‐ 0402 2 Top 180 ‐ 32.742 5.685 Yes No CAPSMT C38 C ‐ 0402 2 Top 0 ‐ 30.546 6.613 Yes No CAPSMT C39 C ‐ 0402 2 Top 270 ‐ 24.051 ‐ 1.633 Yes No CAPSMT C40 C ‐ 0402 2 Top 270 ‐ 18.409 4.684 Yes No CAPSMT C41 C ‐ 0402 2 Top 180 ‐ 9.223 14.398 Yes No CAP ‐ E C42 ECAP ‐ SMT ‐ 7X8 2 Bottom 0 ‐ 38.733 21.101 Yes No CAPSMT C43 C1206 ‐ 01 2 Top 0 ‐ 28.893 4.587 Yes No CAPSMT C44 C ‐ 0402 2 Top 180 ‐ 29.844 12.565 Yes No CAPSMT C45 C ‐ 0402 2 Top 0 ‐ 23.76 36.677 Yes No CAPSMT C46 C ‐ 0402 2 Top 90 ‐ 24.427 21.666 Yes No CAPSMT C47 C ‐ 0402 2 Top 270 ‐ 20.623 ‐ 1.688 Yes No CAPSMT C48 C ‐ 0402 2 Top 180 1.538 23.846 Yes No CAPSMT C49 C1206 ‐ 01 2 Top 180 ‐ 22.336 0.901 Yes No CAPSMT C50 C ‐ 0402 2 Top 0 ‐ 10.879 ‐ 13.419 Yes No CAPSMT C51 C ‐ 0402 2 Top 180 ‐ 22.889 ‐ 12.048 Yes No CAPSMT C52 C ‐ 0402 2 Top 0 ‐ 10.639 ‐ 5.557 Yes No CAPSMT C53 C ‐ 0603A 2 Top 0 ‐ 11.76 ‐ 4.414 Yes No CAPSMT C54 C ‐ 0402 ‐ 02 2 Top 270 ‐ 21.571 19.059 Yes No CAPSMT C55 C ‐ 0402 2 Top 0 ‐ 13.47 33.372 Yes No CAPSMT C56 C ‐ 0402 2 Top 180 ‐ 15.2 ‐ 2.425 Yes No CAPSMT C57 C ‐ 0402 2 Top 0 ‐ 16.881 ‐ 1.528 Yes No CAPSMT C58 C ‐ 0402 2 Top 270 ‐ 19.621 ‐ 1.667 Yes No CAPSMT C59 C ‐ 0402 ‐ 02 2 Top 42.903 ‐ 15.164 31.394 Yes No CAPSMT C60 C ‐ 0402 2 Top 180 ‐ 13.393 30.655 Yes No CAPSMT C61 C ‐ 0603A 2 Top 90 ‐ 50.741 10.251 Yes No CAPSMT C62 C1206 ‐ 01 2 Top 270 ‐ 24.814 9.397 Yes No CAPSMT C63 C ‐ 0603A 2 Top 270 ‐ 38.734 ‐ 4.347 Yes No CAPSMT C64 C ‐ 0603A 2 Top 90 ‐ 26.696 ‐ 0.893 Yes No CAPSMT C65 C ‐ 0402 2 Top 90 ‐ 48.575 20.754 Yes No CAPSMT C66 C ‐ 0402 2 Top 90 ‐ 47.619 20.687 Yes No CAP ‐ SMT ‐ A C67 C ‐ 0603A 2 Top 180 5.543 13.91 Yes No CAPSMT C68 C ‐ 0402 2 Top 270 ‐ 12.533 ‐ 14.05 Yes No CAPSMT C70 C ‐ 0402 2 Top 270 ‐ 32.791 ‐ 6.75 Yes No CAPSMT C71 C ‐ 0402 2 Top 180 1.42 ‐ 7.662 Yes No CAPSMT C72 C ‐ 0402 ‐ 02 2 Top 270 ‐ 13.857 18.366 Yes No CAPSMT C76 C ‐ 0402 ‐ 02 2 Top 0 ‐ 18.253 16.555 Yes No TEST ‐ PAD ‐ 1.5MM CH+ TEST ‐ PAD ‐ 1.5MMGAA 1 Top 0 ‐ 50.794 19.704 No No TEST ‐ PAD ‐ 1.5MM CH ‐ TEST ‐ PAD ‐ 1.5MMD 1 Top 0 ‐ 50.873 23.434 No No DIODE D1 DIO ‐ 1206A 2 Top 180 ‐ 40.799 ‐ 0.565 Yes No DIODE D2 DIO ‐ 1206A 2 Top 180 ‐ 45.97 15.882 Yes No DIODE D3 DIO ‐ 1206A 2 Top 180 ‐ 39.589 16.412 Yes No TVS D4 D ‐ 2X4.8A 2 Top 270 ‐ 43.017 23.697 Yes No DIODE D5 DIO ‐ 1206A 2 Top 180 ‐ 35.632 ‐ 0.579 Yes No ZPD10 D6 DIO ‐ 1206A 2 Top 180 ‐ 39.572 14.234 Yes No DIODE D7 DIO ‐ 1206A 2 Top 270 ‐ 31.144 ‐ 13.426 Yes No BAT70 D14 SOT23 3 Top 180 4.638 5.519 Yes No DIODE D16 DIO ‐ 1206A 2 Top 90 ‐ 37.079 3.455 Yes No SC100_MCU_48 IC2 100_48 48 Top 270 ‐ 16.33 ‐ 9.103 Yes No CON_1 J3 CON_1 1 Top 270 ‐ 22.553 16.502 No No CON_1 J4 CON_1 1 Top 0 ‐ 15.03 2.985 No No CON_1 J5 CON_1 1 Top 270 ‐ 7.762 16.556 No No CON_1 J6 DRILL_2.6 1 Top 0 ‐ 0.712 ‐ 11.181 No No CON_1 J7 DRILL_2.6 1 Top 0 ‐ 35.682 ‐ 11.181 No No CON_1 J8 DRILL_2.6 1 Top 0 ‐ 4.172 43.389 No No CON_1 J9 DRILL_2.6 1 Top 0 ‐ 32.122 43.329 No No CON_1 J10 CON_1 1 Top 180 ‐ 18.889 29.583 No No INDUCTOR0603 L1 R0402 ‐ 02 2 Top 180 ‐ 15.897 15.191 Yes No INDUCTOR0603 L2 R0402 ‐ 02 2 Top 180 ‐ 13.199 15.081 Yes No INDUCTOR0603 L3 R0402 ‐ 02 2 Top 270 ‐ 13.782 16.433 Yes No INDUCTOR0603 L4 R0402 ‐ 02 2 Top 270 ‐ 12.565 16.518 Yes No INDUCTOR0603 L5 R0603 ‐ 02 2 Top 180 ‐ 25.217 23.456 Yes No BF2520 L6 LFL152G45TC1A219 4 Top 270 ‐ 10.296 33.82 Yes No INDUCTOR0603 L7 R0603 ‐ 02 2 Top 180 ‐ 47.808 18.782 Yes No INDUCTOR0603 L8 R0402 ‐ 02 2 Top 270 ‐ 19.706 24.43 Yes No BF2520 L9 BF2520 ‐ 02 4 Top 90 ‐ 13.838 22.894 Yes No BF2520 L10 LFL152G45TC1A219 4 Top 180 ‐ 9.028 31.412 Yes No INDUCTOR0603 L11 R0402 ‐ 02 2 To…

Text truncated - open the document above for the full version.

SAR evaluation MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m2) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit(WORSE CASE IS AS BELOW) Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 1（0dBi） 167（22.23dBm） 0.033 1 Compiles

FCC ID:VLJ-F50Z Reference No.:270658 FCC Test Report FCC EVALUATION REPORT FOR CERTIFICATE Project Reference No. 270658 Product Remote Training System Brand Name Model TRAVELFENCE50ZU Alternate Model WIRELESSFENCE25ZU Tested according to FCC Rules and Regulations Part 15 Subpart C 2013, 15.247 ANSI C63.4-2009 Tested in period 2014-10-26 to 2014-10-30 Issued date 2014-10-31 Name and address of the Test House Nemko Shanghai Ltd. Shenzhen Branch Unit CD, Floor 10, Tower 2, Financial base, Kefa Road 8#, Hi-Technology Park, Nanshan District, Shenzhen, China Phone : +86 755 8221 0420 Fax : +86 755 8221 3363 Tested by 2014-10-31 Zone Peng date Verified by 2014-11-05 Daria Liu date This form is only for use by Nemko, or by others according to special agreement with Nemko. The report may be reproduced infull. Partial reproduction may only be made with the written content of Nemko Hongkong. This report applies only to the sample(s) tested. It is the manufacturer’s responsibility to assure the additional production units of this product are manufactured with identical electrical and mechanical components. Binatone Electronics International Ltd Page 1 of 29 FCC ID:VLJ-F50Z Reference No.:270658 Contents of This Report 1. Client Information ............................................................................................................................... 4 1.1 Applicant .................................................................................................................................... 4 1.2 Manufacturer .............................................................................................................................. 4 1.3 Scope ......................................................................................................................................... 4 2. Equipment under Test (EUT) .............................................................................................................. 5 2.1 Identification of EUT .................................................................................................................. 5 2.2 Detail spec: ................................................................................................................................ 5 2.3 Additional Information Related to Testing .................................................................................. 5 3. General Test Conditions ...................................................................................................................... 6 3.1 Location ..................................................................................................................................... 6 3.2 Operating Environment .............................................................................................................. 6 3.3 Operating During Test ................................................................................................................ 6 3.4 Test Equipment .......................................................................................................................... 6 4. Measurement Uncertainty ................................................................................................................. 7 5. Radiated Electromagnetic Disturbances ............................................................................................. 8 5.1 Test Procedure ........................................................................................................................... 8 5.2 Measurement Equipment ........................................................................................................... 8 5.3 Test Result ................................................................................................................................. 8 5.3.1 Diagram 5-1 ................................................................................................................................. 10 5.3.2 Diagram 5-2 ................................................................................................................................. 11 5.3.3 Diagram 5-3 ................................................................................................................................. 12 5.3.4 Diagram 5-4 ................................................................................................................................. 15 6. 6dB Bandwidth test ..........................................................................................................................18 6.1 Test Procedure .........................................................................................................................18 6.2 Measurement Equipment .........................................................................................................18 6.3 Test Result ...............................................................................................................................18 6.3.1 Diagram 6-1 ................................................................................................................................. 19 7. Band Edge Compliance Test .........................................................................................................20 7.1 Test Procedure .........................................................................................................................20 7.2 Measurement Equipment .........................................................................................................20 7.3 Test Result ...............................................................................................................................20 7.3.1 Diagram 7-1 ................................................................................................................................. 20 8. Power Spectral Density Test ..........................................................................................................23 8.1 Tes…

Text truncated - open the document above for the full version.

Worldwide Testing and Certification EUT Setup photo -details- Figure 1 Setup for conducted disturbance Figure 2 Setup for Radiated Emission(below 1GHz) Worldwide Testing and Certification Figure 3 Setup for Radiated Emission (above 1GHz)
