VLJ-FOCUSTAGWiFi Home Video Camera (TAG)

USER’S GUIDE Focus TAG Works with FOCUS86 Wi-Fi ® Home Video Camera The features described in this guide are subject to modifications without prior notice. This User’s Guide has all the information you need to make the most out of your product. Please read the Safety Instructions on page 4 before you install the unit. Inside the Box • 1 x Focus TAG • 1 x CR2032 Battery Cell • 1 x Battery Door • 1 x User’s Guide Welcome... to your new Motorola Focus tag! Thank you for purchasing your new Motorola Focus TAG. Focus TAG is a BLE device that works as a motion sensor and a presence detector. It is designed as an external sensor for FOCUS86 Wi-Fi ® Home Video Camera. If you have always wondered what happens when you are away, wonder no more. Now you can monitor your children, pets or property with this easy to use device. You can install Focus TAG from your iPhone ® /iPad ® or Android™ devices and receive alerts from your PC or Notebook, as well as from your iPhone ® /iPad ® or Android™ devices. Please keep your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please call: US and Canada 1-888-331-3383 Email: [email protected] On the Web: www.motorolahome.com 3 ENGLISH Table of contents 1.Safety Instructions .................................................................................... 4 2.How it works ............................................................................................. 5 3.Overview of Focus TAG ........................................................................... 5 4.Getting Started ......................................................................................... 6 4.1Install Battery............................................................................................... 6 4.2Power On.................................................................................................... 6 5.Add Focus TAG as a Motion Sensor ......................................................... 7 5.1Add another Focus TAG ............................................................................ 7 6.Add Focus TAG as a Presence Detector ................................................. 8 6.1Add another Focus TAG ............................................................................ 8 7.Using Focus TAG ...................................................................................... 9 8.Unpair Focus TAG with your Android™ or iOS Device .......................... 9 9.Reset Focus TAG ...................................................................................... 9 10. General Information ............................................................................... 10 11. Technical Specifications ........................................................................ 16 4Safety Instructions 1. Safety Instructions WARNING This product is compliant with all relevant electromagnetic field standards and is, when handled as described in the User’s Guide, safe to use. Therefore, always read the instructions in this User’s Guide carefully before using the device. • Adult assembly is required due to small parts. Keep all small parts away from children. • This product is not a toy. Do not allow children to play with it. • This product is not a substitute for responsible adult supervision. • Keep this User’s Guide for future reference. • Test the product and all its functions so that you are familiar with it prior to use. • Do not install the product near a heat source. • Only use a battery of the same type. This product uses a replaceable battery (CR2032). • Do not touch the battery contacts with sharp or metal objects. CAUTION There is danger of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to their instructions. Important guidelines for installing your Focus TAG • Use of other 2.4 GHz products, such as other wireless networks, Bluetooth ® systems or microwave ovens may cause interference with this product. Keep the Wi-Fi ® Focus TAG away from these types of products, or turn them off if they appear to be causing interference. • Always ensure that you have a good Wi-Fi ® connection available. How it works5 ENGLISH 2. How it works As a motion detector Stick Focus TAG on a door or window. When the door or window opens, Focus TAG will send an alert to FOCUS86, which will then send an alert to your Android™ or iOS device. As a presence sensor Place Focus TAG inside an object, such as a school bag. When your child leaves home with the school bag, FOCUS86 will stop to receive signals from Focus TAG. After about 1 minute, FOCUS86 will send an alert to your Android™ or iOS device notifying you that your child has left home. When your child returns home with the school bag, FOCUS86 will start to receive signals from Focus TAG. You will then receive an alert from FOCUS86 notifying you that your child has reached home. 3. Overview of Focus TAG Pair Button• Press and hold for 5 seconds to pair Focus TAG with your Android™ or iOS device. LED light• Flashes in blue when Focus TAG is in registration mode. LED light Pair Button 6Getting Started 4. Getting Started 4.1Install Battery The device uses a replaceable battery (CR2032). Battery Life The average battery life is up to 6 months.You will receive alerts via Hubble App when battery is low. 1.Remove the battery cover using a flathead screwdriver. 2.Insert the screwdriver into the slot on the back of Focus TAG and use the screwdriver as a lever to pry open the back cover as shown below. 3.Insert the battery (model: CR2032) with positive pole (+) facing upwards into the battery compartment. 4.Position the back cover over the battery compartment and press down around the edges until you hear it click into its place. 5.Focus TAG powers on automaticall…

Text truncated - open the document above for the full version.

Date (18/09/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, (Binatone Electronics International Limited), hereby authorize John Zhi (TUV SUD LTD) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (18/03/2016). Sincerely, Company Officer: Karl Heinz Muller Telephone Number: 852 2802 7388 Email: [email protected]

Date (18/09/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: VLJ- FOCUSTAG Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, (Binatone Electronics International Limited) hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation] (Binatone Electronics International Limited) also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (180 ) days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Karl Heinz Mueller Telephone Number: 852 2802 7388 Email: [email protected]

Date (18/09/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, (Binatone Electronics International Limited), hereby authorize John Zhi (TUV SUD LTD) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (18/03/2016). Sincerely, Company Officer: Karl Heinz Muller Telephone Number: 852 2802 7388 Email: [email protected]

Date (18/09/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: VLJ- FOCUSTAG Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, (Binatone Electronics International Limited) hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation] (Binatone Electronics International Limited) also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (180 ) days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Karl Heinz Mueller Telephone Number: 852 2802 7388 Email: [email protected]

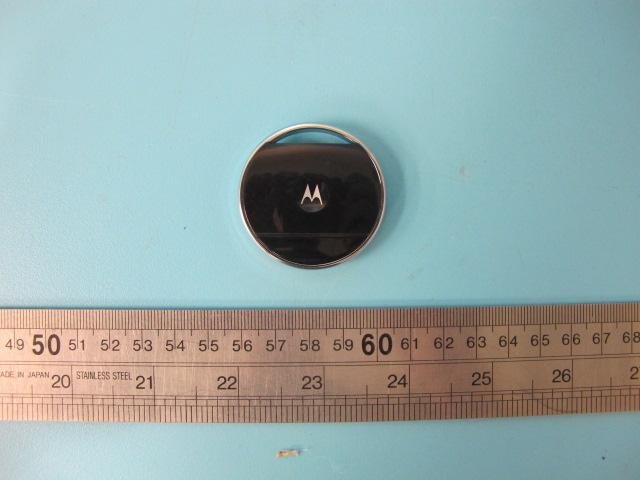

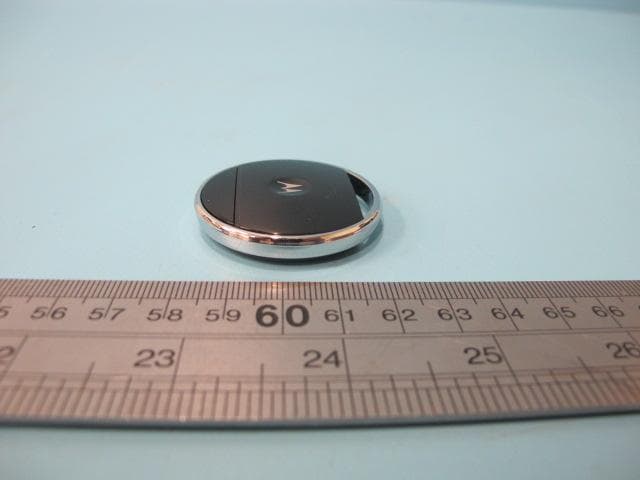

TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 1 of 3 External Photos TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 3 of 3

24mm 18.6mm Input: 3V CR2032 battery FCC ID: VLJ-FOCUSTAG IC:4522A-FOCUSTAG MADE IN CHINA MODEL: FOCUS TAG

TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 1 of 2 Internal Photos TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 2 of 2

Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. SAR Evaluation Exemption Compliance Information The device has a standalone transmission. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distances ” 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[¥f(GHz)] ” 3.0 The maximum tune-up limit power is 7.37 mW @ 2.480GHz For the head and body SAR, use 5 mm as the conservative minimum test separation distance, [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[¥f(GHz)] = 2.32 ” 3.0 So standalone SAR measurements are not required for both head and body

Report Number: 60.790.15.023.03R EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 1 of 34 FCC/IC - TEST REPORT Report Number: 60.790.15.023.03R Date of Issue: 2015-09-30 Model: FOCUSTAG Product Type:WiFi Home Video Camera (TAG) Applicant:Binatone Electronics International Limited Address:Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong. Production Facility:TATUNG COMPANY Address:22 Chungshan N. Rd. 3 rd Sec. Taipei 104 Taiwan. Test Result: „Positive†Negative Total pages including Appendices: 34 TÜV SÜD Hong Kong Co., Ltd is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Hong Kong Co., Ltd reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Hong Kong Co., Ltd shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Hong Kong Co., Ltd issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 60.790.15.023.03R EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 2 of 34 1 Table of Contents 1Table of Contents ............................................................................................................................................ 2 2Details about the Test Laboratory .................................................................................................................... 3 3Description of the Equipment Under Test ......................................................................................................... 4 4Summary of Test Standards ............................................................................................................................ 5 5Summary of Test Results ................................................................................................................................ 6 6General Remarks ............................................................................................................................................ 7 7Test Setups ..................................................................................................................................................... 8 8Systems test configuration ............................................................................................................................... 9 9Technical Requirement .................................................................................................................................. 10 9.1Conducted Emission............................................................................................................................... 10 9.2Conducted peak output power ................................................................................................................ 11 9.320 dB bandwidth..................................................................................................................................... 14 9.4Carrier Frequency Separation ................................................................................................................. 17 9.5Number of hopping frequencies .............................................................................................................. 20 9.6Dwell Time ............................................................................................................................................. 22 9.7Spurious RF conducted emissions .......................................................................................................... 25 9.8Band edge testing .................................................................................................................................. 27 9.9Spurious radiated emissions for transmitter ............................................................................................ 29 10Test Equipment List ................................................................................................................................... 33 11System Measurement Uncertainty .............................................................................................................. 34 Report Number: 60.790.15.023.03R EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 3 of 34 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Telephone:86 755 8828 6998 Fax:86 755 8828 5299 Report Number: 60.790.15.023.03R EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 4 of 34 3 Description of the Equipment Under Test Product:WiFi Home Video Camera (TAG) Model no.:FOCUS TAG Listed Models:N/A FCC ID:VLJ-FOCUSTAG IC:4522A-FOCUSTAG Options and accessories:N/A Rating:DC3V, CR2032 battery RF Transmission Frequency: 2402MHz – 2480 MHz No. of Operated Channel:40 Modulation:GFSK Antenna Type:Chip antenna Antenna Gain:1.5 dBi Description of the EUT:The Equipmen…

Text truncated - open the document above for the full version.

TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin Hong Kong Page 1 of 1 Test Setup Photos
