User’s Guide For LS1000W 10.4” (26.4 cm) Digital Photo Frame Wi-Fi ® Enabled Warning Use only the power adapter supplied with your product. Welcome... to your new Motorola Digital Photo Frame!Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product-related questions, please call: 1-888-331-3383 in US and Canada 0845 218 0890 in UK (65) 68412668 in Singapore On the Web: www.motorola.com This User’s Guide provides you with all the information you need to get the most from your digital photo frame. Before you start using, you will need to set up your digital photo frame. Follow the simple instructions in “Getting started”, on the next few pages. IMPORTANT z Only use the supplied power adapter. Got everything? z 1 x Digital Photo Frame z 1 x Stand z 1 x Power adapter z 1 x Remote control z 1 x Quick Start Guide z 1 x User’s Guide Key features z 3 view modes: Clock/Calendar mode, slideshow mode and thumbnail mode z 5 slideshow transition effects z Date and Time settings z Programmable On/Off Time z Supports flash drive, SD, SDHC and MMC memory cards. Getting started 3 Frame Overview 1. Navigation and buttons 2. EXIT button 3. ON/OFF button 4. Hanging slot (Portrait position) 5. Hanging slot (Landscape position) 6. Stand locking slot 7. Loudspeakers 8. Earphone jack for connecting to an earphone/headset or external speaker to play the audio. 9. USB port for inserting a USB flash drive that contains the photos or music you want to play. 10. Memory card slot for inserting an SD, SDHC, MMC memory card that contains the photos or music you want to play. 11. Power jack Getting started 4 Table of Contents 1. Getting started ................................................................................5 1.1 Installing the stand ..........................................................6 1.1.1 Landscape position ..............................................6 1.1.2 Portrait position ....................................................7 1.2 Connecting to power ..... ..................................................8 1.3 Inserting a memory card or a USB flash drive .................8 1.4 Replacing the remote control battery...............................9 2. Using the photo frame..................................................................10 2.1 Using the control buttons ..............................................10 2.2 Using the remote control ...............................................13 3. Using the menus...........................................................................15 3.1 Using the Main Menu ....................................................15 3.2 Using the Photo menu...................................................16 3.2.1 Copying one or all photos ..... ..............................17 3.2.2 Deleting one or all photos ..... ..............................17 3.2.3 Auto rotation.......................................................18 3.3 Using the Music menu... ................................................19 3.3.1 Copying one or all music file s .............................20 3.3.2 Deleting one or all music file s .............................21 3.4 Using the Calendar m enu ..... ........................................21 3.5 Using the Wi-Fi menu....................................................22 3.5.1 Step 1: Setting up Wi-Fi connection . ...................22 3.5.2 Step 2: Configuring your accounts ... ...................26 3.5.2.1 Configuring your Picasa ™ account .........26 3.5.2.2 Configuring your Flickr ® account .. .........27 3.5.2.3 Configuring RSS ...................................28 3.5.2.4 Configuring your ema il account . ............29 3.5.2.5 More information about on-screen keyboard us e ........................................31 3.5.3 Step 3: Using web services.................................32 3.5.3.1 Using Picasa ™ .......................................32 3.5.3.2 Using Flickr ® .........................................33 3.5.3.3 Using FrameChannel ™ ..........................34 3.5.3.3.1 Setting up FrameChannel to work with LS1000 W ................34 3.5.3.3.2 Deactivating the active FrameChannel ac count.. .........35 3.5.3.4 Using RSS ............................................36 3.5.3.5 Using WEB Radio .................................37 3.5.3.6 Using Email...........................................39 3.5.3.6.1 Adding your contacts to the Welcome list ...........................39 3.5.3.6.2 Receiving photo em ails ...........40 3.5.3.6.3 Viewing received photo emails on inbox ...... ............................42 3.5.3.6.4 Sending a photo by email........43 3.5.3.6.5 Editing or deleting the contacts in the Welcome list..................44 3.5.4 FAQ and troubleshooting ........ ............................45 3.6 Using the Settings menu ...............................................48 3.6.1 Setting an alarm....................................51 3.6.2 Enabling auto on/off ..............................52 4. General information .....................................................................53 5. Technical specifications ..............................................................60 6. Wall mounting instructions..........................................................61 Getting started 5 1. Getting started WARNING z Do not place your digital photo frame in the bathroom or other humid areas. z Do not place your digital photo frame near sources of heat and extreme temperatures, such as fluorescent lighting, microwave ovens, heating appliances and direct sunlight. z Do not disassemble your digital photo frame; there are no user-serviceable parts inside. z If the LCD screen breaks, do not touch the glass or liquid. Contact Motorola customer support for assistance. z Use only the power adapter supplied with your digital photo fram…

Text truncated - open the document above for the full version.

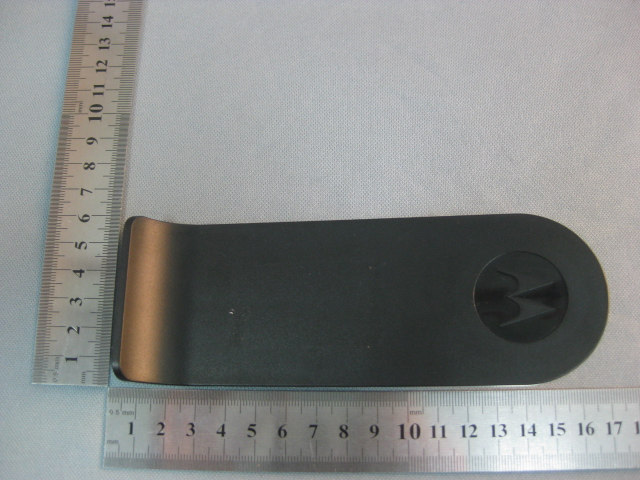

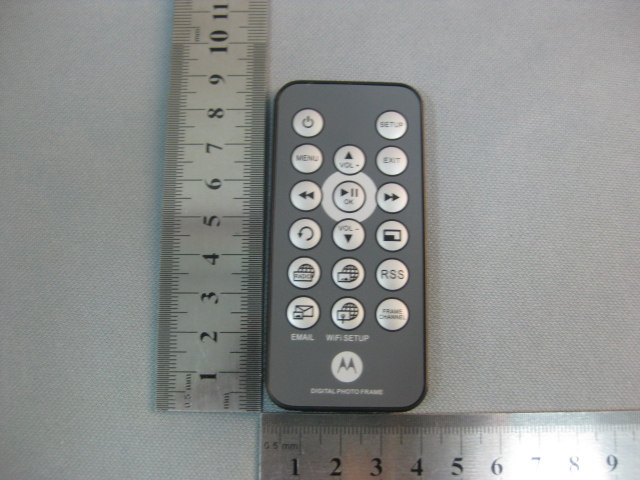

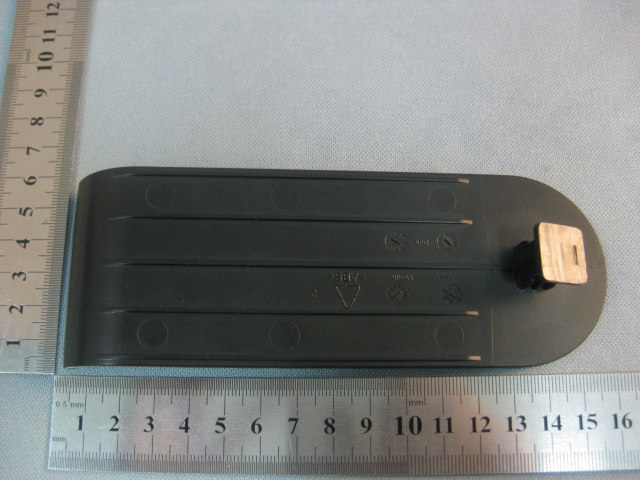

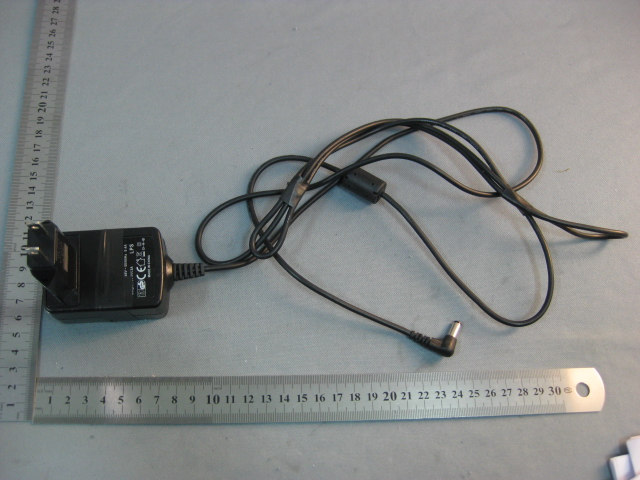

1 Photographs - EUT Constructional Details
