VLJ-MBP160BUDigital Audio baby monitor

User’s Guide Digital Audio Baby Monitor Models: MBP160, MBP160-2 The features described in this User’s Guide are subject to modifications without prior notice. Welcome... to your new Motorola Digital Audio Baby Monitor! Thank you for purchasing the Digital Audio Baby Monitor. Now you hear your baby sleeping in another room. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product-related questions, please call: This User's Guide provides you with all the information you need to get the most from your product. Before you use the digital audio baby monitor, we recommend that you insert and fully charge the battery in the parent unit, so that it continues to work if you disconnect it from the electrical outlet to carry it to another location. Please read the Safety Instructions on page 6 before you install the units. Got everything? • 1 x Parent unit with desktop stand • 1 x Baby unit • 1 x Rechargeable Ni-MH battery pack for the Parent unit • 1 x Battery door for Parent unit • 1 x Power adapter for Parent unit • 1 x Power adapter for Baby unit In packs with multi baby units, you will find one or more additional baby units with power adapters. US and Canada 1-888-331-3383 Email: [email protected] Overview of the Parent Unit 1.Sound level indicator It shows the sound level detected by the baby unit and the speaker volume set on the parent unit. Sound level detected by the baby unit: If no LED lights up, no sound is detected. If more LEDs light up, the sound level is high. Speaker volume on the parent unit: If more LEDs light up when adjusting speaker volume, the speaker volume is high. 2.Power/Link indicator On steadily when the parent unit is powered on and linked to the baby unit. Off when the parent unit is powered off. Flashes when it is out of range of the baby unit. 3.UP / VOLUME + Press to increase speaker volume. 4.DOWN / VOLUME - Press to decrease speaker volume. 5.Power ON/OFF button Press and hold to power on or off. 6.Charging indicator On steadily when the parent unit battery is being charged. Flashes when the parent unit battery is low and needs charging. Off when the parent unit battery is fully charged, or when the battery is not installed. 7.Power jack 8.Speaker 9.Battery compartment cover 10.Desktop stand 2 3 4 1 5 6 7 8 9 10 Overview of the Baby Unit 1 2 3 Important guidelines for installing your digital baby monitor • To use your baby unit and parent unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. • Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic door or reinforced concrete, between the baby unit and parent unit may block the radio signal. • The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. • If the signal is poor, try moving the parent unit and/or the baby unit to different positions in the rooms. 1.Power/Link indicator On steadily when the baby unit is powered on and linked to the parent unit. Off when the baby unit is powered off. Flashes when it is out of range of the parent unit. 2.Power ON/OFF button 3.Microphone Table of contents5 ENGLISH Table of contents 1.Safety Instructions ..................................................................................... 6 2.Getting Started .......................................................................................... 9 2.1Baby unit power supply ............................................................................... 9 2.2Parent unit battery installation and power supply .................................... 10 2.3Desktop stand on parent unit .................................................................... 11 3.Using Your Digital Audio Baby Monitor.................................................. 12 3.1Power on or off the baby unit.................................................................... 12 3.2Power on or off the parent unit ................................................................. 12 3.3Adjust speaker volume of the parent unit................................................. 12 4.Disposal of the Device (Environment).................................................... 13 5.Cleaning .................................................................................................. 14 6.Troubleshooting ...................................................................................... 15 7.General Information ................................................................................ 17 8.Technical Specifications ......................................................................... 22 6Safety Instructions 1. Safety Instructions WARNING: Strangulation Hazard. Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3ft (1m) away). Never use extension cords with AC Adapters. Only use the AC Adapters provided. Safety Instructions7 ENGLISH WARNING This Digital Audio Baby Monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User's Guide, safe to use. Therefore, always read the instructions in this User's Guide carefully before using the device. • Adult assembly is required. Keep small parts away from children when assembling. • This product is not a toy. Do not allow children to play with it. • This Digital Audio Baby Monitor is not a substitute for responsible adult supervision. • Keep this user's guide for future reference. • Keep the cords out of reach of children. • Do not cover the Digital Audio Baby Monitor with a towel or blanket. • Test this monitor and all its functions so that you a…

Text truncated - open the document above for the full version.

User’s Guide Digital Audio Baby Monitor Models: MBP161TIMER, MBP161TIMER-2 The features described in this User’s Guide are subject to modifications without prior notice. Welcome... to your new Motorola Digital Audio Baby Monitor! Thank you for purchasing the Digital Audio Baby Monitor. Now you can hear your baby sleeping in another room. The Digital Audio Baby Monitor also comes with a baby care timer that can help you remember important baby- care tasks or maintain your baby's feeding, diaper change and napping schedule when he or she is with other caregivers Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product-related questions, please call: This User's Guide provides you with all the information you need to get the most from your product. Before you use the digital audio baby monitor, we recommend that you insert and fully charge the battery in the parent unit, so that it continues to work if you disconnect it from the electrical outlet to carry it to another location. Please read the Safety Instructions on page 7 before you install the units. Got everything? • 1 x Parent unit with desktop stand • 1 x Baby unit • 1 x Rechargeable Ni-MH battery pack for the Parent unit • 1 x Battery door for Parent unit • 1 x Power adapter for Parent unit • 1 x Power adapter for Baby unit In packs with multi baby units, you will find one or more additional baby units with power adapters. US and Canada 1-888-331-3383 Email: [email protected] Overview of the Parent Unit 1.Sound Level Indicator 2.LCD Display 3.Timer Buttons 4.Control Key Panel UP / VOLUME + Press to increase speaker volume. While in a menu, press to scroll up. DOWN / VOLUME - Press to decrease speaker volume. While in a menu, press to scroll down. POWER ON/OFF Press and hold to power on or off. Press to turn the screen on or off. MENU/SELECT Press to enter the menu. While in a menu, press to choose an option, or save a setting. TALK T Press and hold to talk to the baby unit. 5.Night Light Press to turn nightlight on or off. 6.Microphone 7.Lullaby Press to start or stop lullaby playback. In timer setting: Press to reset timer to 00-00. 8.Power jack 9.Speaker 10.Battery compartment cover 11.Desktop Stand 7 1 4 5 9 10 11 8 2 3 6 Parent Unit display icons Connection status - Displays when the parent unit is linked to the baby unit. - Flashes when the link between the baby unit and the parent unit is lost or the parent unit is out of range of the baby unit. Battery status - scrolls when battery is charging. - displays when battery is fully charged. - displays when battery is low and needs charging. - displays when battery is empty and needs charging. Sound Alert - Displays when sound alert is ON. - Flashes when sound alert is triggered. Vol um e o ff - Displays when speaker volume is turned off. Nightlight - Displays when nightlight is ON. Lullaby - Displays when lullaby is playing. Overview of the Baby Unit 1 2 3 4 5 6 Important guidelines for installing your digital audio baby monitor • To use your baby unit and parent unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. • Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic door or reinforced concrete, between the baby unit and parent unit may block the radio signal. • The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. • If the signal is poor, try moving the parent unit and/or the baby unit to different positions in the rooms. 1.Te m p e r a t u r e S e n s o r 2.Speaker 3.Power jack 4.Power/Link indicator On steadily when the baby unit is powered on and linked to the parent unit. Off when the baby unit is powered off. Flashes when the baby unit is out of range of the parent unit. 5.Control Key Panel UP / VOLUME + Press to increase speaker volume. DOWN / VOLUME - Press to decrease speaker volume. POWER/ LULLABY Press and hold to power the baby unit on or off. In idle mode: Press to enter lullaby menu. In lullaby menu: Press to play or select lullaby. PLAY/STOP Press to start or stop lullaby playback. NIGHT LIGHT Press to turn nightlight on or off. 6.Microphone 6Table of contents Table of contents 1.Safety Instructions ..................................................................................... 7 2.Getting Started........................................................................................ 10 2.1Baby unit power supply............................................................................. 10 2.2Parent unit battery installation and power supply .................................... 11 2.3Belt clip/stand on parent unit.................................................................... 12 3.Using Your Digital Audio Baby Monitor.................................................. 13 3.1Power on or off .......................................................................................... 13 3.2Speaker volume ........................................................................................ 13 3.3Nightlight ................................................................................................... 14 3.4Timers ........................................................................................................ 14 3.5Lullaby ....................................................................................................... 17 3.6Select display language for the parent unit .............................................. 17 3.7Turn sound alert on or off .......................................................................... 18 3.8Talk to the baby unit ....................…

Text truncated - open the document above for the full version.

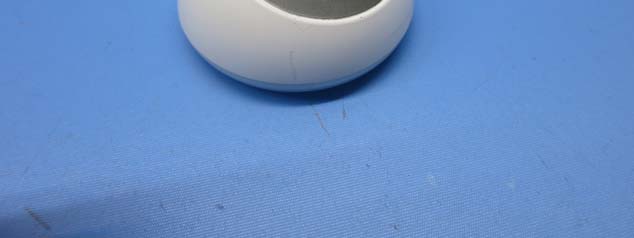

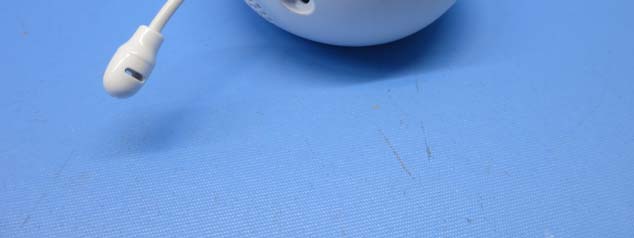

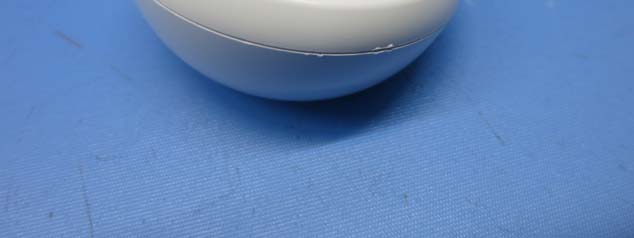

INTERTEK TESTING SERVICES External Photos FCC ID: VLJ-MBP160BU IC: 4522A-MBP160BU external photos - 1 of 5 MBP161TIMERBU INTERTEK TESTING SERVICES External Photos FCC ID: VLJ-MBP160BU IC: 4522A-MBP160BU external photos - 2 of 5 INTERTEK TESTING SERVICES External Photos FCC ID: VLJ-MBP160BU IC: 4522A-MBP160BU external photos - 3 of 5 MBP160PU INTERTEK TESTING SERVICES External Photos FCC ID: VLJ-MBP160BU IC: 4522A-MBP160BU external photos - 4 of 5 INTERTEK TESTING SERVICES External Photos FCC ID: VLJ-MBP160BU IC: 4522A-MBP160BU external photos - 5 of 5

IC: 4522A-MBP160BU : VLJ-MBP160BU IC: 4522A-MBP160PU : VLJ-MBP160PU Model: MBP161TIMERBU Model: MBP161TIMERBU Model: MBP161TIMERPU IC: 4522A-MBP160BU : VLJ-MBP160BU Model: MBP160BU Raised 0.2mm ....ediug s’resu eht ni detsil seilppu rewoP dna seirettaB ylno esU IC: 4522A-MBP160PU : VLJ-MBP160PU ediug s’resu eht ni detsil seilppu S Use only Batteries and Power Model: MBP160PU Made in China Input: DC6V450mA MBP160&161 PU Engraving 20.60 35.60 20.60 MBP160 BU MBP161 BU 35.60 20.60 label area label area PU LBL SIZE: 24*20 mm Material: 25# WHT PET BU LBL SIZE: 35*20mm Material: 25# WHT PET BU LBL SIZE: 35*20mm Material: 25# WHT PET VT1409000001G S/N : FCC ID Made in China Input: DC6V450mA VT1409000001G S/N : FCC ID ediug s’resu eht ni detsil seilppu S Use only Batteries and Power IC: 4522A-MBP160PU : VLJ-MBP160PU ediug s’resu eht ni detsil seilppu S Use only Batteries and Power Model: MBP160PU Made in China Input: DC6V 450mA VT1409000001G S/N : FCC ID Made in China Input: DC6V450mA VT1409000001G S/N : FCC ID S . . . IC: 4522A-MBP160BU : VLJ-MBP160BU Model: MBP160BU ....ediug s’resu eht ni detsil seilppu rewoP dna seirettaB ylno esU Made in China Input: DC6V450mA VT1409000001G S/N : FCC ID S . ....ediug s’resu eht ni detsil seilppu rewoP dna seirettaB ylno esU Made in China Input: DC6V450mA VT1409000001G S/N : FCC ID S . ....ediug s’resu eht ni detsil seilppu rewoP dna seirettaB ylno esU Made in China Input: DC6V450mA VT1409000001G S/N : S . IC: 4522A-MBP160BU : VLJ-MBP160BUFCC ID

INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP160BU IC: 4522A-MBP160BU internal photos - 1 of 6 MBP160BU: INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP160BU IC: 4522A-MBP160BU internal photos - 2 of 6 INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP160BU IC: 4522A-MBP160BU internal photos - 3 of 6 INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP160BU IC: 4522A-MBP160BU internal photos - 4 of 6 MBP161TIMERBU: INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP160BU IC: 4522A-MBP160BU internal photos - 5 of 6 INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP160BU IC: 4522A-MBP160BU internal photos - 6 of 6

INTERTEK TESTING SERVICES FCC ID: VLJ-MBP160BU RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the baby unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 1.9GHz Digital Audio Baby Monitor-Baby Unit of tested model: MBP160BU and MBP161TIMERBU, the measured powers among all the measured channels were within its production tolerance: +17 dBm (Minimum) and +21 dBm (Maximum).The antenna gain of MBP160BU and MBP161TIMERBU are 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 4.2% (1/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 21 dBm = 125.9 mW The Conducted Power source-based time-averaging output power = (125.9 * 0.042) mW = 5.29 mW The power density at 20cm = 5.29 *1.00/ 4πR 2 = 0.0010 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the baby unit at least 20cm from nearby persons.”

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Test Report Number: 14081257HKG-002 Page 1 of 79 FCC ID: VLJ- MBP160BU IC: 4522A-MBP160BU Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Applicant Name: Binatone Electronics International Limited Applicant Address: Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2012 Edition FCC ID: VLJ- MBP160BU FCC Model(s): MBP161TIMERBU, MBP160BU IC Specification Standard: RSS-213 Issue 2, December 2005 RSS-Gen Issue 3, December 2010 IC: 4522A-MBP160BU IC Model(s): MBP161TIMERBU, MBP160BU Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: Digital Audio Baby Monitor - Baby Unit Serial Number: N/A Sample Receipt Date: August 29, 2014 Date of Test: September 21 -25, 2014 Report Date: November 12, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Test Report Number: 14081257HKG-002 Page 2 of 79 FCC ID: VLJ- MBP160BU IC: 4522A-MBP160BU Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 5 1.1 Summary of Test Results ....................................................................................... 5 1.2 Statement of Compliance ....................................................................................... 7 2.0 General Description................................................................................................. 9 2.1 Product Description ................................................................................................. 9 2.2 Technical Description .............................................................................................. 9 2.3 Test Methodology.................................................................................................... 9 2.4 Test Facility........................................................................................................... 10 3.0 System Test Configuration.................................................................................... 12 3.1 Justification ........................................................................................................... 12 3.2 Conducted Emission Test Configuration ................................................................ 14 3.3 Conducted Monitoring and Operational Test Configuration .................................... 14 3.4 EUT Exercising Software....................................................................................... 14 3.5 Details of EUT and Description of Accessories...................................................... 15 3.6 Measurement Uncertainty ..................................................................................... 15 4.0 Measurement Results............................................................................................ 17 4.1 Antenna Requirement........................................................................................... 17 4.2 Digital Modulation Techniques............................................................................... 17 4.3 Emission Bandwidth.............................................................................................. 18 4.4 Directional Gain of the Antenna ............................................................................. 21 4.5 Peak Transmit Power ............................................................................................ 22 4.6 Power Spectral Density ......................................................................................... 25 4.7 Automatic Discontinuation of Transmission............................................................ 28 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 29 4.9 Emissions Outside the Sub-Band .......................................................................... 33 4.9.1 Radiated Emissions Configuration Photographs ................................................. 34 4.9.2 Radiated Emissions Data ................................................................................... 34 4.9.3 Field Strength Calculation................................................................................... 47 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 48 4.10 AC Power Line Conducted Emissions ................................................................. 49 4.10.1 AC Power Line Conducted Emissions Configuration Photographs .................... 50 4.10.2 AC Power Line Conducted Emissions Data ...................................................... 50 4.11 Frame Repetition Stability .................................................................................. 59 4.12 Frame Period and Jitter ...................................................................................... 60 4.13 Carrier Frequency Stability.................................................................................. 61 Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratorie…

Text truncated - open the document above for the full version.

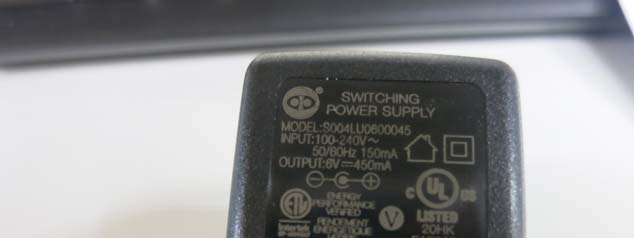

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID:VLJ-MBP160BU IC: 4522A-MBP160BU config photos (radiated emission – base unit) - 1 of 2 MBP161TIMERBU: Radiated Emission – Baby Unit (Adaptor Ten Pao) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID:VLJ-MBP160BU IC: 4522A-MBP160BU config photos (radiated emission)- 2 of 2 MBP160BU Radiated Emission – Baby Unit (Adaptor Ten Pao) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Talk FCC ID:VLJ-MBP160BU IC: 4522A-MBP160BU config photos (conducted emission) - 1 of 4 MBP161TIMERBU Conducted Emission(Adaptor Ruijing) Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Talk FCC ID:VLJ-MBP160BU IC: 4522A-MBP160BU config photos (conducted emission) - 2 of 4 Conducted Emission Left Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Talk FCC ID:VLJ-MBP160BU IC: 4522A-MBP160BU config photos (conducted emission) - 3 of 4 MBP160BU Conducted Emission(Adaptor Ruijing) Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Talk FCC ID:VLJ-MBP160BU IC: 4522A-MBP160BU config photos (conducted emission) - 4 of 4 Conducted Emission Left Side View
