USERíS GUIDE MBP18 BABY MONITOR USERíS GUIDE The features described in User's Guide are subject to modifications without prior notice. This User's Guide provides you with all the information you need to get the most from your product. Before you can use the baby monitor, we recommend you insert and fully charge the battery in the parent unit, so that it continues to work if you disconnect it from the power supply to carry it to another location. Please read the Safety Instructions on page 6 before you install the units. Got everything? ï 1 x Parent unit ï 1 x Baby unit ï 1 x Rechargeable Ni-MH battery pack for the Parent unit ï 1 x Power adapter for the Parent unit ï 1 x Power adapter(s) for the Baby unit In multi-camera packs, you will find one or more additional camera units with power adapter units. Welcome... to your new Motorola Baby Monitor! Thank you for purchasing the MBP18. Now you can see and hear your baby sleeping in another room or you can monitor your older children in their playroom. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please call: US and Canada 1-888-331-3383 On the Web: www.motorola.com Overview of the Parent Unit Parent unit menu icons 1. Display (LCD screen) 2. Scroll Up/Volume+ Button 3. Scroll Down/Volume- Button 4. Menu/OK Button Press to open the menu options. Press to confirm a selection. Press to pan right in 2x zoom level. 5. Zoom Button Z Press once to switch to 2x zoom level. Toggle again to return to normal mode (1x). 6. Return/Switch Camera Button Press to return to previous menu level. Press to switch camera units (if paired with more than one camera). Press to pan left in zoom mode. 7.Video ON/OFF Button V Press to turn the LCD display on or off. 8. Unit ON/OFF LED (Green) 9. Audio Level LED (Green, Orange, Red, Red) 10. Power Button P Press and hold to turn the unit on or off. 11. Power Adapter Connector 12. Speaker 13. Stand 14. Battery cover 1 Signal Level (5 Levels) N Night Vision Mode (Screen changes to Black/White) B Battery Level Control (4 Levels) * Volume Level Control (8 Levels) & Brightness Level Control (8 Levels) Alarm Setting (6h, 4h, 2h, OFF) View Camera Add Camera Delete Camera Scan Camera 1 2 5 4 3 9 7 8 10 11 12 13 14 6 Overview of Your Baby Unit Important guidelines for installing your Baby Monitor ï To use your Video Monitor Baby and Parent Units together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. ï Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or reinforced concrete between the Baby and Parent Unit may block the radio signal. ï The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. ï Use of other 2.4GHz products, such as wireless networks (WiFi Æ routers), Bluetooth Æ systems, or microwave ovens, may cause interference with this product, so keep the baby monitor away at least 5ft (1m) from these types of products, or turn them off if they appear to be causing interference. ï If the signal is weak, try moving the Parent and/or the Baby Unit to different positions in the rooms. 1. ON/OFF Switch6. Power LED 2. Pair Key7. Infrared LEDs 3. Microphone 8. Power Adapter Connector 4. Photo Sensor (Night Vision Mode) 5. Camera Lens 1 2 3 5 6 7 8 4 Table of contents5 ENGLISH Table of contents 1. Safety Instructions ......................................................................... 6 2. Getting Started ............................................................................... 8 2.1Baby Unit Power Supply.................................................................8 2.2Parent Unit Battery Installation .......................................................8 2.3Parent Unit Power Supply ..............................................................9 2.4Registration (Pairing)....................................................................10 3. Using the Baby Monitor MBP18 .................................................. 11 3.1Setting up .....................................................................................11 3.2Night Vision Mode ........................................................................11 3.3Video ON/OFF..............................................................................11 4. MBP18 Parent Unit Menu Options .............................................. 12 4.1Volume .........................................................................................12 4.2Brightness.....................................................................................12 4.3Zoom, Pan and Tilt .......................................................................12 4.4Alarm ............................................................................................12 4.5Camera Control ............................................................................12 4.5.1Add (pair) a camera .......................................................12 4.5.2View a camera ...............................................................13 4.5.3Delete a camera .............................................................13 4.5.4Scan camera ..................................................................13 5. Disposal of The Device (environment) ....................................... 14 6. Cleaning ........................................................................................ 15 7. Help................................................................................................ 16 8. General Information ..................................................................... 18 6Safety Instructions 1. Sa…

Text truncated - open the document above for the full version.

MBP18 - Quick Start Guide For a full explanation of all features and instructions, please refer to the User's Guide. 1 Setting up your digital baby monitor Connecting power supply for the Baby unit A ï Connect the small plug of the power adapter to the baby unit and the other end to the electrical outlet. ï Only use the enclosed adapter (6V DC / 500mA). Installing the battery pack for the Parent unit B Red Black ï Insert the wire tab of the rechargeable battery pack into the contact slot as shown above and fit the battery pack into the compartment. Connecting power supply for the Parent unit D ï Connect the small plug of the power adapter to the parent unit and the other end to the electrical outlet. ï Only use the enclosed adapter (6V DC / 500mA). Fastening the cover for the Parent unit C Small cross head or Flat end screw driver. MBP18_QSG_EN_US.fm Page 1 Friday, November 9, 2012 12:04 PM 2 Basic operation of the keys 3 General Information If your product is not working properly... 1. Read this Quick Start Guide or the Userís Guide. 2. Visit our website: www.motorola.com 3. Contact Customer Service: Parent unit P ON/OFF buttonPress and hold to turn the unit ON/OFF. UP/VOL+ buttonsPress to increase sound volume. Press to adjust menu up setting. DOWN/VOL- buttonsPress to decrease sound volume. Press to adjust menu down setting. MENU/OK buttonPress to open menu options or exit. Press to confirm a selection. Press to pan right in 2x zoom level. Return/Switch Camera button Press to return to previous menu level. Press to switch camera units. (if paired with more than one camera) Press to pan left in 2x zoom mode. V VIDEO buttonPress to turn the LCD display ON/OFF. Z ZOOM buttonPress once to switch to 2x zoom level. Toggle again to return to normal view (1x). Baby unit ON/OFF switchPush power switch to the right to switch on the unit. Push power switch to the left to switch off the unit. US and Canada1-888-331-3383 Manufactured, distributed or sold by Binatone Electronics International LTD., official licensee for this product. MOTOROLA and the Stylized M Logo, are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners. © 2012 Motorola Mobility LLC. All rights reserved. Printed in China Version 1.0 MBP18_QSG_EN_US.fm Page 2 Friday, November 9, 2012 12:04 PM

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . Date (23/10/2012) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD UNITED KINGDOM Dear Sir or Madam, We, Binatone Electronics International Ltd (Address: Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong) hereby authorize Ray Cheung (TUV SUD HK LTD) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 30/5/2013 Sincerely, Company Officer: Paul Tsui Telephone Number: 2802 7388 Email: [email protected]

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . Date (23/10/2012) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD UNITED KINGDOM Confidentiality Request FCC ID: VLJ-MBP18BU VLJ-MBP18PU Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Binatone Electronics International Ltd hereby requests permanent confidential treatment of information accompanying this application as outlined below: - Schematics - Block Diagrams - Theory of Operation Binatone Electronics International Ltd also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 30/5/2013 - Internal Photos - External Photos - User Manual - Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely Company Officer: Paul Tsui Telephone Number: 2802 7388 Email: [email protected]

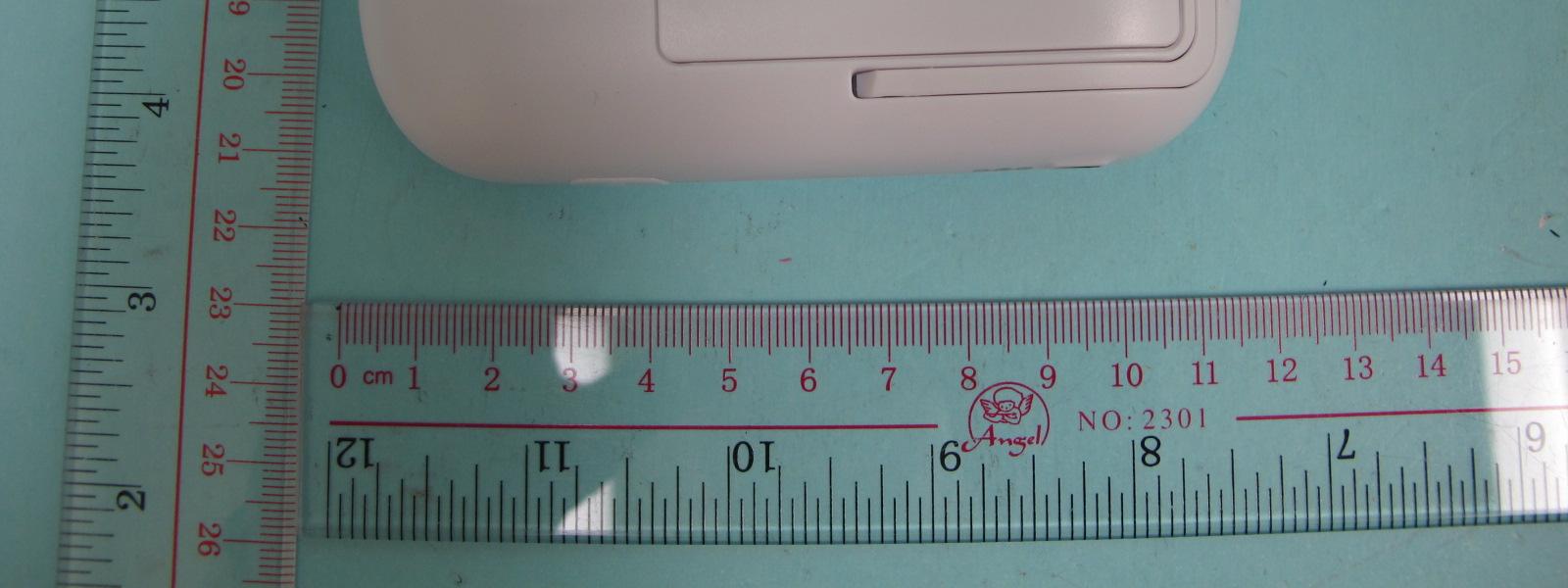

Appendix B Date: 2012-11-08 Report No.: 60.870.12.039.02F Model No.: MBP18PU Photo of EUT – External EUT Photos Page 1 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-11-08 Report No.: 60.870.12.039.02F Model No.: MBP18PU Photo of EUT – External EUT Photos Page 2 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-11-08 Report No.: 60.870.12.039.02F Model No.: MBP18PU Photo of EUT – External EUT Photos Page 3 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-11-08 Report No.: 60.870.12.039.02F Model No.: MBP18PU Photo of EUT – External EUT Photos Page 4 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong AC/DC Adaptor

Label Location

Appendix C Date: 2012-11-08 Report No.: 60.870.12.039.02F Model No.: MBP18PU Photo of EUT – Internal EUT Photos Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-11-08 Report No.: 60.870.12.039.02F Model No.: MBP18PU Photo of EUT – Internal EUT Photos Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-11-08 Report No.: 60.870.12.039.02F Model No.: MBP18PU Photo of EUT – Internal EUT Photos Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

TEST REPORT Date: 2012-11-08 Report No.: 60.870.12.039.02F Page 1 of 34 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant: Binatone Electronics International Ltd. Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong Description of Samples:Model name: Baby Monitor (Parent Unit) Brand name: MOTOROLA Model no.:MBP18PU FCCID:VLJ-MBP18PU Date Samples Received:2012-10-29 Date Tested:2012-11-02 to 2012-11-07 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Ray CheungJeff Pong Project EngineerOperation Manager Wireless & Telecom DepartmentWireless & Telecom Department ReportNo.: 60.870.12.039.02F Page 2 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 30 Content Page 2-3 of 30 1.0General Details 1.1Test Laboratory Page 4 of 30 1.2Applicant Details Page 4 of 30 1.3Equipment Under Test [EUT] Page 5 of 30 1.4 Related Submittal(s) Grants Page 5 of 30 2.0Technical Details 2.1Investigations Requested Page 6 of 30 2.2Test Standards and Results Summary Page 6 of 30 3.0Test Methodology 3.1Radiated Emission Page 7 of 30 3.2Field Strength Calculation Page 7 of 30 3.3Conducted Emission Page 7 of 30 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 30 4.2 20dB Bandwidth Measurement Page 9-10 of 30 4.3 Hopping Channel Carrier Frequency Separation Page 11 of 30 4.4 Average Time of Occupancy Page 12-14 of 30 4.5 Pseudorandom Hopping Algorithm Page 15 of 30 4.6 Band Edge Measurement Page 16-17 of 30 4.7 Maximum Output Power Page 18-20 of 30 4.8 Out ofBand Emissionsand Emissions in Restricted Bands Page 21-25 of 30 4.9 Conducted Emission on AC Mains Page 26-28 of 30 ReportNo.: 60.870.12.039.02F Page 3 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Page 29 of 30 6.0List of Measurement Equipments Page 30 of 30 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos ReportNo.: 60.870.12.039.02F Page 4 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory SEM. Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin’an Fanshen Road, Bao’an District, Shenzhen Registration Number: 994117 Test By: John Zhi 1.2Applicant Details Applicant Binatone Electronics International Ltd. Floor 23A, 9 Des Voeux Road West, Sheung Wan Hong Kong Manufacturer Alford Industries Ltd. Unit 02, 6 th Floor, Yen Sheng Centre, 64 Hoi Yuen Road, Kwun Tong, Kowloon, HK ReportNo.: 60.870.12.039.02F Page 5 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of EUT Product Description:Baby Monitor (Parent Unit) Model No.:MBP18PU Brand Name: MOTOROLA FCCID:VLJ-MBP18PU Rating:- DC 6V, 500mA powered by AC/DC power adaptor or - DC 3.6V, 900mAh Ni-MH Rechargeable Battery Operated Frequency:2410.875–2471.625MHz No. ofOperatedChannel:19 Accessories and Auxiliary Equipments:- AC/DC power adaptor. Antenna Type:Integral Manufacture of Antenna:Alford Industries Ltd. Antenna Gain:0 dBi Antenna Model:N/A General Operation of EUT The Equipment Under Test (EUT) is a monitor of wireless baby monitor system which operated at 2.4GHz. FHSS Operation Principle: This module is controlled by microchipto generate Pseudorandom Frequency Hopping Sequence, this module support 19 hopping channels. Refer to section 4.5 of this report to have more detail of Pseudorandom Hopping Algorithm. 1.4Related Submittal(s) Grants Thisis a signal applicationsubjected to Certificate Authorization. ReportNo.: 60.870.12.039.02F Page 6 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 ( a1 ) Pseudorandom Hopping Algorithm Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC Mains Section 15.207 RF ExposureSection 15.247 ( i ) Antenna RequirementSection 15.203 See note 1 Note 1 :The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable ReportNo.: 60.870.12.039.02F Page 7 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on astandard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation T…
