VLJ-MBP30PUBaby Monitor (Parent Unit)

USERíS GUIDE MBP30 BABY MONITOR USERíS GUIDE The features described in this userís guide are subject to modifications without prior notice. V 0.1 This User's Guide provides you with all the information you need to get the most from your product. Before you can use the baby monitor, you'll need to insert and fully charge the battery on the Parent unit. Please read the Safety Instructions on page 6 before you install the units. Got everything? ï 1 x Parent unit ï 1 x Baby unit ï 1 x Rechargeable Ni-MH battery pack for the Parent unit ï 1 x Power adapter for the Parent unit ï 1 x Power adapter for the Baby unit IMPORTANT The non-rechargeable batteries for the Baby unit are not supplied with your product. We recommend the batteries to be installed before use, so that the unit continues to work in the event of a mains power failure. Welcome... to your new Motorola Baby Monitor! Thank you for purchasing the MBP30. Now you can see and hear your baby sleeping in the other room or you can monitor your older children in their playroom. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please call: US 1-888-331-3383 or Canada 905-831-6555 On the Web: www.motorola.com 1.Display 2.Menu key 3.Left key 4.Microphone 5.Down key 6.Right key 7.Up/Talk key 8.Power/Channel/Enter key 9.Power adapter connector 10.Belt clip 11.Speaker 12.Battery cover screw 13.Battery cover Overview of your Parent unit 13 11 10 12 Parent unit menu icons Adjust contrast level of the LCD Turn the night vision on or off Adjust the voice activation level Set video timer to switch off the LCD Pair a camera unit 9 1 2 8 3 4 5 7 6 2 1 5 3 4 Overview of your Baby unit 1.Power LED 2.Infrared LEDs 3.Light sensor 4.Microphone 5.Camera lens 6.On/Off switch 7.Speaker 6 7 Table of contents5 ENGLISH Table of contents 1. Safety Instructions ..................................................................... 6 2. Getting started ............................................................................ 7 2.1Baby unit power supply ..............................................................7 2.2Parent unit battery Installation.................................................... 8 2.3Parent unit power supply............................................................ 9 2.4Registration .............................................................................. 10 3. Using the Baby Monitor MBP30 .............................................. 11 3.1Setting up ................................................................................. 11 3.2Setting up ................................................................................. 12 3.3Selecting camera channel ........................................................ 12 3.4Pairing camera channels..........................................................12 3.5Night vision............................................................................... 13 3.6Talk function ............................................................................. 13 3.7Adjusting the volume of the parent unit .................................... 13 4. MBP30 Parent Unit Menu Options........................................... 13 4.1Brightness ................................................................................ 13 4.2Night Vision .............................................................................. 13 4.3Voice Activation........................................................................ 14 4.4Video Timer ..............................................................................14 5. Disposal of the device (environment) ..................................... 15 6. Cleaning..................................................................................... 15 7. Help ............................................................................................ 16 8. General Information.................................................................. 16 9. Wall mounting instructions ..................................................... 25 6Safety Instructions 1. Safety Instructions WARNING This baby monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the Userís Guide, safe to use. Therefore, always read the instructions in this Userís Guide carefully before using the device. ï Adult assembly is required. Keep small parts away from children when assembling. ï This product is not a toy. Do not allow children to play with it. ï This baby monitor is not a substitute for responsible adult supervision. ï Keep this userís guide for future reference. ï Do not place the baby unit or cables in the crib or within arm's reach of the baby (the unit should be at least 3 feet away). ï Keep the cords out of reach of children. ï Do not cover the baby monitor with a towel or blanket. ï Never use extension cords with power adaptors. Only use the power adaptors provided. ï Test the baby monitor before use. Become familiar with its functions. ï Do not use the baby monitor near water. ï Do not install the baby monitor near a heat source. ï Only use the chargers and power adaptors provided. Do not use other chargers or power adaptors as this may damage the device and battery pack. ï Only insert battery pack of the same type. ï Do not touch the charger or plug contacts with sharp or metal objects. CAUTION Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Getting started7 ENGLISH 2. Getting started 2.1Baby unit power supply 1.Connect the small plug of the power adaptor to the baby unit and the other end to the electrical outlet (110V/60Hz). NOTE Only use the enclosed power adaptor (5V DC / 500mA). 2.Slide the power switch to the ON position. …

Text truncated - open the document above for the full version.

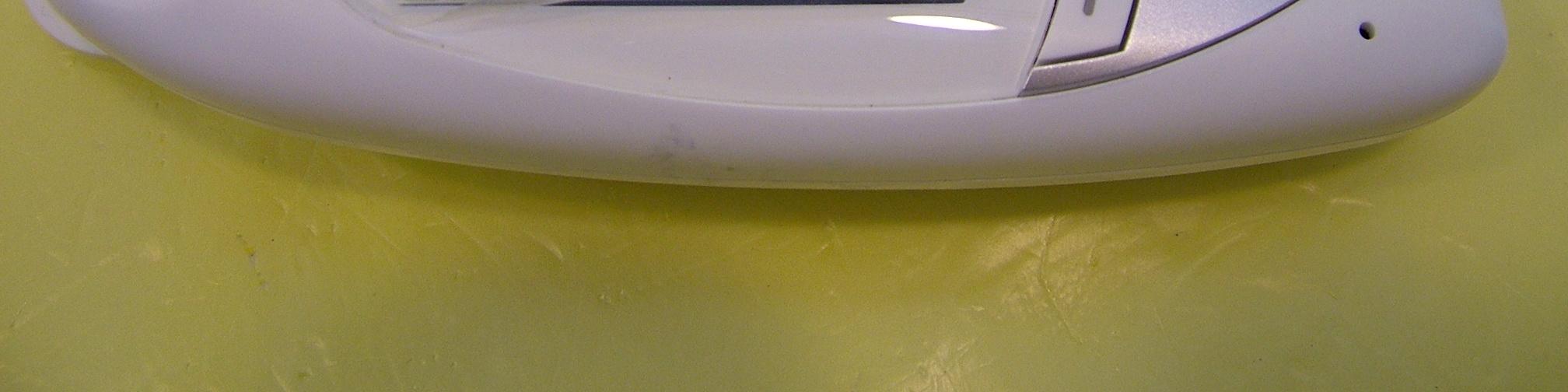

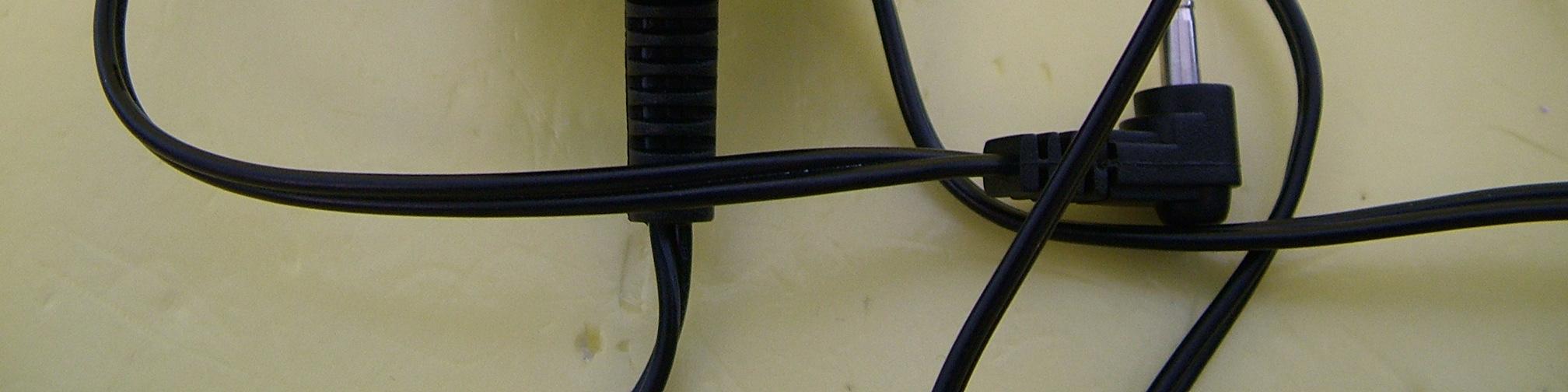

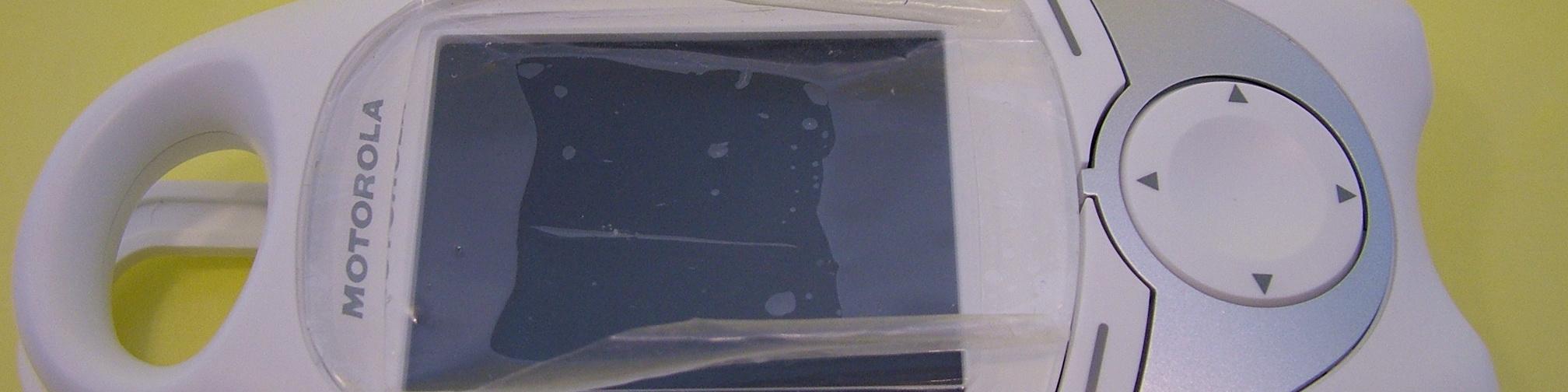

Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2009-06-30 Test report no.: 60.870.9.010.01F Model no.: MBP30PU (Parent Unit) Photos of EUT – External EUT Photos Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.9.010.01F Model no.: MBP30PU (Parent Unit)

Page 1 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix C Date: 2009-06-30 Test report no.: 60.870.9.010.01F Model no.: MBP30PU (Parent Unit) Photos of EUT – Internal EUT Photos Page 2 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.9.010.01F Model no.: MBP30PU (Parent Unit) Page 3 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.9.010.01F Model no.: MBP30PU (Parent Unit) Page 4 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.9.010.01F Model no.: MBP30PU (Parent Unit) Page 5 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.9.010.01F Model no.: MBP30PU (Parent Unit)

MBP30 Circuit description Parent unit: MBP30 Parent unit consist of 2 DC/DC convertors and 2 LDO. They convert the 5V input from DC adaptor (or 3.6V from battery) to 3.3V, two 2.5V and 1.8V power rail. These different power rails are used to power up different parts of the system. PB801 is one of the digital processor in the system, which mainly in charge of video signal control. PB801 is powered by 3.3v and 1.8v power rail and is clocked by a 4 MHz crystal. It is connected to a 4Mbit flash SST39VF040 using EMI bus for memory storage. PB801 will control an image processor IC SSD1928 (using 8bit parallel data bus and I2C) which will do video decoding and display image in the 2.4’ LCD. PB801 will provide a 4 Mhz clock to SSD1928 using its GPIO pin. The system consist of 6 buttons and are all monitored by an ADC inside the PB801 PB201 is another digital processor in the system, which mainly control RF link and audio processing. PB201 is powered by 3.3v and 1.8v power rail and is clocked by a 18 MHz crystal. It is connected to a 512Kbit SPI serial flash SST25VF512 using SPI for memory storage. PB201 will control a 2.4GHz RF module PM103 for radio frequency transmit and receive. PB201 and PM103 are connected using SPI and PB201 will provide a 18MHz clock to PM103 using GPIO. PB201 will also control an audio codec IC CS42C51, which is used for encode and decode the in/output audio signal. Both PB201 and PB801 are can be reset by Reset IC ML61C272.

Result data graph shows 20 dB bandwidth, CF = 2.4075GHz, BW = 3.6072MHz Result data graph shows 20 dB bandwidth, CF = 2.4436GHz, BW = 3.9078MHz Result data graph shows 20 dB bandwidth, CF = 2.4752GHz, BW = 4.0080MHz

TEST REPORT Date: 2009-06-30 Report No.: 60.870.9.010.01F Page 1 of 34 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant: Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong Description of Samples:Model name: Digital Baby Monitor Brand name: Motorola Model no.:MBP30 ( Parent Unit ) FCCID:VLJ-MBP30PU Date Samples Received:2009-06-17 Date Tested:2009-06-19 to 2009-06-25 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Prudence PoonVictor Kwan Project ManagerManager Telecom departmentTelecom department Report No.: 60.870.9.010.01F Page 2 of 32 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 32 Content Page 2-3 of 32 1.0General Details 1.1Test Laboratory Page 4 of 32 1.2Applicant Details Page 4 of 32 1.3Equipment Under Test [EUT] Page 5 of 32 1.4 Related Submittal(s) Grants Page 5 of 32 2.0Technical Details 2.1Investigations Requested Page 6 of 32 2.2Test Standards and Results Summary Page 6 of 32 3.0Test Methodology 3.1Radiated Emission Page 7 of 32 3.2Field Strength Calculation Page 7 of 32 3.3Conducted Emission Page 7 of 32 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 32 4.2 20dB Bandwidth Measurement Page 9-10 of 32 4.3 Hopping Channel Carrier Frequency Separation Page 11 of 32 4.4 Average Time of Occupancy Page 12-14 of 32 4.5 Pseudorandom Hopping Algorithm Page 15 of 32 4.6 Band Edge Measurement Page 16-17 of 32 4.7 Maximum Output Power Page 18-19 of 32 4.8 Out ofBand Emissionsand Emissions in Restricted Bands Page 20-24 of 32 4.9 Conducted Emission on AC Mains Page 25-31 of 32 Report No.: 60.870.9.010.01F Page 3 of 32 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0List of Measurement Equipments Page 32 of 32 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.: 60.870.9.010.01F Page 4 of 32 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory EMC Laboratoryregistered by FCC with FCCRegistration Number:607756 1.2Applicant Details Applicant Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong Manufacturer Pandachip Ltd. Unit 210, 2/F ( Lakeside 1), Building 15, No.8 Science Park West Avenue, Hong Kong Science Park, Phase II, Shatin, N.T. Hong Kong Report No.: 60.870.9.010.01F Page 5 of 32 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of EUT Product Description:Digital Baby Monitor ModelNo.:MBP30( Parent Unit ) Brand Name: Motorola FCCID:VLJ-MBP30PU Rating:-DC 5.0V,1000mApowered by AC/ DC power adaptor. - DC 3.6V rechargeable battery pack. Antenna Type:Integral Operated Frequency:2407 -2476 MHz No. of Channel:16 Accessories and Auxiliary Equipments:-AC/DC power adaptor. General Operation of EUT The Equipment Under Test (EUT) is a receiver of baby monitor system operated at 2.4GHz, it has monitor to show the picture from its associated transmitter. This EUT is designed for fix used, as it is powered by AC/DC adaptor. FHSS Operation Principle: This module is controlled by microchip to generate Pseudorandom Frequency Hopping Sequence, this module support 16 hopping channels. Refer to section 4.5 of this report to have more detail of Pseudorandom Hopping Algorithm. 1.4Related Submittal(s) Grants This is a signal application subjected to Certificate Authorization. Report No.: 60.870.9.010.01F Page 6 of 32 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2008 and ANSI C63.4: 2003 for FCC Verification 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 ( a1 ) Pseudorandom Hopping Algorithm Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC Mains Section 15.207 RF ExposureSection 15.247 ( i ) See note 1 Antenna RequirementSection 15.203 See note 2 Note 1 : Since this EUT is not a portable product it is deemed to fulfill this requirement without conducting SAR measurement. Note 2 : The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable Report No.: 60.870.9.010.01F Page 7 of 32 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are sh…

Text truncated - open the document above for the full version.

Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix A Date: 2009-06-30 Test report no.: 60.870.9.010.01F Model no.: MBP30PU (Parent Unit) Photo of Test Setup – Radiated Emission Front side Back side Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.9.010.01F Model no.: MBP30PU (Parent Unit) Photo of Test Setup – Conducted Emission Front side
