VLJ-MBP34PUBaby Monitor (Parent Unit)

USER’S GUIDE MBP34, MBP34/2, MBP34/3, MBP34/4, MBP34T BABY MONITOR USER’S GUIDE The features described in user's guide are subject to modifications without prior notice. This User's Guide provides you with all the information you need to get the most from your product. Before you can use the baby monitor, we recommend you insert and fully charge the battery in the parent unit, so that it continues to work if you disconnect it from the power supply to carry it to another location. Please read the Safety Instructions on page 6 before you install the units. Got everything? • 1 x Parent unit • 1 x Baby unit • 1 x Rechargeable Ni-MH battery pack for the parent unit • 1 x Power adapter for the Parent unit • 1 x Power adapter for the Baby unit Welcome... to your new Motorola Baby Monitor! Thank you for purchasing the MBP34, MBP34/2, MBP34/3, MBP34/4, MBP34T. Now you can see and hear your baby sleeping in another room or you can monitor your older children in their playroom. Please retain your original da ted sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please call: US and Canada 1-888-331-3383 On the Web: www.motorola.com 1.Display (LCD screen) 2.Vol + Key ) Normal Mode: Vol Up Menu Mode: Up 3.Vol - Key ( Normal Mode: Vol Down Menu Mode: Down 4.Brightness + Key ] Normal Mode: Brightness up Menu Mode: Right 5.Brightness - Key [ Normal Mode: Brightness down Menu Mode: Left 6.Menu Key M Press to open the Menu options 7.OK Key O 8.Video ON/OFF Key V Press to turn OFF the LCD display Press again to turn ON the LCD display 9.Talk K ey T Press and hold to speak to your baby 10.Power Adapter / Battery LED BLUE when mains adapter power on. RED when battery low. 11.Unit ON/OFF LED (Green) 12.Audio Level LED (Green, Orange, Red, Red) 13.Microphone 14.Power Key P Press and Hold to turn the unit ON/OFF 15.Antenna Lift the antenna for optimal reception 16.Battery cover 17.Stand 18.Speaker 19.USB connector Connection to AV output * AV Cable (Optional accessory, to be purchased separately) 20.Power Adapter connector Overview of the Parent Unit 18 15 11 14 13 16 17 19 20 6 7 8 9 2 3 4 5 10 12 1 Parent unit menu icons 1 Signal Level (5 Levels) N Night Vision Mode (Screen changes to Black/White) T Talk M ode Battery Level Control (4 Levels) B 1.Photo Sensor (Night Vision Mode) 2.Camera Lens 3.Infared LEDs 4.Power LED 5.Microphone 6.Speaker 7.ON/OFF Switch 8.Power Adapter Connector 9.Antenna 10.Temperature Sensor 11.Pair Key Important guidelines for installing your Baby Monitor • To use your Video Monitor Baby and Parent Unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. • Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or reinforced concrete between the Baby and Parent Unit may block the radio signal. • The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. • Use of other 2.4GHz products, such as wireless networks (Wi-Fi ® routers), Bluetooth ® systems, or microwave ovens, may cause interference with this product, so keep the baby monitor away at least 5ft (1m) from these types of products, or turn them off if they appear to be causing interference. • If the signal is weak, try moving the Parent and/or the Baby Unit to different positions in the rooms. Parent unit menu icons (cont’d) Overview of Your Baby Unit * Volume Level Control (8 Levels) & Brightness Level Control (8 Levels) m Lullaby Control (5 Song Selections) Z Zoom Level Control (1X, 2X) A Alarm Setting (6h, 4h, 2h, OFF) C Cam Control (scan, view, add, del) t Temperature Reading (HH ºC / ºF or LL ºC / ºF) Icon & readings turn RED > 29ºC / 84ºF, and reading display HH ºC / ºF > 36ºC /97 ºF) Icon & readings turn RED < 14ºC / 57ºF, and reading display LL ºC / ºF < 1ºC /34 ºF) 1 9 11 10 8 2 3 6 5 4 7 Table of contents5 ENGLISH Table of contents 1. Safety Instructions.........................................................................6 2. Getting Started ...............................................................................8 2.1 Baby Unit Power Supply.................................................................8 2.2 Parent Unit Battery Installation.......................................................8 2.3 Parent Unit Power Supply ..............................................................9 2.4 Registration (Pairing)....................................................................10 2.5 View Video Through TV................................................................10 3. Using the Baby Monitor MBP34, MBP34/2, MBP34/3, MBP34/4, MBP34T .................................................................... ....11 3.1 Setting up .....................................................................................11 3.2 Manual Pan and Tilt......................................................................11 3.3 Night Vision Mode ........................................................................11 3.4 Talk Mode.....................................................................................11 3.5 Video ON/OFF..............................................................................11 3.6 Temperature Display (HH ºC / ºF or LL ºC / ºF)............................12 4. MBP34, MBP34/2, MBP34/3, MBP34/4, MBP34T Parent Unit Menu Options ...........................................................13 4.1 Volume .........................................................................................13 4.2 Brightness.....................................................................................13 4.3 Lullaby ................................................…

Text truncated - open the document above for the full version.

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . Date (23/10/2012) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD UNITED KINGDOM Dear Sir or Madam, We, Binatone Electronics International Ltd (Address: Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong) hereby authorize Ray Cheung (TUV SUD HK LTD) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 30/5/2013 Sincerely, Company Officer: Paul Tsui Telephone Number: 2802 7388 Email: [email protected]

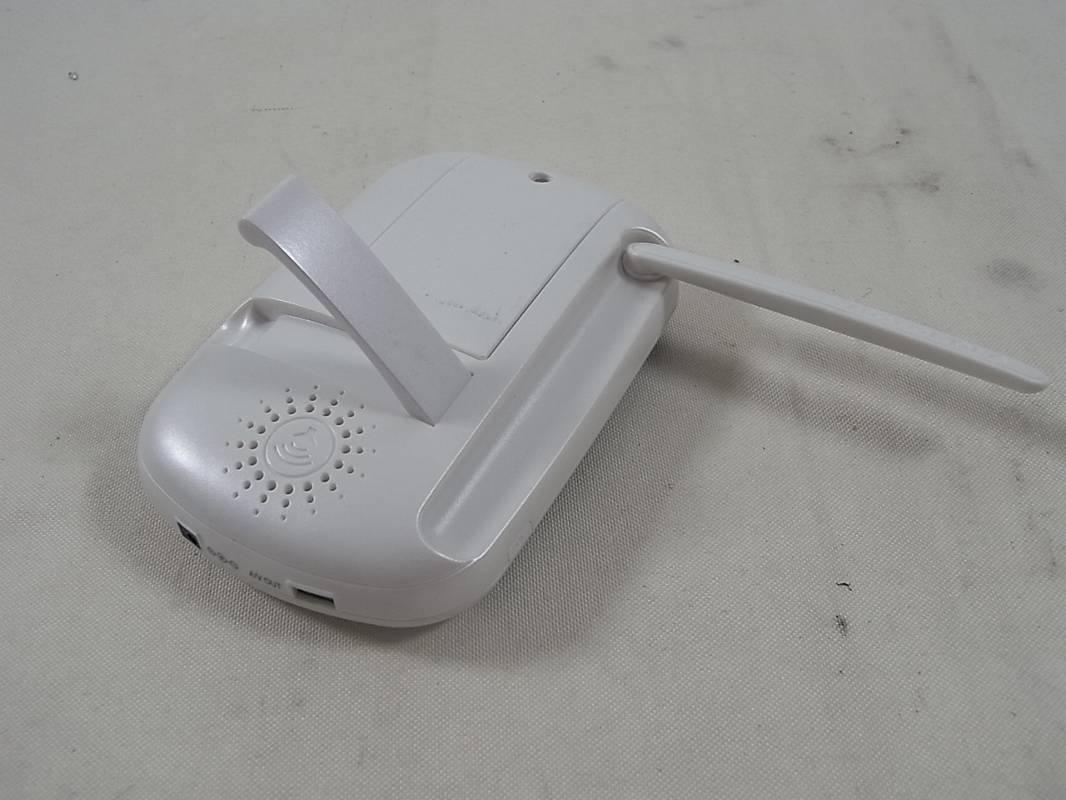

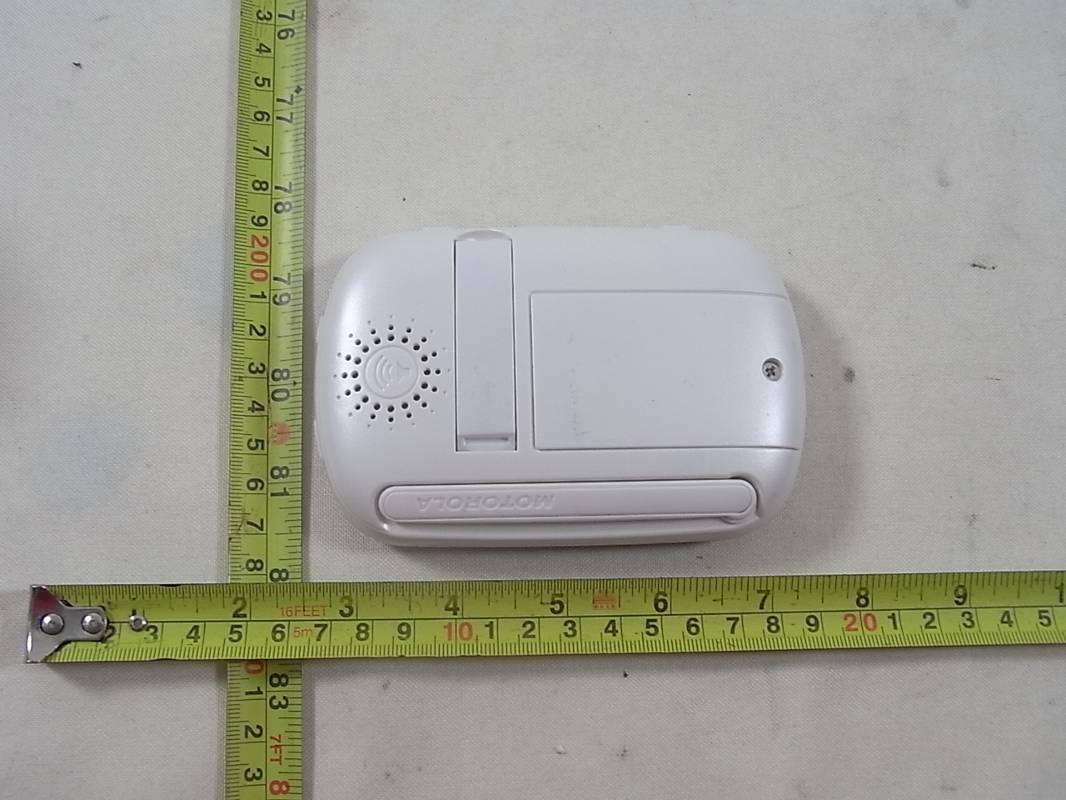

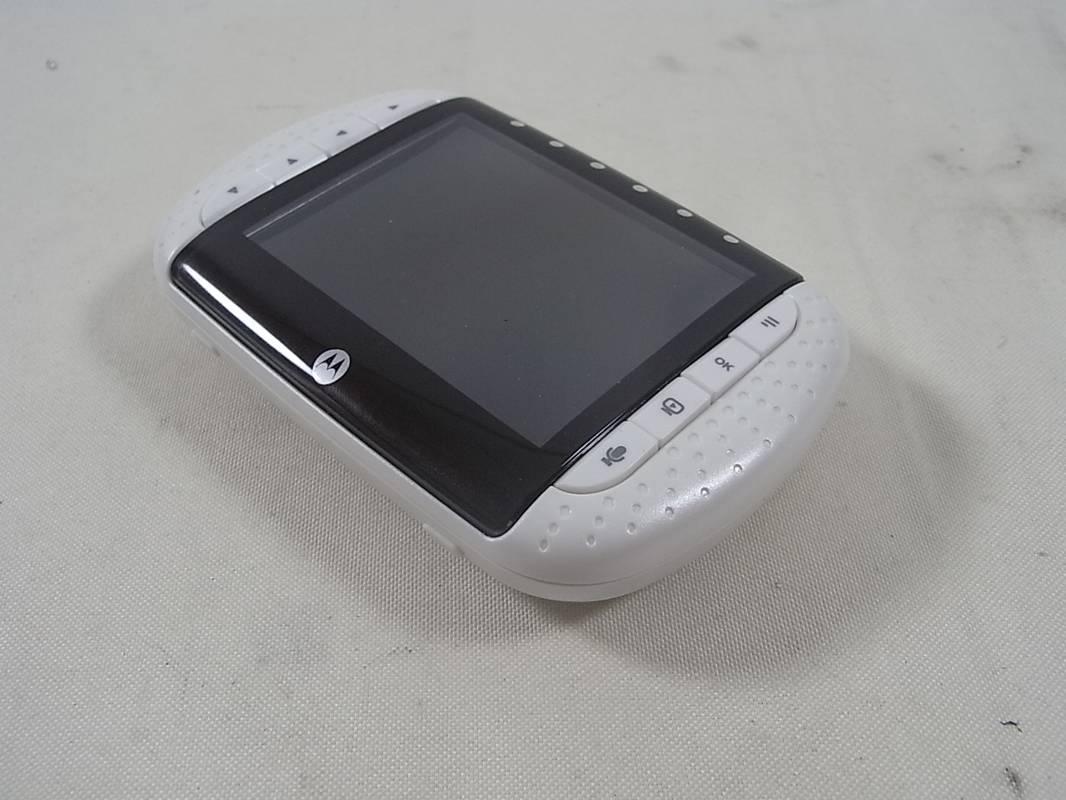

Appendix B Date: 2012-12-19 Report No.: 60.870.12.040.02F Model No.: MBP34PU Photo of EUT – External EUT Photos Page 1 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-12-19 Report No.: 60.870.12.040.02F Model No.: MBP34PU Photo of EUT – External EUT Photos Page 2 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-12-19 Report No.: 60.870.12.040.02F Model No.: MBP34PU Photo of EUT – External EUT Photos Page 3 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong AC/DC Adaptor

INPUT: DC5.9V 1000mA MBP34 US Label 40 24 40X24mm FCC ID: VLJ-MBP34PU IC: 4522A-MBP34PU Ni-MH Battery pack 3.6V, 900mAh Rechargeable Batteries only Use Only Batteries listed in the user instructions. 099-012*00P094-01 099-012*00P094-02 Model:MBP34BU baby monitor PU Use Only Power Supplies listed in the user instructions. FCC ID: VLJ-MBP34BU IC: 4522A-MBP34BU MADE IN CHINA Baby Unit Parent Unit

Appendix C Date: 2012-12-19 Report No.: 60.870.12.040.02F Model No.: MBP34PU Photo of EUT – Internal EUT Photos Page 1 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-12-19 Report No.: 60.870.12.040.02F Model No.: MBP34PU Photo of EUT – Internal EUT Photos Page 2 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-12-19 Report No.: 60.870.12.040.02F Model No.: MBP34PU Photo of EUT – Internal EUT Photos Page 3 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-12-19 Report No.: 60.870.12.040.02F Model No.: MBP34PU Photo of EUT – Internal EUT Photos Page 4 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-12-19 Report No.: 60.870.12.040.02F Model No.: MBP34PU Photo of EUT – Internal EUT Photos Page 5 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-12-19 Report No.: 60.870.12.040.02F Model No.: MBP34PU Photo of EUT – Internal EUT Photos Page 6 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

ReportNo.: 60.870.12.046.02F Page 29 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Test Requirement:FCC part 15 section 15.247 (i) Test Method:FCC part 15 section 1.1307 (b1) OET Bulletin 65, Edition 01-01 Results: PASS Systems operation under the provision of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy levels in excess of the Commission’s guideline, The EUT is considered as a mobile device according to OET Bulletin 65, Edition 01-01, therefore distance to human body of min. 20cm is determined. Frequency Band:2.410.875 GHz ~2.471.625GHz Device Category: Portable (< 20cm separation ) Mobile ( >20cm separation ) Others : Exposure Classification: Occupational/ Controlled exposure General Population / Uncontrolled exposure Max. Output Power66.53mW Antenna Gain0 dBi ( Numeric gain:1) Evaluation Applied: MPE Evaluation SAR Evaluation MPE calculation: The radiated (EIRP) = 66.53 mW The power density at 20cm from the antenna : = EIRP / 4 R² = 0.0132mW / cm² Limits for General Population/Uncontrolled Exposure [OET Bulletin 65, Edition 01-01]: FrequencyElectric FieldMagnetic FieldPower DensityAveraging Time RangeStrength (E)Strength (H)(S)|E| 2 , |H| 2 or S (MHz)(V/m)(A/m)(mW/cm 2 )(minutes) 0.3-1.346141.63(100)*30 1.34-30824/f2.19/f(180/f 2 )*30 30-30027.50.0730.230 300-1500----f/150030 1500-100,000----1.030

TEST REPORT Date: 2012-12-19 Report No.: 60.870.12.040.02F Page 1 of 30 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant:Binatone Electronics International Ltd. Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong Description of Samples:Model name: Baby Monitor (Parent Unit) Brand name: MOTOROLA Model no.:MBP34PU FCCID:VLJ-MBP34PU Date Samples Received:2012-12-05 Date Tested:2012-12-05 to 2012-12-19 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Ray CheungJeff Pong Project EngineerOperation Manager Wireless & Telecom DepartmentWireless & Telecom Department ReportNo.: 60.870.12.040.02F Page 2 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 30 Content Page 2-3 of 30 1.0General Details 1.1Test Laboratory Page 4 of 30 1.2Applicant Details Page 4 of 30 1.3Equipment Under Test [EUT] Page 5 of 30 1.4 Related Submittal(s) Grants Page 5 of 30 2.0Technical Details 2.1Investigations Requested Page 6 of 30 2.2Test Standards and Results Summary Page 6 of 30 3.0Test Methodology 3.1Radiated Emission Page 7 of 30 3.2Field Strength Calculation Page 7 of 30 3.3Conducted Emission Page 7 of 30 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 30 4.2 20dB Bandwidth Measurement Page 9-10 of 30 4.3 Hopping Channel Carrier Frequency Separation Page 11 of 30 4.4 Average Time of Occupancy Page 12-14 of 30 4.5 Pseudorandom Hopping Algorithm Page 15 of 30 4.6 Band Edge Measurement Page 16-17 of 30 4.7 Maximum Output Power Page 18-20 of 30 4.8 Out ofBand Emissionsand Emissions in Restricted Bands Page 20-25 of 30 4.9 Conducted Emission on AC Mains Page 26-28 of 30 ReportNo.: 60.870.12.040.02F Page 3 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Page 29 of 30 6.0List of Measurement Equipments Page 30 of 30 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos ReportNo.: 60.870.12.040.02F Page 4 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory SEM. Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin’an Fanshen Road, Bao’an District, Shenzhen Registration Number: 994117 Test By: John Zhi 1.2Applicant Details Applicant Binatone Electronics International Ltd. Floor 23A, 9 Des Voeux Road West, Sheung Wan Hong Kong Manufacturer Alford Industries Ltd. Unit 02, 6 th Floor, Yen Sheng Centre, 64 Hoi Yuen Road, Kwun Tong, Kowloon, HK ReportNo.: 60.870.12.040.02F Page 5 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of EUT Product Description:Baby Monitor (Parent Unit) Model No.:MBP34PU Brand Name: MOTOROLA FCCID:VLJ-MBP34PU Rating:- DC 6V, 500mA powered by AC/DC power adaptor or - DC 3.6V, 900mAh Ni-MH Rechargeable Battery Operated Frequency:2410.875–2471.625MHz No. ofOperatedChannel:19 Accessories and Auxiliary Equipments:- AC/DC power adaptor Antenna Type:Integral Manufacture of Antenna:Alford Industries Ltd. Antenna Gain:0 dBi Antenna Model:N/A General Operation of EUT The Equipment Under Test (EUT) is a monitor of wireless baby monitor system which operated at 2.4GHz. FHSS Operation Principle: This module is controlled by microchip to generate Pseudorandom Frequency Hopping Sequence, this module support 19 hopping channels. Refer to section 4.5 of this report to have more detail of Pseudorandom Hopping Algorithm. 1.4Related Submittal(s) Grants This is a signal application subjected to Certificate Authorization. ReportNo.: 60.870.12.040.02F Page 6 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 ( a1 ) Pseudorandom Hopping Algorithm Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC Mains Section 15.207 RF ExposureSection 15.247 ( i ) Antenna RequirementSection 15.203 See note 1 Note 1 :The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable ReportNo.: 60.870.12.040.02F Page 7 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on astandard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation …

Text truncated - open the document above for the full version.

Appendix A Date: 2012-12-19 Report No.: 60.870.12.040.02F Model No.:MBP34PU Photo of Test Setup: Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Radiated Emissions Appendix A Date: 2012-12-19 Report No.: 60.870.12.040.02F Model No.:MBP34PU Photo of Test Setup: Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Conducted Emissions
