VLJ-MBP35BBU2.4GHz FHSS Baby Unit

USERíS GUIDE MBP35BL, MBP35BW BABY MONITOR USERíS GUIDE The features described in this userís guide are subject to modifications without prior notice. This Userís Guide provides you with all the information you need to get the most from your product. Before you can use the baby monitor, youíll need to insert and fully charge the battery on the parent unit. Please read the Safety Instructions on page 6 before you install the units. Got everything? ï 1 x Parent unit ï 1 x Baby unit ï 1 x Rechargeable Ni-MH battery pack for the Parent unit ï 1 x Power adapter for the Parent unit ï 1 x Power adapter for the Baby unit IMPORTANT The non-rechargeable batteries for the Baby unit are not supplied with your product. We recommend the batteries to be installed before use, so that the unit continues to work in the event of a power supply failure. Welcome... to your new Motorola Baby Monitor! Thank you for purchasing the MBP35BL, MBP35BW. Now you can see and hear your baby sleeping in the other room or you can monitor your older children in their playroom. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please call: 1-888-331-3383 in US and Canada On the Web: www.motorola.com 1.Display (LCD screen) 2.Up < / Down key > Normal mode: Adjust speaker volume Menu mode: Adjust settings 3.Power and low battery LED 4.Voice Activation LED 5.Lullaby On/Off key i Press to play lullaby. Press again to turn off. 6.Lullaby selection key j Press to select a lullaby during playback 7.Microphone 8.Menu key m Press to open the Menu options 9.Ta l k k e y t Press and hold to speak to your baby 10.Power key p Press to turn on the unit Press and hold to turn it off 11.Antenna 12.Battery cover 13.Speaker Overview of your Parent unit Parent unit display symbols Indicates that the baby unit is out of range or not linked to the parent unit Language Appears when setting the language Appears when displaying the Temperature reading High Appears when the temperature goes above 40∞C (102∞F) Low Appears when the temperature goes below 0∞C (32∞F) Night Light Appears when setting the Night Light function Talk Indicates that the Talk function is activated Appears when playing lullabies Appears when adjusting the Volume of parent unit Appears when adjusting the Brightness of the LCD 5 6 7 2 1 3 4 TALK MENU 12 11 10 9 8 13 1 2 3 4 5 9 8 7 6 Overview of your Baby unit 1.Photo sensor 2.Camera lens 3.Infrared LEDs 4.Power LED 5.Night lights 6.On/Off switch 7.Speaker 8.Antenna 9.Temperature sensor Important guidelines for installing your Baby Monitor ï To use your video monitor baby and parent unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. ï Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or reinforced concrete, between the baby and parent unit may block the radio signal. ï The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TV's, computers, cordless or mobile phones, fluorescent lights or dimmer switches. ï Use of other 2.4GHz products, such as wireless networks, Bluetooth Æ systems or microwave ovens may cause interference with this product, so keep the baby monitor away from these types of products, or turn them off if they appear to be causing interference. ï If the signal is poor, try moving the parent and/or the baby unit to different positions in the rooms. Parent unit display symbols (contíd) Appears when setting camera channel Registration Appears when pairing parent to camera Voice Activation Appears when setting the voice activation on/off Table of contents5 ENGLISH Table of contents 1. Safety Instructions ......................................................................... 6 2. Getting started................................................................................ 7 2.1Baby unit battery installation...........................................................7 2.2Baby unit power supply ..................................................................8 2.3Parent unit battery installation ........................................................8 2.4Parent unit power supply ................................................................9 2.5Registration ..................................................................................10 3. Using the Baby Monitor MBP35BL, MBP35BW ......................... 11 3.1Setting Up.....................................................................................11 3.2Night Vision ..................................................................................11 3.3Talk Function ................................................................................11 3.4Adjusting the volume of the parent unit ........................................11 3.5Playing a lullaby for your baby......................................................12 4. MBP35BL, MBP35BW Parent Unit Menu Options ..................... 13 4.1Setting Display Language.............................................................13 4.2Brightness.....................................................................................13 4.3Temperature Display (∫C or ∫F) ....................................................13 4.4Night Light ....................................................................................13 4.5Voice Activation ............................................................................14 5. Disposal of the device (environment) ........................................ 15 6. Cleaning ........................................................................................ 16 7. Help.......................................................................................…

Text truncated - open the document above for the full version.

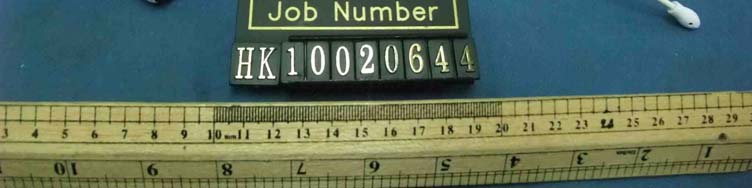

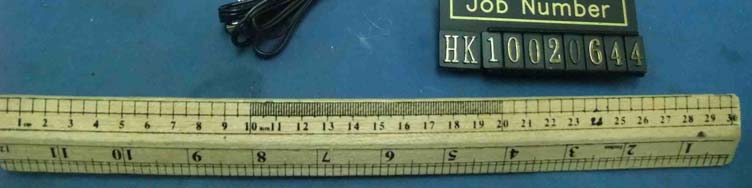

INTERTEK TESTING SERVICES External Photos FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU external photos - 2 of 2

INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU internal photos - 1 of 9 Baby Unit assembly (View 1) Baby Unit assembly (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU internal photos - 2 of 9 Baby Unit Main PCB comp side (View 1) Baby Unit Main PCB comp side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU internal photos - 3 of 9 Baby Unit Main PCB comp side (View 3) Baby Unit Main PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU internal photos - 4 of 9 Baby Unit Oscillator PCB comp side (View 1) Baby Unit Oscillator PCB comp side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU internal photos - 5 of 9 Baby Unit Oscillator PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU internal photos - 6 of 9 Camera assembly Camera Main PCB front side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU internal photos - 7 of 9 Camera Main PCB rear side (View 1) Camera Main PCB rear side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU internal photos - 8 of 9 Camera Main PCB rear side (View 3) Camera Main PCB rear side (View 4) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU internal photos - 9 of 9 VGA Digital Image Sensor PCB front side VGA Digital Image Sensor PCB rear side

INTERTEK TESTING SERVICES Radiated Emission on the Bandedge Plots FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU be - 1 of 1 Baby unit, Lowest channel Baby unit, Highest channel

Report no.: HK10020644-1 Tx with Music Playing Mode (Baby Unit) AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 15.APR.2010 19:09:58 Report no.: HK10020644-1 Tx with Music Playing Mode (Baby Unit) AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 402 kHz 41.19 L1 gnd -16.62 1 Quasi Peak 406.5 kHz 40.10 L1 gnd -17.62 1 Quasi Peak 735 kHz 32.80 N gnd -23.19 1 Quasi Peak 1.0095 MHz 32.77 N gnd -23.23 1 Quasi Peak 1.4775 MHz 29.93 L1 gnd -26.06 1 Quasi Peak 2.373 MHz 29.00 L1 gnd -26.99 Date: 15.APR.2010 19:09:51 Report no.: HK10020644-1 Rx with Music Playing Mode (Baby Unit) AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 15.APR.2010 19:14:37 Report no.: HK10020644-1 Rx with Music Playing Mode (Baby Unit) AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 190.5 kHz 32.65 L1 gnd -31.35 1 Quasi Peak 379.5 kHz 36.20 L1 gnd -22.08 1 Quasi Peak 456 kHz 33.60 L1 gnd -23.15 1 Quasi Peak 762 kHz 35.11 N gnd -20.88 1 Quasi Peak 793.5 kHz 34.85 N gnd -21.14 1 Quasi Peak 1.4505 MHz 28.90 L1 gnd -27.09 1 Quasi Peak 1.6485 MHz 27.80 N gnd -28.20 2 CISPR Average2.5395 MHz 19.26 L1 gnd -26.73 1 Quasi Peak 2.6025 MHz 28.96 N gnd -27.03 1 Quasi Peak 2.9715 MHz 24.28 L1 gnd -31.71 1 Quasi Peak 4.2315 MHz 25.21 N gnd -30.78 Date: 15.APR.2010 19:14:27

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: HK10020644-1 Application for Original Grant of 47 CFR Part 15 Certification New Family of RSS-210 Issue 7 Equipment Certification 2.4GHz Frequency Hopping Spread Spectrum Baby Unit FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU Prepared and Checked by: Approved by: Koo Wai Ip Nip Ming Fung, Melvin Engineer Supervisor April 26, 2010 INTERTEK TESTING SERVICES Test Report Number: HK10020644-1 Page 1 of 22 FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU GENERAL INFORMATION Applicant Name: Binatone Electronics International Limited Applicant Address: Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong. FCC Specification Standard: FCC Part 15: 2008 FCC ID: VLJ-MBP35BBU FCC Model(s): MBP35ByBU, MBP35xByBU IC Specification Standard: RSS-210 Issue 7, June 2007 RSS-Gen Issue 2, June 2007 RSS-102 Issue 4, March 2010 IC: 4522A-MBP35BBU IC Model(s): MBP35BLBU, MBP35BWBU Type of EUT: Transceiver Description of EUT: 2.4GHz Frequency Hopping Spread Spectrum Baby Unit Serial Number: N/A Sample Receipt Date: February 25, 2010 Date of Test: April 15-22, 2010 Report Date: April 26, 2010 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: HK10020644-1 Page 2 of 22 FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU Table of Contents 1.0 Summary of Test Results........................................................................................ 3 2.0 General Description................................................................................................. 5 2.1 Product Description ................................................................................................. 5 2.2 Test Methodology.................................................................................................... 5 2.3 Test Facility............................................................................................................. 5 3.0 System Test Configuration...................................................................................... 7 3.1 Justification ............................................................................................................. 7 3.2 EUT Exercising Software......................................................................................... 8 3.3 Details of EUT and Description of Accessories........................................................ 9 3.4 Measurement Uncertainty ....................................................................................... 9 3.5 Equipment Modification ........................................................................................... 9 4.0 Test Results............................................................................................................ 11 4.1 Field Strength Calculation...................................................................................... 11 4.2 Radiated Emissions............................................................................................... 12 4.2.1 Radiated Emission Configuration Photograph ..................................................... 12 4.2.2 Radiated Emission Data ..................................................................................... 12 4.2.3 Transmitter Duty Cycle Calculation ..................................................................... 13 4.3 Radiated Emissions from Receiver ........................................................................ 18 4.3.1 Radiated Emission Configuration Photograph ..................................................... 18 4.3.2 Radiated Emission Data ..................................................................................... 18 4.4 Radiated Emission on the Bandedge..................................................................... 20 4.5 AC Power Line Conducted Emission ..................................................................... 21 4.5.1 AC Power Line Conducted Emission Configuration Photograph.......................... 21 4.5.2 AC Power Line Conducted Emission Data .......................................................... 21 4.6 Radio Frequency Exposure Compliance................................................................ 21 5.0 Equipment List...................................................................................................... 22 Appendix – Exhibits for Application of Certification INTERTEK TESTING SERVICES Test Report Number: HK10020644-1 Page 3 of 22 FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU 1.0 Summary of Test Results Test Items FCC Part 15 Section RSS-210/ RSS-Gen # / RSS-310^ Section Results Details see section Antenna Requirement 15.203 7.1.4 # Pass 2.1 Radiated Emission Radiated Emission on the Bandedge 15.249(a), 209, & 109 15.249(d) A2.9(a) A2.9(b) Pass Pass 4.2 4.…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Transmitter Duty Cycle Calculation and Measurement Plots FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU timing - 1 of 1 Baby Unit

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU config photos (radiated emission – baby unit) - 1 of 1 Radiated Emission – Baby Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: TX with Music Playing FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: TX with Music Playing FCC ID: VLJ-MBP35BBU IC: 4522A-MBP35BBU config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
