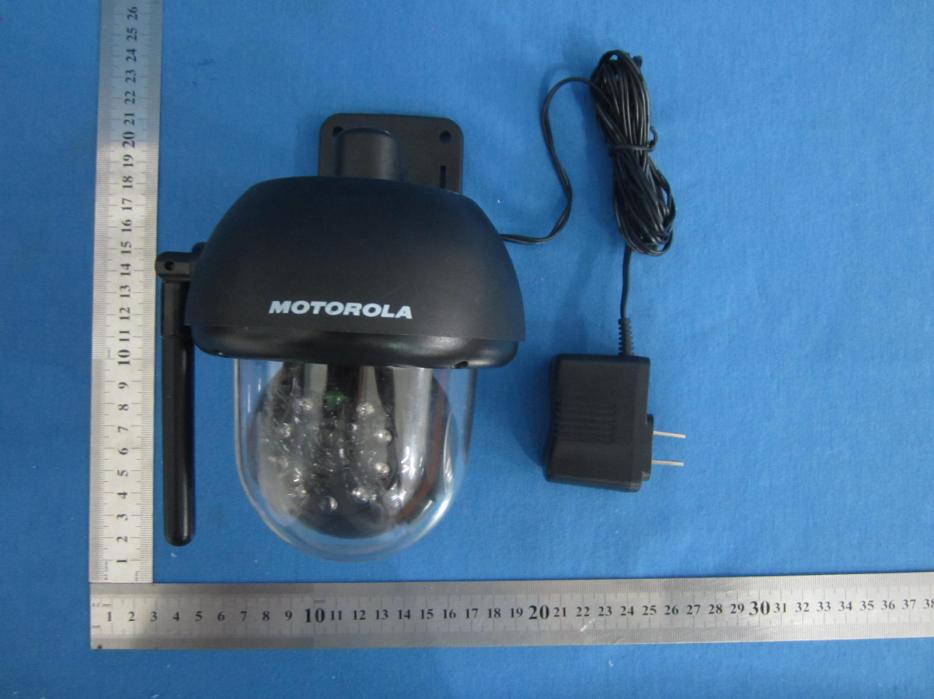

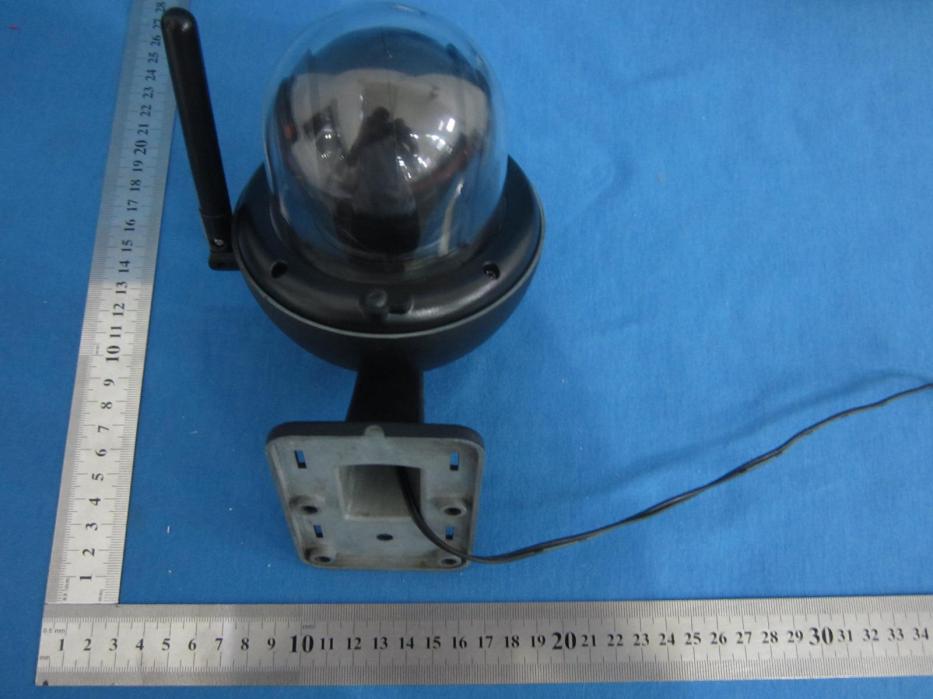

Appendix B Date: 2012-10-30 Report No.: 60.870.12.035.01F Model No.: MBP360BU Photo of EUT – External EUT Photos Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-10-30 Report No.: 60.870.12.035.01F Model No.: MBP360BU Photo of EUT – External EUT Photos Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-10-30 Report No.: 60.870.12.035.01F Model No.: MBP360BU Photo of EUT – External EUT Photos Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong AC/DC Adaptor

Appendix C Date: 2012-10-30 Report No.: 60.870.12.035.01F Model No.: MBP360BU Photo of EUT – Internal EUT Photos Page 1 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-10-30 Report No.: 60.870.12.035.01F Model No.: MBP360BU Photo of EUT – Internal EUT Photos Page 2 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-10-30 Report No.: 60.870.12.035.01F Model No.: MBP360BU Photo of EUT – Internal EUT Photos Page 3 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-10-30 Report No.: 60.870.12.035.01F Model No.: MBP360BU Photo of EUT – Internal EUT Photos Page 4 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

Label Location

Appendix C Date: 2012-10-30 Report No.: 60.870.12.035.01F Model No.: MBP360BU Photo of EUT – Internal EUT Photos Page 1 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-10-30 Report No.: 60.870.12.035.01F Model No.: MBP360BU Photo of EUT – Internal EUT Photos Page 2 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-10-30 Report No.: 60.870.12.035.01F Model No.: MBP360BU Photo of EUT – Internal EUT Photos Page 3 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-10-30 Report No.: 60.870.12.035.01F Model No.: MBP360BU Photo of EUT – Internal EUT Photos Page 4 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

ReportNo.: 60.870.12.035.01F Page 29 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Test Requirement:FCC part 15 section 15.247 (i) Test Method:FCC part 15 section 1.1307 (b1) OET Bulletin 65, Edition 01-01 Results: PASS Systems operation under the provision of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy levels in excess of the Commission’s guideline, The EUT is considered as a mobile device according to OET Bulletin 65, Edition 01-01, therefore distance to human body of min. 20cm is determined. Frequency Band:2410.875MHz ~2471.625MHz Device Category: Portable (< 20cm separation ) Mobile ( >20cm separation ) Others : Exposure Classification: Occupational/ Controlled exposure General Population / Uncontrolled exposure Max. Output Power0.079 W Antenna Gain0dBi ( Numeric gain:1) Evaluation Applied: MPE Evaluation SAR Evaluation MPE calculation: The radiated (EIRP) = 79 mW The power density at 20cm from the antenna : = EIRP / 4ʌ R² = 0.0157 mW / cm² Limits for General Population/Uncontrolled Exposure [OET Bulletin 65, Edition 01-01]: FrequencyElectric FieldMagnetic FieldPower DensityAveraging Time RangeStrength (E)Strength (H)(S)|E| 2 , |H| 2 or S (MHz)(V/m)(A/m)(mW/cm 2 )(minutes) 0.3-1.346141.63(100)*30 1.34-30824/f2.19/f(180/f 2 )*30 30-30027.50.0730.230 300-1500----f/150030 1500-100,000----1.030

TEST REPORT Date: 2012-10-30 Report No.: 60.870.12.035.01F Page 1 of 30 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant: Binatone Electronics International Ltd. Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong Description of Samples:Model name: Baby Monitor (OutdoorCameraUnit) Brand name: MOTOROLA Model no.:MBP360BU FCCID:VLJ-MBP360BU Date Samples Received:2012-06-22 Date Tested:2012-06-22 to 2012-10-30 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Ray CheungJeff Pong Project EngineerOperation Manager Wireless & Telecom DepartmentWireless & Telecom Department ReportNo.: 60.870.12.035.01F Page 2 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 30 Content Page 2-3 of 30 1.0General Details 1.1Test Laboratory Page 4 of 30 1.2Applicant Details Page 4 of 30 1.3Equipment Under Test [EUT] Page 5 of 30 1.4 Related Submittal(s) Grants Page 5 of 30 2.0Technical Details 2.1Investigations Requested Page 6 of 30 2.2Test Standards and Results Summary Page 6 of 30 3.0Test Methodology 3.1Radiated Emission Page 7 of 30 3.2Field Strength Calculation Page 7 of 30 3.3Conducted Emission Page 7 of 30 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 30 4.2 20dB Bandwidth Measurement Page 9-10 of 30 4.3 Hopping Channel Carrier Frequency Separation Page 11 of 30 4.4 Average Time of Occupancy Page 12-14 of 30 4.5 Pseudorandom Hopping Algorithm Page 15 of 30 4.6 Band Edge Measurement Page 16-17 of 30 4.7 Maximum Output Power Page 18-20 of 30 4.8 Out ofBand Emissionsand Emissions in Restricted Bands Page 21-25 of 30 4.9 Conducted Emission on AC Mains Page 26-28 of 30 ReportNo.: 60.870.12.035.01F Page 3 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Page 29 of 30 6.0List of Measurement Equipments Page 30 of 30 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos ReportNo.: 60.870.12.035.01F Page 4 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory Global United Technology Services Co. Ltd. 2 nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District Registration Number: 600491 Tested by: John Zhi 1.2Applicant Details Applicant Binatone Electronics International Ltd. Floor 23A, 9 Des Voeux Road West, Sheung Wan Hong Kong Manufacturer Alford Industries Ltd Unit 02, 6 th Floor, Yen Sheng Centre, 64 Hoi Yuen Road, Kwun Tong, Hong Kong ReportNo.: 60.870.12.035.01F Page 5 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of EUT Product Description:Baby Monitor (OutdoorCameraUnit) ModelNo.:MBP360BU Brand Name: MOTOROLA FCCID:VLJ-MBP360BU Rating:-DC5.9V, 1000mApowered by AC/DC power adaptor Operated Frequency:2410.875-2471.625MHz No. of Operated Channel:19 Accessories and Auxiliary Equipments:Nil Antenna Type:Integral Manufacture of Antenna:Alford. Antenna Gain:0dBi Antenna Model:N/A General Operation of EUT The Equipment Under Test (EUT) is an Outdoor Camera of Baby Monitor System. FHSS Operation Principle: This module is controlled by microchip to generate Pseudorandom Frequency Hopping Sequence, this module support 19 hopping channels. Refer to section 4.5 of this report to have more detail of Pseudorandom Hopping Algorithm. 1.4Related Submittal(s) Grants This is a signal application subjected to Certificate Authorization. ReportNo.: 60.870.12.035.01F Page 6 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 ( a1 ) Pseudorandom Hopping Algorithm Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC Mains Section 15.207 RF ExposureSection 15.247 ( i ) Antenna RequirementSection 15.203 See note 1 Note 1 :The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable ReportNo.: 60.870.12.035.01F Page 7 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation The field strength at 3 m was established by adding the meter reading of the spectrum …
