VLJ-MBP36PU2.4GHz Baby Monitor System (Monitor, Parent unit)

USERíS GUIDE MBP36 BABY MONITOR USERíS GUIDE The features described in user's guide are subject to modifications without prior notice. This User's Guide provides you with all the information you need to get the most from your product. Before you can use the baby monitor, we recommend you insert and fully charge the battery in the parent unit, so that it continues to work if you disconnect it from the power supply to carry it to another location. Please read the Safety Instructions on page 6 before you install the units. Got everything? ï 1 x Parent unit ï 1 x Baby unit ï 1 x Rechargeable Ni-MH battery pack for the parent unit ï 1 x Power adapter for the Parent unit ï 1 x Power adapter for the Baby unit Welcome... to your new Motorola Baby Monitor! Thank you for purchasing the MBP36. Now you can see and hear your baby sleeping in another room or you can monitor your older children in their playroom. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please call: US and Canada 1-888-331-3383 UK0845 218 0890 On the Web: www.motorola.com 1.Display (LCD screen) 2.Up Key + Normal Mode: Tilt Up Menu Mode: Up 3.Down Key - Normal Mode: Tilt Down Menu Mode: Down 4.Left Key < Normal Mode: Pan Left Menu Mode: Left 5.Right Key > Normal Mode: Pan Right Menu Mode: Right 6.Menu Key M Press to open the Menu options 7.OK Key O 8.Video ON/OFF Key V Press to turn OFF the LCD display Press again to turn ON the LCD display 9.Ta l k K e y T Press and hold to speak to your baby 10.Power Adapter / Battery LED BLUE when mains adapter power on. Flashes BLUE when battery charging. Flashes RED when battery low. 11.Unit ON/OFF LED (Green) 12.Audio Level LED (Green, Orange, Red, Red) 13.Microphone 14.Power Key P Press and Hold to turn the unit ON/OFF 15.Antenna Lift the antenna for optimal reception 16.Battery cover 17.Stand 18.Speaker 19.USB connector Connection to AV output * AV Cable (Optional accessory, to be purchased separately) 20.Power Adaptor connector Overview of the Parent Unit 18 15 11 14 13 16 17 19 20 6 7 8 9 2 3 4 5 10 1 12 Parent unit menu icons 1 Signal Level (5 Levels) N Night Vision Mode (Screen changes to Black/White) T Ta l k M o d e Battery Level Control (4 Levels) H Pan Left J Pan Right K Tilt Up L Tilt Down B 1.Photo Sensor (Night Vision Mode) 2.Camera Lens 3.Infared LEDs 4.Power LED 5.Microphone 6.Speaker 7.ON/OFF Switch 8.Power Adaptor Connector 9.Antenna 10.Temperature Sensor 11.Pair Key Important guidelines for installing your Baby Monitor ï To use your Video Monitor Baby and Parent Unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. ï Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or reinforced concrete between the Baby and Parent Unit may block the radio signal. ï The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. ï Use of other 2.4GHz products, such as wireless networks, Bluetooth Æ systems, or microwave ovens, may cause interference with this product, so keep the baby monitor away from these types of products, or turn them off if they appear to be causing interference. ï If the signal is weak, try moving the Parent and/or the Baby Unit to different positions in the rooms. Parent unit menu icons (contíd) Overview of Your Baby Unit * Volume Level Control (8 Levels) & Brightness Level Control (8 Levels) m Lullaby Control (5 Song Selections) Z Zoom Level Control (1X, 2X) A Alarm Setting (6h, 4h, 2h, OFF) C Cam Control (scan, view, add, del) t Temperature Reading (HH ∫C / ∫F or LL ∫C / ∫F) Icon & readings turn RED > 29∫C / 84∫F, and reading display HH ∫C / ∫F > 36∫C / 97 ∫F) Icon & readings turn RED < 14∫C / 57∫F, and reading display LL ∫C / ∫F < 1∫C / 34 ∫F) 1 9 11 10 8 2 3 6 5 4 7 Table of contents5 ENGLISH Table of contents 1. Safety Instructions ......................................................................... 6 2. Getting Started ............................................................................... 8 2.1Baby Unit Power Supply.................................................................8 2.2Parent Unit Battery Installation .......................................................8 2.3Parent Unit Power Supply ..............................................................9 2.4Registration (Pairing)....................................................................10 2.5View Video Through TV................................................................10 3. Using the Baby Monitor MBP36 .................................................. 11 3.1Setting up .....................................................................................11 3.2Pan and Tilt ..................................................................................11 3.3Night Vision Mode ........................................................................11 3.4Talk Mode.....................................................................................11 3.5Video ON/OFF..............................................................................11 3.6Temperature Display (HH ∫C / ∫F or LL ∫C / ∫F)............................11 4. MBP36 Parent Unit Menu Options .............................................. 12 4.1Volume .........................................................................................12 4.2Brightness.....................................................................................12 4.3Lullaby ..........................................................................................12 4.4Zoom ............................................................................…

Text truncated - open the document above for the full version.

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . Date (06/05/2011) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Binatone Electronics International Limited, Floor 23A, 9 Des Voeux Road West, Hong Kong, hereby authorize Nicolas Cheng (TUV SUD HK LTD) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 06/11/2011 Sincerely, Company Officer: Paul Tsui Telephone Number: +852 20802 7388 Email: [email protected]

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . Date (06/05/2011) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: VLJ-MBP36PU, VLJ-MBP36BU Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Binatone Electronics International Ltd hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation Binatone Electronics International Ltd also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (up to 180 days): Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Paul Tsui Telephone Number: +852 20802 7388 Email: [email protected]

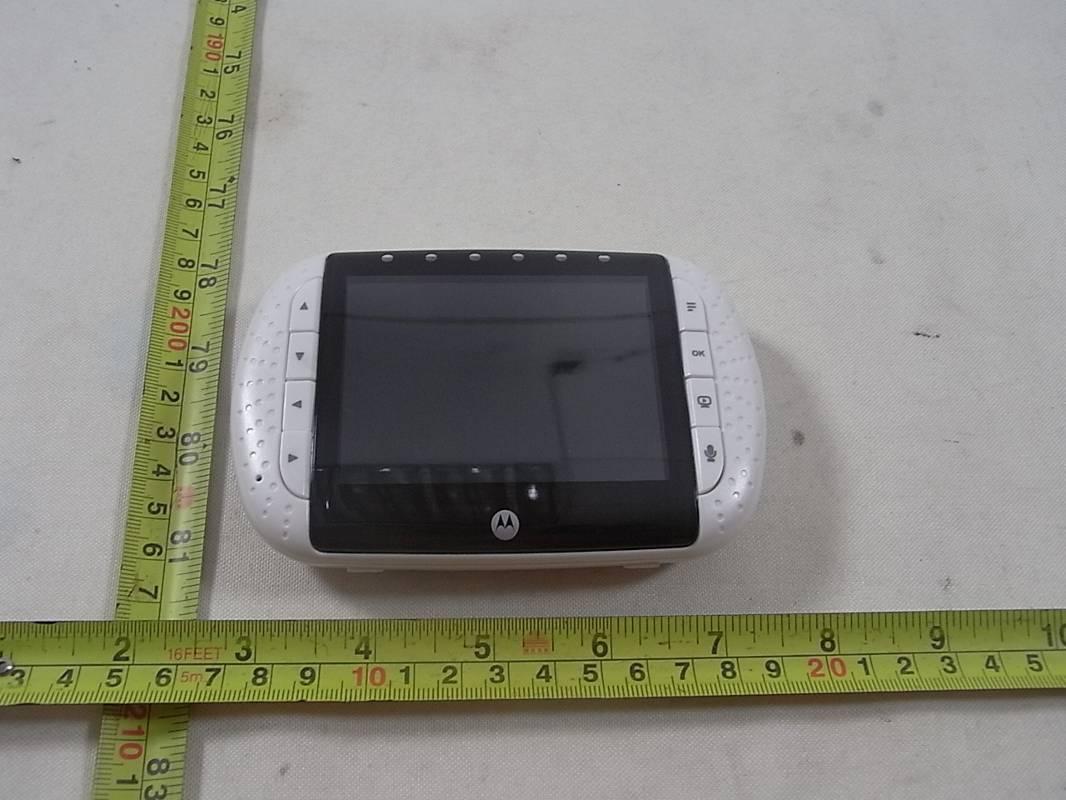

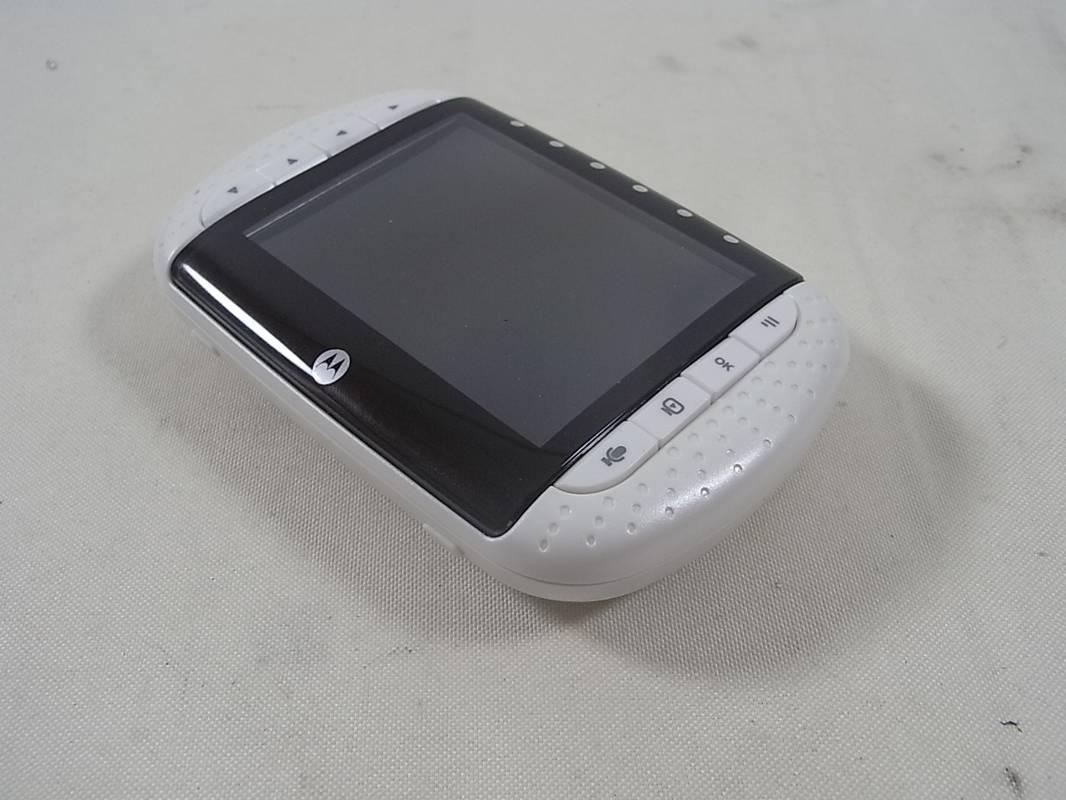

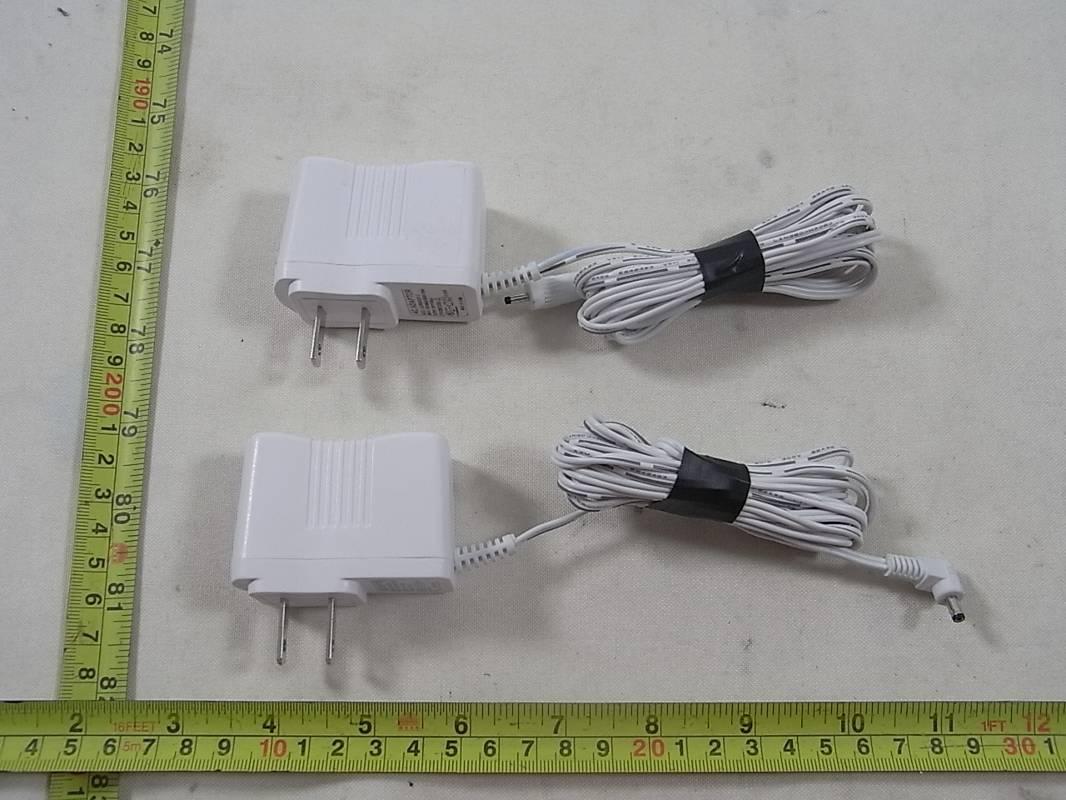

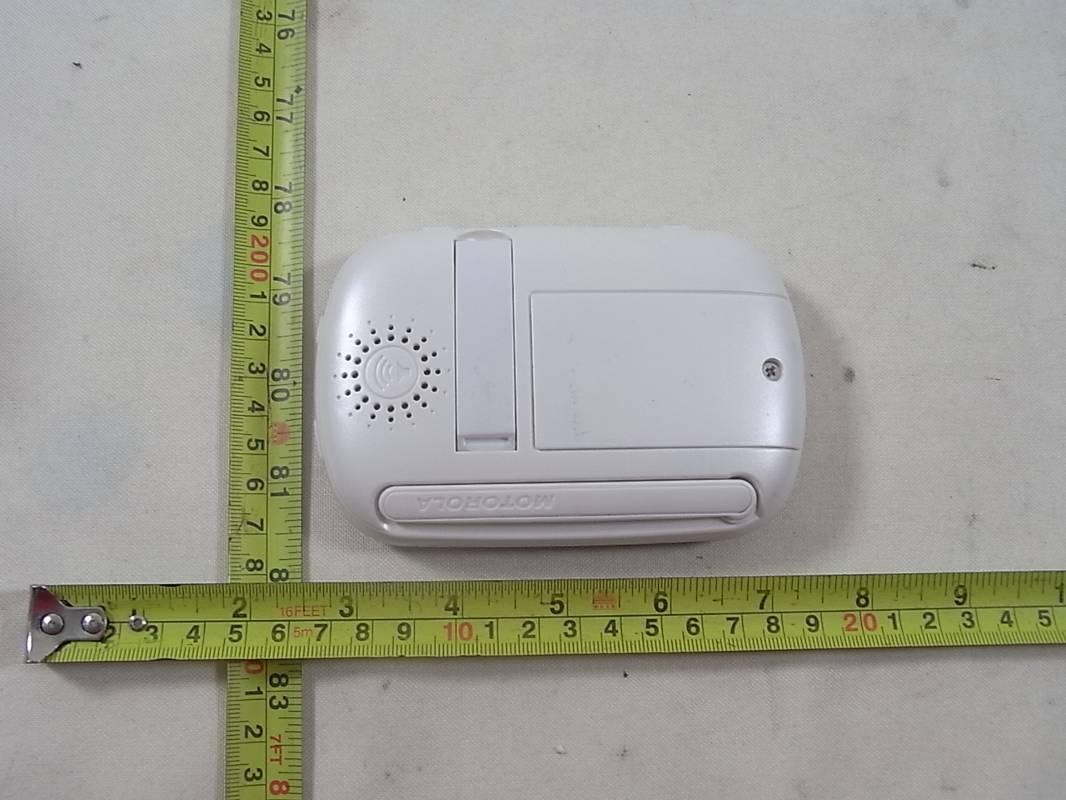

60.870.11.009.02F APPENDIX B – External EUT Photo Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 60.870.11.009.02F APPENDIX B – External EUT Photo Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 60.870.11.009.02F APPENDIX B – External EUT Photo Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Baolijin Adaptor Helms Adaptor

60.870.11.009.02F APPENDIX C– Internal EUT Photo Page 1 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 60.870.11.009.02F APPENDIX C– Internal EUT Photo Page 2 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 60.870.11.009.02F APPENDIX C– Internal EUT Photo Page 3 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 60.870.11.009.02F APPENDIX C– Internal EUT Photo Page 4 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 60.870.11.009.02F APPENDIX C– Internal EUT Photo Page 5 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 60.870.11.009.02F APPENDIX C– Internal EUT Photo Page 6 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong.

Report No.: 60.870.11.009.02F Page 33 of 34 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Test Requirement:FCC part 15 section 15.247 (i) Test Method:FCC part 15 section 1.1307 (b1) OET Bulletin 65, Edition 01-01 Results: PASS Systems operation under the provision of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy levels in excess of the Commission’s guideline, The EUT is considered as a mobile device according to OET Bulletin 65, Edition 01-01, therefore distance to human body of min. 20cm is determined. Frequency Band:2.410GHz ~2.471GHz Device Category: Portable (< 20cm separation ) Mobile ( >20cm separation ) Others : Exposure Classification: Occupational/ Controlled exposure General Population / Uncontrolled exposure Max. Output Power0.16mW Antenna Gain0dBi ( Numeric gain:1) Evaluation Applied: MPE Evaluation SAR Evaluation MPE calculation: The radiated ( EIRP) = 0.16 mW The power density at 20cm from the antenna : = EIRP / 4 R² = 0.000127W / cm² Limits for General Population/Uncontrolled Exposure [OET Bulletin 65, Edition 01-01]: FrequencyElectric FieldMagnetic FieldPower DensityAveraging Time RangeStrength (E)Strength (H)(S)|E| 2 , |H| 2 or S (MHz)(V/m)(A/m)(mW/cm 2 )(minutes) 0.3-1.346141.63(100)*30 1.34-30824/f2.19/f(180/f 2 )*30 30-30027.50.0730.230 300-1500----f/150030 1500-100,000----1.030

TEST REPORT Date: 2011-05-04 Report No.: 60.870.11.009.02F Page 1 of 34 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant: Binatone Electronics International Ltd. Floor 23A, 9 Des Voeux Road West, Hong Kong Description of Samples:Model name: WIRELESS BABY MONITOR(Parent Unit) Brand name: MOTOROLA Model no.:MBP36PU FCCID:VLJ-MBP36PU Date Samples Received:2011-03-01 Date Tested:2011-03-01 to 2011-04-29 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by: Nicolas ChengJeff Pong Assistant Project ManagerAssistant Manager Telecom departmentTelecom department Report No.: 60.870.11.009.02F Page 2 of 34 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 34 Content Page 2-3 of 34 1.0General Details 1.1Test Laboratory Page 4 of 34 1.2Applicant Details Page 4 of 34 1.3Equipment Under Test [EUT] Page 5 of 34 1.4 Related Submittal(s) Grants Page 5 of 34 2.0Technical Details 2.1Investigations Requested Page 6 of 34 2.2Test Standards and Results Summary Page 6 of 34 3.0Test Methodology 3.1Radiated Emission Page 7 of 34 3.2Field Strength Calculation Page 7 of 34 3.3Conducted Emission Page 7 of 34 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 34 4.2 20dB Bandwidth Measurement Page 9-10 of 34 4.3 Hopping Channel Carrier Frequency Separation Page 11-12 of 34 4.4 Average Time of Occupancy Page 13-14 of 34 4.5 Pseudorandom Hopping Algorithm Page 15 of 34 4.6 Band Edge Measurement Page 16-17 of 34 4.7 Maximum Output Power Page 18-19 of 34 4.8 Out ofBand Emissionsand Emissions in Restricted Bands Page 20-27 of 34 4.9 Conducted Emission on AC Mains Page 28-32 of 34 Report No.: 60.870.11.009.02F Page 3 of 34 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Page 33 of 34 6.0List of Measurement Equipments Page 34 of 34 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.: 60.870.11.009.02F Page 4 of 34 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory Neutron Engineering Inc. EMC Laboratoryregistered by FCC with FCC Registration Number:247470 Test By˖ Ares Liu 1.2Applicant Details Applicant Binatone Electronics International Ltd. Floor 23A, 9 Des Voeux Road, Hong Kong Manufacturer Alford Industries Ltd. Unit 02, 6th Floor, Yen Sheng Centre, 64 Hoi Yuen Road, Kowloon Report No.: 60.870.11.009.02F Page 5 of 34 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of EUT Product Description:WIRELESS BABY MONITOR(Parent Unit) ModelNo.:MBP36PU Brand Name: MOTOROLA FCCID:VLJ-MBP36PU Rating:DC6.0V,500mApowered by AC/DC power adaptor, or DC 3.6V, 900mA Li-ion rechargeable battery. Operated Frequency:2410 -2471 MHz No. of Operated Channel:19 Accessories and Auxiliary Equipments:-AC/DC power adaptor. Antenna Type:Integral Manufacture of Antenna: Alford Industries Ltd. Antenna Gain:0dBi Antenna Model:N/A General Operation of EUT The Equipment Under Test (EUT) is a WIRELESS BABY MONITOR System operated at 2.4GHz. FHSS Operation Principle: This module is controlled by microchip to generate Pseudorandom Frequency Hopping Sequence, this module support 19 hopping channels. Refer to section 4.5 of this report to have more detail of Pseudorandom Hopping Algorithm. 1.4Related Submittal(s) Grants Thisis a signal applicationsubjected to Certificate Authorization. Report No.: 60.870.11.009.02F Page 6 of 34 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4: 2003 for FCC Verification 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 ( a1 ) Pseudorandom Hopping Algorithm Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC Mains Section 15.207 RF ExposureSection 15.247 ( i ) Antenna RequirementSection 15.203 See note 1 Note 1 :The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable Report No.: 60.870.11.009.02F Page 7 of 34 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *On astandard emission test sitewith a metal ground plane filed with the FCC pursuant to section 2.948 of the…

Text truncated - open the document above for the full version.

60.870.11.009.01F APPENDIX A – Photos of Test Setup Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Conducted Emission Parent Unit power by Helms Adaptor Parent Unit power by Baolijin Adaptor 60.870.11.009.01F APPENDIX A – Photos of Test Setup Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Radiated Emission Parent Unit power by Helms Adaptor Parent Unit power by Baolijin Adaptor
