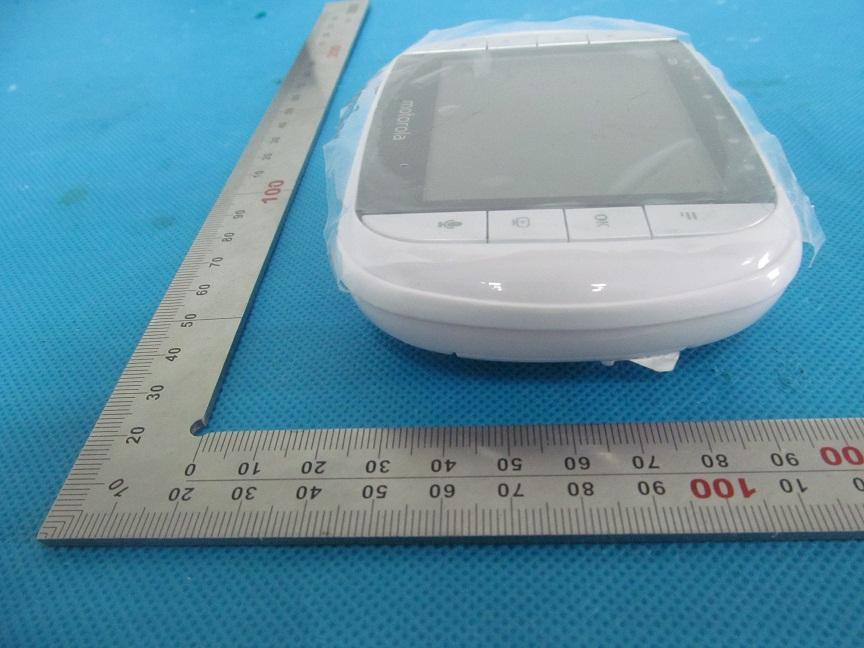

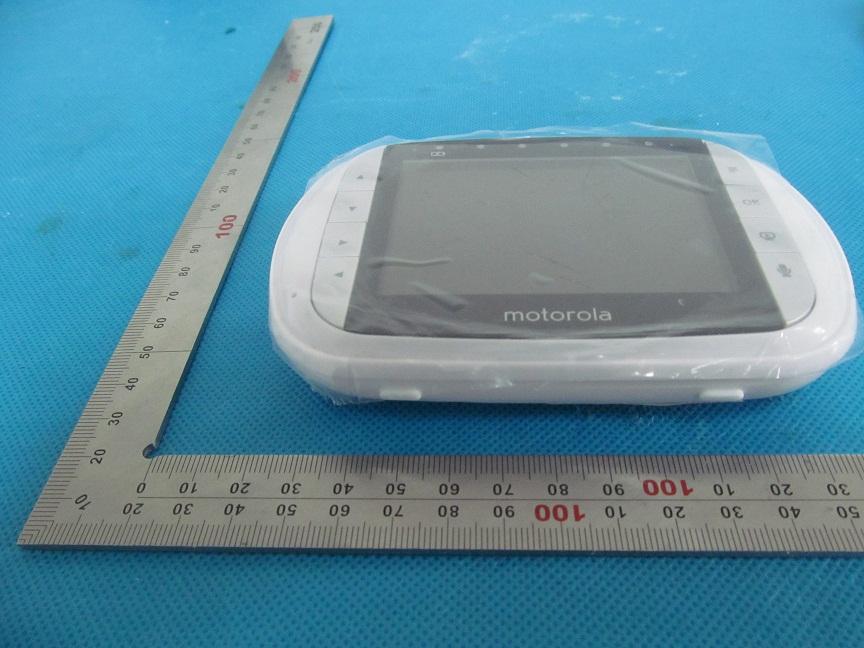

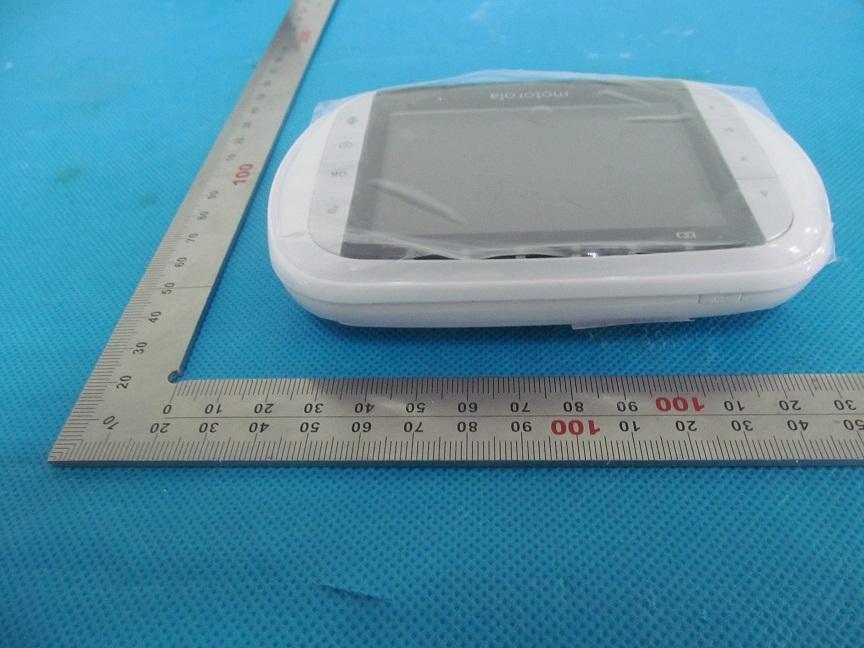

VLJ-MBP36SPUVideo Baby Monitor (Parent Unit)

User’s Guide Video Baby Monitor with On-line Viewing Models: MBP36S, MBP36S/2, MBP36S/3, MBP36S/4 The features described in this User’s Guide are subject to modifications without prior notice. Welcome... to your new Motorola Baby Monitor! Thank you for purchasing the MBP36S, MBP36S/2, MBP36S/3, MBP36S/4. Now you can see and hear your baby sleeping in another room or you can monitor your older children in their playroom. The model also features On-line Viewing function which you can share the video feed of your baby over internet. You can view remotely anywhere the camera video from your PC or Notebook, as well as devices for Android™ iPhone ® /iPad ® . Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please call: This User's Guide provides you with all the information you need to get the most from your product. Before you can use the baby monitor, we recommend you insert and fully charge the battery in the parent unit, so that it continues to work if you disconnect it from the power supply to carry it to another location. Please read the Safety Instructions on page 6 before you install the units. Got everything? • 1 x Parent unit • 1 x Camera unit • 1 x Rechargeable Ni-MH battery pack • 1 x micro USB/USB cable • 1 x Power adapter for the Parent unit • 1 x Power adapter(s) for the Camera unit In multi-camera packs, you will find one or more additional camera units with power adapter units. US and Canada 1-888-331-3383 Email: [email protected] Overview of the Parent Unit 1.Display (LCD screen) 2.Up Key + Normal Mode: Tilt Up Menu Mode: Up 3.Down Key - Normal Mode: Tilt Down Menu Mode: Down 4.Left Key < Normal Mode: Pan Left Menu Mode: Left 5.Right Key > Normal Mode: Pan Right Menu Mode: Right 6.Menu Key M Press to open the Menu options 7.OK Key O 8.Video ON/OFF Key V Press to turn OFF the LCD display Press again to turn ON the LCD display 9.Ta l k K e y T Press and hold to speak to your baby 10.Power Adapter / Battery LED BLUE when mains adapter power on. RED when battery low. 11.Unit ON/OFF LED (Green) 12.Audio Level LED (Green, Orange, Red, Red) 13.Microphone 14.Power Key P Press and Hold to turn the unit ON/OFF 15.Antenna Lift the antenna for optimal reception 16.Battery cover 17.Stand 18.Speaker 19.USB connector 20.AV out / Audio out POWER 18 15 11 14 13 16 17 19 20 6 7 8 9 2 3 4 5 1012 1 Parent unit menu icons Signal Level (5 Levels) Night Vision Mode (Screen changes to Black/White) Ta l k M o d e Battery Level Control (4 Levels) Pan Left Pan Right Ti l t U p Ti l t D o w n Important guidelines for installing your Baby Monitor • To use your Video Monitor Baby and Parent Units together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. • Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or reinforced concrete between the Baby and Parent Unit may block the radio signal. • The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. • Use of other 2.4GHz products, such as wireless networks (Wi-Fi ® routers), Bluetooth ® systems, or microwave ovens, may cause interference with this product, so keep the baby monitor away at least 5ft (1.5m) from these types of products, or turn them off if they appear to be causing interference. • If the signal is weak, try lifting up the Parent Unit Antenna, moving the Parent and/or the Baby Unit to different positions in the rooms. 1. Photo Sensor (Night Vision Mode) 6. Speaker 7. ON/OFF Switch 2. Camera Lens8. Power Adapter Socket 3. Infrared LEDs9. Antenna 4. Power LED10. Temperature Sensor 5. Microphone 11. Pair Key Parent unit menu icons (cont’d) Overview of Your Baby Unit Volume Level Control (8 Levels) Zoom Level Control (1X, 2X) Brightness Level Control (8 Levels) Lullaby Control (5 Song Selections) Alarm Setting (6h, 4h, 2h, Off ) Temperature Reading (HH ºC / ºF or LL ºC / ºF) Icon & readings turn RED > 29ºC / 84ºF, and reading display HH ºC / ºF > 36ºC / 97 ºF) Icon & readings turn RED < 14ºC / 57ºF, and reading display LL ºC / ºF < 1ºC / 34 ºF) Cam Control (scan, view, add, delete) Screen viewing mode control (Single Screen, 4-split Screen) Set Video On Timer (5 min, 30 min, 60 min) V 1 9 11 10 8 2 3 6 5 4 7 PAIR Table of contents5 ENGLISH Table of contents 1.Safety Instructions ..................................................................................... 6 2.Getting Started .......................................................................................... 8 2.1Baby Unit Power Supply .............................................................................. 8 2.2Parent Unit Battery Installation .................................................................... 8 2.3Parent Unit Power Supply ........................................................................... 9 2.4Registration (Pairing)................................................................................. 10 2.5View Video Through TV ............................................................................ 10 3.Using the Baby Monitor ........................................................................... 11 3.1Setting up................................................................................................... 11 3.2Pan and Tilt ................................................................................................ 11 3.3Night Vision Mode..................................................................................... 11 3.4Talk Mode .................................................................................................. 11 3.5Video ON/OFF.…

Text truncated - open the document above for the full version.

Appendix B Date: 2014-04-21 Report No.: 60.870.14.003.03F Model No.:MBP36SPU Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2014-04-21 Report No.: 60.870.14.003.03F Model No.:MBP36SPU Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2014-04-21 Report No.: 60.870.14.003.03F Model No.:MBP36SPU Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong.

Information of Label -FOCUS36S serial number odel: FOCUS36SBU odel: FOCUS36SPU FOCUS36S U S Product Label M Input: DC5V 1000mA Use Only Power Supplies listed in the user’s guide. FCC ID: VLJ-MBP36SBU IC: 4522A-MBP36SBU MADE IN CHINA Input: DC5V 600mA M Ni-MH Battery pack 3.6V, 900mAh Rechargeable Batteries only Use Only Batteries and Power Supplies listed in the user’s guide. IC: 4522A-MBP36SPU FCC ID: VLJ-MBP36SPU MADE IN CHINA VT 1403000001G Baby unit rating label 1) Colour: White background black letters 2) Material: label paper with plastic lamination on top 3) Scale: 1:1, size:40 x 24mm Parent unit battery compartment label 1) Colour: White background black letters 2) Material: adhesive label with plastic lamination 3) Scale: 1:1, size:40 x 24mm Date code and serial no. label on Baby unit back, Parent unit battery compartment, Gift box and Carton. 1) Colour: White background black letters 2) Material: adhesive label with plastic lamination on top 3) Scale: 1:1, size:40 x 6mm Your factory code is ‘VT’ Serial no. start from ‘000001’ (6 digits) Code Format: code 128 Produce date: 14=Year (2014), 03=March (Mar) “G” for GoHS

MBP36S US Product Label Model: MBP36SBU Input: DC5V 1000mA Use Only Power Supplies listed in the user’s guide. FCC ID: VLJ-MBP36SBU IC: 4522A-MBP36SBU MADE IN CHINA Input: DC5V 600mA Model: MBP36SPU Ni-MH Battery pack 3.6V, 900mAh Rechargeable Batteries only Use Only Batteries and Power Supplies listed in the user’s guide. IC: 4522A-MBP36SPU FCC ID: VLJ-MBP36SPU MADE IN CHINA VT 1403000001G Baby unit rating label 1) Colour: White background black letters 2) Material: label paper with plastic lamination on top 3) Scale: 1:1, size:40 x 24mm Parent unit battery compartment label 1) Colour: White background black letters 2) Material: adhesive label with plastic lamination 3) Scale: 1:1, size:40 x 24mm Date code and serial no. label on Baby unit back, Parent unit battery compartment, Gift box and Carton. Information of Label -MBP36S serial number 1) Colour: White background black letters 2) Material: adhesive label with plastic lamination on top 3) Scale: 1:1, size:40 x 6mm Your factory code is ‘VT’ Serial no. start from ‘000001’ (6 digits) Code Format: code 128 Produce date: 14=Year (2014), 03=March (Mar) “G” for GoHS

SCOUT36S US Product Label Model: SCOUT36SBU Input: DC5V 1000mA Use Only Power Supplies listed in the user’s guide. FCC ID: VLJ-MBP36SBU IC: 4522A-MBP36SBU MADE IN CHINA Input: DC5V 600mA Model: SCOUT36SPU Ni-MH Battery pack 3.6V, 900mAh Rechargeable Batteries only Use Only Batteries and Power Supplies listed in the user’s guide. IC: 4522A-MBP36SPU FCC ID: VLJ-MBP36SPU MADE IN CHINA VT 1403000001G Baby unit rating label 1) Colour: White background black letters 2) Material: label paper with plastic lamination on top 3) Scale: 1:1, size:40 x 24mm Parent unit battery compartment label 1) Colour: White background black letters 2) Material: adhesive label with plastic lamination 3) Scale: 1:1, size:40 x 24mm Date code and serial no. label on Baby unit back, Parent unit battery compartment, Gift box and Carton. Information of Label -SCOUT36S serial number 1) Colour: White background black letters 2) Material: adhesive label with plastic lamination on top 3) Scale: 1:1, size:40 x 6mm Your factory code is ‘VT’ Serial no. start from ‘000001’ (6 digits) Code Format: code 128 Produce date: 14=Year (2014), 03=March (Mar) “G” for GoHS

Label Location

Appendix C Date: 2014-04-21 Report No.: 60.870.14.003.03F Model No.:MBP36SPU, SCOUT36SPU Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix C Date: 2014-04-21 Report No.: 60.870.14.003.03F Model No.:MBP36SPU, SCOUT36SPU Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong.

TEST REPORT Date: 2014-04-21 Report No.: 60.870.14.003.03F Page 1 of 13 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant: Binatone Electronics International Limited Floor 23, 9 Des Voeux Road West, Sheung Wan, Hong Kong Description of Samples:Model name: Video Baby Monitor (Baby Unit) Brand name: motorola Model no.:MBP36SPU, SCOUT36SPU, FOCUS36SPU FCCID:VLJ-MBP36SPU Date Samples Received:2014-02-19 Date Tested:2014-02-20 to 2014-04-12 Investigation Requested:FCC Part 15 Subpart B Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: Checked by:Approved by:- Ray CheungJeff Pong Project EngineerOperation Manager Wireless & Telecom departmentWireless & Telecom department ReportNo.: 60.870.14.003.03F Page 2 of 13 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 13 Content Page 2 of 13 1.0General Details 1.1Test Laboratory Page 3 of 13 1.2Applicant Details Page 3 of 13 1.3Equipment Under Test [EUT] Page 4 of 13 1.4Equipment Modification Page 4 of 13 1.5Related Submittal(s) Grants Page 4 of 13 2.0Technical Details 2.1Investigations Requested Page 5 of 13 2.2Test Standards and Results Summary Page 5 of 13 3.0Test Methodology 3.1Radiated Emission Page 6 of 13 3.2Field Strength Calculation Page 6 of 13 3.3Conducted Emission Page 6 of 13 4.0Test Result 4.1Spurious Radiated Emission Page 7-9 of 13 4.2Conducted Emission Page 10-12 of 13 5.0List of Equipment Page 13 of 13 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos ReportNo.: 60.870.14.003.03F Page 3 of 13 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory Attestation of Global Compliance SZ Co Ltd. 2/F, Building 2,No.1-No.4,Chaxi Sanwei, Technical Industrial Park, Gushu, Xixiang, Shenzhen, China. Registration Number: 259865 Tested by: John Zhi 1.2Applicant Details Applicant Binatone Electronics International Ltd. Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong Manufacturer VTech(Dongguan) Telecommunications Limted VTech Science Park, Xia Ling Bei Management Zone, Liaobu, Dongguan, Guandong, China ReportNo.: 60.870.14.003.03F Page 4 of 13 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of Sample Product Description:Video Baby Monitor (Parent Unit) Model No:MBP36SPU, SCOUT36SPU, FOCUS36SPU Brand Name: motorola FCCID:VLJ-MBP36SPU Rating:DC 5.0V, 600mA powered by AC/DC power adaptor Or DC 3.6V 900mAh (Ni-MH package rechargeable battery) Accessories and Auxiliary Equipment: AC/DC Adaptor, Computer EUT Exercising Software: None Description of EUT The Equipment Under Test (EUT) is a Monitor of Wireless Monitoring System. As per Client Declaration, the circuit design, PCB Layout, shielding and interface of MBP36SPU, SCOUT36SPU & FOCUS36SPU are identical. So we use MBP36SPU as a representative model to perform all testing. 1.4Equipment Modification No modification was conducted on the tested sample by TUV SUD Hong Kong Ltd. 1.5Related Submittal(s) Grants This is a signal application subjected to Certificate Authorization. ReportNo.: 60.870.14.003.03F Page 5 of 13 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 and ANSI C63.4: 2009 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionFCC Test Requirement Class / Severity Test Result PassFailedN/A Radiated Emissions, 30MHz to 4.5GHz Part 15.109Class B Conducted Emissions on AC, 0.15MHz to 30MHz Part 15.107Class B Note: N/A - Not Applicable ReportNo.: 60.870.14.003.03F Page 6 of 13 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation The field strength at 3 m was established by adding the meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: FS = R + System Factor System Factor = AF + CF + FA – PA Where FS = Net Field Strength in dBuV/m at 3 meters. R = Reading of Spectrum Analyzer / Test Receiver in dBuV. AF = Antenna Factor in dB. CF = Cable Attenuation Factor in dB. FA = Filter Attenuation Factor in dB. PA = Preamplifier Factor in dB. FA and PA are only be used for the measuring frequency above 1 GHz. 3.3Conducted Emissions The EUT was placed on a non-metallic table 0.8m above the horizontal metal reference place and 0.4m from a vertical ground plane which is connected to the horizontal metal ground plane. Meanwhile, the AC main of EUT was connected to the distance of 0.8m line impedance stabilization network (LISN) during measurement. Initial measurements were performed in quasi-peak and average detection modes by the test receiver, any emissions recorded within 30dB of the relevant limit …
