VLJ-MBP41SPUDigital Video Baby Monitor (Parent Unit)

Binatone Electronics International Ltd.

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Mar 17, 2015
Application Purpose: Original Equipment
Date of Application: Mar 17, 2015
Equipment Note: Digital Video Baby Monitor (Parent Unit)
Frequency Range: 2402.00000000 - 2479.00000000
Company: Binatone Electronics International Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User’s Guide Digital Video Baby Monitor Models: MBP41S, MBP41S-2, MBP41S-3, MBP41S-4 The features described in this User’s Guide are subject to modifications without prior notice. Welcome... to your new Motorola Digital Video Baby Monitor! Thank you for purchasing the Digital Video Baby Monitor. Now you can view and hear your baby sleeping in another room or you can monitor your older children in their play room. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product-related questions, please call: This User's Guide provides you with all the information you need to get the most from your product. Before you use the digital video baby monitor, we recommend that you insert and fully charge the battery in the Parent Unit, so that it continues to work if you disconnect it from the electrical outlet to carry it to another location. Please read the Safety Instructions on page 6 before you install the units. Got everything? • 1 x Parent unit • 1 x Baby unit (Camera) • 1 x Rechargeable Ni-MH battery pack for the Parent Unit • 1 x Power adapter for Parent Unit • 1 x Power adapter for Baby Unit In packs with multi Baby Units, you will find one or more additional Baby Units with power adapters. US and Canada 1-888-331-3383 Email: [email protected] Overview of the Parent Unit 1.LCD display 2.Up Key + Normal Mode: Tilt Up Menu Mode: Up 3.Down Key - Normal Mode: Tilt Down Menu Mode: Down 4.Left Key < Normal Mode: Pan Left Menu Mode: Left 5.Right Key > Normal Mode: Pan Right Menu Mode: Right 6.Menu Key M Press to open the Menu options 7.OK Key O 8.Video ON/OFF Key V Press to turn OFF the LCD display Press again to turn ON the LCD display 9.Ta l k K e y T Press and hold to speak to your baby 10.Power Adapter / Battery LED BLUE when the adapter is powered on. RED when battery low. 11.Unit ON/OFF LED (Green) 12.Audio Level LED (Green, Orange, Red, Red) 13.Microphone 14.Power Key P Press and Hold to turn the unit ON/OFF 15.Antenna Lift the antenna for optimal reception 16.Battery cover 17.Stand 18.Speaker 19.USB power adapter socket 2 3 4 5 13 11011 12 6 7 8 9 16 17 15 14 19 18 Parent unit menu icons Signal Level (4 Levels) Night Vision Mode (Screen changes to Black/White) T Ta l k M o d e Battery Level Control (4 Levels) Volume Level Control (8 Levels) Zoom Level Control (1X, 2X) & Brightness Level Control (8 Levels) m Lullaby Control (5 Song Selections) Parent unit menu icons (cont’d) Overview of the Baby Unit Alarm Setting (6h, 4h, 2h, Off) Temperature Reading (HH ºC / ºF or LL ºC / ºF) Icon & readings turn RED > 29ºC / 84ºF, and flashing when reading > 36ºC / 97ºF) Icon & readings turn RED < 14ºC / 57ºF, and flashing when reading < 1ºC / 34ºF) Cam Control (scan, view, add, delete) V Set Video On Timer (5min, 30min, 60min) 1.Photo Sensor (Night Vision Mode) 2.Camera Lens 3.Infrared LEDs 4.Power LEDs 5.Microphone 6.Speaker 7.ON/OFF Switch 8. Power Adapter Socket 9.Antenna 10.Temperature Sensor 11.Pair Key Important guidelines for installing your digital video baby monitor • To use your Baby Unit and Parent Unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. • Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic door or reinforced concrete, between the Baby Unit and Parent Unit may block the radio signal. • The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. • Use of other 2.4 GHz products, such as wireless networks (Wi-Fi ® routers), Bluetooth ® systems, or microwave ovens, may cause interference with this product, so keep the baby monitor away at least 5ft (1.5m) from these types of products, or turn them off if they appear to be causing interference. • If the signal is poor, try lifting up the Parent Unit Antenna, or moving the Parent Unit and/or the Baby Unit to different positions in the rooms. Table of contents5 ENGLISH Table of contents 1.Safety Instructions ..................................................................................... 6 2.Getting Started .......................................................................................... 9 2.1Baby Unit Power Supply .............................................................................. 9 2.2Parent Unit Battery Installation .................................................................... 9 2.3Parent Unit Power Supply ......................................................................... 10 2.4Registration (Pairing)................................................................................. 11 3.Using the Digital Video Baby Monitor .................................................... 12 3.1Setting up................................................................................................... 12 3.2Night Vision Mode..................................................................................... 12 3.3Talk Mode .................................................................................................. 12 3.4Video ON/OFF.......................................................................................... 12 3.5Temperature Display (HH °C / °F or LL °C / °F) ...................................... 12 4.Parent Unit Menu Options....................................................................... 13 4.1Volume....................................................................................................... 13 4.2Zoom.......................................................................................................... 13 4.3Brightness ...................................................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Date (12/01/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We,(Binatone Electronics International Limited),hereby authorize Ray Cheung (TUV SUD HK LTD) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on180 days after the application has been completed Sincerely, Company Officer:Karl Heinz Muller Telephone Number: 852 2802 7388 Email:[email protected]

Cover Letter(s)

Date (12/01/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: VLJ-MBP41SPU, VLJ- MBP41SBU Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules,(Binatone Electronics International Limited)hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation (Binatone Electronics International Limited) alsohereby requests short-term confidential treatment of information accompanying this application as outlined below for a period under 180days after the application has been completed. Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer:Karl Heinz Mueller Telephone Number: 852 2802 7388 Email:852 2802 8138

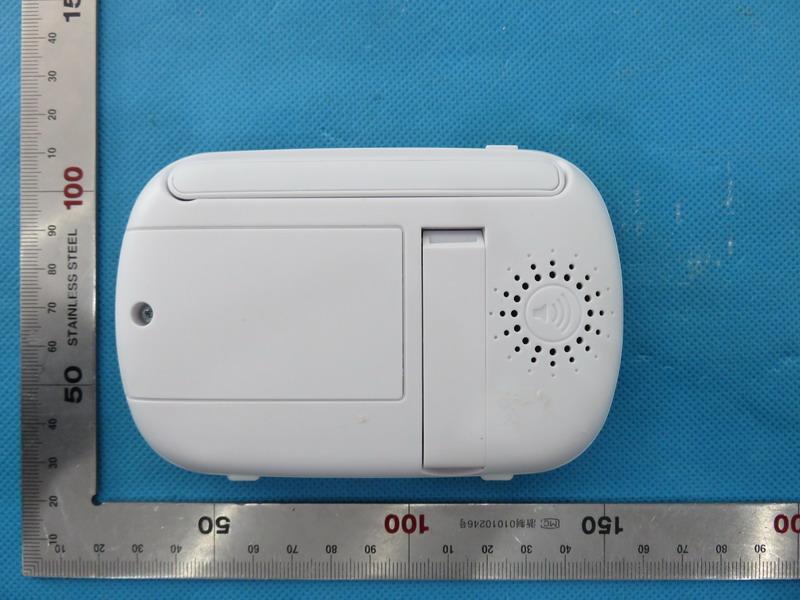

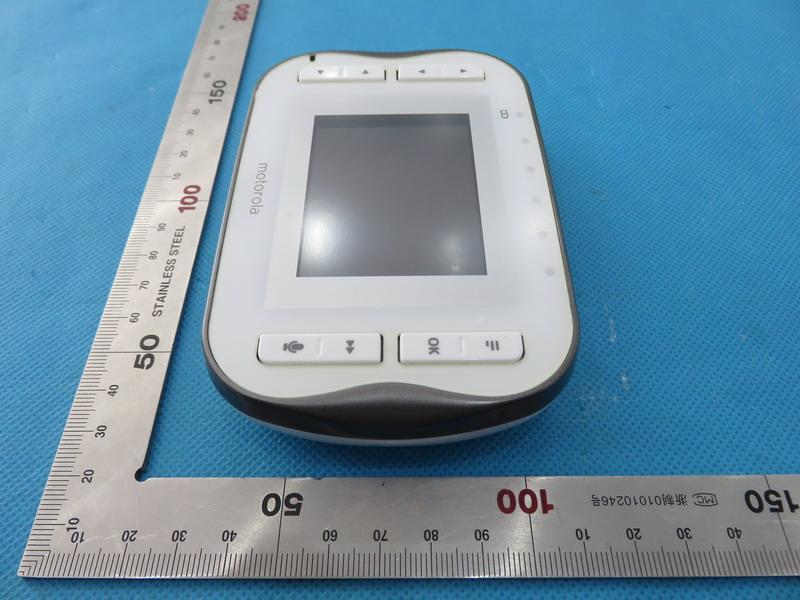

External Photos

Appendix B Date: 2015-01-29 Report No.: 60.870.14.027.02F Model No.: MBP41SPU Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. Appendix B Date: 2015-01-29 Report No.: 60.870.14.027.02F Model No.: MBP41SPU Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. Appendix B Date: 2015-01-29 Report No.: 60.870.14.027.02F Model No.: MBP41SPU Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong.

ID Label/Location Info

MBP41S PU LBL SIZE: L40 X W22 mm Material: 25# WHT MATTE PET MBP41S PU SN LBL SIZE: L40 X W9 mm Material: 25# WHT MATTE PET MBP41S BU LBL SIZE: L27 X W16 mm Material: 25# WHT MATTE PET MBP41S BU SN LBL SIZE: L30 X W6 mm Material: 25# WHT MATTE PET 28.00 16.92 24.67 R30.00 VT1403Z000001 VT1403Z000001 VT1403Z000001 VT1403Z000001 MBP41S_NA LABEL SET MADE IN CHINA FCC ID: VLJ-MBP41SPU Model: MBP41SPU Ni-MH Battery pack 3.6V, 900mAh Rechargeable Batteries only Use only Batteries listed in the user’s guide. IC: 4522A-MBP41SPU RED BLACK MADE IN CHINA FCC ID: VLJ-MBP41SPU Model: MBP41SPU Ni-MH Battery pack 3.6V, 900mAh Rechargeable Batteries only Use only Batteries listed in the user’s guide. IC: 4522A-MBP41SPU RED BLACK Model: MBP41SBU Input: DC5V 1000mA Use only P ower S upplies listed in the user’s guide. FCC ID: VLJ-MBP41SBU IC: 4522A-MBP41SBU MADE IN CHINA M odel: MBP41SBU Input: DC5V 1000mA Use only P ower S upplies listed in the user’ s guide. FCC ID: VLJ-MBP41SBU IC: 4522A-MBP41SBU MADE IN CHINA WARNING TAG Warning Tag (for NA) 3) Size: 40 x 250 MM 2) Material: 50# Polyester Matte, PP COATING. 1) Printing: Orange PANTONE 151C. WARNING TAG

Internal Photos

Appendix C Date: 2015-01-29 Report No.: 60.870.14.027.02F Model No.: MBP41SPU Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. Appendix C Date: 2015-01-29 Report No.: 60.870.14.027.02F Model No.: MBP41SPU Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. Appendix C Date: 2015-01-29 Report No.: 60.870.14.027.02F Model No.: MBP41SPU Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong.

RF Exposure Info

Page 1 of71 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. SAR Test Report Technical Report No.: 60.870.14.027.02S Dated: 2015-03-12 CLIENT: Company Name: Binatone Electronics International Ltd. Address: Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong MANUFACTURING PLACE: Company Name: VTech(Dongguan) Telecommunications Limted Address: VTech Science Park, Xia Ling Bei Management Zone, Liaobu, Dongguan, Guandong, China TEST SUBJECT: Model name: Digital Video Baby Monitor (Parent Unit) Brand name: motorola Model no.: MBP41SPU FCCID: VLJ-MBP41SPU TEST SPECIFICATION:IEEE Std. 1528:2003, 47CFR § 2.1093, IEEE/ANSI C95.1; TEST RESULTS:POSITIVE This report may only be quoted in full. Any use for advertising purposes must be granted in writing. This report is result of a single examination of the object in question and is not generally applicable evaluation of the quality of other products in regular production. Approved by: Jeff Pong Manager Date: 2015-03-12 Report No.:60.870.14.027.02S Page 2 of 71 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. Report Revise Record Report VersionRevise TimeIssued DateValid VersionNotes V1.0/Mar. 12,2015ValidOriginal Report The test plans were performed in accordance with IEEE Std. 1528:2003; 47CFR § 2.1093; IEEE/ANSI C95.1 and the following specific FCC Test Procedures: ·KDB 447498 D01 General RF Exposure Guidance ·KDB 648474 D04 Handset SAR ·KDB 865664 D01 SAR measurement 100 MHz to 6 GHz Report No.:60.870.14.027.02S Page 3 of 71 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. Test Report Certification Applicant NameBinatone Electronics International Ltd. Applicant Address Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong. Manufacturer Name VTech(Dongguan) Telecommunications Limted Manufacturer Address VTech Science Park, Xia Ling Bei Management Zone, Liaobu, Dongguan, Guandong, China Product DesignationDigital Video Baby Monitor (Parent Unit) Brand Name motorola Model NameMBP41SPU Different DescriptionN/A EUT VoltageDC 3.6V by battery Applicable Standard IEEE Std. 1528:2003 47CFR § 2.1093 IEEE/ANSI C95.1 Test DateMar. 12,2015 Performed Location Attestation of Global Compliance(Shenzhen) Co., Ltd. 2 F, Building 2, No.1-No.4, Chaxi Sanwei Technical Industrial Park, Gushu, Xixiang Street, Bao'an District, Shenzhen, China Report TemplateAGCRT-IC-2.4G/SAR (2014-04-01) Tested By Eric ZhouMar. 12,2015 Checked By Angela LiMar. 12,2015 Authorized By Solger ZhangMar. 12,2015 Report No.:60.870.14.027.02S Page 4 of 71 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. TABLE OF CONTENTS 1. SUMMARY OF MAXIMUM SAR VALUE ........................................................................................................................ 5 2. GENERAL INFORMATION.............................................................................................................................................. 6 2.1.EUTDESCRIPTION........................................................................................................................................................ 6 2.2.TESTPROCEDURE ........................................................................................................................................................ 6 2.3.TESTENVIRONM ENT ..................................................................................................................................................... 6 3. SAR MEASUREMENT SYSTEM ...................................................................................................................................... 7 3.1.SPECIFICABSORPTIONRATE(SAR) ............................................................................................................................. 7 3.2.SARMEASUREMENTPROCEDURE ................................................................................................................................ 8 3.3.COMOSARSYSTEMDESCRIPTION .............................................................................................................................. 9 3.4.COMOSARE-FIELDPROBE ...................................................................................................................................... 11 3.5.ISOTROPICE-FIELDPROBESPECIFICATION ................................................................................................................. 11 3.6.ROBOT ....................................................................................................................................................................... 11 3.7.VIDEOPOSITIONINGSYSTEM ....................................................................................................................................... 12 3.8.DEVICEHOLDER ......................................................................................................................................................... 12 3.9.ELLIPTICPHANTOM ..................................................................................................................................................... 13 4. TISSUE SIMULATING LIQUID ...................................................................................................................................... 14 4.1.THE COMPOSITION OF THE TISSUESTIMULANT LIQUID .................................................................................................. 14 4.2.TISSUECALIBRATIONRESULT ..................................................................................................................................... 15 4.3.TISSUEDIELECTRICPARAMETERS FORHEAD ANDBODYPHANTOMS ........................................................................... 16 5. SAR MEASUREMENT PROCEDURE ............…

Text truncated - open the document above for the full version.

Test Report

TEST REPORT Date: 2015-01-29 Report No.: 60.870.14.027.02F Page 1 of 29 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. Applicant: Binatone Electronics International Ltd. Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong Description of Samples: Model name: Digital Video Baby Monitor (Parent Unit) Brand name: motorola Model no.:MBP41SPU FCCID:VLJ-MBP41SPU Date Samples Received: 2014-12-29 Date Tested: 2014-12-30 to 2015-01-27 Investigation Requested: FCC Part 15 Subpart C, Section 15.247 Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: --- Checked by:Approved by: Ray CheungJeff Pong Project EngineerManager Wireless & Telecom DepartmentWireless & Telecom Department ReportNo.: 60.870.14.027.02F Page 2 of 29 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. CONTENT: Cover Page 1 of 29 Content Page 2-3 of 29 1.0General Details 1.1Test Laboratory Page 4 of 29 1.2Applicant Details Page 4 of 29 1.3Equipment Under Test [EUT] Page 5 of 29 1.4 Related Submittal(s) Grants Page 5 of 29 2.0Technical Details 2.1Investigations Requested Page 6 of 29 2.2Test Standards and Results Summary Page 6 of 29 3.0Test Methodology 3.1Radiated Emission Page 7 of 29 3.2Field Strength Calculation Page 7 of 29 3.3Conducted Emission Page 7 of 29 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 29 4.2 20dB Bandwidth Measurement Page 9-10 of 29 4.3 Hopping Channel Carrier Frequency Separation Page 11 of 29 4.4 Average Time of Occupancy Page 12-14 of 29 4.5 Pseudorandom Hopping Algorithm Page 15 of 29 4.6 Band Edge Measurement Page 16-17 of 29 4.7 Maximum Output Power Page 18-20 of 29 4.8 Out of Band Emissions and Emissions in Restricted Bands Page 21-25 of 29 4.9 Conducted Emission on AC Mains Page 26-28 of 29 ReportNo.: 60.870.14.027.02F Page 3 of 29 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. 5.0List of Measurement Equipments Page 29 of 29 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos ReportNo.: 60.870.14.027.02F Page 4 of 29 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. 1.0General Details 1.1Test Laboratory TUV SUD Certification and Testing (China) Co., Ltd. Building 12 & 13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Shenzhen, 518052, China. Registration Number: 502708 Tested by: John Zhi 1.2Applicant Details Applicant Binatone Electronics International Ltd. Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong Manufacturer VTech(Dongguan) Telecommunications Limited. VTech Science Park, Xia Ling Bei Management Zone, Liaobu, Dongguan, Guandong, China ReportNo.: 60.870.14.027.02F Page 5 of 29 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. 1.3Equipment Under Test [EUT] Description of EUT Product Description:Digital Video Baby Monitor (Parent Unit) Model No.:MBP41SPU Brand Name: motorola FCCID:VLJ-MBP41SPU Rating:DC5.0V, 600mA powered by AC/DC power adaptor Or DC 3.6V, 900mAh Ni-MH rechargeable battery pack Operated Frequency:2402 – 2479 MHz No. of Operated Channel:23 Accessories and Auxiliary Equipments:AC/DC Switching Adaptor Antenna Type:Integral Manufacture of Antenna:CVISION HK LTD Antenna Gain:1 dBi Antenna Model:N/A General Operation of EUT The Equipment Under Test (EUT) is a Monitor of Wireless Monitoring System, which include of a FHSS Module. FHSS Operation Principle: This module is controlled by microchip to generate Pseudorandom Frequency Hopping Sequence, this module support 23 hopping channels. Refer to section 4.5 of this report to have more detail of Pseudorandom Hopping Algorithm. 1.4Related Submittal(s) Grants This is a signal application subjected to Certificate Authorization. ReportNo.: 60.870.14.027.02F Page 6 of 29 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15:2012 and ANSI C63.4: 2009 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 ( a1 ) Pseudorandom Hopping Algorithm Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC MainsSection 15.207 Antenna RequirementSection 15.203 See note 1 Note 1 :The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable ReportNo.: 60.870.14.027.02F Page 7 of 29 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable,…

Text truncated - open the document above for the full version.

Test Setup Photos

Appendix A Date: 2015-01-29 Report No.: 60.870.14.027.02F Model No.: MBP41SPU Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. Radiated Emission Appendix A Date: 2015-01-29 Report No.: 60.870.14.027.02F Model No.: MBP41SPU Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Hong Kong Science Park, Shatin, Hong Kong. Conducted Emission

Contact Information

Applicant

Sam Lee(Product Director)

[email protected]852-28027388Fax: 852-28028138

Test Firm

TUV SUD Certification and Testing (China) Co., LtdRadu Cristian Gosav

[email protected]008675533323229Fax: 008675588285299

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	88.00 mW

Confidentiality

Long Term

Grant Notes

Output power is conducted. This device and its antenna(s) must not be co-located or operated in conjunction with any antenna or transmitter except in accordance with FCC multi-transmitter RF exposure procedures. The Highest reported SAR is 0.39 W/kg.
