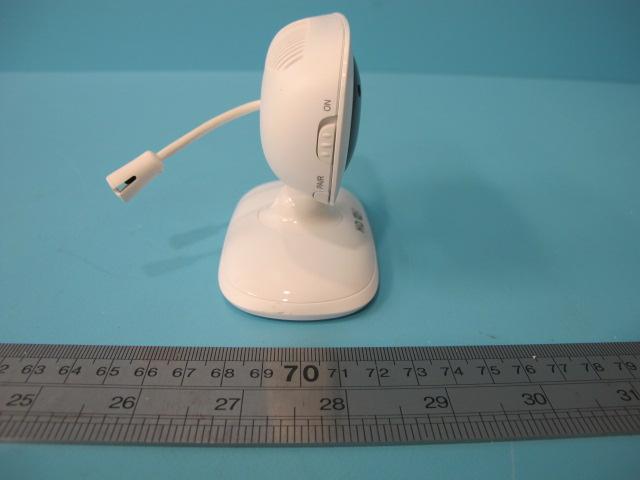

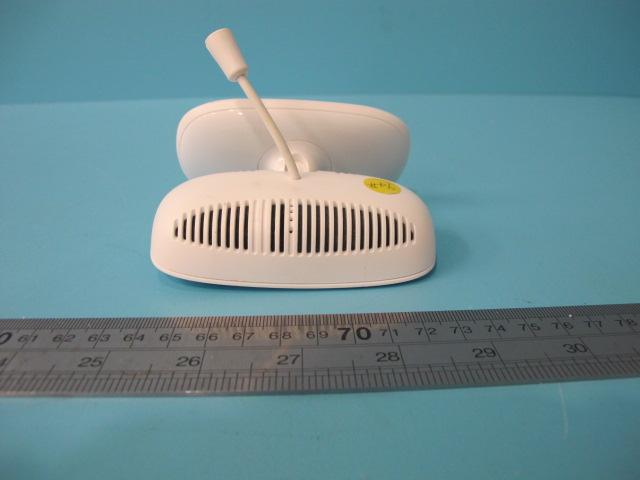

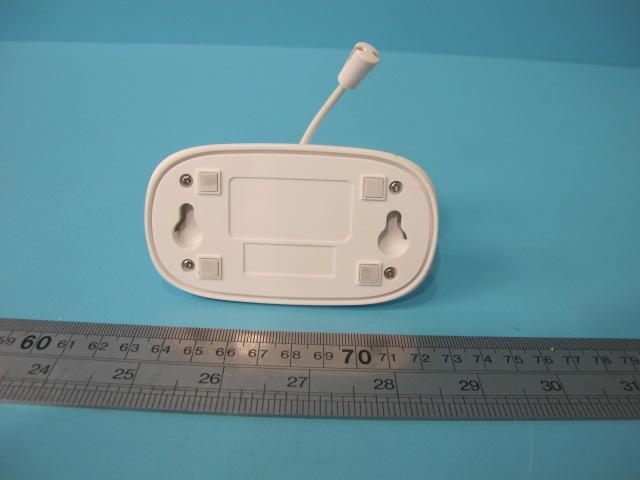

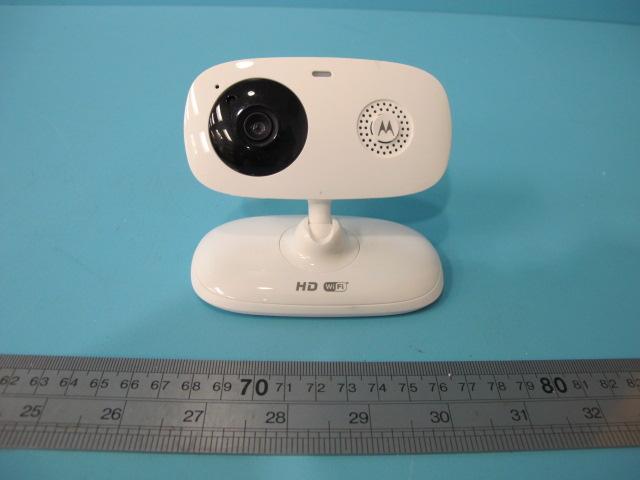

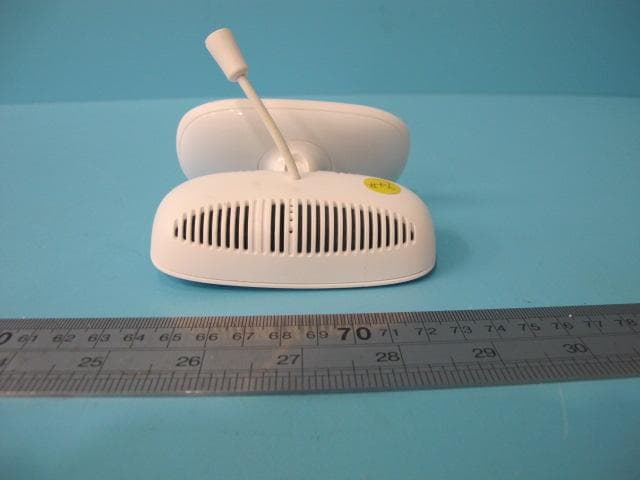

VLJ-MBP662BUDigital Video Baby Monitor (Baby Unit)

User’s Guide Digital Video Baby Monitor With Wi-Fi ® Internet Viewing Models: MBP662CONNECT, MBP662CONNECT-2, MBP662CONNECT-3, MBP662CONNECT-4 The features described in this User’s Guide are subject to modifications without prior notice. Welcome... to your new Motorola Digital Video Baby Monitor! Thank you for purchasing the Digital Video Baby Monitor. Now you can see and hear your baby sleeping in another room or you can monitor your older children in their play room. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product-related questions, please call: This User's Guide provides you with all the information you need to get the most from your product. Before you use the Digital Video Baby Monitor, we recommend that you insert and fully charge the battery in the Parent Unit, so that it continues to work if you disconnect it from the power supply. Please read the Safety Instructions on pages 7 - 9 before you install the Units. Got everything? • 1 x Parent Unit • 1 x Baby Unit (Camera) • 1 x Rechargeable Ni-MH battery pack for the Parent Unit • 1 x Power adapter for Parent Unit • 1 x Power adapter for Baby Unit In multi-camera packs, you will find one or more additional Camera Units with power adapters. US and Canada 1-888-331-3383 Email: [email protected] Overview of the Parent Unit 1.Display (LCD screen) 2.Scroll Up/Volume+ Button Press to increase volume in monitor mode. While viewing an image in 2X zoom, press to pan down. 3.Scroll Down/Volume- Button Press to decrease volume in monitor mode. While viewing an image in 2X zoom, press to pan up 4.Scroll Left/Video On-Off Button In monitor mode, press to turn the video display ON or OFF. While viewing an image in 2X zoom, press to pan right. 5.Scroll Right/Switch Camera Button Press to switch between Camera Units (if paired with more than one camera). While viewing an image in 2X zoom, press to pan left. 6.Menu Button MENU Press to open the menu options. 7.Talk T /OK Button OK Press and hold to speak to your baby. In menu mode, press to confirm a selection. 8.Power Indicator LED (Blue) Lights up in blue when the power adapter is plugged in. 9.Device ON/OFF LED (Green) Lights up in green when the device is switched on. 10.Audio Level LED (Green, Orange, Red, Red) 11.Power On-Off Button Press and hold to switch the Unit ON or OFF. 12.Battery cover 13.Stand 14.Speaker 15.Power Adapter Socket POWER 1 10 14 13 12 11 15 9 2 7 5 34 6 8 MENU OK Parent Unit menu icons Signal Level Indication (4 Levels) Night Vision Mode (Video also changes to Black/White) Battery Level Indication (4 Levels) Volume Level Control (5 Levels) Camera Control (scan, view, add, delete) Set Video On Timer (OFF, 5min, 30min, 60min) Brightness Level Control (5 Levels) Zoom Level Control (1X, 2X) Lullaby Control (5 Song Selection or OFF) Alarm Setting (6h, 4h, 2h, OFF) Temperature Reading (HH ºC / ºF or LL ºC / ºF) Icon & readings turn RED if > 29ºC / 84ºF, and readings display HH ºC / ºF > 36ºC / 97 ºF Icon & readings turn RED if < 14ºC / 57ºF, and readings display LL ºC / ºF < 1ºC / 34 ºF Overview of the Baby Unit 8 3 1 4 5 6 7 8 9 10 2 Important guidelines for installing your Digital Video Baby Monitor • To use your Baby Unit and Parent Unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. • Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic door or reinforced concrete, between the Baby Unit and Parent Unit may block the radio signal. • The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. • Other 2.4GHz products, such as wireless networks (Wi-Fi ® routers), Bluetooth™ systems, microwave ovens or other Baby Monitors, may cause interference with this product, so keep the Baby Monitor at least 5ft (1.5m) away from these types of product, or turn them off if they appear to be causing interference. • If the signal is weak, try moving the Parent and/or the Baby Unit to different positions in the rooms. • Always ensure that you have a good Wi-Fi ® connection available. 1.Power/Status Indicator LED 2.Microphone 3.Light Sensor (for night mode detection) 4.Camera Lens 5.Infrared LEDs (for night vision) 6.Speaker 7.Power ON/OFF switch 8.Temperature Sensor 9.Micro USB socket 10.PAIR Button Table of contents6 ENGLISH Table of contents 1.Safety Instructions ..................................................................................... 7 2.Getting Started ........................................................................................ 10 2.1Baby Unit Power Supply ............................................................................ 10 2.2Parent Unit Battery Installation .................................................................. 10 2.3Parent Unit Power Supply ......................................................................... 11 2.4Registration (Pairing)................................................................................. 12 3.Using the Baby Monitor ........................................................................... 14 3.1Setting Up .................................................................................................. 14 3.2Night Vision Mode..................................................................................... 14 3.3Video ON/OFF.......................................................................................... 14 3.4Talk Mode .................................................................................................. 14 3.5Temperature Display (HH °C / °F or LL °C / °F) ...................................... 14 4.Paren…
