VLJ-MBP75SNCare+ 3-in-1 smart non-contact baby thermometer

Model: MBP75SN INSTRUCTION MANUAL Please read this instruction manual carefully before using your forehead thermometer Contents Introduction .................................................... 1 Important Information Before Use ................... 2 Product Identification ...................................... 3 Description of LCD Display............................. 4 Battery Installation ......................................... 5 System Requirement...................................6 Pairing the Thermometer to Your Mobile Device Overview of Hubble App..............................7 Switching Between 4 Kinds of Measuring Mode ... 15 Tips for Measuring Human Temperature ...... 16 Measuring Human Temperature ................... 17 Measuring Object/Liquid Temperature .......... 18 Memory Function ......................................... 19 Cleaning and Disinfecting ............................. 20 Error Codes ................................................. 21 Technical Specification................................. 22 Introduction Utilizing infrared technology, this thermometer takes temperatures in seconds by measuring heat generated by the surface skin of the forehead or other objects. This product conforms to the provisions of the EC directive MDD(93/42/EEC).Its advantages include: 1. 6 in 1 functions Human Body/Object/Night Mode Option/Fever Alarm/ 30 User Memory/Backlight 2. Night Mode Option Switch to Night mode to reduce the interference of buzzer during your baby sleeping. 3. LED Light for Fever Alarm This device has the LED light to remind user their readings are over 37.5°C and plus the beep sound only in Human Body Mode. 4. 30 User Memory 5. Illuminated Backlight Display 6. One-second Reading 7. Auto power off for power saving 8. Low-battery Indicator Indications for battery condition and measuring range. 9. Large LCD Display 10.Economic design and convenience: This is a “Non-contact” medical thermometer that enables temperature readings, designed for sanitary conditions, cleanliness, and convenience. Simply move the thermometer close to the subject's forehead or object at the distance indicated by the device. 11.Instant Measurement By using our unique technology, users can get their precise body temperature instantly and accurate. 12.Bluetooth function. 1 Important Information Before Use When using this product, please be sure to follow all the notes listed below. Any action against these notices may cause injury or affect the accuracy. 1. Do not disassemble, repair, or remodel the thermometer. 2. Be sure to clean the thermometer lens each time after usage. 3. Avoid direct finger contact with the lens. 4. No modification of this equipment is allowed. 5. It is recommended that user may take 3 temperatures. If they are different, use the highest reading. 6. Do not expose the thermometer to extreme temperature, very high humidity, or direct sunlight. 7. Avoid extreme shock or dropping the device. 8. Before the measurement, patients and thermometer should stay in steady state room condition for at least 30 minutes. 9. Avoid measuring temperature in 30 minutes after exercise, bathing, or returning from outdoor. 10. To protect the environment, dispose of empty batteries at appropriate collection sites according to national or local regulations. 11. Please use the thermometer solely for its intended purpose. 12. There are no absolute body temperature standards. Keep reliable records of your personal temperature to serve as a reference for judging a fever. 13. Under any circumstances, the temperature taking result is ONLY for reference. Before taking any medical action, please consult your physician. 14. It is recommended calibrate the device every 1 year. 2 Product Identification 1 LED Light 2 Human/Object Button 3 LCD Display 4 Power/Measure Button 5 Memory Button 6 Infrared Sensor 7 Distant Sensor 8 Buzzer 9 Battery Compartment Lid 3 Description of LCD Display 1 4 user profiles 2 Memory symbol 3 Bluetooth symbol (lights up when thermometer is connected to the smartphone) 4 Low battery symbol 5 “Forehead temperature” symbol 6 “Object/Liquid temperature” symbol 7 Temperature display (°C/°F) 4 Battery Installation Low battery warning: When the battery power becomes low, the low battery symbol will appear on the display. The thermometer can still be used during this time, but the batteries should be replaced as soon as possible. If the batteries run out completely, “Lo” will be displayed along with the low battery symbol. In this case, the batteries will need to be replaced before using the thermometer again. Replacing the Battery: 1. Gently slide the battery cover back. 2. Carefully remove the old batteries and properly discard. 3. Insert new batteries (Two 1.5V alkaline AAA(LR03) Size) according to the proper polarity. 4. Slide the battery cover back on. NOTE: Battery-operated 1. Please properly dispose of the batteries away from small children and heat. 2. It is recommended to remove the batteries if the unit will not be used for an extended period of time. 3. Batteries must be disposed of in accordance with local environmental and institutional policies. 4. Dispose of used batteries in accordance with the applicable legal regulations. Never dispose of batteries in the normal household waste. 5 System Requirement Smartphones/Tablets: Android™ and iOS® only. System Requirements: iOS® 8.0, Android™ 4.2 or above For more information, please visit: https://hubbleconnected.com/requirements 6 Pairing the Thermometer to Your Mobile Device Download the “Hubble Connect for Smart Nursery” app 1. Go to the Google Play™ Store to search for Hubble Connect for Smart Nursery. 2. Download the Hubble Connect for Smart Nursery app and I install it on your Android™ device or 1. Go to the App Store to search for Hubble Connect for Smart Nursery. 2. Download the Hubble Connect for Smart Nursery app and install it on your iPhone®/iPad®. +- 45 Note: If you already have a Smart Nursery App account, ple…

Text truncated - open the document above for the full version.

Declaration of Authorization We Name: Binatone Electronics International Ltd. Address: Floor 23A, 9 Des Voeux Road West, Sheung Wan City: Hong Kong Country: China Declare that: Name Representative of agent: Chenz Ker Agent Company name: MRT Technology (Taiwan) Co., Ltd Address: No. 38, Fuxing Second Rd., Guishan Dist., City: Taoyuan Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Care+ 3-in-1 smart non-contact baby thermometer FCC ID: VLJ-MBP75S IC: 4522A-MBP75SN Type designation: MBP75SN Trademark: Care+ 3-in-1 smart non-contact baby thermometer Validity/ expiry date: 2020/10/13 on our behalf. Date: 2020/7/13 City: Hong Kong Name: Karl Heinz Mueller Function: Chief Technical Officer Signature: .

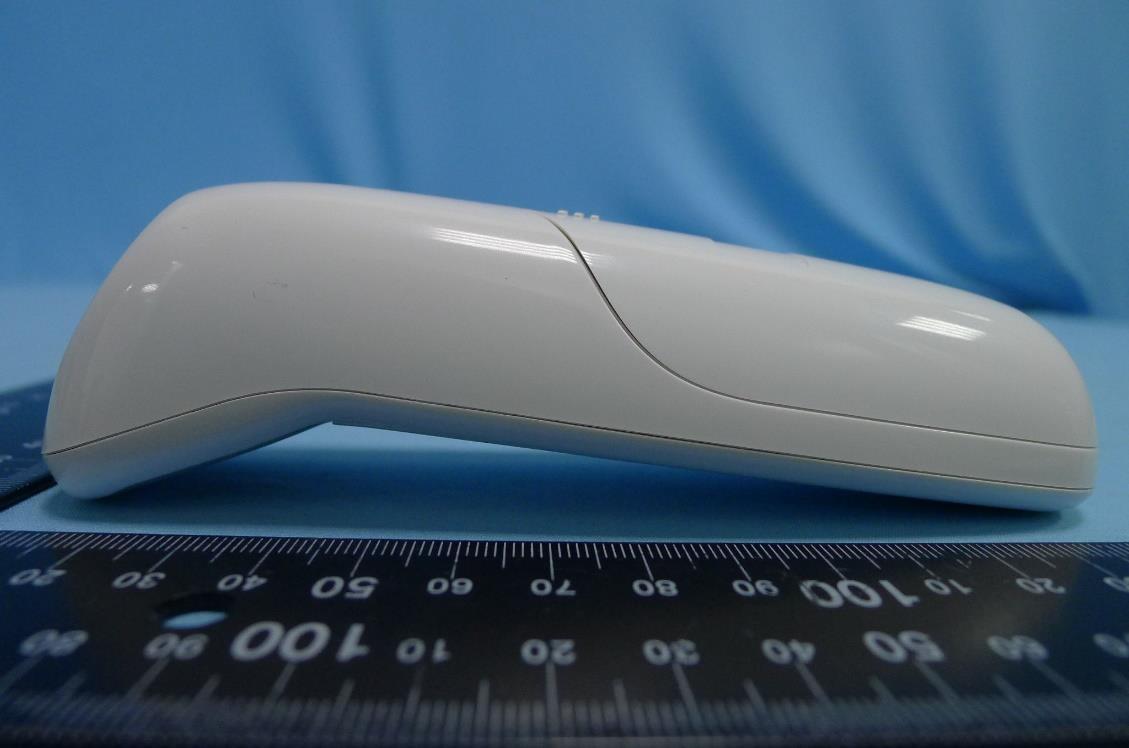

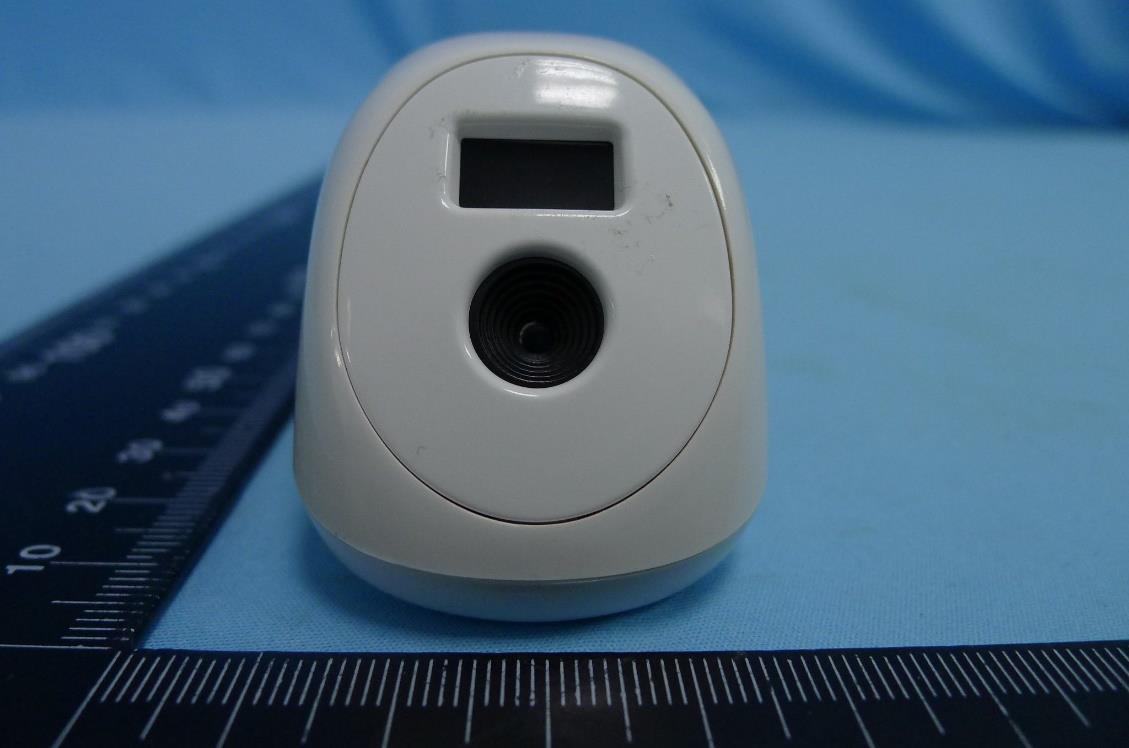

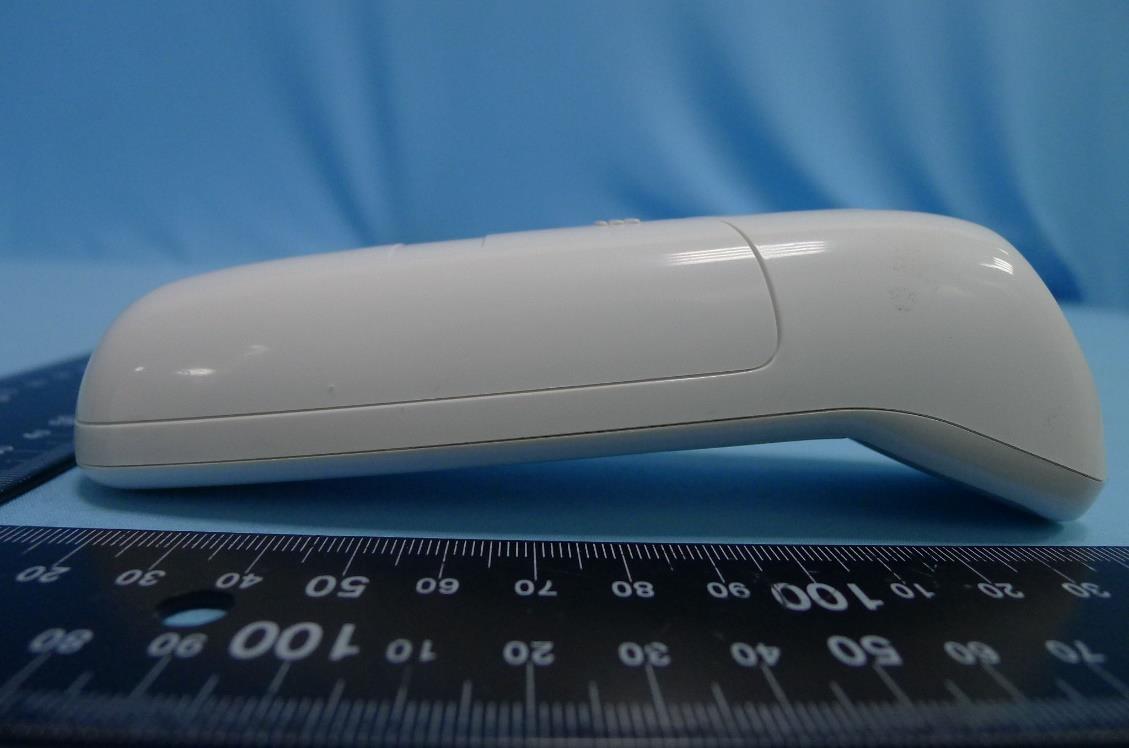

Report No.: 2006TW8603-U1 Product: Care+ 3-in-1 smart non-contact baby thermometer Brand Name: Care+ 3-in-1 smart non-contact baby thermometer Model Number: MBP75SN 1 of 3 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2006TW8603-U1 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2006TW8603-U1 3 of 3 (5) EUT Photo (6) EUT Photo

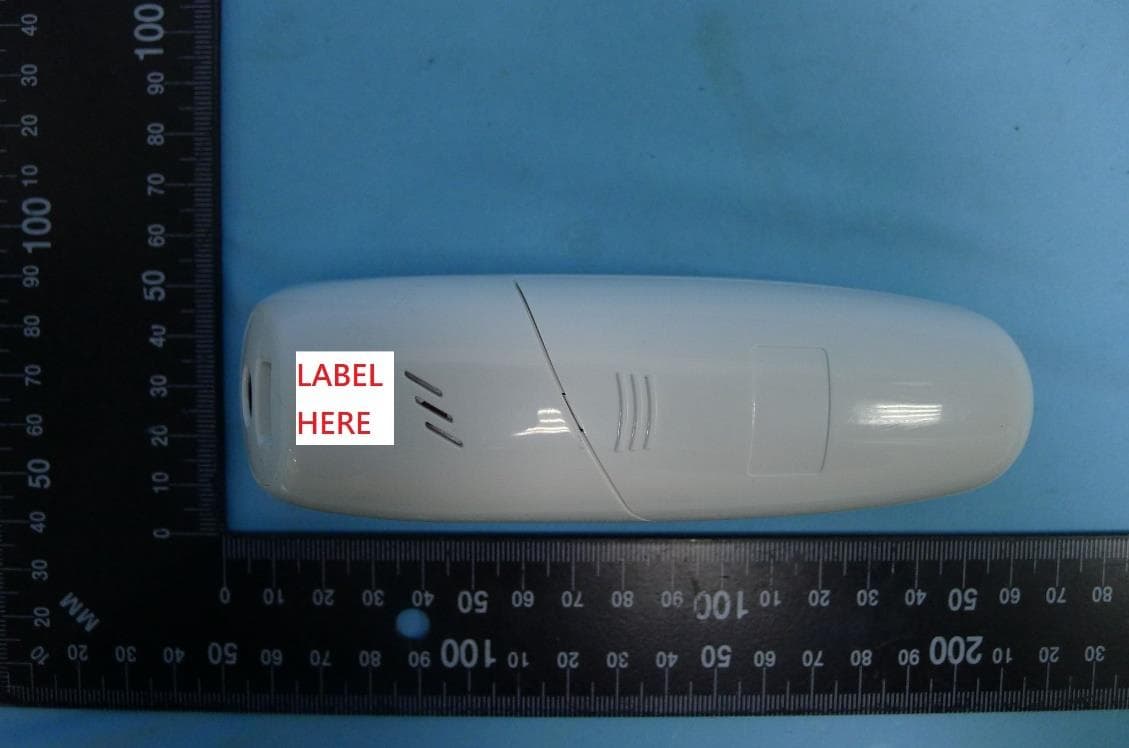

Label Label location

Report No.: 2006TW8603-U1 Product: Care+ 3-in-1 smart non-contact baby thermometer Brand Name: Care+ 3-in-1 smart non-contact baby thermometer Model Number: MBP75SN 1 of 4 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2006TW8603-U1 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 2006TW8603-U1 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 2006TW8603-U1 4 of 4 (7) EUT Photo (8) EUT Photo

05 MRT Technology (Taiwan) Co., Ltd Report No.: 2006TW8603-U2 Phone: +886-3-3288388 Report Version: 1.0 Fax: +886-3-3288918 Issue Date: 2020-07-17 Web: www.mrt-cert.com FCC ID: VLJ-MBP75SN Page Number: 1 of 6 IC: 4522A-MBP75SN RF Exposure Evaluation Declaration FCC ID: VLJ-MBP75SN IC: 4522A-MBP75SN APPLICANT: Binatone Electronics International Ltd. Application Type: Certification Product: Care+ 3-in-1 smart non-contact baby thermometer Model No.: MBP75SN Trademark: Care+ 3-in-1 smart non-contact baby thermometer FCC Rule Part(s): Part 2.1093 (Portable) IC Standard: RSS 102 ( issue5) Test Procedure(s): KDB 447498 D01v06 Test Date: May 21 ~ June 8, 2020 Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2006TW8603-U2 FCC ID: VLJ-MBP75SN Page Number: 2 of 6 IC: 4522A-MBP75SN Revision History Report No. Version Description Issue Date Note 2006TW8603-U2 1.0 Original Report 2020-07-17 Report No.: 2006TW8603-U2 FCC ID: VLJ-MBP75SN Page Number: 3 of 6 IC: 4522A-MBP75SN 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Antenna Description No. Manufacturer Part No. Antenna Type Peak Gain 1 N/A N/A PCB 1.22 dBi Product Name Care+ 3-in-1 smart non-contact baby thermometer Model No. MBP75SN Trademark Care+ 3-in-1 smart non-contact baby thermometer Bluetooth Specification V4.2 LE Operating Frequency 2402~2480MHz Type of modulation GFSK Report No.: 2006TW8603-U2 FCC ID: VLJ-MBP75SN Page Number: 4 of 6 IC: 4522A-MBP75SN 2. RF Exposure Evaluation 2.1. FCC Limits According to FCC KDB 447498 Section 4.3 - General SAR test exclusion guidance For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz 2. Power and distance are rounded to the nearest mW and mm before calculation 3. The result is rounded to one decimal place for comparison 4.The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. 2.2. IC Limits Output power level shall be the higher of the maximum conducted or equivalent isotropically radiated power (e.i.r.p.) source-based, time-averaged output power. For controlled use devices where the 8 W/kg for 1 gram of tissue applies, the exemption limits for routine evaluation in Table 1 are multiplied by a factor of 5. For limb-worn devices where the 10 gram value applies, the exemption limits for routine evaluation in Table 1 are multiplied by a factor of 2.5. If the operating frequency of the device is between two frequencies located in Table 1, linear interpolation shall be applied for the applicable separation distance. For test separation distance less than 5 mm, the exemption limits for a separation distance of 5 mm can be applied to determine if a routine evaluation is required. Report No.: 2006TW8603-U2 FCC ID: VLJ-MBP75SN Page Number: 5 of 6 IC: 4522A-MBP75SN Frequency (MHz) Exemption Limits (mW) At separation distance of ≤5 mm At separation distance of 10 mm At separation distance of 15 mm At separation distance of 20 mm At separation distance of 25 mm 300 71 mW 101 mW 132 mW 162 mW 193 mW 450 52 mW 70 mW 88 mW 106 mW 123 mW 835 17 mW 30 mW 42 mW 55 mW 67 mW 1900 7 mW 10 mW 18 mW 34 mW 60 mW 2450 4 mW 7 mW 15 mW 30 mW 52 mW 3500 2 mW 6 mW 16 mW 32 mW 55 mW 5800 1 mW 6 mW 15 mW 27 mW 41 mW Frequency (MHz) At separation distance of 30 mm At separation distance of 35 mm At separation distance of 40 mm At separation distance of 45 mm At separation distance of ≥50 mm ≤300 223 mW 254 mW 284 mW 315 mW 345 mW 450 141 mW 159 mW 177 mW 195 mW 213 mW 835 80 mW 92 mW 105 mW 117 mW 130 mW 1900 99 mW 153 mW 225 mW 316 mW 431 mW 2450 83 mW 123 mW 173 mW 235 mW 309 mW 3500 86 mW 124 mW 170 mW 225 mW 290 mW 5800 56 mW 71 mW 85 mW 97 mW 106 mW Table 1: SAR evaluation – Exemption limits for routine evaluation based on frequency and separation distance. Report No.: 2006TW8603-U2 FCC ID: VLJ-MBP75SN Page Number: 6 of 6 IC: 4522A-MBP75SN 2.3. Test Result of RF Exposure Evaluation Mode Frequency Band (MHz) Average Output Power (dBm) Output Power (mW) FCC Extremity SAR Test Exclusion Threshold (mW) Antenna Gain (dBi) EIRP (mW) IC Extremity SAR Test Exclusion Threshold (mW) BLE 2402~2480 -2.5 0.56 10 1.22 0.74 4 So, this device can complies the SAR test exclusion. The End

MRT Technology (Taiwan) Co., Ltd Report No.: 2006TW8603-U1 Phone: +886-3-3288388 Report Version: 1.0 Fax: +886-3-3288918 Issue Date: 2020-07-14 Web: www.mrt-cert.com FCC ID: VLJ-MBP75SN Page Number: 1 of 58 IC: 4522A-MBP75SN FCC ID: VLJ-MBP75SN IC: 4522A-MBP75SN APPLICANT: Binatone Electronics International Ltd. Application Type: Certification Product: Care+ 3-in-1 smart non-contact baby thermometer Model No.: MBP75SN FCC Classification: (DTS) Digital Transmission System FCC Rule Part(s): Part 15.247 IC Standard: RSS-247 Issue 2 Test Procedure(s): ANSI C63.10-2013, KDB 558074 D01v05r02 Received Date: June 4,2020 Test Date: June 5~June 24,2020 MEASUREMENT REPORT FCC PART 15.247 & IC RSS-247 Bluetooth V4.2 LE The test results only relate to the tested sample. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Tested By : ( Peter Syu ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) Report No.: 2006TW8603-U1 FCC ID: VLJ-MBP75SN Page Number: 2 of 58 IC: 4522A-MBP75SN Revision History Report No. Version Description Issue Date Note 2006TW8603-U1 1.0 Original Report 2020-07-14 Report No.: 2006TW8603-U1 FCC ID: VLJ-MBP75SN Page Number: 3 of 58 IC: 4522A-MBP75SN CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope .................................................................................................................................... 6 1.2. MRT Test Location ................................................................................................................ 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .......................................................................................................... 7 2.2. Product Specification Subjective to this Standard .................................................................. 7 2.3. Test Mode ............................................................................................................................. 7 2.4. Operation Frequency / Channel List ...................................................................................... 8 2.5. Test Configuration ................................................................................................................. 9 2.6. Test Software ........................................................................................................................ 9 2.7. EMI Suppression Device(s)/Modifications ............................................................................. 9 2.8. Labeling Requirements ......................................................................................................... 9 3. DESCRIPTION of TEST ........................................................................................................ 10 3.1. Evaluation Procedure .......................................................................................................... 10 3.2. AC Line Conducted Emissions ............................................................................................ 10 3.3. Radiated Emissions ............................................................................................................ 11 4. ANTENNA REQUIREMENTS ................................................................................................ 12 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 13 6. MEASUREMENT UNCERTAINTY ......................................................................................... 14 7. TEST RESULT ...................................................................................................................... 15 7.1. Summary ............................................................................................................................. 15 7.2. Occupied Bandwidth Measurement ..................................................................................... 16 7.2.1. Test Limit ......................................................................................................................... 16 7.2.2. Test Procedure used ....................................................................................................... 16 7.2.3. Test Setting ..................................................................................................................... 16 7.2.4. Test Setup ....................................................................................................................... 16 7.2.5. Test Result ...................................................................................................................... 17 7.3. Output Power Measurement ................................................................................................ 20 7.3.1. Test Limit ......................................................................................................................... 20 7.3.2. Test Procedure Used ....................................................................................................... 20 7.3.3. Test Setting ..................................................................................................................... 20 7.3.4. Test Setup .................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 2006TW8603-U1 Product: Care+ 3-in-1 smart non-contact baby thermometer Brand Name: Care+ 3-in-1 smart non-contact baby thermometer Model Number: MBP75SN 1 of 2 Test Photograph Test Mode: Mode 1 Description: Radiated Emission Test Setup for below 1GHz Test Mode: Mode 1 Description: Radiated Emission Test Setup for above 1GHz Report No.: 2006TW8603-U1 2 of 2 Test Mode: Mode 1 Description: Conducted Emission Test Setup
