VLJ-MH011Bluetooth Headset

EN Bluetooth Headset 0RWRUROD MH011 1 EN AT A GLANCE the important bits, quick and easy Charge(Type C) LED Indicator Multi-Function Button (MFB) Microphone Microphone Volume Down Button Volume Up Button Boom open-on close-off EN 2 3 EN CHARGE IT let’s get you up and running To charge your headset, plug the Type C cable into the headset's Type C port and connect to Type C power source. Note: Fully charge the headset before you use it. Tip: To save battery power, turn off the headset when you’re not using it. Caution: Your battery is designed to last the life of your device. It should only be removed by a recycling facility. Any attempt to remove or replace your battery will damage the device, void your warranty, and could cause injury. Choose your most comfortable fit ear tip. CONNECT & GO let’s get you connected EN 4 EASYPAIR TM METHOD Turn on Bluetooth on your device. Turn on your headset and follow the voice prompts. Select “Boom3” from the smart phone Bluetooth menu. When the device and headset connect, you’ll hear “connected”. 5 EN COMFORT what feels best on you Wear Right Ear Left Ear Eartip Earhook EN 6 7 EN BASICS standard features, advanced quality To... answer a call reject a call end a call on off change call volume mute or unmute a call short press MFB. press volume down 2 seconds. short press MFB boom open( on boom close( off press the volume up and volume down button press volume down 2 seconds during the call and press volume up 2s to unmute. EN 8 Notes: • Some features are phone/network dependent. • Using a mobile device or accessory while driving may cause distraction and may be illegal. Always obey the laws and drive safely. Notes: After one minute on a call or 20 minutes of inactivity, the light stops flashing to conserve power, but the headset remains on. Closing the Boom also saves battery life. 9 EN STATUS LIGHT If light shows... your headset is... EN 10 11 EN EN 12 EN 13 14 EN M V B V B Earhook Eartip To... last track next track pause/play pairing mode reset 3-way call ongoing reject incoming, continue ongoing press volume down 2 seconds when headset is in music state. press volume up 2 seconds press MFB once to pause and press again to play. press MFB 5 seconds to enter into pairing mode when headset is in on mode. press MFB and volume down 5 seconds. press MFB once press and hold volume down double press MFB power on power off pairing on standby charging fully-charged low battery blue flashes 1 second. red flashes 2 seconds. red & blue flashes alternately. blue flashes once every 5 seconds. steady red. steady blue. red flashes once every 5 seconds. ADVANCED SECOND DEVICE SETTINGS Help & more Safety instructions for use Do you use two phones? Or maybe a phone and a tablet? Connect with both of them. 1 Pair the first device with your headset as normal (see “CONNECT & GO” on page 4). 2 Turn off the Bluetooth® feature on the first device. 3 Now pair the second device with your headset as normal. 4 Once paired, to connect with both devices simply turn them on. Restore Factory Settings: Reset default factory settings on your headset. Caution: This feature erases all device pairing information stored on the headset. Multipoint: Connect your headset to two devices. To avoid hearing damage, keep the volume at a moderate level. Avoid listening to music at loud volume levels for prolonged periods of time as this may cause permanent hearing damage or hearing loss. Your hearing is delicate and highly sensitive so please listen to your music responsibly. For more information visit the Deafness Research Foundation www.drf.org. Don't use Boom 3 when it is unsafe to do so. For example, while operating a vehicle, cycling, crossing a road, or any activity which requires your attention and ability to hear. You should be aware of your surroundings and use Boom 3 responsibly. · Email Support: [email protected] · Live Chat: Motorolastore.support Note: If you’re watching video while using your earbuds, your audio may be slightly out of sync with your video. Manufactured, distributed, or sold by Binatone Electronics International LTD., official licensee for this product. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. Apple logo is a trademark of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play and Android are trademarks of Google Inc. All other trademarks are the property of their respective owners. © 2020 Motorola Mobility LLC. All rights reserved. Product ID: MH011 FCC ID: VLJ-MH011 IC: 4522A-MH011 15 EN EN 16 17 EN 18 EN EN 19 , Wear Eartip Earhook Earpiece pick incoming call, put ongoing call on hold. end ongoing, resume waiting call switch callspress MFB once end current call double press MFB

Binatone Electronics International Ltd. 25/F, Guangdong Investment Tower, 148 Connaught Road, Central, Sheung Wan, Hong Kong, China Agent Authorization Company: Binatone Electronics International Ltd. Address: 25/F, Guangdong Investment Tower, 148 Connaught Road, Central, Sheung Wan, Hong Kong, China Product Name: Bluetooth Headset Model Number(s): MH011 Product Description: Bluetooth Headset We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Sep. 22, 2020 Name: Sam Lee Title: Product Director Company: Binatone Electronics International Ltd.

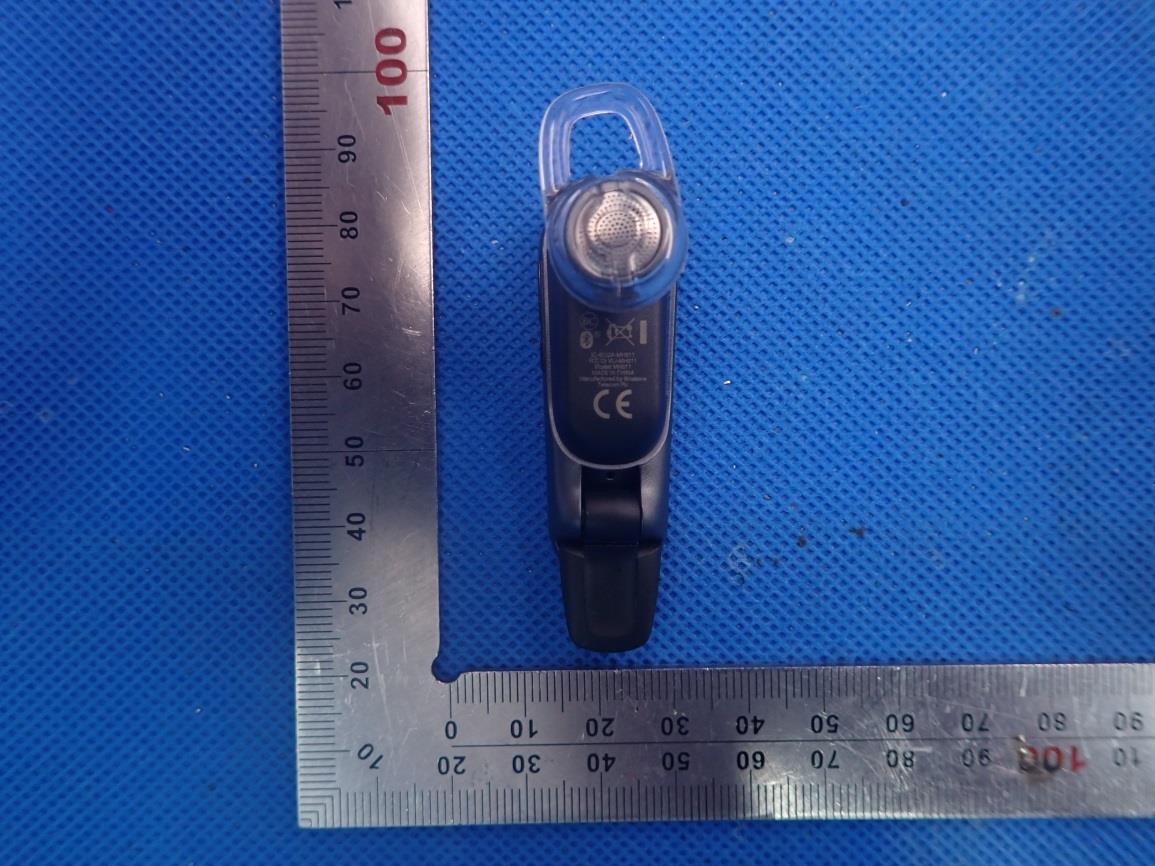

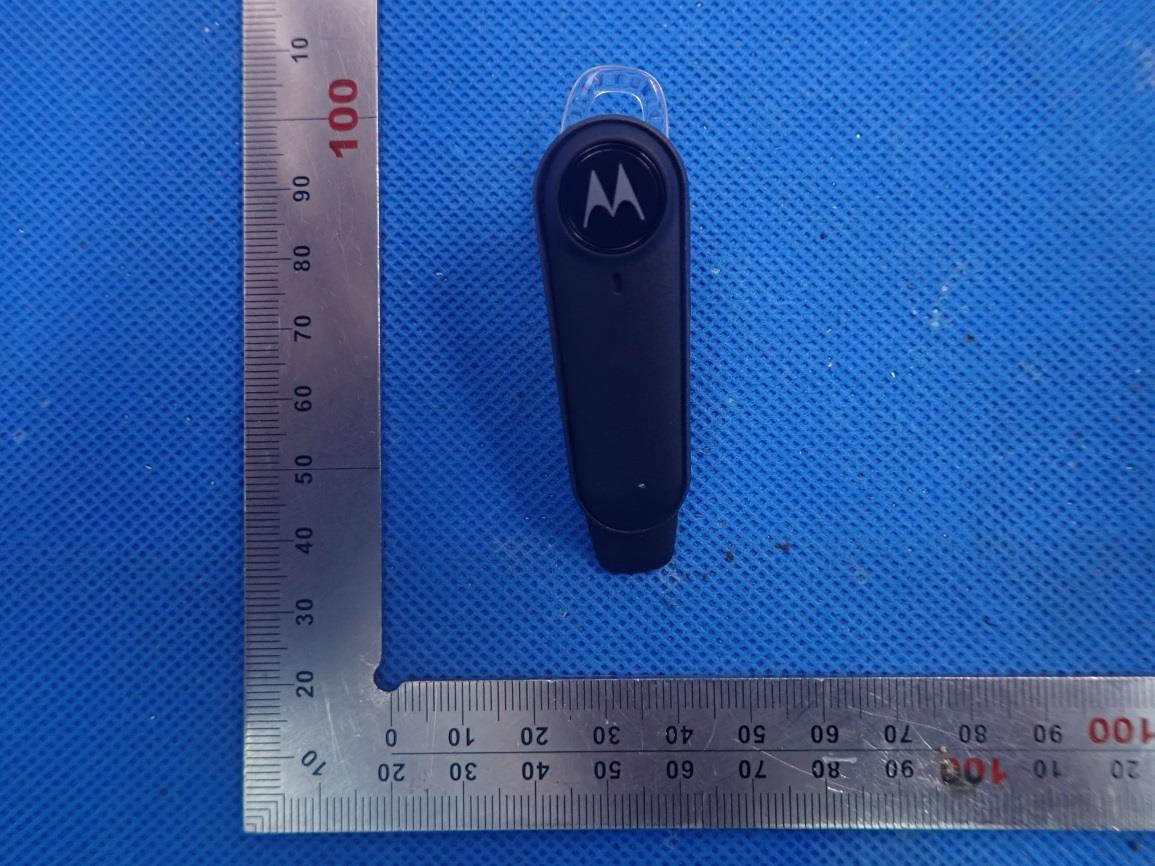

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)

IC: 4522A-MH011 FCC ID: VLJ-MH011 Model: MH011 MADE IN CHINA Manufactured by Binatone Telecom Plc 8.07mm 14.37mm

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Bluetooth Headset Model Name MH011 FCC ID VLJ-MH011 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t = 3.422dBm=2.20mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(2.20mW /5mm) .[√2.480GHz)]=0.69<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 67 FCC Test Report Report No.: AGC00213200803FE03 FCC ID : VLJ-MH011 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Headset BRAND NAME : Motorola MODEL NAME : MH011 APPLICANT : Binatone Electronics International Ltd. DATE OF ISSUE : Sep. 22,2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00213200803FE03 Page 2 of 67 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Sep. 22,2020 Valid Initial Release Report No.: AGC00213200803FE03 Page 3 of 67 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 20 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 21 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 27 Report No.: AGC00213200803FE03 Page 4 of 67 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 27 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 27 10. RADIATED EMISSION ................................................................................................................................. 40 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 40 10.2. TEST SETUP ......................................................................................................................................... 42 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 43 10.4. TEST RESULT........................................................................................................................................ 43 11. NUMBER OF HOPPING FREQUENCY .....................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC00213200803FE03 Page 41 of 67 The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC00213200803FE03 Page 42 of 67 10.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC00213200803FE03 Page 43 of 67 10.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested for restricted band radiated emission, the test records reported below are the worst result compared to other modes. 10.4. TEST RESULT RADIATED EMISSION BELOW 30MHz The amplitude of spurious emissions from 9kHz to 30MHz which are attenuated more than 20 dB below the permissible value need not be reported. Report No.: AGC00213200803FE03 Page 44 of 67 RADIATED EMISSION BELOW 1GHz EUT Bluetooth Headset Model Name MH011 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 39.7000 32.14 11.86 40.00 7.86 100 356 Horizontal 2 62.0100 28.39 10.58 40.00 11.61 100 48 Horizontal 3 99.8400 22.71 11.30 43.50 20.79 100 160 Horizontal 4 251.160 0 22.59 14.67 46.00 23.41 200 292 Horizontal 5 488.810 0 27.87 21.92 46.00 18.13 200 200 Horizontal 6 898.150 0 37.74 30.09 46.00 8.26 200 100 Horizontal RESULT: PASS Report No.: AGC00213200803FE03 Page 45 of 67 EUT Bluetooth Headset Model Name MH011 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Vertical NO. Freq. [MHz] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 40.6700 26.92 11.91 40.00 13.08 100 359 Vertical 2 62.0100 25.32 10.58 40.00 14.68 100 160 Vertical 3 82.3800 20.79 7.17 40.00 19.21 100 13 Vertical 4 99.8400 21.72 11.30 43.50 21.78 100 207 Vertical 5 166.770 0 20.00 14.26 43.50 23.50 100 2 Vertical 6 433.520 0 26.87 20.61 46.00 19.13 100 359 Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin= Limit –Level. 2. All test modes had been pre-tested. The mode 9 is the worst case and recorded in the report. Report No.: AGC00213200803FE03 Page 46 of 67 RADIATED EMISSION ABOVE 1GHz EUT Bluetooth Headset Model Name MH011 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00045.520.0845.674-28.4 peak 4804.00037.140.0837.2254-16.78 AVG 7206.00040.692.2142.974-31.1 peak 7206.00032.352.2134.5654-19.44 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Bluetooth Headset Model Name MH011 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00044.670.0844.7574-29.25 peak 4804.00036.250.0836.3354-17.67 AVG 7206.00039.342.2141.5574-32.45 peak 7206.00030.262.2132.4754-21.53 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC00213200803FE03 Page 47 of 67 EUT Bluetooth Headset Model Name MH011 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 8 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00045.480.1445.6274-28.38 peak 4882.00038.260.1438.454-15.6 AVG 7323.00041.392.3643.7574-30.25 peak 7323.00034.612.3636.9754-17.03 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Bluetooth Headset Model Name MH011 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 8 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00045.860.144674-28 peak 4882.00037.560.1437.754-16.3 AVG 7323.00040.632.3642.9974-31.01 peak 7323.00031.282.3633.6454-20.36 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC00213200803FE03 Page 48 of 67 EUT Bluetooth Headset Model Name MH011 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00046.650.2246.8774-27.13 peak 4960.00038.390.2238.6154-15.39 AVG 7440.00041.282.6443.9274-30.08 peak 7440.00032.812.6435.4554-18.55 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Bluetooth Headset Model Name MH011 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00045.680.2245.974-28.1 peak 4960.00038.350.2238.5754-15.43 AVG 7440.00041.292.6443.9374-30.07 peak 7440.00033.412.6436.0554-17.95 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type RESULT: PASS Note: The amplitude of other spurious emissions from 1G to 25 GHz which are attenuated more than 20 dB below the permissible value need not be reported. Factor = Ante…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED TEST SETUP
