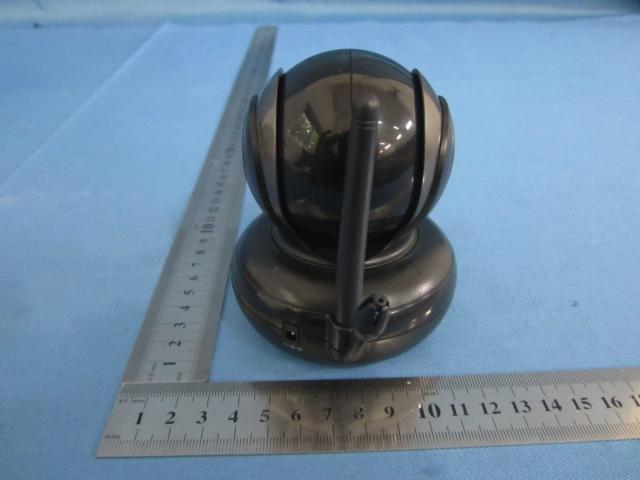

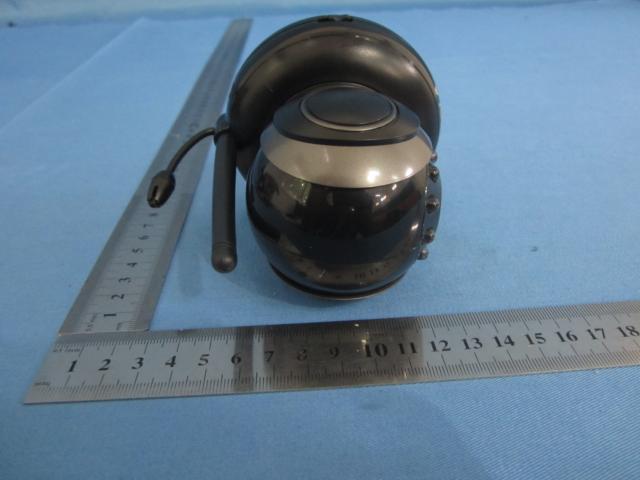

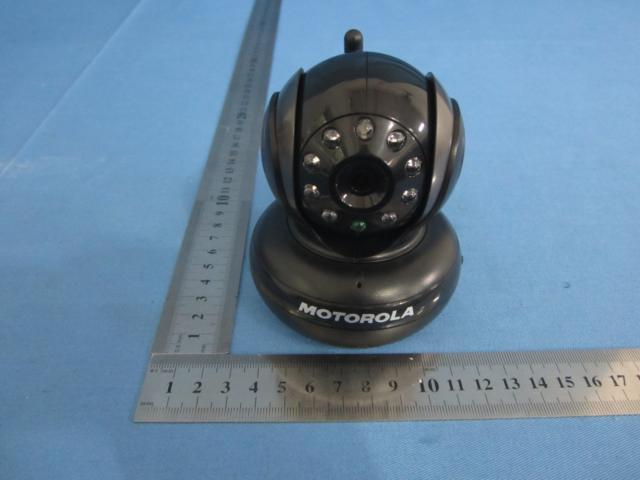

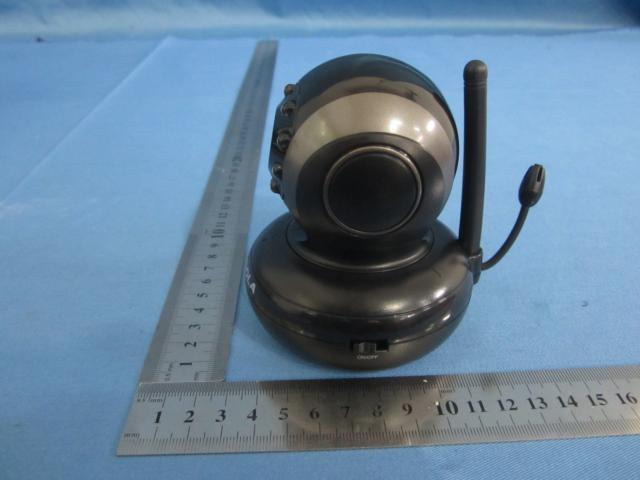

VLJ-SC1000PUWireless Monitoring System (Camera Unit)

USER’S GUIDE Model: SCOUT1500 DIGITAL VIDEO PET MONITOR with INDOOR & OUTDOOR PET UNITS USER’S GUIDE The features described in this User's Guide are subject to modifications without prior notice. Welcome... to your new Motorola Digital Video Pet Monitor with Indoor & Outdoor Pet Units! Thank you for purchasing your new Digital Video Pet Monitor with Indoor and Outdoor pet units. If you have always wondered what your pet is up to when you are away, wonder no more. Now you can monitor your pet’s activities from another room. With the outdoor pet unit, you can also see what your pet(s) is doing in the backyard. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please call: US and Canada 1-888-331-3383 On the Web: www.motorola.com This User's Guide provides you with all the information you need to get the most out of your product. Before you can use your new Digital Video Pet Monitor, we recommend that you fully charge the battery of the digital video pet monitor by inserting it in the owner unit. This will allow it to continue to work even if you disconnect it from the power supply to carry it to another location. Please read the Safety Instructions on page 6 before installation. Got everything? • 1 x Owner Unit • 1 x Indoor Pet Unit • 1 x Outdoor Pet Unit • 1 x Rechargeable Ni-MH Battery Pack for the Owner Unit • 1 x Power adapter for the Owner Unit • 1 x Power adapter for the Indoor Pet Unit • 1 x Power adapter with connector for the Outdoor Pet Unit • 4 x Mounting Screws and Dry Wall Plugs • 1 x Tamper-proof Screw • 1 x Metal Bracket • 1 x Wrench Key In multi-camera packs, you will find one or more additional pet units with power adapter units. Overview of the Owner Unit 1. Display (LCD screen) 2. Up Key + Normal Mode: Tilt Up Menu Mode: Up 3. Down Key - Normal Mode: Tilt Down Menu Mode: Down 4. Left Key < Normal Mode: Pan Left Menu Mode: Left 5. Right Key > Normal Mode: Pan Right Menu Mode: Right 6. Menu Key M Press to open the Menu options 7. OK Key O 8. Quick Scan key >> Press to double the video pan and tilt speed. Press again to return to normal speed. 9. Talk Key T Press and hold to talk to your pet 10. Power Adapter / Battery LED BLUE when mains adapter power on. RED when battery low. 11. Unit ON/OFF LED (Green) 12. Audio Level LED (Green, Orange, Red, Red) 13. Microphone 14. Power / Video ON-OFF key VP Press and Hold to turn the unit ON/OFF Press once to turn ON and OFF the LCD display 15. Antenna Lift the antenna for optimal reception 16. Battery cover 17. Stand 18. Speaker 19. USB connector Connection to AV output * AV Cable (Optional accessory, purchased separately) 20. Power Adapter connector 18 15 11 14 13 16 17 19 20 6 7 8 9 2 3 4 5 10 12 1 R EW O P Owner unit menu icons 1 Signal Level (5 Levels) N Night Vision Mode (Screen changes to Black/White) T Ta l k Mode B Battery Level Control (4 Levels) H Pan Left J Pan Right K Tilt Up L Tilt Down * Volume Level Control (8 Levels) & Brightness Level Control (8 Levels) m Soothing Pet Music Control (5 Song Selections) Z Zoom Level Control (1X, 2X) A Alarm Setting (6h, 4h, 2h, OFF) C Cam Control (scan, view, add, del) t Temperature Reading (HH o C / o F or LL o C / o F) Icon & readings turn RED > 29 o C / 84 o F, and reading display HH o C / o F > 36 o C / 97 o F) Icon & readings turn RED < 14 o C / 57 o F, and reading display LL o C / o F < 1 o C / 34 o F) Overview of Indoor Pet Unit 1. Photo Sensor (Night Vision Mode) 2. Camera Lens 3. Infared LEDs 4. Power LED 5. Microphone 6. Speaker 7. ON/OFF Switch 8. Power Adapter Connector 9. Antenna 10. Temperature Sensor 11. Pair Key 1 9 11 10 8 2 3 6 5 4 7 Overview of Outdoor Pet Unit 1. Camera Lens 2. Infared LEDs 3. Pair Key 4. Antenna Important guidelines for installing your digital video pet monitor • To use your Pet Units and Owner Unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. • Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or reinforced concrete between the Camera and Owner Unit may block the radio signal. • The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. • Use of other 2.4GHz products, such as wireless networks Wi-Fi ® routers), Bluetooth ® systems, or microwave ovens, may cause interference with this product, so keep the monitor at least 5ft (1.5m) away from these products, or turn them off if they appear to be causing interference. • If the signal is weak, try moving the Monitor and/or the Pet Units to different positions in the rooms or outdoor area. 3 4 2 1 ENGLISH Table of contents 6 Table of contents 1. Safety Instructions ......................................................................... 7 2. Getting Started .............................................................................. 12 2.1 Indoor Pet Unit Power Supply ...................................................... 12 2.2 Owner Unit Battery Installation ..................................................... 12 2.3 Owner Unit Power Supply ............................................................ 13 2.4 Outdoor Pet Unit Installation ........................................................ 14 2.4.1 Mounting the Outdoor Pet Unit ......................................... 15 2.5 Registration (Pairing) .................................................................... 17 2.6 View Video Through TV ............................................................... 17 3. Using the Digital Video Pet Monitor ............................................ 18 3.1 Setup ..............................................…

Text truncated - open the document above for the full version.

Appendix B Date: 2013-08-08 Report No.: 60.870.13.027.02F Model No.: SCOUT1000PU Page 1 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2013-08-08 Report No.: 60.870.13.027.02F Model No.: SCOUT1000PU Page 2 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2013-08-08 Report No.: 60.870.13.027.02F Model No.: SCOUT1000PU Page 3 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2013-08-08 Report No.: 60.870.13.027.02F Model No.: SCOUT1000PU Page 4 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. AC/DC Adaptor

SCOUT1000PU Label Location

Appendix C Date: 2013-08-08 Report No.: 60.870.13.027.02F Model No.: SCOUT1000PU Page 1 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix C Date: 2013-08-08 Report No.: 60.870.13.027.02F Model No.: SCOUT1000PU Page 2 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix C Date: 2013-08-08 Report No.: 60.870.13.027.02F Model No.: SCOUT1000PU Page 3 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix C Date: 2013-08-08 Report No.: 60.870.13.027.02F Model No.: SCOUT1000PU Page 4 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix C Date: 2013-08-08 Report No.: 60.870.13.027.02F Model No.: SCOUT1000PU Page 5 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix C Date: 2013-08-08 Report No.: 60.870.13.027.02F Model No.: SCOUT1000PU Page 6 of 6 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong.

ReportNo.: 60.870.13.027.02F Page 29 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Test Requirement:FCC part 15 section 15.247 (i) Test Method:FCC part 15 section 1.1307 (b1) OET Bulletin 65, Edition 01-01 Results: PASS Systems operation under the provision of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy levels in excess of the Commission’s guideline, The EUT is considered as a mobile device according to OET Bulletin 65, Edition 01-01, therefore distance to human body of min. 20cm is determined. Frequency Band:2410.875MHz ~2471.625MHz Device Category: Portable (< 20cm separation ) Mobile ( >20cm separation ) Others : Exposure Classification: Occupational/ Controlled exposure General Population / Uncontrolled exposure Max. Output Power0.046 W Antenna Gain0dBi ( Numeric gain:1) Evaluation Applied: MPE Evaluation SAR Evaluation MPE calculation: The radiated (EIRP) = 46 mW The power density at 20cm from the antenna : = EIRP / 4 R² = 0.0092 mW / cm² Limits for General Population/Uncontrolled Exposure [OET Bulletin 65, Edition 01-01]: FrequencyElectric FieldMagnetic FieldPower DensityAveraging Time RangeStrength (E)Strength (H)(S)|E| 2 , |H| 2 or S (MHz)(V/m)(A/m)(mW/cm 2 )(minutes) 0.3-1.346141.63(100)*30 1.34-30824/f2.19/f(180/f 2 )*30 30-30027.50.0730.230 300-1500----f/150030 1500-100,000----1.030

TEST REPORT Date: 2013-08-08 Report No.: 60.870.13.027.02F Page 1 of 30 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant: Binatone Electronics International Ltd. Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong Description of Samples:Model name: WirelessMonitoring System(CameraUnit) Brand name: MOTOROLA Model no.:SCOUT1000PU FCCID:VLJ-SC1000PU Date Samples Received:2013-07-03 Date Tested:2013-07-03 to 2013-08-07 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Ray CheungJeff Pong Project EngineerOperation Manager Wireless & Telecom DepartmentWireless & Telecom Department ReportNo.: 60.870.13.027.02F Page 2 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 30 Content Page 2-3 of 30 1.0General Details 1.1Test Laboratory Page 4 of 30 1.2Applicant Details Page 4 of 30 1.3Equipment Under Test [EUT] Page 5 of 30 1.4 Related Submittal(s) Grants Page 5 of 30 2.0Technical Details 2.1Investigations Requested Page 6 of 30 2.2Test Standards and Results Summary Page 6 of 30 3.0Test Methodology 3.1Radiated Emission Page 7 of 30 3.2Field Strength Calculation Page 7 of 30 3.3Conducted Emission Page 7 of 30 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 30 4.2 20dB Bandwidth Measurement Page 9-10 of 30 4.3 Hopping Channel Carrier Frequency Separation Page 11 of 30 4.4 Average Time of Occupancy Page 12-14 of 30 4.5 Pseudorandom Hopping Algorithm Page 15 of 30 4.6 Band Edge Measurement Page 16-17 of 30 4.7 Maxim umOutput Power Page 18-20 of 30 4.8 Out ofBand Emissionsand Emissions in Restricted Bands Page 21-25 of 30 4.9 Conducted Emission on AC Mains Page 26-28 of 30 ReportNo.: 60.870.13.027.02F Page 3 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Page 29 of 30 6.0List of Measurement Equipments Page 30 of 30 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos ReportNo.: 60.870.13.027.02F Page 4 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory Global United Technology Services Co. Ltd. 2 nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District Registration Number: 600491 Tested by: John Zhi 1.2Applicant Details Applicant Binatone Electronics International Ltd. Floor 23A, 9 Des Voeux Road West, Sheung Wan Hong Kong Manufacturer Alford Industries Ltd Unit 02, 6 th Floor, Yen Sheng Centre, 64 Hoi Yuen Road, Kwun Tong, Hong Kong ReportNo.: 60.870.13.027.02F Page 5 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of EUT Product Description:WirelessMonitoring System(CameraUnit) ModelNo.:SCOU T1000PU Brand Name: MOTOROLA FCCID:VLJ-SC1000PU Rating:-DC5.9V, 1000mApowered by AC/DC power adaptor Operated Frequency:2410.875-2471.625MHz No. of Operated Channel:19 Accessories and Auxiliary Equipments:Nil Antenna Type:Integral Manufacture of Antenna:Alford. Antenna Gain:0dBi Antenna Model:N/A General Operation of EUT The Equipment Under Test (EUT) is an Indoor Camera of Wireless Monitoring System. FHSS Operation Principle: This module is controlled by microchip to generate Pseudorandom Frequency Hopping Sequence, this module support 19 hopping channels. Refer to section 4.5 of this report to have more detail of Pseudorandom Hopping Algorithm. 1.4Related Submittal(s) Grants This is a signal application subjected to Certificate Authorization. ReportNo.: 60.870.13.027.02F Page 6 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 ( a1 ) Pseudorandom Hopping Algorithm Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC Mains Section 15.207 RF ExposureSection 15.247 ( i ) Antenna RequirementSection 15.203 See note 1 Note 1 :The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable ReportNo.: 60.870.13.027.02F Page 7 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation The field strength at 3 m was established by adding the meter r…

Text truncated - open the document above for the full version.
