VLJ-SH062Bluetooth earphone

FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Binatone Electronics International Ltd. Agent Authorization Company: Binatone Electronics International Ltd. Address:Floor 23A, 9 Des Voeux Road West, Sheung WanHong Kong, China Product Name: Bluetooth earphone Model Number(s):SH062, SH063 Product Description: Bluetooth earphone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-05-21 Name: Karl Heinz Mueller Title: Chief Technical Officer Company: Binatone Electronics International Ltd.

Binatone Electronics International Ltd. Authorization Letter We, (the approval holder) Company name Binatone Electronics International Ltd. Addresss Floor 23A, 9 Des Voeux Road West, Sheung Wan Hong Kong, China declare that the following representative (agent): Name (person) Bovey Yang Company name Shenzhen STS Test Services Co., Ltd. Addresss 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to Micom Labsfor product certification below Product Description Bluetooth earphone Type or Model(s) SH062, SH063 Tradename or Brand(s) Motorola Attestation: City: Date: Name: (this must be a person) Function: Signature: (or official company stamp) China 2020/05/21 Karl Heinz Mueller Chief Technical Officer

Differences Description We Binatone Electronics International Ltd. state: Product： Bluetooth earphone Model Name： SH062, SH063 Trade Name: Motorola The earphones for SH063 & SH062 are exactly the same. The Charging case of SH063 adds wireless charging function based on SH062.. Signatory Date 2020-05-21 Signature Name: Karl Heinz Mueller Title: Chief Technical Officer Company: Binatone Electronics International Ltd. Address: Floor 23A, 9 Des Voeux Road West, Sheung Wan Hong Kong, China

Binatone Electronics International Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-05-21 Subject; Request for Confidentiality FCC ID: VLJ-SH062 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Karl Heinz Mueller Title:Chief Technical Officer

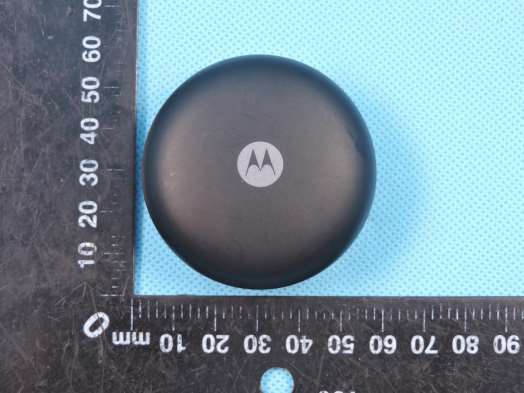

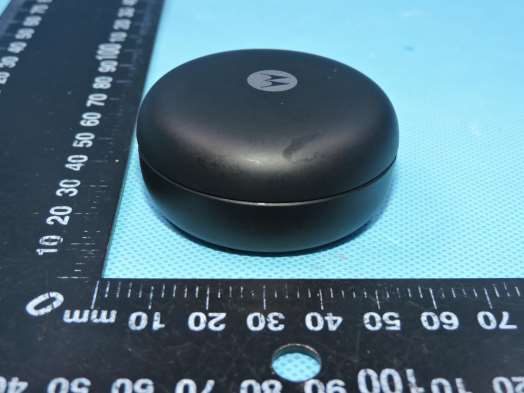

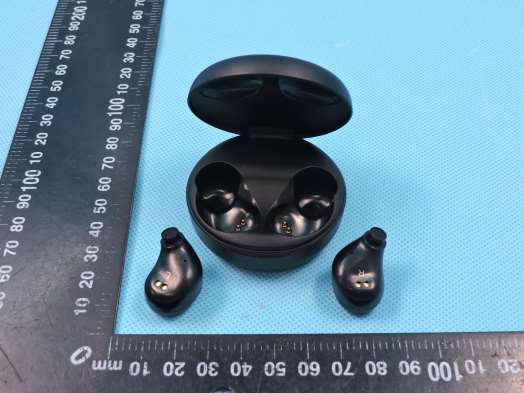

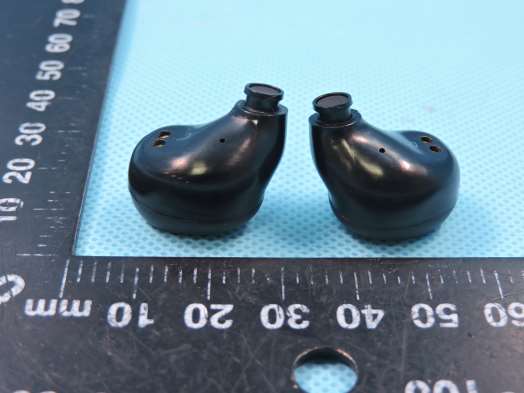

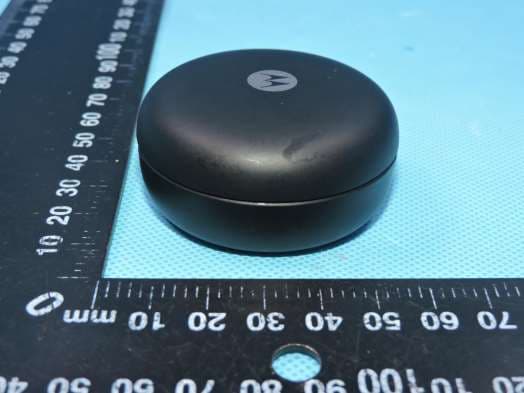

Page 1 of 7 Report No.: STS2004310 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS FCC ID: VLJ-SH062 IC: 4522A-SH062 Model: SH062 Photo 1 Photo 2 Page 2 of 7 Report No.: STS2004310 Photo 3 Photo 4 Page 3 of 7 Report No.: STS2004310 Photo 5 Photo 6 Page 4 of 7 Report No.: STS2004310 Photo 7 Photo 8 Page 5 of 7 Report No.: STS2004310 Photo 9 Photo 10 Page 6 of 7 Report No.: STS2004310 Photo 11 Photo 12 Page 7 of 7 Report No.: STS2004310 Photo 13

Silk screen 15.17 mm 16.076 mm 20.987 mm 21.993 mm V.1 2020.03.19 10mm WS-MT250 Silk screen

Page 1 of 3 Report No.: STS2004310 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS FCC ID: VLJ-SH062 IC: 4522A-SH062 Model: SH062 Photo 1 Photo 2 BT Antenna Page 2 of 3 Report No.: STS2004310 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2004310 Photo 5 Photo 6

FCC ID :VLJ-SH062 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤50 mmand for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is <5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID :VLJ-SH062 Maximum measured transmitter power. BT5.0+EDR The Worst Case Mode 2402-2480MHz Detector PEAK GFSK 0±1dBm π/4-DQPSK 0±1dBm 8DPSK 0±1dBm Remark: The worst case gain of the antenna is 0dBi. 0dBi logarithmic terms convert to numeric result is nearly 1 GFSK2.402-0.171 1.258925410.3902 3 π/4-DQPSK2.402-0.251 1.258925410.3902 3 8DPSK2.4020.11 1.258925410.3902 3 Mode Limit Maximum Peak Conducted Output Power (dBm) frequency (GHz) Tune up Power(dBm) Tune up Power (mW) Result Threshold at which no SAR required is 0.3902≤ 3.0 for 1-g SAR, Separation distance is 5mm.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.: STS2004310W02 Issued for Binatone Electronics International Ltd. Floor 23A, 9 Des Voeux Road West, Sheung Wan Hong Kong, China Product Name: Bluetooth earphone Brand Name: Motorola Model Name: SH062 Series Model: SH063 FCC ID: VLJ-SH062 IC ID 4522A-SH062 Test Standard: FCC Part 15.247 RSS-247 Issue 2, February 2017 S T L A B S Page 2 of 76 Report No.: STS2004310W02 TEST RESULT CERTIFICATION Applicant’s Name ................... : Binatone Electronics International Ltd. Address .................................. : Floor 23A, 9 Des Voeux Road West, Sheung Wan Hong Kong, China Manufacture's Name .............. : Binatone Electronics International Ltd. Address .................................. : Floor 23A, 9 Des Voeux Road West, Sheung Wan Hong Kong, China Product Description Product Name ........................ : Bluetooth earphone Brand Name ......................... : Motorola Model Name ........................... : SH062 Series Model .......................... : SH063 Test Standards ....................... : FCC Part15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5 ,March 2019 Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC/IC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ................................ : Date of receipt of test item .......... : 29 Apr. 2020 Date (s) of performance of tests . : 29 Apr. 2020 ~ 08 May 2020 Date of Issue .............................. : 11 May 2020 Test Result .................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 76 Report No.: STS2004310W02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 10 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 RADIATED EMISSION MEASUREMENT 18 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3 TEST SETUP 31 4.4 EUT OPERATION CONDITIONS 31 4.5 TEST RESULTS 32 5. NUMBER OF HOPPING CHANNEL 47 5.1 LIMIT 47 5.2 TEST PROCEDURE 47 5.3 TEST SETUP 47 5.4 EUT OPERATION CONDITIONS 47 5.5 TEST RESULTS 48 6. AVERAGE TIME OF OCCUPANCY 49 6.1 LIMIT 49 6.2 TEST PROCEDURE 49 6.3 TEST SETUP 49 6.4 EUT OPERATION CONDITIONS 49 6.5 TEST RESULTS 50 7. HOPPING CHANNEL SEPARATION MEASUREMEN 56 Page 4 of 76 Report No.: STS2004310W02 Table of Contents Page 7.1 LIMIT 56 7.2 TEST PROCEDURE 56 7.3 TEST SETUP 56 7.4 EUT OPERATION CONDITIONS 56 7.5 TEST RESULTS 57 8. BANDWIDTH TEST 63 8.1 LIMIT 63 8.2 TEST PROCEDURE 63 8.3 TEST SETUP 63 8.4 EUT OPERATION CONDITIONS 63 8.5 TEST RESULTS 64 9. OUTPUT POWER TEST 70 9.1 LIMIT 70 9.2 TEST PROCEDURE 70 9.3 TEST SETUP 71 9.4 EUT OPERATION CONDITIONS 71 9.5 TEST RESULTS 72 10. ANTENNA REQUIREMENT 74 10.1 STANDARD REQUIREMENT 74 10.2 EUT ANTENNA 74 11. FREQUENCY STABILITY 75 11.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT 75 11.2 TEST PROCEDURE 75 11.3 TEST RESULT 75 Page 5 of 76 Report No.: STS2004310W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 11 May 2020 STS2004310W02 ALL Initial Issue Page 6 of 76 Report No.: STS2004310W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C RSS-247 Issue 2 Standard Section Test Item Judgment Remark 15.207 RSS-Gen (8.8&7.2) Conducted Emission PASS -- 15.247(a)(1) RSS-247 (5.1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) RSS-247 (5.1) Output Power PASS -- 15.209 RSS-247 (5.5) Radiated Spurious Emission PASS -- 15.247(d) RSS-247 (5.5) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(iii) RSS-247 (5.1) Number of Hopping Frequency PASS -- 15.247(a)(iii) RSS-247 (5.1) Dwell Time PASS -- 15.247(a)(1) RSS-247 (5.1) Bandwidth PASS -- 15.205 RSS-Gen (8.9&8.10) Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) RSS-247 (5.5) Band Edge Emission PASS -- 15.203 RSS-Gen (6.8) Antenna Requirement PASS -- RSS-Gen (6.11&8.11) Frequency Stability PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 76 Report No.: STS2004310W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radi…
