VLJ-SH064Bluetooth earphone

FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two condi tion s: (1) This device may not cause h armful i nterference, and (2) this device must accept any interference received, including interference that may cause und esired operati on. Any Ch anges or modificatio ns not expressly approved by the party responsible for co mpliance could void the user's authority to operate the equipment. Note: This equi pment has been tested an d fou nd to comp ly with the li mits for a Class B di gital device, pu rsuant to part 15 o f the FCC Rul es. These limits are desi gned to provide reaso nabl e protection against harmful interference in a residential installation. This equipment gen erates uses and can radi ate radio frequ en cy energy and, if not installed and used i n accordance with th e instructions, may cause harmf ul interference to radio communi catio ns. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful i nterference to radio o r telev isio n recepti on, which can be determined by tu rn ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Co nnect th e equipment into an o utl et on a ci rcuit different from th at to whi ch the recei ver is connected. -Co nsult the deal er or an experienced radi o/TV technician for help . The device has been evaluated to meet general RF exposure requirement. The device can be u sed in p ortable exposure condi tio n with out restrictio n. Silk screen Color: Bright UV Silk screen Color: Black White Put it in the manual Put it in the manual

Binatone Electronics International Ltd. Agent Authorization Company: Binatone Electronics International Ltd. Address:Floor 23A, 9 Des Voeux Road West, Sheung WanHong Kong, China Product Name: Bluetooth earphone Model Number(s):SH064 Product Description: Bluetooth earphone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-09-21 Name: Karl Heinz Mueller Title: Chief Technical Officer Company: Binatone Electronics International Ltd.

Binatone Electronics International Ltd. Authorization Letter We, (the approval holder) Company name Binatone Electronics International Ltd. Addresss Floor 23A, 9 Des Voeux Road West, Sheung Wan Hong Kong, China declare that the following representative (agent): Name (person) Bovey Yang Company name Shenzhen STS Test Services Co., Ltd. Addresss 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to Micom Labs for product certification below Product Description Bluetooth earphone Type or Model(s) SH064 Tradename or Brand(s) Motorola Attestation: City: Date: Name: (this must be a person) Function: Signature: (or official company stamp) China 2020/09/21 Karl Heinz Mueller Chief Technical Officer

Binatone Electronics International Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-09-21 Subject; Request for Confidentiality FCC ID: VLJ-SH064 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Karl Heinz Mueller Title: Chief Technical Officer

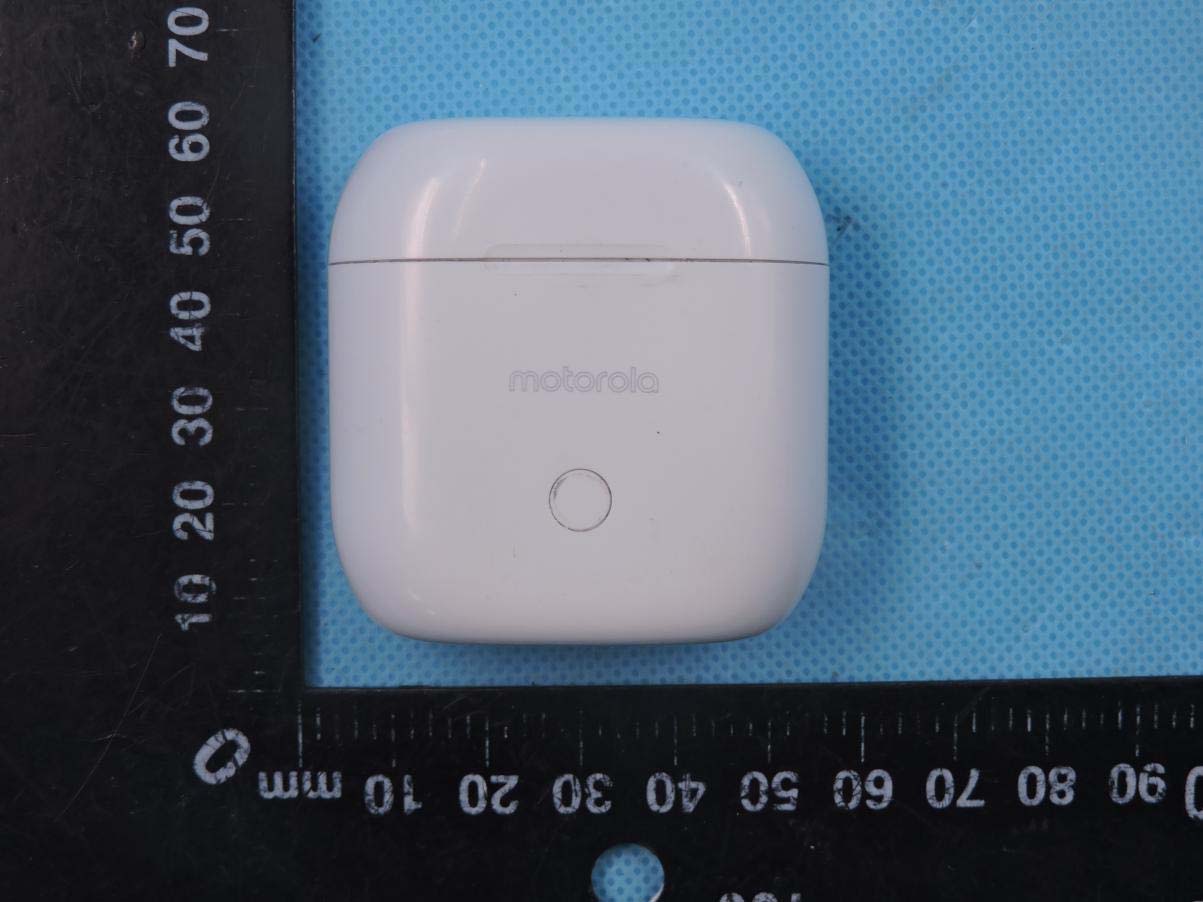

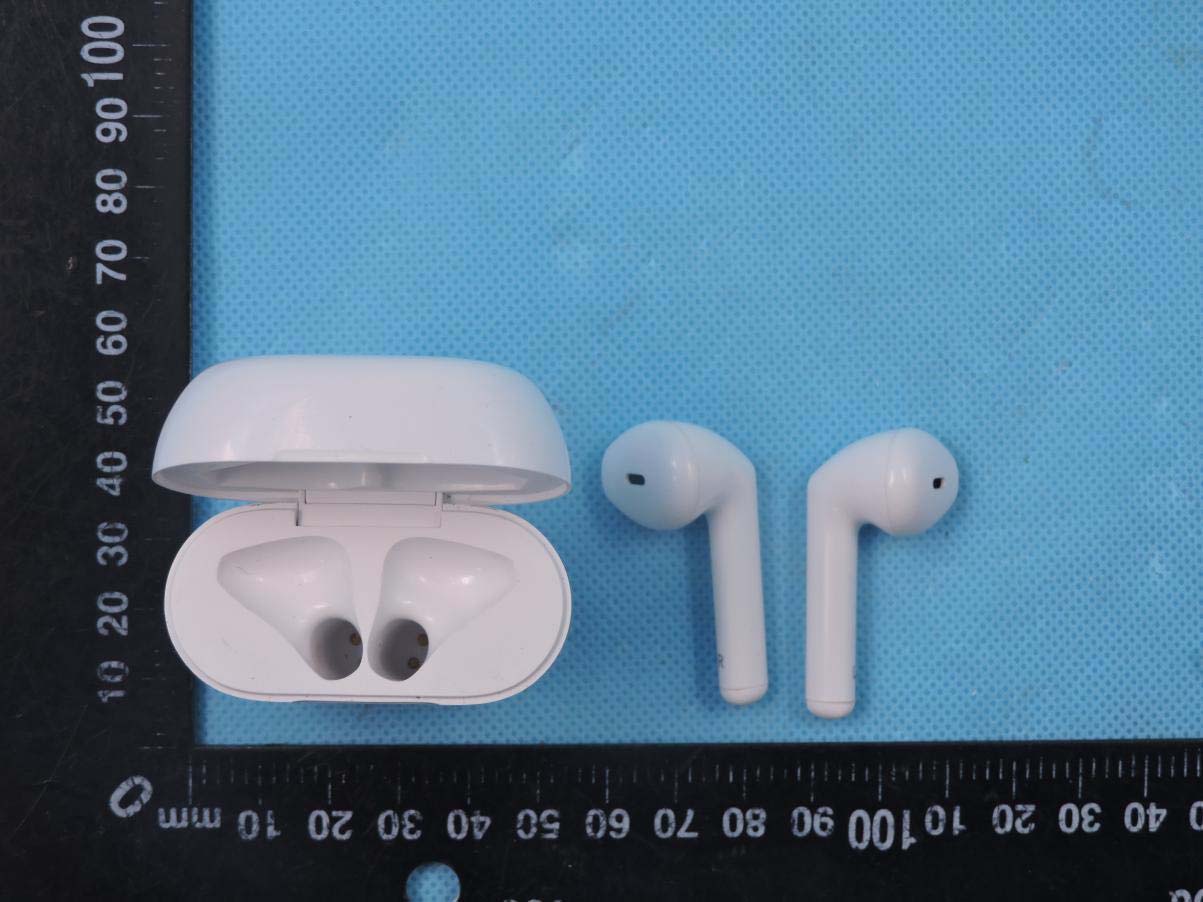

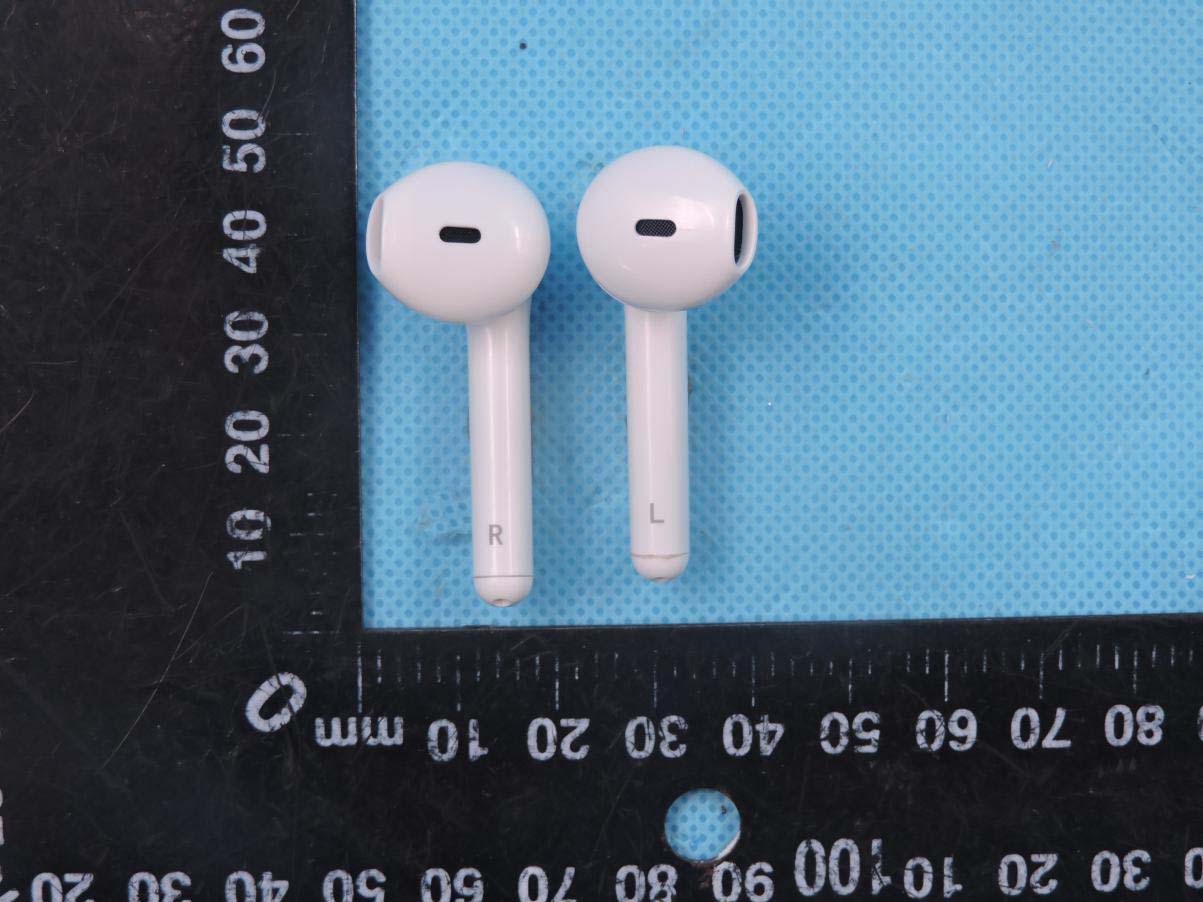

Page 1 of 5 Report No.: STS2008280 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: SH064 Photo 1 Photo 2 Page 2 of 5 Report No.: STS2008280 Photo 3 Photo 4 Page 3 of 5 Report No.: STS2008280 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2008280 Photo 7 Photo 8 Page 5 of 5 Report No.: STS2008280 Photo 9

Silk screen Color: Bright UV Silk screen Color: Black White 2020.08.21 V.5 WS-MTE6 2020.08.21 V.5 WS-MTE6 2020.08.21 V.5 WS-MTE6

Page 1 of 3 Report No.: STS2008280 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: SH064 Photo 1 Photo 2 BT Antenna Page 2 of 3 Report No.: STS2008280 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2008280 Photo 5

FCC ID :VLJ-SH064 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤50 mmand for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is <5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID :VLJ-SH064 Maximum measured transmitter power. BT5.0+EDR The Worst Case Mode 2402-2480MHz Detector PEAK GFSK 6±1dBm π/4-DQPSK 7±1dBm 8DPSK 7.5±1dBm Remark: The worst case gain of the antenna is 1.79dBi. 1.79dBi logarithmic terms convert to numeric result is nearly 1.51 Mode frequency (GHz) Maximum Peak Conducted Output Power (dBm) Tune up Power(dBm) Tune up Power (mW) Result Limit GFSK2.4026.773 π/4-DQPSK2.4027.6883 8DPSK2.4027.958.53 5.0118723361.5535 6.3095734451.9558 7.0794578442.1944 Threshold at which no SAR required is 2.1944≤ 3.0 for 1-g SAR, Separation distance is 5mm.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.: STS2008280W02 Issued for Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Sheung Wan Hong Kong, China Product Name: Bluetooth earphone Brand Name: Motorola Model Name: SH064 Series Model: N/A FCC ID: VLJ-SH064 IC: 4522A-SH064 Test Standard: FCC Part 15.247 RSS-247 Issue 2, February 2017 S T L A B S Page 2 of 76 Report No.: STS2008280W02 TEST RESULT CERTIFICATION Applicant’s Name ................... : Binatone Electronics International Limited Address .................................. : Floor 23A, 9 Des Voeux Road West, Sheung Wan Hong Kong, China Manufacture's Name .............. : Binatone Electronics International Limited Address .................................. : Floor 23A, 9 Des Voeux Road West, Sheung Wan Hong Kong, China Product Description Product Name ........................ : Bluetooth earphone Brand Name ......................... : Motorola Model Name ........................... : SH064 Series Model .......................... : N/A Test Standards ....................... : FCC Part15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5 ,March 2019 Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC/IC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................... : Date of receipt of test item ......... : 02 Sept. 2020 Date (s) of performance of tests : 02 Sept. 2020 ~ 11 Sept. 2020 Date of Issue ............................. : 11 Sept. 2020 Test Result ................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 76 Report No.: STS2008280W02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 2.6 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 13 2.7 EQUIPMENTS LIST 14 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 32 4.1 LIMIT 32 4.2 TEST PROCEDURE 32 4.3 TEST SETUP 32 4.4 EUT OPERATION CONDITIONS 32 4.5 TEST RESULTS 33 5. NUMBER OF HOPPING CHANNEL 48 5.1 LIMIT 48 5.2 TEST PROCEDURE 48 5.3 TEST SETUP 48 5.4 EUT OPERATION CONDITIONS 48 5.5 TEST RESULTS 49 6. AVERAGE TIME OF OCCUPANCY 50 6.1 LIMIT 50 6.2 TEST PROCEDURE 50 6.3 TEST SETUP 50 6.4 EUT OPERATION CONDITIONS 50 6.5 TEST RESULTS 51 7. HOPPING CHANNEL SEPARATION MEASUREMEN 57 Page 4 of 76 Report No.: STS2008280W02 Table of Contents Page 7.1 LIMIT 57 7.2 TEST PROCEDURE 57 7.3 TEST SETUP 57 7.4 EUT OPERATION CONDITIONS 57 7.5 TEST RESULTS 58 8. BANDWIDTH TEST 64 8.1 LIMIT 64 8.2 TEST PROCEDURE 64 8.3 TEST SETUP 64 8.4 EUT OPERATION CONDITIONS 64 8.5 TEST RESULTS 65 9. OUTPUT POWER TEST 71 9.1 LIMIT 71 9.2 TEST PROCEDURE 71 9.3 TEST SETUP 71 9.4 EUT OPERATION CONDITIONS 71 9.5 TEST RESULTS 72 10. ANTENNA REQUIREMENT 74 10.1 STANDARD REQUIREMENT 74 10.2 EUT ANTENNA 74 11. FREQUENCY STABILITY 75 11.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT 75 11.2 TEST PROCEDURE 75 11.3 TEST RESULT 75 Page 5 of 76 Report No.: STS2008280W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 11 Sept. 2020 STS2008280W02 ALL Initial Issue Page 6 of 76 Report No.: STS2008280W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C RSS-247 Issue 2 Standard Section Test Item Judgment Remark 15.207 RSS-Gen (8.8&7.2) Conducted Emission PASS -- 15.247(a)(1) RSS-247 (5.1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) RSS-247 (5.1) Output Power PASS -- 15.209 RSS-247 (5.5) Radiated Spurious Emission PASS -- 15.247(d) RSS-247 (5.5) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(iii) RSS-247 (5.1) Number of Hopping Frequency PASS -- 15.247(a)(iii) RSS-247 (5.1) Dwell Time PASS -- 15.247(a)(1) RSS-247 (5.1) RSS-Gen (6.7) 20dB Bandwidth 99% Bandwidth PASS -- 15.205 RSS-Gen (8.9&8.10) Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) RSS-247 (5.5) Band Edge Emission PASS -- 15.203 RSS-Gen (6.8) Antenna Requirement PASS -- RSS-Gen (6.11&8.11) Frequency Stability PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 76 Report No.: STS2008280W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output powe…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: VLJSH064 IC: 4522ASH064 DSS Setup photo Model name: SH064 DSS conduction DSS radiation L Page 2 of 2 FCC ID: VLJSH064 IC: 4522ASH064 DSS radiation H
