VLJ-SH068MOTOBUDS ANC

Pr oduct: MOTOBUDS ANC Frequency Band: 2.402 – 2.480 GHz Maximum RF power < 10dBm Working Temperature: -10 o C – 45 o C Model: SH068 F CC ID: VLJ-SH068 IC: 4522A-SH068 Quick Start Guide / Guía de inicio rápido / Snelstartgids / Guia de Início Rápido / Guida per il primo utilizzo / Schnellstartanleitung / Guide de démarrage rapide / Snabbstartsguide / Poradnik użytkowania / 快速入門指南 / 快速入门指南 / Краткое руководство пользователя / السریع التشغیل دلیل / Hızlı Başlangıç Kılavuzu / クイックスタートガイド / 빠른 시작 안내서 / คู่มือเริ�ม ต้นใช ้ งาน / Коротке керівництво користувача 2 EN 1.Char ging: Fully char ge before use The device can be powered through a Type-C from any CE compliant power source that implement the European interface as requested by EN 301 489-52. 2. P airing: 2. 1 Ensure both buds are inside the charging case with lid closed then open up the lid. The buds will flash blue and red. 2.1 2.2 Select “Motobuds ANC” from the smartphone Bluetooth menu. Motobuds ANC 2.2 3 3. Fitting: 3. 1 Insert the Vervebuds into your ear and rotate to fit comfortably. 3 .1 3.2 To optimize the best fit and audio experience, it is recommended to try different earbud sizes. 3.2 4. Basic Oper ation: (Multi-function butt on) 4 A dditional Operation Factory resetSwitch off both buds, then hold both MFB for 5 sec until the indicator shows RED & BLUE, press MFB rapidly for 4 times Reject a callMFB 2sec Voice command (Alexa)MFB 2sec (R bud) (Android) MFB Single-tap (R bud) (iOS) ANC ON_Transparent _ANC OFF (when in idle) Double press MFB (L Bud) to toggle between ANC ON- >Transparent mode ->ANC OFF mode ANC ON_Transparent _ANC OFF (when listening music) Double press MFB (L Bud) to toggle between ANC ON- >Transparent mode ->ANC OFF mode LED Indicator (earbud) PairingRed-blue flash StandbyBlue flash ChargingRed steady Fully chargedOff Battery lowRed flash ANC ONWhite steady ES 1.Carregando: Car gue completamente antes del primer uso Este aparato puede ser cargado con un cable Type-C conectado a cualquier toma de corriente que implemente la interfase Europea que se pide en EN 301 489-52. 5 2. P areando: 2. 1 Asegúrese de que ambos brotes estén dentro del estuche de carga con la tapa cerrada y luego abra la tapa. Los cogollos parpadearán en azul y rojo. 2.2 Seleccione "Motobuds ANC" en el menú de Bluetooth. 3. Encaix ando: 3. 1 Coloque los Vervebuds en su oido y girelos hasta que tengan un ajuste cómodo. 3.2 Para mejorar la experiencia de audio, se recomienda que pruebe todos los tamaños de almohadillas disponibles. 4. Oper ação dos Botões: Oper aciones adicionales Restablecimiento de fábrica Apague ambos botones, luego mantenga presionados ambos MFB durante 5 segundos hasta que el indicador muestre ROJO y AZUL, presione MFB rápidamente 4 veces Rechazar llamada MFB 2sec Órdenes de voz (Alexa)MFB 2sec (r) (Andre) System MFB solo. (iOS) ANC ON_Transparent_ANC OFF (cuando está inactivo) Presione dos veces MFB (auricular izquierdo) para alternar entre ANC ENCENDIDO-> Modo transparente -> Modo ANC APAGADO ANC ON_Transparent_ANC OFF (al escuchar música) Presione dos veces MFB (auricular izquierdo) para alternar entre ANC ENCENDIDO -> Modo transparente -> Modo ANC APAGADO 6 LED Indica tor Sincronizando Destello rojo-azul ReposoDestello azul CargandoRojo fijo Carga completaApagado Batería bajaDestello rojo ANC ONluz blanca NL 1.Opladen: V olledig opladen voor gebruik Het apparaat kan via een Type-C worden opgeladen via elke CE-compatibele voedingsbron die de Europese interface implementeert, zoals vereist door EN 301 489-52. 2. P airing: 2. 1 Zorg ervoor dat beide oordoppen zich in de oplaadcase bevinden, open de case, de LED knippert blauw en rood. 2.2 Selecteer "Motobuds ANC" in het Bluetooth-menu van de smartphone. 3. P assen: 3. 1 Plaats de Vervebuds in uw oor en draai totdat ze comfortabel zitten. 3.2 Om de best passende en audio-ervaring te optimaliseren, wordt het aanbevolen om de verschillende oordopjes uit te proberen. 4. Knop bediening: Extr a bediening Reset fabrieksinstellingenSchakel beide oordopjes uit en hou vervolgens beide MFB gedurende 5 seconden ingedrukt totdat de indicator ROOD & BLAUW wordt, druk dan vier keer snel op MFB 7 E en oproep weigerenMFB 2sec Voice commando (Alexa)MFB 2sec (R) (Android) MFB Single -tap (iOS) ANC ON_Transparent_ANC UIT (wanneer inactief) Druk tweemaal op MFB (L Bud) om te schakelen tussen ANC ON -> Transparante modus -> ANC OFF-modus ANC ON_Transparent_ANC UIT (bij het luisteren naar muziek) Druk tweemaal op MFB (L Bud) om te schakelen tussen ANC ON -> Transparante modus -> ANC OFF-modus LED Indicator VerbindenRood-blauw knipperend StandbyBlauw knipperend OpladenRood constant Volledig opgeladenUit Batterij bijna leegRood knipperend ANC ONwit licht op PT 1.Carr egamento: Carr egue completamente antes de usar O dispositivo pode ser alimentado através de uma porta Type-C, a partir de qualquer fonte de energia compatível com o padrão CE que implemente a interface europeia, conforme requisitado pela norma EN 301 489-52. 2. Sincr onização: 2. 1 Assegure-se de que ambos os fones estejam dentro do estojo de carregamento com a tampa fechada e abra a tampa. Os fones piscarão azul e vermelho. 2.2 Selecione "Motobuds ANC" no menu de Bluetooth. 8 3. Ajus te: 3. 1 Para aperfeiçoar o encaixe e a experiência de áudio, é recomendável experimentar cada um dos diferentes tamanhos de almofadas. 3.2 Insira os Vervebuds em seu ouvido e gire para encaixar confortavelmente. 4. Oper ação dos botões: Oper ação Adicional Restauração de fábricaDesligue os dois fones, então segure ambos os botões MFB por 5 segundos até que o indicador mostre VERMELHO e AZUL, pressione o botão MFB rapidamente por 4 vezes Rejeitar uma chamada Pr essione o MFB por 2 segundos C omando de voz (Alexa)MFB 2sec (R) (Androide) MFB Único-toque (iOS) ANC ON_Transparente_ ANC OFF (quando inativo) Pressione duas vezes MFB (fone L) para alternar entre ANC ON -> modo Transparente -> modo ANC OFF ANC ON_Transparente_ ANC OFF (ao ouvir música) Pressio…

Text truncated - open the document above for the full version.

Binatone Electronics International Ltd. Off ice of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020.11.10 Subject; Request for Long Term Confidentiality FCC ID: VLJ-SH068 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It i s our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sinc erely, Signature: Name: Sam Lee Title: Product Director

Binatone Electronics International Ltd. Agent Authorization Company: Binatone Electronics International Ltd. Address: 25/F, Guangdong Investment Tower, 148 Connaught Road, Central, Sheung Wan, Hong Kong, China Product Name: MOTOBUDS ANC Model Number(s): SH068 Product Description: MOTOBUDS ANC We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Date: 2020-11-10 Signature: Name: Sam Lee Title: Product Director Company: Binatone Electronics International Ltd.

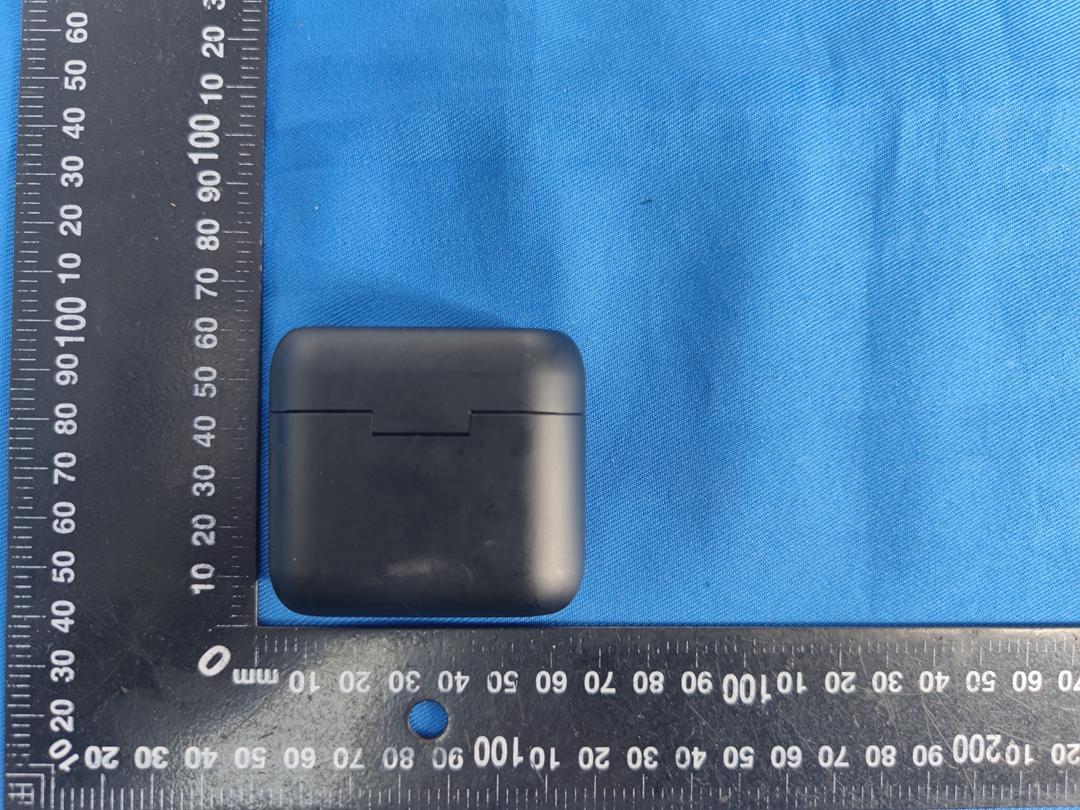

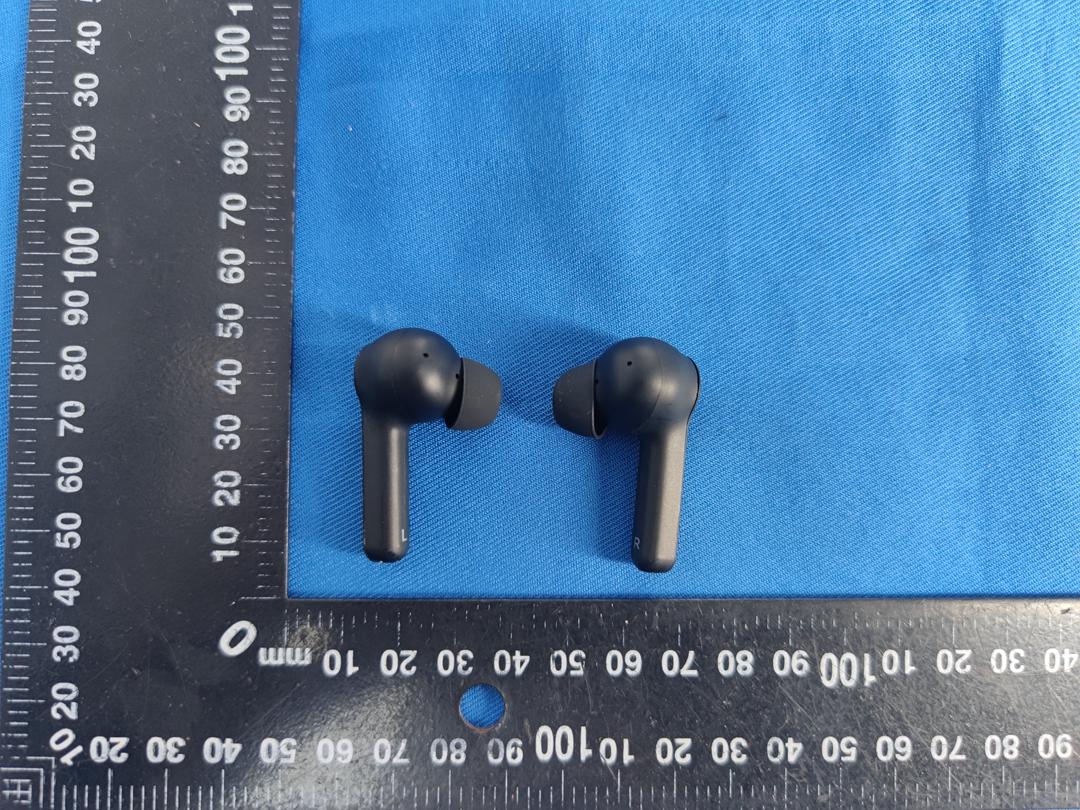

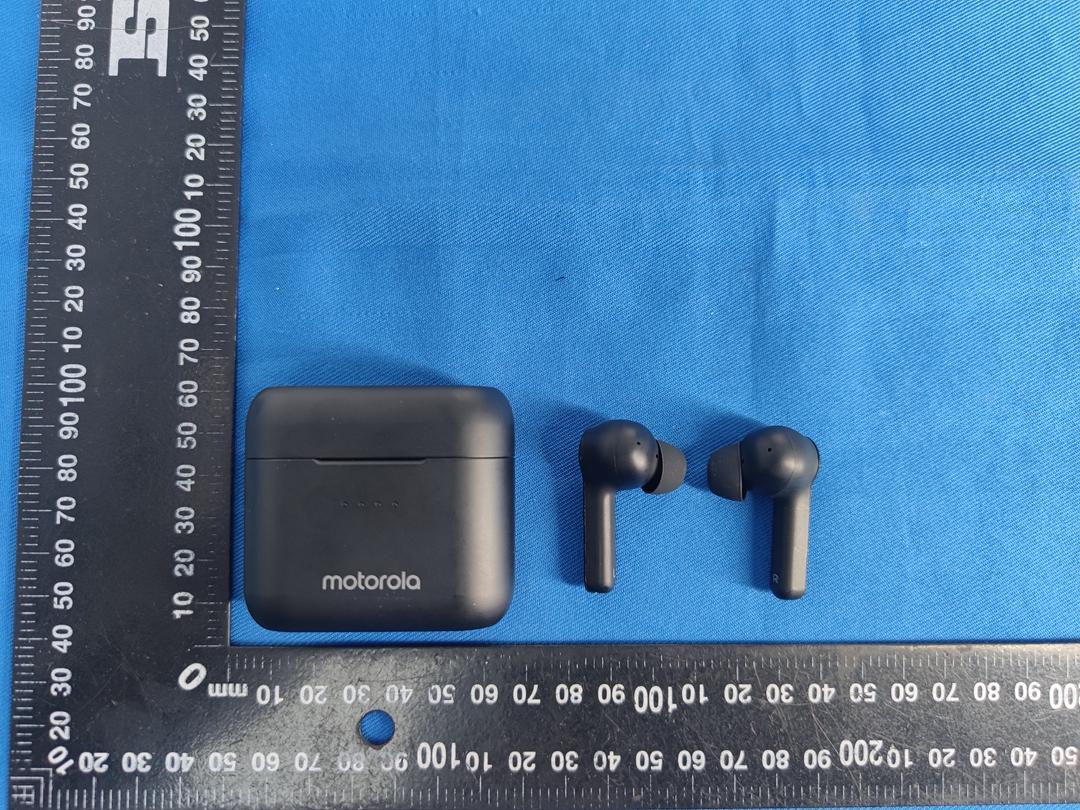

Page 1 of 5 Appendix B: Photographs of EUT Product: MOTOBUDS ANC Model: SH068 External Photos Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

Page 1 of 6 Appendix B: Photographs of EUT Product: MOTOBUDS ANC Model: SH068 Internal Photos Antenna Page 2 of 6 Page 3 of 6 Page 4 of 6 Page 5 of 6 Page 6 of 6

RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison  For EDR+BDR: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 78 2.480 1.22 0.5±1 1.5 1.41 5 0.44 3.0 For BLE: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 39 2.402 0.66 0±1 1 1.26 5 0.39 3.0 Result: Base on the calculation value, No SAR measurement is required.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: VLJ-SH068 Product: MOTOBUDS ANC Model No.: SH068 Additional Model No.: N/A Trade Mark: Motorola Report No.: TCT201023E033 Issued Date: Nov. 09, 2020 Issued for: Binatone Electronics International Ltd. 25/F, Guangdong Investment Tower, 148 Connaught Road, Central, Sheung Wan, Hong Kong, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT201023E033 Page 2 of 36 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification....................................................................................... 3 2. Test Result Summary ............................................................................... 4 3. EUT Description ........................................................................................ 5 4. General Information .................................................................................. 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations ................................................................... 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ...................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Conducted Output Power ................................................................................... 13 6.4. Emission Bandwidth ........................................................................................... 16 6.5. Power Spectral Density ....................................................................................... 19 6.6. Conducted Band Edge and Spurious Emission Measurement ....................... 22 6.7. Radiated Spurious Emission Measurement ...................................................... 25 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT201023E033 Page 3 of 36 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: MOTOBUDS ANC Model No.: SH068 Additional Model No.: N/A Trade Mark: Motorola Applicant: Binatone Electronics International Ltd. Address: 25/F, Guangdong Investment Tower, 148 Connaught Road, Central, Sheung Wan, Hong Kong, China Manufacturer: Binatone Electronics International Limited Address: 25/F Guangdong Investment tower, 148 Connaught Road Central, sheung Wan, Hong Kong, China Date of Test: Oct. 26, 2020 – Nov. 06, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Nov. 06, 2020 Aaron Mo Reviewed By: Date: Nov. 09, 2020 Beryl Zhao Approved By: Date: Nov. 09, 2020 Tomsin Report No.: TCT201023E033 Page 4 of 36 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 5. After pre-testing the two earphones, the two earphones are left and right ears respectively; we found that the left earphone is the worst case, so the results are recorded in this report. Report No.: TCT201023E033 Page 5 of 36 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: MOTOBUDS ANC Model No.: SH068 Additional Model No.: N/A Trade Mark: Motorola Hardware Version: V2.1 Software Version: V3.0 Bluetooth Version: V5.0 (This report is for BLE) Operation Frequency: 2402MHz~2480MHz Channel Separation: 2MHz Number of Channel: 40 Modulation Type: GFSK Antenna Type: Internal Antenna Antenna Gain: 0dBi Power Supply: Rechargeable Li-ion Battery DC 3.7V Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. Operation Frequency each of channel Channel Frequency Channel Freq…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: MOTOBUDS ANC Model: SH068 Radiated Emission Left Page 2 of 2 Conducted Emission
