VLJ-T200TPet Training System (Trainer)

User’s Guide SHOCK-FREE REMOTE TRAINING SYSTEM WITH DUAL SONIC TECHNOLOGY Model: TRAINER200U The features described in this User's Guide are subject to modifications without prior notice. Welcome... to your new Motorola Shock-Free Remote Training System with Dual Sonic Technology! Thank you for purchasing the Motorola TRAINER200U. By emitting an ultrasonic sound that can be heard by your dog, yet inaudible to the human ear, your new Remote Training System provides a quick and effective means of solving common problem behaviors and reinforcing basic obedience commands your dog already knows. You can choose from three different training modes - Audible Tone only, Vibration + Mild Ultrasonic Sound or Strong Ultrasonic Sound to match your dog's personality. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please call: This User's Guide provides you with all the information you need to get the most from the product. Please read and follow the instructions in this User’s Guide along with the Safety Instructions on page 7 before you using this product. Got everything? • 1 x Pet Collar Unit (with CR2450 battery installed) • 1 x Nylon Collar Strap • 1 x Remote Trainer Unit (with CR2032 battery installed) US and Canada 1-888-331-3383 Email: [email protected] Overview of the Pet Collar Unit 1.Indicator LED Lights up in green for 3 seconds when the unit is powered on and flashes slowly during standby. Lights up in red when battery is low. Flashes quickly in green and red when delivering correction. 2.Power Key Press and hold to power the unit On/Off. Indicator LED lights up in green for 3 seconds when the unit is powered on. 3.Level Setting Key Press and hold to enter Correction Level setting. There are 3 correction levels: Level 1: Audible Tone only (Green LED) Level 2: Vibration + Mild Ultrasonic Sound (Amber LED) Level 3: Strong Ultrasonic Sound (Red LED) 4.Speakers Delivers audible tone and ultrasonic sound. 5.Battery Cover 1 2 3 4 5 Overview of the Remote Trainer Unit 1.Correction Key Press to deliver correction to the Pet Collar Unit. There are 3 correction levels: Level 1: Audible Tone only (Green LED) Level 2: Vibration + Mild Ultrasonic Sound (Amber LED) Level 3: Strong Ultrasonic Sound (Red LED) 2.Indicator LED Lights up in Green when delivering correction to the Pet Collar Unit. 3.Battery Compartment Cover 1 2 3 How the Shock-Free Remote Training System works The Remote Training System comes with a Remote Trainer Unit that is paired with the Pet Collar Unit. When you press CORRECTION KEY on the Remote Trainer Unit, a signal is sent to the Pet Collar Unit, which delivers correction to your dog to assist you with shaping and modifying its behavior. Your Remote Training System provides 3 levels of correction (Level 1 - Audible Tone only, Level 2 - Vibration + Mild Ultrasonic Sound and Level 3 - Strong Ultrasonic Sound) to match your dog's personality. Important guidelines when using the Shock-Free Remote Training System • Proper fit of the Pet Collar Unit is critical to the performance and effectiveness of the Remote Training System. If the fit is too loose, your dog will not be able to feel the vibration of the Pet Collar Unit. If the fit is too tight, it will irritate your dog’s skin. • Tighten the collar high on your dog’s neck, tight enough that you can get two fingers between the collar strap and your dog. It should not be able to rotate around the neck. • Do not make your dog wear the Pet Collar Unit for more than 12 hours continuously to avoid skin irritation. • Do not connect a leash to the Pet Collar Unit. 6 Table of contents 1.Safety Instructions .................................................................................... 7 2.Getting Started.......................................................................................... 8 2.1Remote Trainer Unit Battery Installation .................................................... 8 2.2Attach the Adjustable Strap to the Pet Collar Unit .................................... 9 2.3Replace the Battery in the Pet Collar Unit ................................................. 9 2.4Fit the Pet Collar Unit on your Dog’s Neck .............................................. 11 2.5Trim Away Excess Strap Length .............................................................. 12 3.Using the Pet Collar Unit ........................................................................ 13 3.1Powering On/Off the Pet Collar Unit ...................................................... 13 4.Training Your Dog with the Remote Training System .......................... 14 4.1Deliver Correction ................................................................................... 14 4.2Select Correction Level or Training Mode.............................................. 14 4.3When to Increase Correction Level ........................................................ 15 5.Disposal of the Device (Environment) ................................................... 16 6.Cleaning and Care .................................................................................. 17 7.Frequently Asked Questions .................................................................. 18 8.Troubleshooting ..................................................................................... 20 9.General Information ............................................................................... 21 Safety Instructions7 ENGLISH 1. Safety Instructions WARNING The Remote Training System is suitable for use on healthy, non-aggressive dogs to correct their behavior when used as described in this User's Guide. Therefore, always read the instructions in this User's Guide carefully before using the product. • DO NOT USE ON AGGRESSIVE DOGS - This product is not…

Text truncated - open the document above for the full version.

Appendix B1 Letter of Agency for FCC Certification 09-Oct-14 To whom it may concern, Letter of Agency I, an officer of Binatone Electronics International Ltd do hereby authorize Intertek Testing Services (Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Karl Heinz Mueller Chief Technical Officer

Attention: Application Examiner Re: Request for confidentiality Applicant: Binatone Electronics International Limited FCC ID: VLJ-T200T To whom it may concern, Permanent Confidentiality Request is hereby submitted by Binatone Electronics International Limited to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description Rationale for request for confidentiality: Binatone Electronics International Limited has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Chief Technical Officer Binatone Electronics International Limited

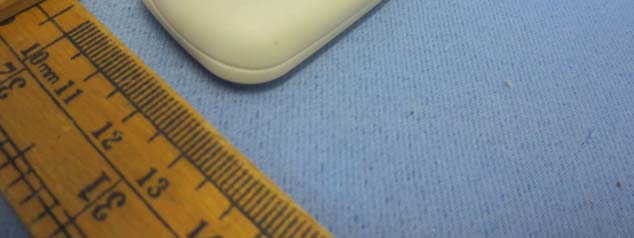

INTERTEK TESTING SERVICES External Photos FCC ID: VLJ-T200T IC:4522A-T200T external photos - 1 of 1

INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-T200T IC: 4522A-T200T internal photos - 1 of 2 INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-T200T IC: 4522A-T200T internal photos - 2 of 2

Analysis Report Report No.: 14081210HKG-001 The Equipment Under Test (EUT) is a wireless remote control unit of pet training system. It operates at frequency of 434MHz. The device was powered by a new CR2032 battery Module: Modulation Type: ASK Antenna Type: Integral, Internal Frequency Range: 434MHz Nominal field strength is 94.3dBμV/m @ 3m Production Tolerance of field strength is +/- 3dB Antenna gain is -8dBi According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 97.3dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.61mW Conducted Power = 10.2mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.43) mW = 22.76 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

lntertek Valued Quallty. Dalivered, lc¡":'- TEST REPORT Report No.: 1 4081 21 0HKG-001 Binatone Electronics lnternational Ltd. Application For Certification (Original Grant) (FCC lD: VLJ-T200T) (lC: 4522A-T200T) Transmitter Prepared and Checked bY: Wong Kwok Yeung, Kenneth Lead Engineer lnlerlek,s stenderd Tems and cond¡tion3 æn b€ oblsined el our wbs¡le hltpJ/w.ìnlerlek corÚtom/ lnlert6k's responslb¡l¡tY 8nd liênt ¡n aæordanæ wilh the distribulion of this EPort and duct or seryics musl llrst bo ilself doos nol ¡mPlY lhal lho gEm. lntertek Testing Services Hong Kong Ltd. 2/F., Garment Cenue' 576 Castle Peak Road, Kowloon' Hong Kong Tel: (852) 2'173 8888 Fax: (852) 2785 5487 Website: \¡M/u, hk.intertek-etlsemko com Approved by: SupervisorDate: October27,2014 Report No.: 14081210HKG-001 i FCC ID: VLJ-T200T IC: 4522A-T200T Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Binatone Electronics International Ltd. Grantee Address: Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong. Contact Person: Karl Heinz Mueller Tel: (852) 2802-2738 Fax: (852) 2802-8138 e-mail: [email protected] Manufacturer: Foshan Shunde Alford Electronics Co. Ltd Manufacturer Address: Xinjiao Industrial Park, DaLiang, ShunDe, Foshan City, Guangdong Province, China Brand Name: Motorola Model: TRAINER200UTU Type of EUT: Transmitter Description of EUT: Pet Training System (Trainer) Serial Number: N/A FCC ID / IC: VLJ-T200T / 4522A-T200T Date of Sample Submitted: August 29, 2014 Date of Test: September 03, 2014 to October 23, 2014 Report No.: 14081210HKG-001 Report Date: October 27, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Report No.: 14081210HKG-001 ii FCC ID: VLJ-T200T IC: 4522A-T200T Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission in Restricted Bands 15.205/RSS-210 2.2 Pass Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) (b) (c) / RSS-210 A1.1.1 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Report No.: 14081210HKG-001 iii FCC ID: VLJ-T200T IC: 4522A-T200T Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification.....................................................................................................2 2.2 EUT Exercising Software................................................................................2 2.3 Special Accessories .......................................................................................2 2.4 Measurement Uncertainty...............................................................................2 2.5 Support Equipment List and Description.........................................................2 3.0 Emission Results .............................................................................................3 3.1 Field Strength Calculation...............................................................................3 3.2 Radiated Emission Configuration Photograph ................................................4 3.3 Radiated Emission Data .................................................................................4 4.0 Equipment Photographs ..................................................................................7 5.0 Product Labelling .............................................................................................7 6.0 Technical Specifications .................................................................................7 7.0 Instruction Manual ...........................................................................................7 8.0 Miscellaneous Information ..............................................................................8 8.1 Measured Bandwidth......................................................................................8 8.2 Discussion of Pulse Desensitization ...............................................................9 8.3 Calculation of Average Factor.........................................................................9 8.4 Emissions Test Procedures ..........................................................................14 9.0 Equipment List ..................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VLJ-T200T IC: 4522A-T200T config photos (conducted emission) - 1 of 2 Radiated Emission
