VLJ-T25TPet Training System (Trainer)

User’s Guide REMOTE TRAINING SYSTEM Model: SCOUTTRAINER25 The features described in this User's Guide are subject to modifications without prior notice. Welcome... to your new Motorola Remote Training System! Thank you for purchasing the Motorola SCOUTTRAINER25. Your new Remote Training System will provide a quick and effective means of solving common problem behaviors and reinforcing basic obedience commands your pet already knows. You can choose from two training modes - warning tone only or 9 levels of static correction from gentle to firm. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please call: This User's Guide provides you with all the information you need to get the most from the product. Please read and follow the instructions in this User’s Guide along with the Safety Instructions on page 8 before you using this product. Got everything? • 1 x Pet Collar Unit • 1 x Collar Strap • 1 x Remote Control Unit • 1 x Test Light for Collar Contacts • 2 Pairs of Collar Contacts - Long & Short (For Pet Collar Unit) In multi-collar packs, you will find one or more additional Pet Collar Units with power adapter units. US and Canada 1-888-331-3383 Email: [email protected] Overview of the Pet Collar Unit 1.Pair Key 2.Indicator LED Lights up in green for 3 seconds when the unit is powered on and flashes slowly during standby. Lights up in red when battery is low. Flashes quickly in green and red when delivering static correction. 3.Power Key Press once to power the unit On/ Off. Indicator LED lights up in green for 3 seconds when the unit is powered on. 4.Battery Cover 5.Collar Contacts 1 2 3 5 4 Overview of the Remote Control Unit 1.Display (LCD screen) 2.Up Key Correction Mode: Increase level Menu Mode: Move up 3.Down Key Correction Mode: Decrease level Menu Mode: Move down 4.To n e K e y Press to send a tone to the Pet Collar Unit. Press to confirm and pair with the Pet Collar Unit. 5.Static Correction Key Press and hold to deliver static correction to the Pet Collar Unit. 6.Antenna 7.Power Key Press and hold to power ON/OFF. 8.Battery Cover 9.Leash Clip 1 2 3 4 5 6 7 8 9 Symbols on the Remote Control Unit Battery level on Remote Control Unit. Pet Collar Number. Displays the selected STATIC CORRECTION LEVEL (Level 0 to 9). When 0 is displayed, only tone alerts are sent to the Pet Collar Unit. Displays when TONE KEY is pressed. How the Remote Training System works The Training System comes with a Remote Control Unit that is paired with the Pet Collar Unit. At the push of the STATIC CORRECTION KEY on the Remote Control Unit, a signal is sent to the Pet Collar Unit, which delivers static correction to your dog to assist you with shaping and modifying its behavior. The Remote Control Unit is also designed with a TONE KEY . At the push of the key, a tone is sent to the Pet Collar Unit. The tone function is good for giving your dog an opportunity to respond to your commands prior to pressing the STATIC CORRECTION KEY . Important guidelines when using the Remote Training System • Included in the Training System are Collar Contacts in three different lengths (short, medium and long) that deliver static correction to your dog. Choose the appropriate length for your dog’s hair coat. The Pet Collar Unit was shipped with medium Collar Contacts that are suitable for dogs with medium hair coats. If your dog has dense coats or undercoats, use one of the longer Collar Contacts included with the product. • Proper fit of the Pet Collar Unit is critical to the performance and effectiveness of the Training System. If the fit is too loose, the collar will not be able to get sufficient contact with the skin to deliver static correction. If the fit is too tight, it will irritate your dog’s skin. • Tighten the collar high on your dog’s neck, tight enough that you can get two fingers between the collar strap and your dog. It should not be able to rotate around the neck. • Do not make your dog wear the Pet Collar Unit for more than 12 hours continuously to avoid skin irritation. • Do not connect a leash to the Pet Collar Unit as this might pull the Collar Contacts too tight against your dog’s neck. • When connecting a separate collar for the leash, make sure that it does not add pressure on the Pet Collar Unit. • Check the contact area on your dog’s neck for signs of irritation. If there is a rash or sore, discontinue use until the skin is completely healed. See a veterinarian if the condition persists. 7 ENGLISH Table of contents 1.Safety Instructions .................................................................................... 8 2.Getting Started ......................................................................................... 9 2.1Insert Batteries on the Remote Control Unit .............................................. 9 2.2Attach the Adjustable Strap to the Pet Collar Unit .................................. 10 2.3Insert and Remove Battery on the Pet Collar Unit ................................... 10 2.4Fit the Pet Collar Unit on your Dog’s Neck .............................................. 12 2.5Trim Away Excess Strap Length ............................................................... 13 2.6Change Collar Contacts .......................................................................... 14 2.7Using the Test Light .................................................................................. 15 3.Using the Pet Collar Unit ........................................................................ 16 3.1Powering On/Off the Pet Collar Unit ...................................................... 16 3.2Pairing with the Remote Control Unit ...................................................... 16 4.Training Your Dog with the Remote Training System .....…

Text truncated - open the document above for the full version.

Appendix B1 Letter of Agency for FCC Certification 09-Oct-14 To whom it may concern, Letter of Agency I, an officer of Binatone Electronics International Ltd do hereby authorize Intertek Testing Services (Mr. Terry Chan) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Karl Heinz Mueller Chief Technical Officer

Attention: Application Examiner Re: Request for confidentiality Applicant: Binatone Electronics International Limited FCC ID: VLJ-T25T To whom it may concern, Permanent Confidentiality Request is hereby submitted by Binatone Electronics International Limited to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description Rationale for request for confidentiality: Binatone Electronics International Limited has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Chief Technical Officer Binatone Electronics International Limited

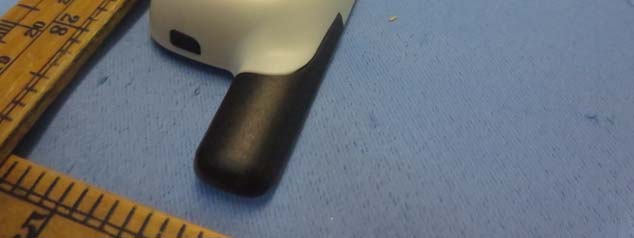

INTERTEK TESTING SERVICES External Photos FCC ID: VLJ-T25T I C:45 22A-T25T external photos - 1 of 1

INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-T25T IC: 4522A-T25T internal photos - 1 of 3 INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-T25T IC: 4522A-T25T internal photos - 2 of 3 INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ-T25T IC: 4522A-T25T internal photos - 3 of 3

Analysis Report The Equipment Under Test (EUT) is a wireless remote control unit of pet training system. It operates at frequency of 434MHz. The device was powered by a 2x1.5V AAA Alkaline battery. Module: Modulation Type: ASK Antenna Type: Integral, Internal Frequency Range: 434MHz Nominal field strength is 94.4dBμV/m @ 3m Production Tolerance of field strength is +/- 3dB Antenna gain is -8dBi According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 97.4dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.65mW Conducted Power =10.4 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.43) mW = 22.76 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

lntertek valued Qualig, Delivend. Report No.: 14091 179HKG-001 Binatone Electronics lnternational Ltd. Application For Gertification TEST REPORT Prepared and Checked by: (FCC lD: VLJ-T2ST) (Original Grant) L (lC= 45224-T25T) Transmitter Wong Kwok Yeung, Kenneth Lead Engineer ( lnterlek's standard T€ms and Conditions æn ba obtained at our wsbs¡te htlp:/ ilw lnt€rl6k com/t€md. This r€port shall not bE r€producôd, €xcopt ln tu¡l This r€port is for lh6 êxcluslv6 us6 ot lntert€k's Clisnt ând ls provid6d pursuanl to lhs agre€mont bôtweon lntert€k and ¡ts Cl¡€nl lntortek's responslbility ând liâbility are l¡mited lo the t€ms and ænditjons of tho agr€€m€nt lnterlok assumss no liab¡l¡ty to any parly, other lhen to the Cli€nt in amrdanæ with thô egrô6m€nt, for any loss, exp€nse or damage o@s¡onôd by lhê us6 of lhis ßport. Only the Cliênt ls authorized lo pormlt @pying or di8ùibution ol lhis ßport and then only ln ¡ts snl¡r6ty. Any use of the lnt€rtok nam6 or on€ of ¡ts marks for the s8l€ or adv€rtisemont of the têstêd mat€risl, produd or seruiæ must first bo spprovod in writing by lnterlsk. The obseryat¡ons and lest results in lh¡s rport srs El€vant only to lhe samplô testod Th¡s report by ¡lsolf does not ¡mply that the material, producl, or sgN¡æ ¡s or has €ver be€n under sn lnt€rlek ærtifætion program Approved by: Supervisor Date: December 01 ,2014 lntertek Testing Services Hong Kong Ltd. ZF., Germont Contre, 576 Ceslle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 27 85 5487 Webs¡te: www.hk.intertek-etlse INTERTEK TESTING SERVICES Report No.: 14091179HKG-001 i FCC ID: VLJ-T25T IC: 4522A-T25T GENERAL INFORMATION Grantee: Binatone Electronics International Ltd. Grantee Address: Floor 23A, 9 Des Voeux Road West, Sheung Wan, Hong Kong. Contact Person: Karl Heinz Mueller Tel: (852) 2802-2738 Fax: (852) 2802-8138 e-mail: [email protected] Manufacturer: Foshan Shunde Alford Electronics Co. Ltd Manufacturer Address: Xinjiao Industrial Park, DaLiang, ShunDe, Foshan City, Guangdong Province, China Brand Name: Motorola Model: SCOUTTRAINER25TU Type of EUT: Transmitter Description of EUT: Pet Training Product (Trainer) Serial Number: N/A FCC ID / IC: VLJ-T25T / 4522A-T25T Date of Sample Submitted: September 29, 2014 Date of Test: September 30, 2014 to November 12, 2014 Report No.: 14091179HKG-001 Report Date: December 01, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 14091179HKG-001 ii FCC ID: VLJ-T25T IC: 4522A-T25T SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission in Restricted Bands 15.205/RSS-210 2.2 Pass Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) (b) (c) / RSS-210 A1.1.1 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition RSS-210 Issue 8, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 14091179HKG-001 iii FCC ID: VLJ-T25T IC: 4522A-T25T Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Measurement Uncertainty ............................................................................. 2 2.5 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 4.0 Equipment Photographs ................................................................................ 7 5.0 Product Labelling........................................................................................... 7 6.0 Technical Specifications ................................................................................ 7 7.0 Instruction Manual......................................................................................... 7 8.0 Miscellaneous Information............................................................................ 8 8.1 Measured Bandwidth .................................................................................... 8 8.2 Discussion of Pulse Desensitization .............................................................. 9 8.3 Calculation of…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VLJ-T25T IC: 4522A-T25T config photos ( radiated emission) - 1 of 1 Radiated Emission
