Userís Guide L511BT / L512BT / L513BT / L514BT / L515BT DECT 6.0 Digital Cordless Phone with Bluetooth Æ and Answering System Warning Use only the adapter and telephone line cord provided in the box. ï 30 name and number phonebook. ï Answering machine with 15 minutes digital recording time.* ï Caller ID shows you who is calling and includes details of the last 30 callers in a calls list.** ï Register up to 5 handsets to a single base. ï Make internal calls, transfer external home calls, hold 3-way conversation between two internal callers and an external caller, including home call or cellular call. *The recording time includes the pre-recorded voice menu and outgoing announcements. **You must subscribe to your network provider's Caller ID or Call Waiting service for these features to work. Please note that this equipment is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made if emergency telephone call is necessary. Welcome... to your new Motorola Phone! Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please call: US and Canada: 1-888-331-3383 On the Web: www.motorola.com This ENERGY STAR Æ program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR Æ label indicating it meets the latest energy efficiency guidelines. IMPORTANT Only use the telephone line cord supplied. This equipment is not designed to make emergency telephone calls during power failures. Alternative arrangements should be made for access to emergency services. Got everything? ï Handset ï Base ï NiMH rechargeable battery pack ï Battery door ï Power adapter ï Telephone line cord ï Userís Guide ï Quick Start Guide In multihandset packs, you will find one or more additional handsets, chargers with power adapter units, additional rechargeable battery packs and battery doors. This Userís Guide provides you with all the information you need to get the most from your phone. Before you make your first call you will need to set up your phone. Follow the simple instructions in 'Getting Started', on the next few pages. 4 1. Getting started ................................................6 1.1 Connect the base ............................................... 7 1.2 Install and charge the handset battery pack ........ 7 1.3 Set the display language .................................... 8 1.4 Set date and time ............................................... 8 1.5 Your phone is now ready for use. ....................... 8 2. Getting to know your phone ..........................9 3. Using the phone............................................13 3.1 Introducing Bluetooth........................................ 13 3.2 Bluetooth Setup ................................................ 14 3.2.1 Setup Cellular ....................................... 14 3.2.2 Replace a paired device ....................... 14 3.2.3 Paired Devices ...................................... 15 3.3 Making a home call using your landline............ 15 3.4 Making a cellular call using your cordless DECT handset .................................................. 16 3.5 Speed dial calling ............................................. 16 3.6 Answering a home call ..................................... 16 3.7 Answering a cellular call ................................... 16 3.8 Receiving a cellular call while on a home call....... 17 3.9 Receiving a home call while on a cellular call ...... 17 3.10 Ending a call ..................................................... 17 3.11 Adjusting volume .............................................. 18 3.12 Muting a call ..................................................... 18 3.13 Dialing from the redial list ..................................18 3.14 Dialing from the calls list....................................18 3.15 Adding an entry to the phonebook ....................18 3.16 Storing a phonebook entry as a one touch number .............................................19 3.17 Dialing from the phonebook ..............................19 3.18 Caller ID ............................................................19 3.18.1 Calls List ................................................20 3.18.2 View the calls list ...................................20 3.18.3 Save a number from the calls list to the phonebook .......................................20 3.18.4 Delete a calls list entry ...........................21 3.18.5 Delete entire calls list .............................21 3.19 Personal Settings ..............................................22 3.20 Intercom ............................................................23 3.20.1 Call another handset ..............................23 3.20.2 Transfer an external home call to another handset .....................................23 3.20.3 Three-party conference call ...................24 3.21 Set the dial mode ..............................................24 3.22 Set the Flash Time ............................................24 3.23 Set the Area Code .............................................25 3.24 Registration .......................................................25 3.25 To reset all settings ...........................................25 5 3.26 Paging/Find handset ......................................... 26 3.27 Using your answering machine .........................26 3.27.1 Play messages ......................................26 3.27.2 Turn on or off the answer machine .........27 3.27.3 Set the announcement mode ................27 3.27.4 Set the number of rings .........................27 3.27.5 Announcement ......................................27 3.27.6 Record a memo .................…

Text truncated - open the document above for the full version.

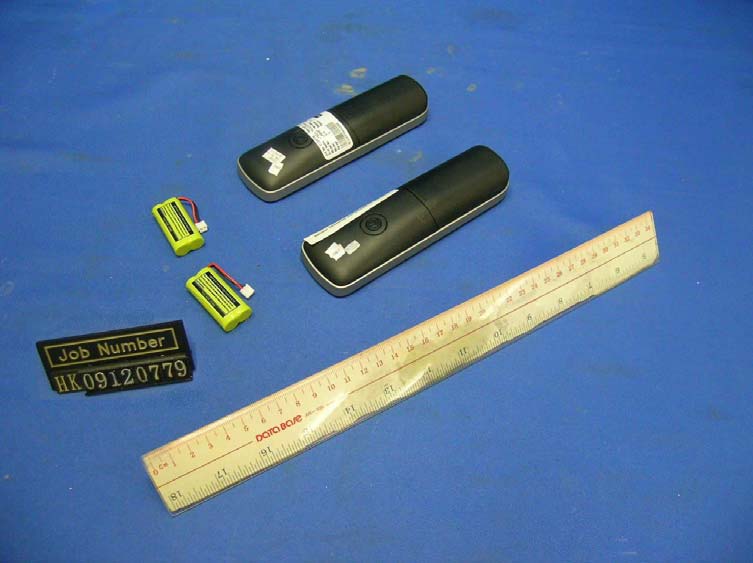

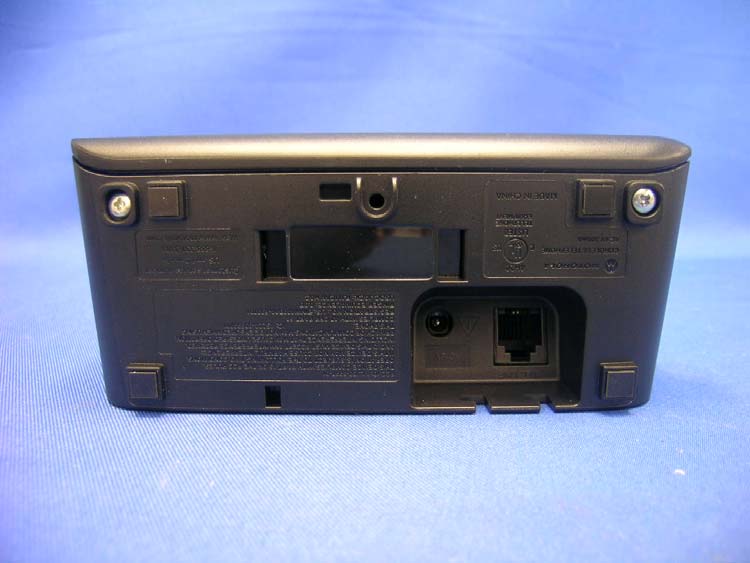

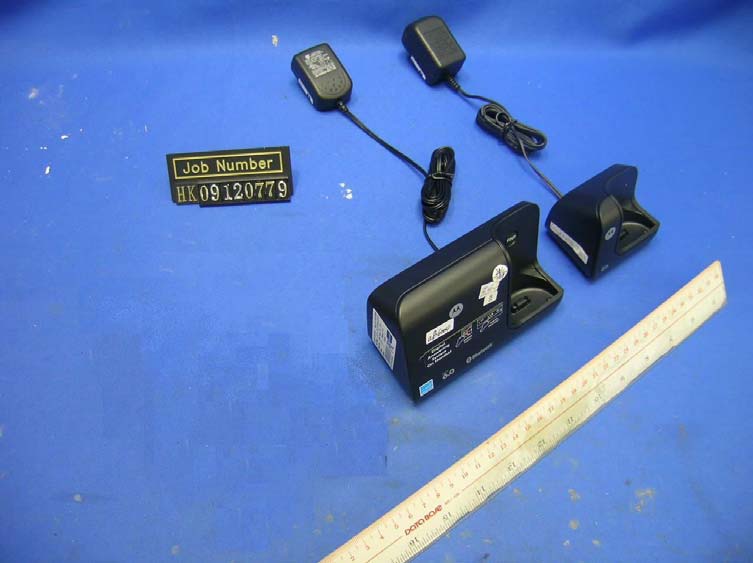

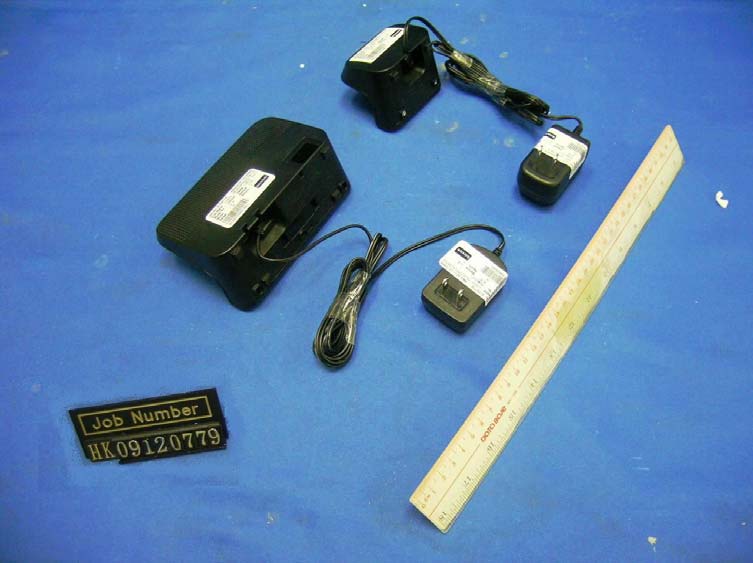

INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 external photos - 1 of 3 INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 external photos - 2 of 3 INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 external photos - 3 of 3

: : : : REV. : FRONT SURFACE BACK SURFACE : : : : : Engraving. NIL L512BT BS BTM 30-009618-000-1xx 0 80-xxxx-xx-xx Sheet1OF1 +/-0.1mm Details please see the MECH drawing # 30-009618. Plastic color please refer to latest color spec. POLYBAG PACKING FOR EACH INDIVIDUAL UNIT VTech Telecommunications Ltd D A T E : Jul,16, 2009 DC 6V DC 6V TEL. LINE FCC I D: VLJ80-7472-02 THIS DEVICE COMPLI ES WITH PART 15 OF THE F CC RULES. OPERATION I S SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL I NTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY I NTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USI NG THIS PHONE. IC: 4522A-80747202 COMPLI ES WITH 47 CFR PART 68 REGISTRATION NO. : US: BINW400B80-747202 RINGER EQUIVALENCE: 0.0B USOC JACK: RJ11C/W HAC Engraving C Recess 0.3mm, glossy Engraving D Recess 0.3mm, glossy Engraving E Recess 0.3mm, glossy Engraving A Raised 0.3mm Engraving B Raised 0.3mm FCC I D: VLJ80-7472-02 THIS DEVICE COMPLI ES WITH PART 15 OF THE F CC RULES. OPERATION I S SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL I NTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY I NTERFERENCE RECEI VED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USI NG THIS PHONE. IC: 4522A-80747202 COMPLI ES WITH 47 CFR PART 68 REGISTRATION NO. : US: BINW400B80-747202 RINGER EQUIVALENCE: 0.0B USOC JACK: RJ11C/W HAC Mod el: L512BT S/N: XXXXXXXXXXX Mod el: L512BT S/N: XXXXXXXXXXX S/N Label 28 X10 mm 10mm 28.2mm 29mm 50mm 47mm 10mm 16mm 19mm 10mm 5mm 10.5mm 19mm 13.5mm 4H20 CORDLESS TELEPHONE DC 6V 400mA MADE IN CHINA 4H20 CORDLESS TELEPHONE DC 6V 400mA MADE IN CHINA Customer service number: US and Canada: 1-888-331-3383 Web: www.motorola.com Customer service number: US and Canada: 1-888-331-3383 Web: www.motorola.com Customer service number: US and Canada: 1-888-331-3383 Web: www.motorola.com 22mm Customer service number: US and Canada: 1-888-331-3383 Web: www.motorola.com CAUTION: Use Only Supplied Battery IC: 4522A-80747202 FCC ID: VLJ80-7472-01 Engraving A Recess 0.3mm, glossy CAUTION: Use Only Supplied Battery IC: 4522A-80747202 FCC ID: VLJ80-7472-01 13mm 21mm 20mm 10mm : : : : REV. : FRONT SURFACE BACK SURFACE : : : : : Engraving. NIL L512BT HS REAR 30-009612-001-130 0 80-7472-0x-00 Sheet1OF1 +/-0.1mm Details please see the MECH drawing # 30-009612. Plastic color please refer to latest color spec. All the material of this part must be conformed to RoHS & REACH requirements No any content or up to the limit<0.1ppm of DFM(dimethylfumarate) in any Bulky Delivery Packaging of any items to Vtech VTech Telecommunications Ltd D A T E : Jul, 16, 2009 L511BT label: HS SN LABEL: SIZE: 20*10mm Model: L511BT Model: L511BT BS SN LABEL: SIZE: 28*10mm L512BT label: HS SN LABEL: SIZE: 20*10mm Model: L512BT BS SN LABEL: SIZE: 28*10mm CHAR SN LABEL: SIZE: 20*10mm Model: L512BT 5.5mm 6mm L513BT label: HS SN LABEL: SIZE: 20*10mm Model: L513BT BS SN LABEL: SIZE: 28*10mm CHAR SN LABEL: SIZE: 20*10mm L514BT label: HS SN LABEL: SIZE: 20*10mm Model: L514BT BS SN LABEL: SIZE: 28*10mm CHAR SN LABEL: SIZE: 20*10mm VT 0902000001G VT 0902000001G Model: L513BT 5.5mm 6mm VT 0902000001G Model: L514BT 5.5mm 6mm VT 0902000001G VT 0902000001G VT 0902000001G VT 0902000001G VT 0902000001G Model: L512BT VT 0902000001G Model: L513BT VT 0902000001G Model: L514BT VT 0902000001G L515BT label: HS SN LABEL: SIZE: 20*10mm Model: L515BT BS SN LABEL: SIZE: 28*10mm CHAR SN LABEL: SIZE: 20*10mm Model: L515BT 5.5mm 6mm VT 0902000001G VT 0902000001G Model: L515BT VT 0902000001G L5BT Plus label: HS SN LABEL: SIZE: 20*10mm CHAR SN LABEL: SIZE: 20*10mm Model: L5BT Plus 5.5mm 6mm VT 0902000001G Model: L5BT Plus VT 0902000001G

INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 internal photos - 1 of 10 Base Unit assembly Base Unit Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 internal photos - 2 of 10 Base Unit Main PCB comp side (View 2) Base Unit Main PCB comp side (View 3) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 internal photos - 3 of 10 Base Unit Main PCB comp side (View 4) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 internal photos - 4 of 10 Base Unit Main PCB solder side Base Unit Telephone Line Jack and AC Jack front side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 internal photos - 5 of 10 Base Unit Telephone Line Jack and AC Jack rear side Base Unit Page Key front side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 internal photos - 6 of 10 Base Unit Page Key rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 internal photos - 7 of 10 Base Unit Bluetooth RF Module front side Base Unit Bluetooth RF Module rear side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 internal photos - 8 of 10 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 internal photos - 9 of 10 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 internal photos - 10 of 10 Handset Main PCB display side (View 3) Handset Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: VLJ80-7472-02 (Base unit) RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of L512BT, the maximum field strength measured (FS) was 112.4 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-handsets operation is 20.8%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 52.13 mW The radiated (EIRP) source-based time-averaging output power = (52.13 * 0.208) mW = 10.84 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0022 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) 26bw - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) 26bw - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) 26bw - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

Report no.: HK09120779-1 DECT Talk Mode with Speakerphone On AC Mains “L” Ctrl No.: N/A PAGE 1 Report No.:HK09120779-1 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 4.5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 1 1 9k 30M 2454 2 9k 30M 0700 3 9k 30M 0090 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report no.: HK09120779-1 DECT Talk Mode with Speakerphone On AC Mains “L” Ctrl No.: N/A Report No.:HK09120779-1 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 4.5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit Delta MHz dB dB dB 0.15000 40.7 66.0 -25.3 0.54150 32.4 56.0 -23.6 0.73500 34.5 56.0 -21.5 1.03650 34.7 56.0 -21.3 1.33800 43.7 56.0 -12.3 1.53150 36.3 56.0 -19.7 2.35950 29.8 56.0 -26.2 3.84900 28.5 56.0 -27.5 5.65350 33.5 60.0 -26.5 7.37700 39.6 60.0 -20.4 7.98900 36.4 60.0 -23.6 Frequency AV Level AV Limit Delta MHz dB dB dB 1.33800 31.7 46.0 -14.3 * limit exceeded Report no.: HK09120779-1 DECT Talk Mode with Speakerphone On AC Mains “N” Ctrl No.: N/A PAGE 1 Report No.:HK09120779-1 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 4.5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 1 1 9k 30M 2454 2 9k 30M 0700 3 9k 30M 0090 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report no.: HK09120779-1 DECT Talk Mode with Speakerphone On AC Mains “N” Ctrl No.: N/A Report No.:HK09120779-1 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 4.5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit Delta MHz dBuV dBuV dB 0.15000 40.3 66.0 -25.7 0.54600 33.3 56.0 -22.7 0.73500 34.4 56.0 -21.6 0.94650 35.6 56.0 -20.4 1.28400 37.9 56.0 -18.1 1.83300 35.9 56.0 -20.1 2.12550 34.1 56.0 -21.9 3.26400 32.0 56.0 -24.0 5.70750 33.3 60.0 -26.7 7.44900 37.7 60.0 -22.3 7.98900 36.5 60.0 -23.5 Frequency AV Level AV Limit Delta MHz dBuV dBuV dB no Results * limit exceed Report no.: HK09120779-1 Base Charging Mode AC Mains “L” Ctrl No.: N/A PAGE 1 Report No.:HK09120779-1 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 4.5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 1 1 9k 30M 2454 2 9k 30M 0700 3 9k 30M 0090 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 1 10 F15Q F15A Report no.: HK09120779-1 Base Charging Mode AC Mains “L” Ctrl No.: N/A Repor t No.:HK0 912 07 79-1 Sca n Settings (1 R ange) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start S top Step IF BW De te ctor M-Time Atten P rea mp OpRge 15 0k 3 0M 4.5 k 1 0k P K+AV 10ms AUTO LN O FF 60 dB Final Measurement Results: Fr eque ncy QP Lev el QP Lim it Delta MHz dBuV dBuV dB 0 .48 750 35 .4 5 6.3 -20. 9 0 .68 550 37 .5 5 6.0 -18. 5 1 .06 800 37 .8 5 6.0 -18. 2 1 .32 000 45 .2 5 6.0 -10. 8 1 .54 950 36 .1 5 6.0 -19. 9 2 .40 000 35 .4 5 6.0 -20. 6 3 .28 200 34 .7 5 6.0 -21. 3 5 .34 750 30 .9 6 0.0 -29. 1 7 .40 400 40 .7 6 0.0 -19. 3 7 .98 450 37 .4 6 0.0 -22. 6 Fr eque ncy AV Le ve l AV Li mit Delta MHz dBuV dBuV dB 1 .32 000 33 .9 4 6.0 -12. 1 1 .52 700 27 .4 4 6.0 -18. 6 * limit ex ce eded Report no.: HK09120779-1 Base Charging Mode AC Mains “N” Ctrl No.: N/A PAGE 1 Report No.:HK09120779-1 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 4.5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 1 1 9k 30M 2454 2 9k 30M 0700 3 9k 30M 0090 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 1 10 F15Q F15A Report no.: HK09120779-1 Base Charging Mode AC Mains “N” Ctrl No.: N/A Repor t No.:HK0 912 07 79-1 Sca n Settings (1 R ange) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start S top Step IF BW De te ctor M-Time Atten P rea mp OpRge 15 0k 3 0M 4.5 k 1 0k P K+AV 10ms AUTO LN O FF 60 dB Final Measurement Results: Fr eque ncy QP Lev el QP Lim it Delta MHz dBuV dBuV dB 0 .16 350 31 .6 6 5.3 -33. 7 0 .22 650 36 .9 6 2.5 -25. 6 0 .30 750 35 .8 6 0.0 -24. 2 0 .46 050 36 .5 5 6.7 -20. 2 0 .69 450 36 .6 5 6.0 -19. 4 1 .08 600 36 .0 5 6.0 -20. 0 1 .32 000 40 .8 5 6.0 -15. 2 1 .70 700 37 .3 5 6.0 -18. 7 2 .55 300 35 .6 5 6.0 -20. 4 3 .13 800 34 .7 5 6.0 -21. 3 5 .36 100 34 .2 6 0.0 -25. 8 7 .59 300 40 .5 6 0.0 -19. 5 7 .98 900 38 .2 6 0.0 -21. 8 Fr eque ncy AV Le ve l AV Li mit Delta MHz dBuV dBuV dB 1 .36 950 26 .5 4 6.0 -19. 5 * limit ex ce eded

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) inband - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) inband - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) inband - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: VLJ80-7472-02 (Base unit) FCC: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 peaktp - 1 of 5 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: VLJ80-7472-02 (Base unit) FCC: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 peaktp - 2 of 5 A0 Base unit, Highest channel, Traffic carrier Base unit, Lowest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: VLJ80-7472-02 (Base unit) FCC: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 peaktp - 3 of 5 A0 Base unit, Middle channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: VLJ80-7472-02 (Base unit) FCC: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 peaktp - 4 of 5 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: VLJ80-7472-02 (Base unit) FCC: VLJ80-7472-01 (Handset unit) IC: 4522A-80747202 peaktp - 5 of 5 A0 Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) psd - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) psd - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-7472-02 (Base unit) FCC ID: VLJ80-7472-01 (Handset unit) psd - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier
