VLJ80-7644-011.9GHz CORDLESS PHONE

Userís Guide H101 / H102 / H103 / H104 / H105 DECT 6.0 Digital Cordless Phone Userís Guide H201 / H202 / H203 / H204 / H205 DECT 6.0 Digital Cordless Phone with Answering System Warning Use only the adapter and telephone line cord provided in the box. ï 30 name and number phonebook.ï Answering machine with 15 minutes digital recording time.* (For H20x Series Only) ï Caller ID shows you who's calling and see details of the last 30 callers in a calls list.**ï Register up to 5 handsets to a single base.ï Make internal calls, transfer external calls, hold 3-way co nversation between two internal callers and an external caller. *The recording time includes the pre-recorded voice menu and outgoing announcements. **You must subscribe to your network provider's Caller ID or Call Waiting service for these features to work. Please note that this equipment is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made if emergency telephone call is necessary. Welcome... to your new Motorola Phone! Please retain your original dated sales receipt for your record s. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warrant y status. Registration is not required for warranty coverage. For product related questions, please call: US and Canada: 1-888-331-3383 On the Web: www.motorola.com This ENERGY STAR Æ program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR Æ label indicating it meets the latest energy efficiency guidelines. IMPORTANTOnly use the telephone line cord supplied.This equipment is not designed to make emergency telephone calls during power failures. Alternative arrangements should be made for access to emergency services.Got everything?ï Handsetï Baseï NiMH rechargeable battery packï Battery doorï Power adapter ï Telephone line cordï Userís guideï Quick Start GuideIn multihandset packs, you will find one or more additiona l handsets, chargers with power adapter units, additional rechargeable battery packs and battery doors. This Userís Guide provides you with all the information you need to get the most from your phone.Before you make your first call you will need to set up your phone.Follow the simple instructions in 'Getting Started', on the next few pages. 41. Getting started ...................................................................5 1.1 Connect the base ..................................................................... 51.2 Install and charge the handset battery pack ............................ 61.3 Set the display language.......................................................... 81.4 Set date and time ..................................................................... 81.5 Your phone is now ready for use. ............................................ 8 2. Getting to know your phone .............................................83. Using the phone...............................................................12 3.1 Making a call .......................................................................... 123.2 Speed dial calling ................................................................... 123.3 Answering a call ..................................................................... 123.4 Ending a call .......................................................................... 123.5 Adjusting volume.................................................................... 123.6 Muting a call ........................................................................... 123.7 Dialing from the redial list....................................................... 133.8 Dialing from the calls list ........................................................ 133.9 Adding an entry to the phonebook ......................................... 133.10 Storing a phonebook entry as a one touch number ............... 133.11 Dialing from the phonebook ................................................... 133.12 Caller ID ................................................................................. 13 3.12.1 Calls List ................................................................... 143.12.2 View the calls list....................................................... 143.12.3 Save a number from the calls list to the phonebook..... 143.12.4 Delete a calls list entry .............................................. 143.12.5 Delete entire calls list ................................................ 14 3.13 Personal Settings ................................................................... 15 3.14 Registration ............................................................................ 163.15 To reset all settings ................................................................ 163.16 Paging/Find handset .............................................................. 163.17 Using your answering machine (For H20x Series Only) ........ 16 3.17.1 Play messages.......................................................... 163.17.2 Turn on or off the answer machine ........................... 173.17.3 Set the announcement mode .................................... 173.17.4 Set the number of rings............................................. 173.17.5 Announcement.......................................................... 173.17.6 Record a memo ........................................................ 183.17.7 Call screening on/off ................................................. 183.17.8 Delete all old messages ............................................ 183.17.9 Remote access ......................................................... 193.17.10 Set the security code ................................................ 193.17.11 Using the answering machine through the handset back keys .............................................. 19 4. Help.......................................…

Text truncated - open the document above for the full version.

[FILENAME: VLJ80-7644-01_circuit.pdf] [FILENAME: VLJ80-7644-01_block.pdf] [FILENAME: VLJ80-7644-01_descri.pdf]

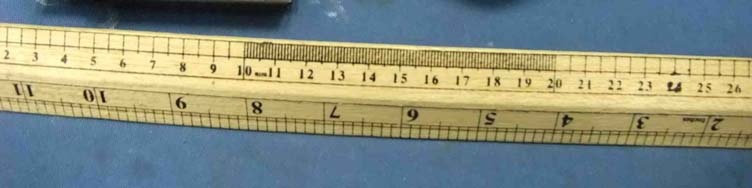

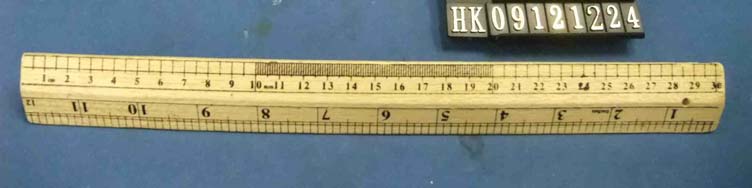

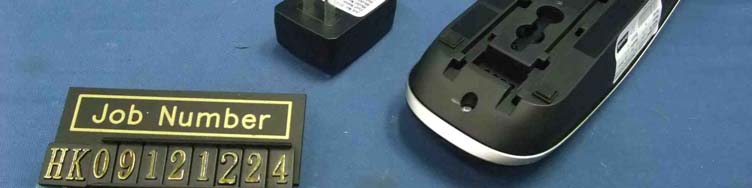

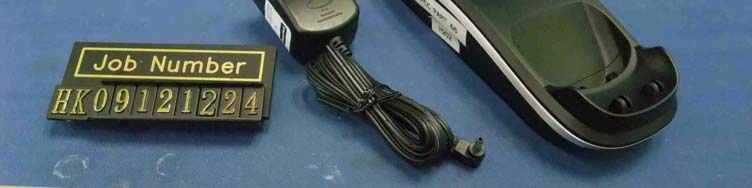

INTERTEK TESTING SERVICES External Photos – Model: H102 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 external photos - 1 of 4 INTERTEK TESTING SERVICES External Photos – Model: H102 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 external photos - 2 of 4 INTERTEK TESTING SERVICES External Photos – Model: H202 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 external photos - 3 of 4 INTERTEK TESTING SERVICES External Photos – Model: H202 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 external photos - 4 of 4

: : : : REV. : FRONTSURFACE BACKSURFACE : : : : : Engraving. NIL H101 BASE BOTTOM 30-011386-000-100 A 30-009609-000-100 80-7643-00-00 Sheet1OF1 +/-0.1mm Details please see the MECH drawing # 30-011386. Plastic color please refer to latest color spec. POLYBAG PACKING FOR EACH INDIVIDUAL UNIT VTechTelecommunications Ltd D A T E: Nov 23, 2009 Model: H101 S/N: XXXXXXXXXXX S/N Label 28.2X10.5mm Engraving C Recess 0.3mm, glossy Engraving A Recess 0.3mm, glossy Engraving B Recess 0.3mm, glossy Recess 0.3mm, glossy Engraving DRaised 0.3mm Model: H101 S/N: XXXXXXXXXXX Customer service number: US and Canada: 1-888-331-3383 Web: www.motorola.com PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. IC: 4522A-80764401 COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: BINW400B80-764401 RINGER EQUIVALENCE: 0.0B USOC JACK: R J11C/W HAC FCC ID: VLJ80-7644-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATI ON. TEL. LINE 4H20 CORDLESS TELEPHONE DC 6V 400mA MADE IN CHINA DC 6V 4H20 CORDLESS TELEPHONE DC 6V 400mA MADE IN CHINA PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. IC: 4522A-80764401 COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: BINW400B80-764401 RINGER EQUIVALENCE: 0.0B USOC JACK: R J11C/W HAC Customer service number: US and Canada: 1-888-331-3383 Web: www.motorola.com FCC ID: VLJ80-7644-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATI ON. TEL. LINE DC 6V 50X10.5mm 50X10.5mm 22X10mm 29X19mm : : : : REV. : FRONTSURFACE BACKSURFACE : : : : : Engraving. NIL H201 BASE BOTTOM 30-011386-000-100 A 30-009609-000-100 80-7644-00-00 Sheet1OF1 +/-0.1mm Details please see the MECH drawing # 30-011386. Plastic color please refer to latest color spec. POLYBAG PACKING FOR EACH INDIVIDUAL UNIT VTechTelecommunications Ltd D A T E: Nov 23, 2009 Model: H201 S/N: XXXXXXXXXXX S/N Label 28.2X10.5mm Engraving C Recess 0.3mm, glossy Engraving A Recess 0.3mm, glossy Engraving B Recess 0.3mm, glossy Recess 0.3mm, glossy Engraving DRaised 0.3mm Model: H201 S/N: XXXXXXXXXXX Customer service number: US and Canada: 1-888-331-3383 Web: www.motorola.com PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. IC: 4522A-80764401 COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: BINW400B80-764401 RINGER EQUIVALENCE: 0.0B USOC JACK: R J11C/W HAC FCC ID: VLJ80-7644-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATI ON. TEL. LINE 4H20 CORDLESS TELEPHONE DC 6V 400mA MADE IN CHINA DC 6V 4H20 CORDLESS TELEPHONE DC 6V 400mA MADE IN CHINA PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. IC: 4522A-80764401 COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: BINW400B80-764401 RINGER EQUIVALENCE: 0.0B USOC JACK: R J11C/W HAC Customer service number: US and Canada: 1-888-331-3383 Web: www.motorola.com FCC ID: VLJ80-7644-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATI ON. TEL. LINE DC 6V 50X10.5mm 50X10.5mm 22X10mm 29X19mm : : : : REV. : FRONTSURFACE BACKSURFACE : : : : : Engraving. NIL H101 HS ENGRAVING A 30-009609-000-100 80-7643-00-00 Sheet1OF1 +/-0.1mm Plastic color please refer to latest color spec. POLYBAG PACKING FOR EACH INDIVIDUAL UNIT VTechTelecommunications Ltd D A T E: Nov 25, 2009 Model: H10 1 S/N: XXXXXXXXXXX S/N Label 22.0X10.0mm FCC ID: VLJ80-7644-01 IC: 4522A-80764401 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 Model: H10 1 S/N: XXXXXXXXXXX CAUTION:Use Only Supplied Battery CAUTION:Use Only Supplied Battery battery label 8.4X4.4mm caution text silkscreen on PET sheet FCC NO. engraving recess 0.3mm,glossy 20X4.5mm

INTERTEK TESTING SERVICES Internal photos – Model: H102 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 internal photos - 1 of 13 Base Unit assembly (View 1) Base Unit assembly (View 2) INTERTEK TESTING SERVICES Internal photos – Model: H102 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 internal photos - 2 of 13 Base Unit Main PCB comp side (View 1) Base Unit Main PCB comp side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: H102 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 internal photos - 3 of 13 Base Unit Main PCB solder side Base Unit Page Key front side INTERTEK TESTING SERVICES Internal photos – Model: H102 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 internal photos - 4 of 13 Base Unit Page Key rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: H202 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 internal photos - 5 of 13 Base Unit assembly (View 1) Base Unit assembly (View 2) INTERTEK TESTING SERVICES Internal photos – Model: H202 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 internal photos - 6 of 13 Base Unit Main PCB comp side (View 1) Base Unit Main PCB comp side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: H202 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 internal photos - 7 of 13 Base Unit Main PCB solder side Base Unit Page Key front side INTERTEK TESTING SERVICES Internal photos – Model: H202 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 internal photos - 8 of 13 Base Unit Page Key rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: H102 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 internal photos - 9 of 13 Handset assembly Handset Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos – Model: H102 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 internal photos - 10 of 13 Handset Main PCB comp side (View 2) Handset Main PCB comp side (View 3) INTERTEK TESTING SERVICES Internal photos – Model: H102 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 internal photos - 11 of 13 Handset Main PCB comp side (View 4) Handset Main PCB comp side (View 5) INTERTEK TESTING SERVICES Internal photos – Model: H102 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 internal photos - 12 of 13 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: H102 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 internal photos - 13 of 13 Handset Main PCB display side (View 3) Handset Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: VLJ80-7644-01 RF exposure - 1 of 2 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of H102, the maximum field strength measured (FS) was 116.8 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in five-handsets operation is 25%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 143.59 mW The radiated (EIRP) source-based time-averaging output power = (143.59 * 0.250) mW = 35.90 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0071 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.” INTERTEK TESTING SERVICES FCC ID: VLJ80-7644-01 RF exposure - 2 of 2 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of H202, the maximum field strength measured (FS) was 118.4 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in five-handsets operation is 25%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 207.55 mW The radiated (EIRP) source-based time-averaging output power = (207.55 * 0.250) mW = 51.89 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0103 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-7644-01 26bw - 1 of 3 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier A0 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-7644-01 26bw - 2 of 3 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier A0 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-7644-01 26bw - 3 of 3 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier A0

Report no.: HK09121224-1 Model no.: H102 Talk Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 13.JAN.2010 17:55:06 Report no.: HK09121224-1 Model no.: H102 Talk Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 154.5 kHz 37.37 N gnd -28.37 2 CISPR Average276 kHz 32.41 N gnd -18.52 1 Quasi Peak 280.5 kHz 41.88 N gnd -18.91 1 Quasi Peak 307.5 kHz 29.36 N gnd -30.67 1 Quasi Peak 550.5 kHz 30.53 N gnd -25.46 1 Quasi Peak 726 kHz 29.73 N gnd -26.26 1 Quasi Peak 937.5 kHz 24.26 L1 gnd -31.73 1 Quasi Peak 1.4865 MHz 27.92 N gnd -28.07 1 Quasi Peak 1.5495 MHz 25.05 N gnd -30.94 Date: 13.JAN.2010 17:54:46 Report no.: HK09121224-1 Model no.: H102 Talk with Charging Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 13.JAN.2010 18:01:32 Report no.: HK09121224-1 Model no.: H102 Talk with Charging Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 276 kHz 45.15 N gnd -15.77 2 CISPR Average280.5 kHz 37.13 N gnd -13.67 1 Quasi Peak 298.5 kHz 36.33 N gnd -23.95 1 Quasi Peak 564 kHz 32.59 N gnd -23.40 1 Quasi Peak 595.5 kHz 31.50 N gnd -24.49 1 Quasi Peak 928.5 kHz 31.28 N gnd -24.71 1 Quasi Peak 1.4865 MHz 32.56 N gnd -23.43 1 Quasi Peak 1.5315 MHz 30.81 N gnd -25.18 1 Quasi Peak 2.346 MHz 27.72 L1 gnd -28.27 Date: 13.JAN.2010 18:01:16 Report no.: HK09121224-1 Model no.: H202 Talk with Charging Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 13.JAN.2010 18:50:08 Report no.: HK09121224-1 Model no.: H202 Talk with Charging Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 159 kHz 40.23 L1 gnd -25.27 1 Quasi Peak 564 kHz 35.15 L1 gnd -20.84 1 Quasi Peak 762 kHz 31.30 L1 gnd -24.70 1 Quasi Peak 1.338 MHz 28.60 L1 gnd -27.39 Date: 13.JAN.2010 18:49:51

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-7644-01 inband - 1 of 3 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier A0 INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-7644-01 inband - 2 of 3 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier A0 INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-7644-01 inband - 3 of 3 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier A0

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: VLJ80-7644-01 IC: 4522A-80764401 peaktp - 1 of 5 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier A0 INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: VLJ80-7644-01 IC: 4522A-80764401 peaktp - 2 of 5 Base unit, Highest channel, Traffic carrier Base unit, Lowest channel, Dummy carrier A0 INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: VLJ80-7644-01 IC: 4522A-80764401 peaktp - 3 of 5 Base unit, Middle channel, Dummy carrier Base unit, Highest channel, Dummy carrier A0 INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: VLJ80-7644-01 IC: 4522A-80764401 peaktp - 4 of 5 Handset unit, Lowest channel, Traffic carrier Handset unit, Middle channel, Traffic carrier A0 INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: VLJ80-7644-01 IC: 4522A-80764401 peaktp - 5 of 5 Handset unit, Highest channel, Traffic carrier A0

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-7644-01 psd - 1 of 3 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier A0 INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-7644-01 psd - 2 of 3 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier A0 INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-7644-01 psd - 3 of 3 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier A0

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Binatone Electronics International Limited Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices FCC ID: VLJ80-7644-01 Base Unit and/or Handset of Model: H102, H101, H103, H104, H105, H10X, H2 Base Unit of Model: H201, H202, H203, H204, H205, H20X IC: 4522A-80764401 Base Unit and/or Handset of Model: H102, H101, H103, H104, H105, H2 Base Unit of Model: H201, H202, H203, H204, H205 Test Report Number: HK09121224-1 Issue Date: January 29, 2010 KS/ sl INTERTEK TESTING SERVICES Test Report Number: HK09121224-1 Page 1 of 76 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 MEASUREMENT/TECHNICAL REPORT Binatone Electronics International Limited - Base Unit and/or Handset of Model: H102, H101, H103, H104, H105, H10X, H2 Base unit of Model: H201, H202, H203, H204, H205, H20X FCC ID: VLJ80-7644-01 This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station PUE - Part 15 Unlicensed PCS portable Tx held to ear Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-08 Edition] Provision. Report prepared by: Sit Kim Wai, Ken Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK09121224-1 Page 2 of 76 FCC ID: VLJ80-7644-01 IC: 4522A-80764401 Table of Contents 1.0 Summary of Test Results.....................................................................................5 2.0 General Description..............................................................................................8 2.1 Product Description ..............................................................................................8 2.2 Technical Description ...........................................................................................8 2.3 Test Methodology.................................................................................................9 2.4 Test Facility..........................................................................................................9 3.0 System Test Configuration.................................................................................11 3.1 Justification ........................................................................................................11 3.2 Conducted Emission Test Configuration .............................................................12 3.3 Conducted Monitoring and Operational Test Configuration.................................12 3.4 EUT Exercising Software....................................................................................12 3.5 Details of EUT and Description of Peripherals....................................................13 3.6 Measurement Uncertainty ..................................................................................14 3.7 Equipment Modification ......................................................................................14 4.0 Measurement Results.........................................................................................16 4.1 Antenna Requirement........................................................................................16 4.2 Digital Modulation Techniques............................................................................16 4.3 Emission Bandwidth...........................................................................................17 4.4 Directional Gain of the Antenna ..........................................................................18 4.5 Peak Transmit Power .........................................................................................19 4.6 Power Spectral Density ......................................................................................20 4.7 Automatic Discontinuation of Transmission.........................................................21 4.8 Unwanted Emission Inside the Sub-Band ...........................................................22 4.9 Emissions Outside the Sub-Band .......................................................................24 4.9.1 Radiated Emissions Configuration Photographs ..............................................25 4.9.2 Radiated Emissions Data ..........................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VLJ80-7644-01 IC: 4522A-80764401 config photos (radiated emission – base unit) - 1 of 3 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VLJ80-7644-01 IC: 4522A-80764401 config photos (radiated emission – base unit) - 2 of 3 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VLJ80-7644-01 IC: 4522A-80764401 config photos (radiated emission - handset) - 3 of 3 Radiated Emission – Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Talk with Charging FCC ID: VLJ80-7644-01 IC: 4522A-80764401 config photos (conducted emission) - 1 of 4 Conducted Emission – Model: H102 Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Talk with Charging FCC ID: VLJ80-7644-01 IC: 4522A-80764401 config photos (conducted emission) - 2 of 4 Conducted Emission – Model: H102 Left Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Talk with Charging FCC ID: VLJ80-7644-01 IC: 4522A-80764401 config photos (conducted emission) - 3 of 4 Conducted Emission – Model: H202 Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Talk with Charging FCC ID: VLJ80-7644-01 IC: 4522A-80764401 config photos (conducted emission) - 4 of 4 Conducted Emission – Model: H202 Left Side View
