VLJ80-7821-011.9GHz CORDLESS PHONE

Binatone Electronics International Ltd.
1.9GHz CORDLESS PHONE - FCC ID VLJ80-7821-01 - Binatone Electronics International Ltd.
Click to zoom

Application Details

Equipment Class
PUB - Part 15 Unlicensed PCS Base Station
Date of Grant
May 29, 2010
Application Purpose
Original Equipment
Date of Application
May 27, 2010
Equipment Note
1.9GHz CORDLESS PHONE
Frequency Range
1921.53600000 - 1928.44800000
Company
Binatone Electronics International Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Userís Guide L902 / L903 / L904 / L905 DECT 6.0 Digital Cordless Phone with Wireless Headset and Answering System Warning Use only the adapter and telephone line cord provided in the box. ï 30 name and number phonebook. ï Answering machine with 15 minutes digital recording time.* ï Caller ID shows you who is calling and includes details of the last 30 callers in a calls list.** ï Register up to 5 handsets or wireless headsets to a single base. ï Make internal calls, transfer external calls, hold 3-way conversation between two internal callers and an external caller. *The recording time includes the pre-recorded voice menu and outgoing announcements. **You must subscribe to your network provider's Caller ID or Call Waiting service for these features to work. Please note that this equipment is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made if emergency telephone call is necessary. Welcome... to your new Motorola Phone! Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product related questions, please call: US and Canada: 1-888-331-3383 On the Web: www.motorola.com IMPORTANT Only use the telephone line cord supplied. This equipment is not designed to make emergency telephone calls during power failures. Alternative arrangements should be made for access to emergency services. Got everything? ï Handset ï Wireless headset ï Base ï NiMH rechargeable battery pack ï Battery door ï Power adapter ï Telephone line cord ï Userís Guide ï Quick Start Guide In multihandset packs, you will find one or more additional handsets, chargers with power adapter units, additional rechargeable battery packs and battery doors. This Userís Guide provides you with all the information you need to get the most from your phone. Before you make your first call you will need to set up your phone. Follow the simple instructions in 'Getting Started', on the next few pages. 4 1. Getting started ................................................6 1.1 Connecting the base........................................... 7 1.2 Installing and charging the wireless headset ....... 7 1.3 Installing and charging the handset battery pack ........................................................ 8 1.4 Setting the display language .............................. 8 1.5 Setting date and time.......................................... 9 2. Getting to know your phone ..........................9 3. Using the phone............................................16 3.1 Making a call..................................................... 16 3.2 Speed dial calling ............................................. 16 3.3 Answering a call ............................................... 16 3.4 Ending a call ..................................................... 17 3.5 Adjusting volume .............................................. 17 3.6 Muting a call ..................................................... 17 3.7 Dialing from the redial list ................................. 17 3.8 Dialing from the calls list ................................... 17 3.9 Adding an entry to the phonebook.................... 17 3.10 Storing a phonebook entry as a one touch number............................................. 18 3.11 Dialing from the phonebook.............................. 18 3.12 Caller ID ............................................................18 3.12.1 Calls List ................................................18 3.12.2 Viewing the calls list ...............................19 3.12.3 Saving a number from the calls list to the phonebook ...................................19 3.12.4 Deleting a calls list entry ........................20 3.12.5 Deleting entire calls list ..........................20 3.13 Personal Settings ..............................................21 3.14 Intercom ............................................................22 3.14.1 Calling another handset or the wireless headset ....................................22 3.14.2 Transferring a call to another handset or the wireless headset ..........................22 3.14.3 Three-party conference call ...................23 3.15 Setting the dial mode.........................................23 3.16 Setting the flash time .........................................24 3.17 Setting the area code ........................................24 3.18 Registration .......................................................24 3.18.1 Registering a handset ............................24 3.18.2 Registering a wireless headset ..............25 3.19 Resetting all settings .........................................25 5 3.20 Paging/Finding handset and wireless headset.............................................................. 25 3.21 Using your answering machine .........................26 3.21.1 Playing messages .................................26 3.21.2 Turning on or off the answering machine ................................................. 27 3.21.3 Setting the announcement mode ...........27 3.21.4 Setting the number of rings ................... 28 3.21.5 Announcement ......................................28 3.21.6 Recording a memo ................................ 29 3.21.7 Call screening on/off ..............................29 3.21.8 Deleting all old messages ......................30 3.21.9 Remote access ......................................30 3.21.10Setting the security code .......................31 4. Help................................................................ 31 5. General information ..................................... 33 6Getting started 1. Getting started WARNING Do not place your phone in the bathroom or other humid areas. Location When choosing a location for your new phone, here are some important guidelines you should consider: ï Avoid …

Text truncated - open the document above for the full version.

External Photos

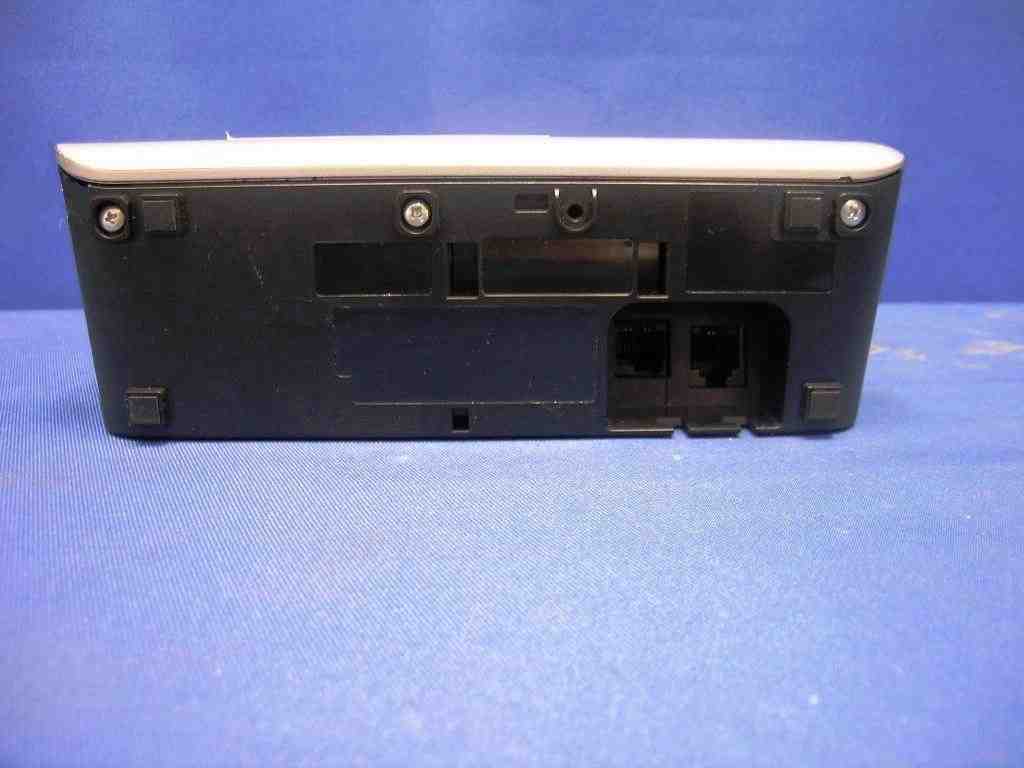

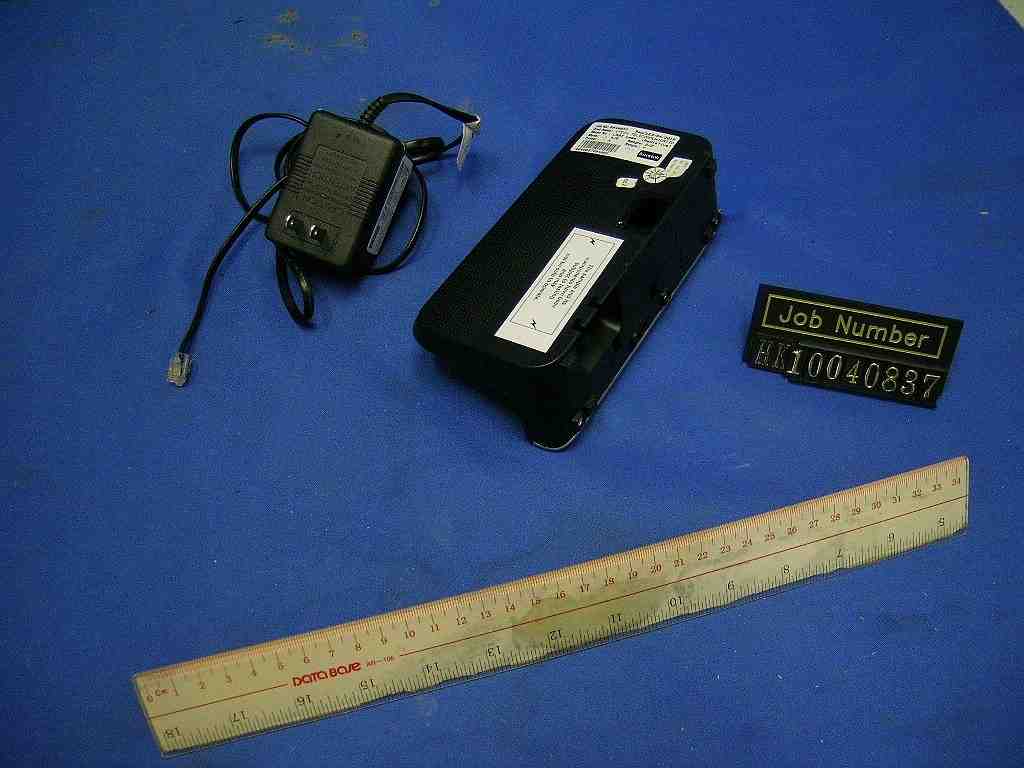

INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-7821-01 IC: 4522A-80782101 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-7821-01 IC: 4522A-80782101 external photos - 2 of 2

ID Label/Location Info

: : : : REV. : FRONT SURFACE BACK SURFACE : : : : : Engraving. NIL L902 BS BTM 30-011539-000-100 0 30-011539-000-100 80-7821-00-00 Sheet1OF1 +/-0.1mm Details please see the MECH drawing # 30-011539. Plastic color please refer to latest color spec. POLYBAG PACKING FOR EACH INDIVIDUAL UNIT VTech Telecommunications Ltd D A T E : Apr,3 2010 FCC ID: VLJ80-7821-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. IC: 4522A-80782101 COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: BINW400B80-782101 RINGER EQUIVALENCE: 0.0B USOC JACK: RJ11C/W HAC Customer service number: US and Canada: 1-888-331-3383 Web: www.motorola.com Model: L902 S/N: XXXXXXXXXXX 4H20 CORDLESS TELEPHONE MADE IN CHINA 50mm 47mm 19mm 13.5mm FCC ID: VLJ80-7821-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. IC: 4522A-80782101 COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: BINW400B80-782101 RINGER EQUIVALENCE: 0.0B USOC JACK: RJ11C/W HAC Engraving C Recess 0.3mm, glossy 10mm 22mm Customer service number: US and Canada: 1-888-331-3383 Web: www.motorola.com Engraving E Recess 0.3mm, glossy 28.2mm 10.5mm Model: L902 S/N: XXXXXXXXXXX S/N Label 28X10mm 4H20 MADE IN CHINA 29mm 16mm 19mm 10mm Engraving D Recess 0.3mm, glossy TEL. LINE TEL. LINE Engraving A Raised 0.3mm Engraving B Raised 0.3mm CORDLESS TELEPHONE L902 Label: Model: L902 VT1004000001G HS SN Label Size: 20X10mm HDS SN Label Size: 20X3mm BS SN Label Size: 28X10mm Model: L902 VT1004000001G L903 Label: Model: L903 VT1004000001G HS SN Label Size: 20X10mm BS SN Label Size: 28X10mm Charger SN Label Size: 20X10mm Model: L903 VT1004000001G Model: L903 VT1004000001G 5.9821mm 5.4918mm L904 Label: Model: L904 VT1004000001G HS SN Label Size: 20X10mm BS SN Label Size: 28X10mm Charger SN Label Size: 20X10mm Model: L904 VT1004000001G Model: L904 VT1004000001G 5.9821mm 5.4918mm L905 Label: Model: L905 VT1004000001G HS SN Label Size: 20X10mm BS SN Label Size: 28X10mm Charger SN Label Size: 20X10mm Model: L905 VT1004000001G Model: L905 VT1004000001G 5.9821mm 5.4918mm L902 VT1004000001G HDS SN Label Size: 20X3mm L903 VT1004000001G HDS SN Label Size: 20X3mm L904 VT1004000001G HDS SN Label Size: 20X3mm L905 VT1004000001G

Internal Photos

INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7821-01 IC: 4522A-80782101 internal photos - 1 of 7 Base Unit assembly Base Unit Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7821-01 IC: 4522A-80782101 internal photos - 2 of 7 Base Unit Main PCB comp side (View 2) Base Unit Main PCB comp side (View 3) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7821-01 IC: 4522A-80782101 internal photos - 3 of 7 Base Unit Main PCB solder side (View 1) Base Unit Main PCB solder side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7821-01 IC: 4522A-80782101 internal photos - 4 of 7 Base Unit Telephone Line Jack & AC Jack front side Base Unit Telephone Line Jack & AC Jack rear side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7821-01 IC: 4522A-80782101 internal photos - 5 of 7 Base Unit Page Key front side Base Unit Page Key rear side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7821-01 IC: 4522A-80782101 internal photos - 6 of 7 Base Unit DAM front side (View 1) Base Unit DAM front side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-7821-01 IC: 4522A-80782101 internal photos - 7 of 7 Base Unit DAM rear side Base Unit Oscillator PCB comp side

RF Exposure Info

INTERTEK TESTING SERVICES FCC ID: VLJ80-7821-01 RF exposure info- 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of L902, the maximum field strength measured (FS) was 113.2 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in five-handsets operation is 25.0%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 62.68 mW The radiated (EIRP) source-based time-averaging output power = (62.68 * 0.250) mW = 15.67 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0031 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

Test Report

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-7821-01 26bw - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-7821-01 26bw - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

Test Report

Report no.: HK10040837-1 Talk Mode (Base unit) AC Mains Ctrl No.: N/A 1 5 0 k H z 3 0 M H z 1 P K C L R W R 2 A V C L R W R S G L T D S 6 D B d B μ V d B μ V RBW 9 kHz MT 10 ms PREAMPOFFA t t 1 0 dB AUT O A C 1 M Hz10 MHz 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 1 0 0 C F 1 5 M A V C F 1 5 M Q P

Test Report

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-7821-01 inband - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-7821-01 inband - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

Test Report

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VLJ80-7821-01 IC: 4522A-80782101 peaktp - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VLJ80-7821-01 IC: 4522A-80782101 peaktp - 2 of 3 A0 Base unit, Highest channel, Traffic carrier Base unit, Lowest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VLJ80-7821-01 IC: 4522A-80782101 peaktp - 3 of 3 A0 Base unit, Middle channel, Dummy carrier Base unit, Highest channel, Dummy carrier

Test Report

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-7821-01 psd - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-7821-01 psd - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

Test Report

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Binatone Electronics International Limited Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Base Unit) FCC ID: VLJ80-7821-01 Model: L902, L903, L904, L905, L90X IC: 4522A-80782101 Model: L902, L903, L904, L905 Test Report Number: HK10040837-1 Issue Date: May 18, 2010 MN/ sl INTERTEK TESTING SERVICES Test Report Number: HK10040837-1 Page 1 of 56 FCC ID: VLJ80-7821-01 IC: 4522A-80782101 MEASUREMENT/TECHNICAL REPORT Binatone Electronics International Limited Model: L902, L903, L904, L905, L90X FCC ID: VLJ80-7821-01 This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-08 Edition] Provision. Report reviewed by: Nip Ming Fung, Melvin Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8535 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK10040837-1 Page 2 of 56 FCC ID: VLJ80-7821-01 IC: 4522A-80782101 Table of Contents 1.0 Summary of Test Results.....................................................................................5 2.0 General Description..............................................................................................8 2.1 Product Description ..............................................................................................8 2.2 Technical Description ...........................................................................................8 2.3 Test Methodology.................................................................................................9 2.4 Test Facility..........................................................................................................9 3.0 System Test Configuration.................................................................................11 3.1 Justification ........................................................................................................11 3.2 Conducted Emission Test Configuration .............................................................12 3.3 Conducted Monitoring and Operational Test Configuration.................................12 3.4 EUT Exercising Software....................................................................................12 3.5 Details of EUT and Description of Accessories...................................................13 3.6 Measurement Uncertainty ..................................................................................13 3.7 Equipment Modification ......................................................................................13 4.0 Measurement Results.........................................................................................15 4.1 Antenna Requirement........................................................................................15 4.2 Digital Modulation Techniques............................................................................15 4.3 Emission Bandwidth...........................................................................................16 4.4 Directional Gain of the Antenna ..........................................................................17 4.5 Peak Transmit Power .........................................................................................18 4.6 Power Spectral Density ......................................................................................19 4.7 Automatic Discontinuation of Transmission.........................................................20 4.8 Unwanted Emission Inside the Sub-Band ...........................................................21 4.9 Emissions Outside the Sub-Band .......................................................................22 4.9.1 Radiated Emissions Configuration Photographs ..............................................23 4.9.2 Radiated Emissions Data ................................................................................23 4.9.3 Field Strength Calculation................................................................................27 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements .............28 4.10 Radiated Emissions from Receiver ....................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VLJ-80-7821-01 IC: 4522A-80782101 config photos (radiated emission – base unit) - 1 of 1 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Talk FCC ID: VLJ80-7821-01 IC: 4522A-80782101 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Talk FCC ID: VLJ80-7821-01 IC: 4522A-80782101 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View

Contact Information

Applicant

Sam Lee(Product Director)
[email protected]852-28027388Fax: 852-28028138

Test Firm

Intertek Testing Services Hong Kong Ltd.Billy Chow
[email protected]85221738528Fax: 85227410521

Technical Specifications

#Rule PartsFrequency RangePower Output
115D1.92 GHz - 1.93 GHz94.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
