VLJ80-8160-011.9GHz Cordless Phone

Doc Title : Product Data - User ManualRevision :R.00 Model: Motorola L601 series & L701 seriesPage(s) :1 of 30 This document contains confidential and proprietary information of VTech Telecommunications Ltd L601 / L602 / L603 / L604 / L605 L701/L702/L703/L704/L705 Answering System Doc Title : Product Data - User ManualRevision :R.00 Model: Motorola L601 series & L701 seriesPage(s) :2 of 30 This document contains confidential and proprietary information of VTech Telecommunications Ltd Welcome... to your new Motorola phone! Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product-related questions, please call: US and Canada: 1-888-331-3383 On the Web: www.motorola.com •30 name and number phonebook. •Answering machine with 15 minutes digital recording time.*(For L 701 series only) •Caller ID shows you who is calling and includes details of thelast 30 callers in a calls list.** •Register up to 5 cordless handsets to a single base. • Make internal calls, transfer external calls, hold 3-way conversation between two internal callers and an external caller. *The recording time includes the pre-recorded voice menu andoutgoing announcements. **You must subscribe to your network provider’s Caller ID or Call Waiting service for these features to work. Please note that this equipment is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made if emergency telephone call is necessary Doc Title : Product Data - User ManualRevision :R.00 Model: Motorola L601 series & L701 seriesPage(s) :3 of 30 This document contains confidential and proprietary information of VTech Telecommunications Ltd This User’s Guide provides you with all the information you need to get the most from your phone. Before you make your first call you will need to set up your phone. Follow the simple instructions in ‘Getting Started’, on thenext few pages. IMPORTANT Only use the telephone line cord supplied. This equipment is not designed to make emergency telephone calls during power failures. Alternative arrangements should be made for access to emergency services. Got everything? • Handset • Base • NiMH Rechargeable Battery Pack • Battery Door • Power Adapter • Telephone Line Cord • User’s Guide • Quick Start Guide In multi-handset packs, you will find one or more additionalhandsets, chargers with power adapter units, additional rechargeable battery packs and battery doors. Doc Title : Product Data - User ManualRevision :R.00 Model: Motorola L601 series & L701 seriesPage(s) :4 of 30 This document contains confidential and proprietary information of VTech Telecommunications Ltd Table of Contents 1. GETTING STARTED............................................................................................................................................................6 1.1 C ONNECTING THE BASE....................................................................................................................................................... 6 2.1 INSTALLING AND CHARGING THE HANDSET BATTERY PACK.............................................................................................. 7 2.2 SETTING THE DISPLAY LANGUAGE...................................................................................................................................... 7 2.3 SETTING THE DATE AND TIME..............................................................................................................................................8 2.GETTING TO KNOW YOUR PHONE.................................................................................................................................9 3 USING THE PHONE........................................................................................................................................................... 16 3.1 M AKING A CALL.................................................................................................................................................................16 3.2 SPEED DIALING...................................................................................................................................................................16 3.3 ANSWERING A CALL...........................................................................................................................................................16 3.4 ENDING A CALL.................................................................................................................................................................. 16 3.5 ADJUSTING VOLUME.......................................................................................................................................................... 16 3.6 M UTING A CALL................................................................................................................................................................. 16 3.7 DIALING FROM THE REDIAL LIST...................................................................................................................................... 16 3.8 DIALING FROM THE CALLS LIST........................................................................................................................................16 3.9 A DDING AN ENTRY TO THE PHONEBOOK.......................................................................................................................... 16 3.10 STORING A PHONEBOOK ENTRY AS A ONE TOUCH NUMBER.......................................................................................... 16 3.11 DIALING FROM THE PHONEBOOK....................................................................................................................................16 3.12 C ALLERID...........................................…

Text truncated - open the document above for the full version.

Mar. 31, 2011 To whom it may concern, Declarations FCC ID: VLJ80-8160-01 IC: 4522A-80816001 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purposeof denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4.The device complies with the provisions of 47CFR 15.319(f).The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reactionof device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. CircumstancesReaction of Base Unit Reaction of Handset 1 Switch-off companion deviceN/AN/A 2 On hook by companion deviceBN/A 3 Remove power from companion deviceBA 4 Switch-off deviceN/AN/A 5 On hook deviceN/AC 6 Remove power from deviceAC A– Connection is terminated and, transmission ceases. B– Connection is terminated but device transmits control orsignaling information. C– Connection is terminated but companion device transmitscontrol or signaling information. N/A – Not applicable represents the device does not contain ahook switch or a power off switch. If you have questions or need further information, please contact the undersigned.

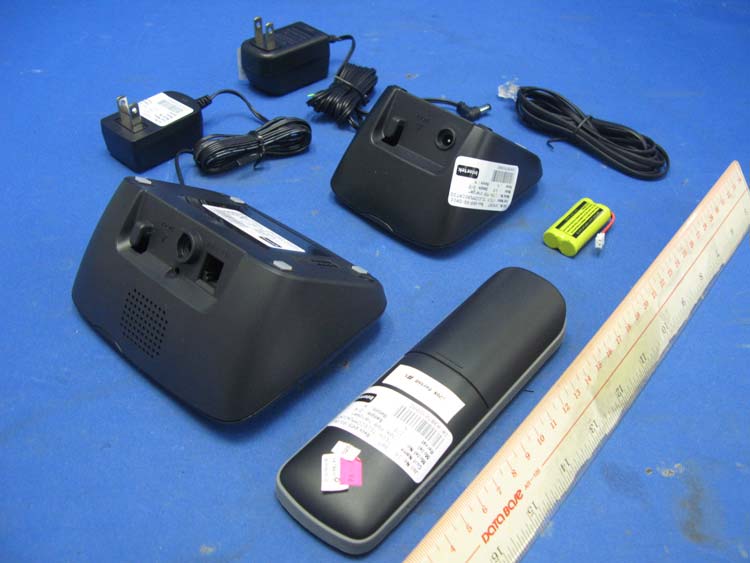

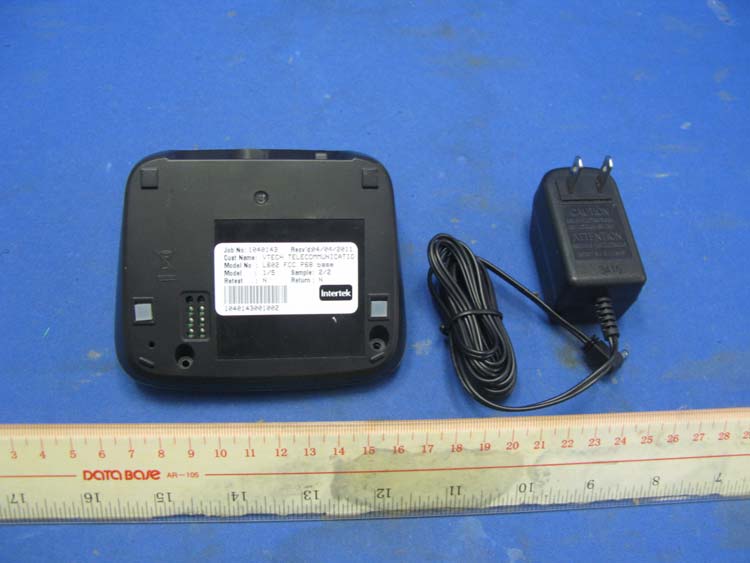

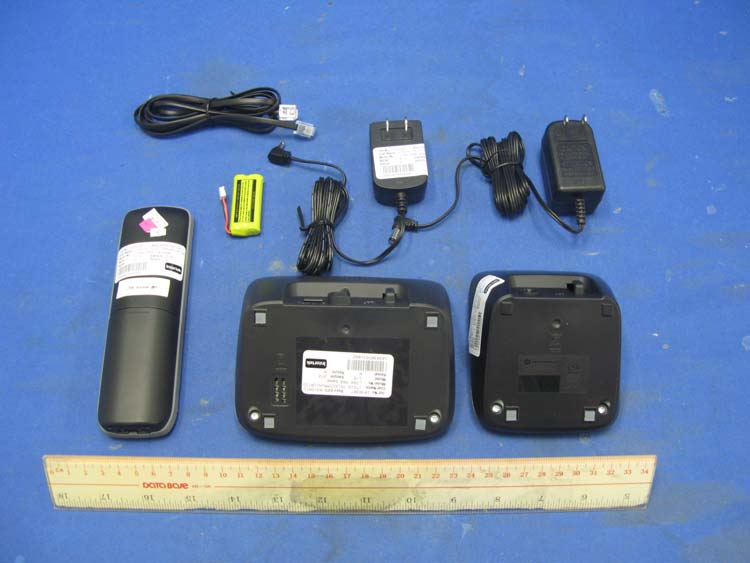

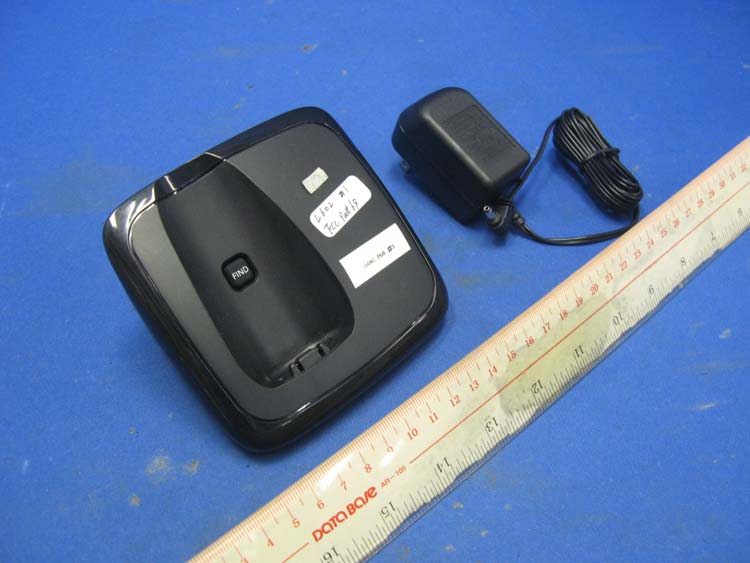

INTERTEK TESTING SERVICES External Photos – Model: L602 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 external photos - 1 of 4 HK11040137 Job Number HK11040137 Job Number INTERTEK TESTING SERVICES External Photos – Model: L602 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 external photos - 2 of 4 HK11040137 Job Number INTERTEK TESTING SERVICES External Photos – Model: L702 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 external photos - 3 of 4 HK11040137 Job Number HK11040137 Job Number INTERTEK TESTING SERVICES External Photos – Model: L702 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 external photos - 4 of 4 HK11040137 Job Number

4H20 MADE IN CHINA L70X Tam base engraving Engraving Text Raised 0.3mm Engraving Text Raised 0.3mm 30-011814-000-120 for American Version THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. DC 6V 400mA CORDLESS TELEPHONE Customer service number: US and Canada: 1-888-331-3383 Web:www.motorola.com FCC ID: VLJ80-8160-01 IC: 4522A-80816001 COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: BINW400B80-816001 RINGER EQUIVALENCE: 0.0B USOC JACK: RJ11C HAC 16.50 11.00 28.00 8.00 Background: Textured L60X slb base engraving Engraving Text Raised 0.3mm Engraving Text Raised 0.3mm Engraving BATT-LABLE Raised 0.3mm 30-011819-000-120 for American Version 4H20 MADE IN CHINA THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. AC 6V 300mA CORDLESS TELEPHONE Customer service number: US and Canada: 1-888-331-3383 Web:www.motorola.com FCC ID: VLJ80-8160-01 IC: 4522A-80816001 COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: BINW400B80-816001 RINGER EQUIVALENCE: 0.0B USOC JACK: RJ11C HAC AC 6V 16.50 11.00 8.00 28.00 Background: Textured AC 6V L70X/60X Charger engraving 10.00 AC 6V 300mA MADE IN CHINA CORDLESS TELEPHONE 4H20 Accessory 10.00 13.00 30-011812-000-120 for American Version 24.00 AC 6V Engraving Text Raised 0.3mm 21.00 21.00 20.00 40.00 Background: Textured AC 6V DC 6V DC 6V 10.00 13.00 21.00 20.00 FCC ID:VLJ80-8160-01 IC:4522A-80816001 FCC ID:VLJ80-8160-01 IC:4522A-80816001 Engraving BATT-LABLE S/N-LABLE S/N-LABLE S/N-LABLE S/N-LABLE S/N-LABLE Raised 0.3mm Model:L704 S/N: XXXXXXXXXXX Model:L701 S/N: XXXXXXXXXXX Model:L705 S/N: XXXXXXXXXXX Model:L702 S/N: XXXXXXXXXXX Model:L703 S/N: XXXXXXXXXXX Model:L703 S/N: XXXXXXXXXXX Model:L704M S/N: XXXXXXXXXXX Model:L701M S/N: XXXXXXXXXXX Model:L705M S/N: XXXXXXXXXXX Model:L702M S/N: XXXXXXXXXXX Model:L703M S/N: XXXXXXXXXXX Model:L604 S/N: XXXXXXXXXXX Model:L601 S/N: XXXXXXXXXXX Model:L605 S/N: XXXXXXXXXXX Model:L602 S/N: XXXXXXXXXXX Model:L603 S/N: XXXXXXXXXXX Model:L603 S/N: XXXXXXXXXXX Model:L604M S/N: XXXXXXXXXXX Model:L601M S/N: XXXXXXXXXXX Model:L605M S/N: XXXXXXXXXXX Model:L602M S/N: XXXXXXXXXXX Model:L603M S/N: XXXXXXXXXXX Model : L6 S/N: XXXXXXXXXXX Model : L6 S/N: XXXXXXXXXXX Model : L6M S/N: XXXXXXXXXXX Model : L7 S/N: XXXXXXXXXXX Model : L7M S/N: XXXXXXXXXXX Model : L703 S/N: XXXXXXXXXXX Model : L703 S/N: XXXXXXXXXXX Model : L701 S/N: XXXXXXXXXXX Model : L702 S/N: XXXXXXXXXXX Model : L7 S/N: XXXXXXXXXXX Model : L704 S/N: XXXXXXXXXXX Model : L705 S/N: XXXXXXXXXXX Model : L703M S/N: XXXXXXXXXXX Model : L701M S/N: XXXXXXXXXXX Model : L702M S/N: XXXXXXXXXXX Model : L7M S/N: XXXXXXXXXXX Model : L704M S/N: XXXXXXXXXXX Model : L705M S/N: XXXXXXXXXXX Model : L603 S/N: XXXXXXXXXXX Model : L603 S/N: XXXXXXXXXXX Model : L601 S/N: XXXXXXXXXXX Model : L602 S/N: XXXXXXXXXXX Model : L6 S/N: XXXXXXXXXXX Model : L604 S/N: XXXXXXXXXXX Model : L605 S/N: XXXXXXXXXXX Model : L603M S/N: XXXXXXXXXXX Model : L601M S/N: XXXXXXXXXXX Model : L602M S/N: XXXXXXXXXXX Model : L6M S/N: XXXXXXXXXXX Model : L604M S/N: XXXXXXXXXXX Model : L605M S/N: XXXXXXXXXXX

INTERTEK TESTING SERVICES Internal photos – Model: L602 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 internal photos - 1 of 10 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: L602 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 internal photos - 2 of 10 Base Unit Main PCB solder side Base Unit Page Key front side INTERTEK TESTING SERVICES Internal photos – Model: L602 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 internal photos - 3 of 10 Base Unit Page Key rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: L702 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 internal photos - 4 of 10 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: L702 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 internal photos - 5 of 10 Base Unit Main PCB solder side Base Unit Page Key front side INTERTEK TESTING SERVICES Internal photos – Model: L702 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 internal photos - 6 of 10 Base Unit Page Key rear side Base Unit DAM front side INTERTEK TESTING SERVICES Internal photos – Model: L702 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 internal photos - 7 of 10 Base Unit DAM rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: L702 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 internal photos - 8 of 10 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: L702 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 internal photos - 9 of 10 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: L702 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 internal photos - 10 of 10 Handset Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: VLJ80-8160-01 RF exposure info- 1 of 2 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of L602, the maximum field strength measured (FS) was 117.3 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-handsets operation is 37.5%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 161.11 mW The radiated (EIRP) source-based time-averaging output power = (161.11 * 0.375) mW = 60.42 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0120 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.” INTERTEK TESTING SERVICES FCC ID: VLJ80-8160-01 RF exposure info- 2 of 2 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of L702, the maximum field strength measured (FS) was 115.9 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-handsets operation is 37.5%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 161.11 mW The radiated (EIRP) source-based time-averaging output power = (161.11 * 0.375) mW = 60.42 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0120 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-8160-01 26bw - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-8160-01 26bw - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

Report no.: HK11040137-1 Model: L602 Ringing Mode AC Mains Ctrl No.: N/A 6 D B 1 5 0 k H z 3 0 M H z d B μ V d B μ V 1 P K C L R W R 2 A V C L R W R S G L T D S MT 1 s RBW 9 kHz PREAMPOFFA t t 1 0 d B AUTO A C 1 M H z 10 MHz 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 1 0 0 C F 1 5 M Q P C F 1 5 M A V Report no.: HK11040137-1 Model: L702 Answer Machine Recording AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 11.APR.2011 19:04:42 Report no.: HK11040137-1 Model: L702 Answer Machine Recording AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average280.5 kHz 31.29 L1 gnd -19.50 1 Quasi Peak 280.5 kHz 40.32 L1 gnd -20.47 1 Quasi Peak 375 kHz 43.01 L1 gnd -15.37 2 CISPR Average402 kHz 34.21 L1 gnd -13.60 2 CISPR Average465 kHz 31.42 L1 gnd -15.17 1 Quasi Peak 496.5 kHz 40.04 N gnd -16.01 2 CISPR Average591 kHz 31.62 L1 gnd -14.38 1 Quasi Peak 681 kHz 38.75 L1 gnd -17.24 1 Quasi Peak 843 kHz 41.54 L1 gnd -14.45 2 CISPR Average843 kHz 30.27 L1 gnd -15.72 1 Quasi Peak 1.374 MHz 36.17 N gnd -19.82 2 CISPR Average1.4055 MHz 26.30 L1 gnd -19.69 1 Quasi Peak 1.86 MHz 40.17 L1 gnd -15.82 2 CISPR Average1.8645 MHz 24.65 N gnd -21.34 2 CISPR Average2.2875 MHz 24.54 L1 gnd -21.45 1 Quasi Peak 2.337 MHz 37.99 L1 gnd -18.00 2 CISPR Average3.0255 MHz 22.71 L1 gnd -23.28 1 Quasi Peak 3.0345 MHz 38.50 L1 gnd -17.49 1 Quasi Peak 4.4205 MHz 35.32 L1 gnd -20.67 1 Quasi Peak 7.53 MHz 41.88 L1 gnd -18.11 Date: 11.APR.2011 19:04:33

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-8160-01 inband - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-8160-01 inband - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VLJ80-8160-01 IC: 4522A-80816001 peaktp - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VLJ80-8160-01 IC: 4522A-80816001 peaktp - 2 of 3 A0 Base unit, Highest channel, Traffic carrier Handset unit, Lowest channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VLJ80-8160-01 IC: 4522A-80816001 peaktp - 3 of 3 A0 Handset unit, Middle channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-8160-01 psd - 1 of 2 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-8160-01 psd - 2 of 2 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Binatone Electronics International Limited Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices FCC ID: VLJ80-8160-01 Model: L60X, L60XM, L6, L6M, L70X, L70XM, L7, L7M IC: 4522A-80816001 Model: L601, L602, L603, L604, L605, L601M, L602M, L603M, L604M, L605M, L6, L6M, L701, L702, L703, L704, L705, L701M, L702M, L703M, L704M, L705M, L7, L7M Test Report Number: HK11040137-1 Issue Date: May 05, 2011 MN/ cl INTERTEK TESTING SERVICES Test Report Number: HK11040137-1 Page 1 of 67 FCC ID: VLJ80-8160-01 IC: 4522A-80816001 Table of Contents 1.0 Summary of Test Results...................................................................................................... 4 2.0 General Description............................................................................................................... 7 2.1 Product Description .............................................................................................................. 7 2.2 Technical Description............................................................................................................ 8 2.3 Test Methodology ................................................................................................................. 9 2.4 Test Facility.......................................................................................................................... 9 3.0 System Test Configuration.................................................................................................. 11 3.1 Justification......................................................................................................................... 11 3.2 Conducted Emission Test Configuration ............................................................................. 12 3.3 Conducted Monitoring and Operational Test Configuration ................................................. 12 3.4 EUT Exercising Software ....................................................................................................12 3.5 Details of EUT and Description of Peripherals..................................................................... 13 3.6 Measurement Uncertainty ................................................................................................... 13 4.0 Measurement Results.......................................................................................................... 15 4.1 Antenna Requirement ......................................................................................................... 15 4.2 Digital Modulation Techniques............................................................................................ 15 4.3 Emission Bandwidth ........................................................................................................... 16 4.4 Directional Gain of the Antenna .......................................................................................... 17 4.5 Peak Transmit Power ......................................................................................................... 18 4.6 Power Spectral Density....................................................................................................... 19 4.7 Automatic Discontinuation of Transmission ......................................................................... 20 4.8 Unwanted Emission Inside the Sub-Band ........................................................................... 21 4.9 Emissions Outside the Sub-Band........................................................................................ 22 4.9.1 Radiated Emissions Configuration Photographs............................................................... 23 4.9.2 Radiated Emissions Data................................................................................................. 23 4.9.3 Field Strength Calculation ................................................................................................ 33 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ............................. 34 4.10 Radiated Emissions from Receiver ................................................................................... 35 4.10.1 Radiated Emission Configuration Photographs .............................................................. 36 4.10.2 Radiated Emissions Data............................................................................................... 36 4.11 AC Power Line Conducted Emissions............................................................................... 40 4.11.1 AC Power Line Conducted Emissions Configuration Photographs ................................. 41 4.11.2 …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VLJ80-8160-01 IC: 4522A-80816001 config photos (radiated emission – base unit) - 1 of 3 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VLJ80-8160-01 IC: 4522A-80816001 config photos (radiated emission – base unit) - 2 of 3 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VLJ80-8160-01 IC: 4522A-80816001 config photos (radiated emission – handset) - 3 of 3 Radiated Emission – Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Ringing FCC ID: VLJ80-8160-01 IC: 4522A-80816001 config photos (conducted emission) - 1 of 4 Conducted Emission – Model: L602 Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Ringing FCC ID: VLJ80-8160-01 IC: 4522A-80816001 config photos (conducted emission) - 2 of 4 Conducted Emission – Model: L602 Left Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Answer Machine FCC ID: VLJ80-8160-01 IC: 4522A-80816001 config photos (conducted emission) - 3 of 4 Conducted Emission – Model: L702 Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Answer Machine FCC ID: VLJ80-8160-01 IC: 4522A-80816001 config photos (conducted emission) - 4 of 4 Conducted Emission – Model: L702 Left Side View
