VLJ80-8162-011.9GHz Cordless Phone

Doc Title : Product Data - User ManualRevision :R.00 Model: Motorola L80xPage(s) :1 of 27 This document contains confidential and proprietary information of VTech Telecommunications Ltd L801/L802/L803/L804/L805 Answering System Doc Title : Product Data - User ManualRevision :R.00 Model: Motorola L80xPage(s) :2 of 27 This document contains confidential and proprietary information of VTech Telecommunications Ltd Welcome... to your new Motorola phone! Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product-related questions, please call: US and Canada: 1-888-331-3383 On the Web: www.motorola.com •30 name and number phonebook. •Answering machine with 15 minutes digital recording time.* •Caller ID shows you who is calling and includes details of thelast 30 callers in a calls list.** •Register up to 5 cordless handsets to a single base. • Make internal calls, transfer external calls, hold 3-way conversation between two internal callers and an external caller. *The recording time includes the pre-recorded voice menu andoutgoing announcements. **You must subscribe to your network provider’s Caller ID or Call Waiting service for these features to work. Please note that this equipment is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made if emergency telephone call is necessary Doc Title : Product Data - User ManualRevision :R.00 Model: Motorola L80xPage(s) :3 of 27 This document contains confidential and proprietary information of VTech Telecommunications Ltd This User’s Guide provides you with all the information you need to get the most from your phone. Before you make your first call you will need to set up your phone. Follow the simple instructions in ‘Getting Started’, on thenext few pages. IMPORTANT Only use the telephone line cord supplied. This equipment is not designed to make emergency telephone calls during power failures. Alternative arrangements should be made for access to emergency services. Got everything? • Handset • Base • NiMH Rechargeable Battery Pack • Battery Door • Power Adapter • Telephone Line Cord • User’s Guide • Quick Start Guide In multi-handset packs, you will find one or more additionalhandsets, chargers with power adapter units, additional rechargeable battery packs and battery doors. Doc Title : Product Data - User ManualRevision :R.00 Model: Motorola L80xPage(s) :4 of 27 This document contains confidential and proprietary information of VTech Telecommunications Ltd Table of Contents 1. GETTING STARTED............................................................................................................................................................6 1.1 C ONNECTING THE BASE....................................................................................................................................................... 6 2.1 INSTALLING AND CHARGING THE HANDSET BATTERY PACK.............................................................................................. 7 2.2 SETTING THE DISPLAY LANGUAGE...................................................................................................................................... 7 2.3 SETTING THE DATE AND TIME..............................................................................................................................................7 2. GETTING TO KNOW YOUR PHONE................................................................................................................................. 8 OVERVIEWOF YOUR CORDLESS HANDSET...................................................................................................................................8 O VERVIEWOF THE BASE.............................................................................................................................................................12 3 USING THE PHONE........................................................................................................................................................... 13 3.1 MAKING A CALL.................................................................................................................................................................13 3.2 SPEED DIALING...................................................................................................................................................................13 3.3 ANSWERING A CAL............................................................................................................................................................. 13 3.4 E NDING A CALL.................................................................................................................................................................. 13 3.5 ADJUSTING VOLUME.......................................................................................................................................................... 13 3.6 MUTING A CALL................................................................................................................................................................. 13 3.7 D IALING FROM THE REDIAL LIST...................................................................................................................................... 13 3.8 DIALING FROM THE CALLS LIST........................................................................................................................................13 3.9 ADDING AN ENTRY TO THE PHONEBOOK.......................................................................................................................... 13 3.10 S TORING A PHONEBOOK ENTRY AS A ONE TOUCH NUMBER.......................................................................................... 13 3.11 DIALING F…

Text truncated - open the document above for the full version.

IC:4522A-80616201 IC:4522A-80816201

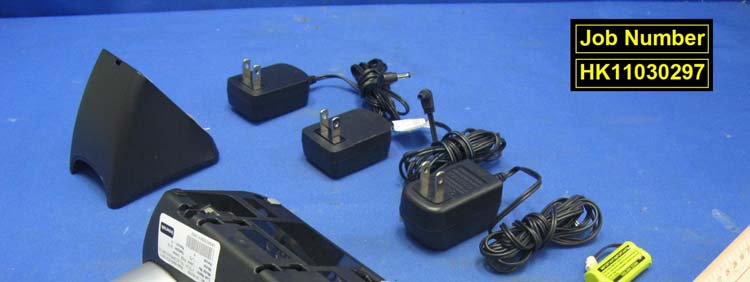

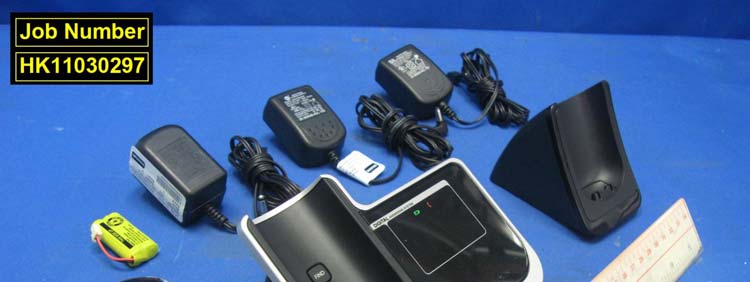

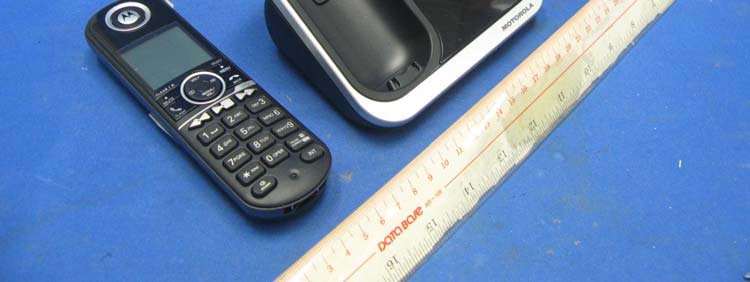

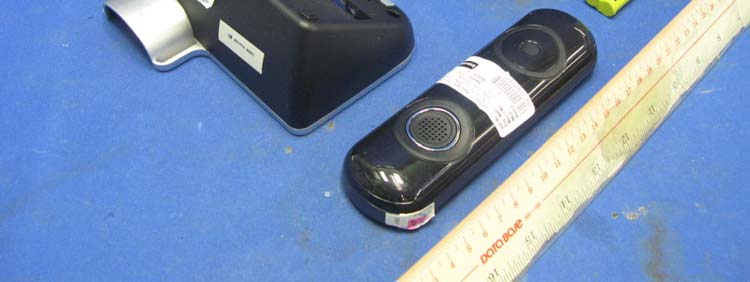

INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-8162-01 IC: 4522A-80816201 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-8162-01 IC: 4522A-80816201 external photos - 2 of 2

Engraving A Recess 0.3mm,glossy Customer service number: US and Canada: 1-888-331-3383 Web: www.motorola.com Engraving C Recess 0.3mm,glossy 4H20 CORDLESS TELEPHONE DC 6V 400mA MADE IN CHINA CORDLESS TELEPHONE DC 6V 400mA MADE IN CHINA Engraving B Recess 0.3mm,glossy FCC ID: VLJ80-8162-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE,AND 2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.PRIVACY OF COMMUNICATION MAY NOT BE ENSURED WHEN USING THIS PHONE. IC: 4522A-80816201 COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.:US:BINW400B80-816201 RINGER EQUIVALENCE:0.0B USOC JACK: RJ11C/W HAC 4H20 FCC ID: VLJ80-8162-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE,AND 2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.PRIVACY OF COMMUNICATION MAY NOT BE ENSURED WHEN USING THIS PHONE. IC: 4522A-80816201 COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.:US:BINW400B80-816201 RINGER EQUIVALENCE:0.0B USOC JACK: RJ11C/W HAC S/N Label 24.0mmX10.0mm TEL. LINE DC 6V L801L801 L803 L802 L804 L805 Engraving Raised 0.3mm BATT-LABLE L80X HS FCC ID:VLJ80-8162-01IC:4522A-80816201 Model : L802 S/N: XXXXXXXXXXX FCC ID:VLJ80-8162-01IC:4522A-80816201 7.50 16.50 20.0 11.0 Model : L801 S/N: XXXXXXXXXXX Model : L802 S/N: XXXXXXXXXXX Model : L803 S/N: XXXXXXXXXXX Model : L804 S/N: XXXXXXXXXXX Model : L805 S/N: XXXXXXXXXXX Model : L8 S/N: XXXXXXXXXXX S/N LABEL 16.5MMX7.5MM 20MMX11MM silkscreen on battery sheet

INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8162-01 IC: 4522A-80816201 internal photos - 1 of 8 Base Unit assembly (View 1) Base Unit assembly (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8162-01 IC: 4522A-80816201 internal photos - 2 of 8 Base Unit Main PCB comp side Base Unit Main PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8162-01 IC: 4522A-80816201 internal photos - 3 of 8 Base Unit DAM front side Base Unit DAM rear side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8162-01 IC: 4522A-80816201 internal photos - 4 of 8 Base Unit Page Key front side Base Unit Page Key rear side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8162-01 IC: 4522A-80816201 internal photos - 5 of 8 Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8162-01 IC: 4522A-80816201 internal photos - 6 of 8 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8162-01 IC: 4522A-80816201 internal photos - 7 of 8 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8162-01 IC: 4522A-80816201 internal photos - 8 of 8 Handset Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: VLJ80-8162-01 RF exposure info- 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of L802, the maximum field strength measured (FS) was 114.6 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-handsets operation is 37.5%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 86.52 mW The radiated (EIRP) source-based time-averaging output power = (86.52 * 0.375) mW = 32.45 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0065 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID:VLJ80-8162-01 26bw - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID:VLJ80-8162-01 26bw - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

Report no.: HK11030297-1 Answer Machine Recording SIL adaptor AC Mains Ctrl No.: N/A 6DB AC TDS 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 13.APR.2011 19:42:36 Report no.: HK11030297-1 Answer Machine Recording SIL adaptor AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 402 kHz 43.70 N -14.11 2 CISPR Average402 kHz 35.84 L1 -11.97 1 Quasi Peak 406.5 kHz 42.05 N -15.66 2 CISPR Average406.5 kHz 33.88 L1 -13.83 1 Quasi Peak 577.5 kHz 33.23 N -22.76 1 Quasi Peak 4.983 MHz 33.73 N -22.26 1 Quasi Peak 7.341 MHz 38.78 N -21.21 2 CISPR Average7.4805 MHz 31.53 L1 -18.47 2 CISPR Average8.313 MHz 30.63 L1 -19.36 1 Quasi Peak 8.358 MHz 36.93 N -23.06 Date: 13.APR.2011 19:42:28 Report no.: HK11030297-1 Handset Ringing & Charging in Base SIL Adaptor AC Mains Ctrl No.: N/A 6DB AC TDS 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 13.APR.2011 19:55:12 Report no.: HK11030297-1 Handset Ringing & Charging in Base SIL Adaptor AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 402 kHz 43.14 N -14.66 2 CISPR Average402 kHz 35.41 L1 -12.40 1 Quasi Peak 406.5 kHz 41.18 N -16.53 2 CISPR Average406.5 kHz 33.86 L1 -13.85 1 Quasi Peak 2.2335 MHz 28.83 N -27.16 1 Quasi Peak 3.8355 MHz 30.10 N -25.89 1 Quasi Peak 4.83 MHz 32.27 N -23.72 2 CISPR Average7.4985 MHz 31.98 N -18.01 1 Quasi Peak 7.602 MHz 38.35 N -21.64 2 CISPR Average8.061 MHz 31.96 N -18.03 1 Quasi Peak 8.079 MHz 37.75 N -22.24 Date: 13.APR.2011 19:55:03 Report no.: HK11030297-1 Handset Talking & Charging in Base SIL adaptor AC Mains Ctrl No.: N/A 6DB AC TDS 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 13.APR.2011 19:48:49 Report no.: HK11030297-1 Handset Talking & Charging in Base SIL adaptor AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 397.5 kHz 43.33 N -14.57 2 CISPR Average402 kHz 35.23 L1 -12.57 1 Quasi Peak 406.5 kHz 41.55 N -16.16 2 CISPR Average406.5 kHz 34.46 L1 -13.25 1 Quasi Peak 4.9695 MHz 32.13 N -23.86 1 Quasi Peak 7.566 MHz 37.88 N -22.11 2 CISPR Average7.8495 MHz 31.37 N -18.62 2 CISPR Average8.034 MHz 32.15 N -17.84 1 Quasi Peak 9.3885 MHz 36.11 L1 -23.88 Date: 13.APR.2011 19:48:41 Report no.: HK11030297-1 Handset Charging In Base SIL Adaptor AC Mains Ctrl No.: N/A 6DB AC TDS 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 13.APR.2011 19:58:50 Report no.: HK11030297-1 Handset Charging In Base SIL Adaptor AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 397.5 kHz 41.37 N -16.53 2 CISPR Average397.5 kHz 34.19 L1 -13.71 1 Quasi Peak 406.5 kHz 40.85 N -16.86 2 CISPR Average406.5 kHz 33.28 N -14.43 1 Quasi Peak 7.7235 MHz 38.65 N -21.34 2 CISPR Average7.908 MHz 31.67 N -18.32 2 CISPR Average7.9845 MHz 30.82 L1 -19.17 Date: 13.APR.2011 19:58:42

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-8162-01 inband - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-8162-01 inband - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID:VLJ80-8162-01 IC:4522A-80816201 peaktp - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID:VLJ80-8162-01 IC:4522A-80816201 peaktp - 2 of 3 A0 Base unit, Highest channel, Traffic carrier Handset unit, Lowest channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID:VLJ80-8162-01 IC:4522A-80816201 peaktp - 3 of 3 A0 Handset unit, Middle channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-8162-01 psd - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-8162-01 psd - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Binatone Electronics International Limited Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices FCC ID: VLJ80-8162-01 Model: L801, L802, L803, L804, L805, L80X, L8 IC: 4522A-80816201 Model: L801, L802, L803, L804, L805, L8 Test Report Number: HK11030297-1 Issue Date: May 13, 2011 MN/ cl INTERTEK TESTING SERVICES Test Report Number: HK11030297-1 Page 1 of 66 FCC ID: VLJ80-8162-01 IC: 4522A-80816201 Table of Contents 1.0 Summary of Test Results........................................................................................ 4 2.0 General Description................................................................................................. 7 2.1 Product Description ................................................................................................. 7 2.2 Technical Description .............................................................................................. 7 2.3 Test Methodology.................................................................................................... 8 2.4 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission Test Configuration ................................................................ 11 3.3 Conducted Monitoring and Operational Test Configuration.................................... 11 3.4 EUT Exercising Software....................................................................................... 11 3.5 Details of EUT and Description of Peripherals....................................................... 12 3.6 Measurement Uncertainty ..................................................................................... 12 4.0 Measurement Results............................................................................................ 14 4.1 Antenna Requirement........................................................................................... 14 4.2 Digital Modulation Techniques............................................................................... 14 4.3 Emission Bandwidth.............................................................................................. 15 4.4 Directional Gain of the Antenna ............................................................................. 16 4.5 Peak Transmit Power ............................................................................................ 17 4.6 Power Spectral Density ......................................................................................... 18 4.7 Automatic Discontinuation of Transmission............................................................ 18 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 19 4.9 Emissions Outside the Sub-Band .......................................................................... 20 4.9.1 Radiated Emissions Configuration Photographs ................................................. 21 4.9.2 Radiated Emissions Data ................................................................................... 21 4.9.3 Field Strength Calculation................................................................................... 33 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 34 4.10 Radiated Emissions from Receiver ...................................................................... 34 4.10.1 Radiated Emission Configuration Photographs ................................................. 35 4.10.2 Radiated Emissions Data ................................................................................. 35 4.11 AC Power Line Conducted Emissions ................................................................. 39 4.11.1 AC Power Line Conducted Emissions Configuration Photographs .................... 40 4.11.2 AC Power Line Conducted Emissions Data ...................................................... 40 4.12 Radio Frequency Radiation Exposure.................................................................. 41 4.13 Radio Frequency Exposure Compliance.............................................................. 41 4.14 Frame Repetition Stability .................................................................................. 42 4.15 Frame Period and Jitter ...................................................................................... 4…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VLJ80-8162-01 IC: 4522A-80816201 config photos (radiated emission – base unit) - 1 of 2 Radiated Emission – Base Unit (with adaptor “SIL”) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VLJ80-8162-01 IC: 4522A-80816201 config photos (radiated emission – handset) - 2 of 2 Radiated Emission – Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Answer Machine Recording FCC ID: VLJ80-8162-01 IC: 4522A-80816201 config photos (conducted emission) - 1 of 2 Conducted Emission (with adaptor “SIL”) Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Answer Machine Recording FCC ID: VLJ80-8162-01 IC: 4522A-80816201 config photos (conducted emission) - 2 of 2 Conducted Emission (with adaptor “SIL”) Left Side View
