VLJ80-8216-011.9GHz Cordless Phone - Base Unit

Doc Title : Product Data - User ManualRevision :R.00 Model: Motorola L702 seriesPage(s) :1 of 36 This document contains confidential and proprietary information of VTech Telecommunications Ltd L702C / L703C / L704C / L705C Answering machine for L701 series DECT 6.0 Cordless / Corded Phones with Answering System Answering System Doc Title : Product Data - User ManualRevision :R.00 Model: Motorola L702 seriesPage(s) :2 of 36 This document contains confidential and proprietary information of VTech Telecommunications Ltd Welcome... to your new Motorola phone! Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product-related questions, please call: US and Canada: 1-888-331-3383 On the Web: www.motorola.com •30 name and number phonebook for cordless handset and cordedbase respectively. •Answering machine with 15 minutes digital recording time.* •Caller ID shows you who is calling and includes details of thelast 30 callers in a calls list for cordless handset, and 28 callers in a calls list for the corded base. ** • Register up to 5 cordless handsets to the corded base. • Make internal calls, transfer external calls, hold 3-way conversation between two internal callers and an external caller. *The recording time includes the pre-recorded voice menu andoutgoing announcements. **You must subscribe to your network provider’s Caller ID or Call Waiting service for these features to work. Please note that only the corded phone operates during power outage (with limited functions). This ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment.We are proud to mark this product with the ENERGY STAR® label indicating it meets the latest energyefficiency guidelines. Doc Title : Product Data - User ManualRevision :R.00 Model: Motorola L702 seriesPage(s) :3 of 36 This document contains confidential and proprietary information of VTech Telecommunications Ltd This User’s Guide provides you with all the information you need to get the most from your phone. Before you make your first call you will need to set up your phone. Follow the simple instructions in ‘Getting Started’, on thenext few pages. IMPORTANT Only use the telephone line cord supplied. Got everything? • Cordless handset • Cordless charger • NiMH rechargeable battery pack • Power adapter for the cordless charger • Corded base • Corded handset • Power adapter for the corded base • Telephone line cords (one for connecting the corded base and handset) • Quick Start Guide • User’s Guide In multi-handset packs, you will find one or more additionalcordless handsets, cordless chargers with power adapter units, additional rechargeable battery packs and battery doors. Doc Title : Product Data - User ManualRevision :R.00 Model: Motorola L702 seriesPage(s) :4 of 36 This document contains confidential and proprietary information of VTech Telecommunications Ltd Table of Contents 1. GETTING STARTED............................................................................................................................................................5 1.1I NSTALLING AND CHARGING THE CORDLESS HANDSET BATTERY PACK............................................................................ 6 1.3 CONNECTING THE CORDED BASE........................................................................................................................................7 1.4 SETTING THE DISPLAY LANGUAGE......................................................................................................................................7 1.5 SETTING THE DATE AND TIME..............................................................................................................................................8 2. GETTING TO KNOW YOUR PHONE.................................................................................................................................9 ENJOY YOUR CORDED BASE PHONE..................................................................................................................................16 3. USING THE PHONE.......................................................................................................................................................... 16 3.1 M AKING A CALL.................................................................................................................................................................16 3.2 SPEED DIALING...................................................................................................................................................................16 3.3 ANSWERING A CALL...........................................................................................................................................................16 3.4 ENDING A CALL.................................................................................................................................................................. 16 3.5 A DJUSTING THE VOLUME...................................................................................................................................................16 3.6 DIALING FROM THE REDIAL LIST...................................................................................................................................... 16 3.7 DIALING FROM THE CALLS LIST........................................................................................................................................16 3.8 M UTING A CALL................................................................................................................................................................. 16 3.9 ADDING AN ENTRY TO THE PHONEBOOK.........................................................................…

Text truncated - open the document above for the full version.

(Base Unit)

Mar. 31, 2011 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: VLJ80-8216-01 Request is hereby submitted byBinatone Electronics International Limitedto withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential andBinatone Electronics International Limitedreserves the right to discern which parties can obtain access to these information: •Schematics •Detailed Block diagrams •Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property ofBinatone Electronics International Limitedand it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned.

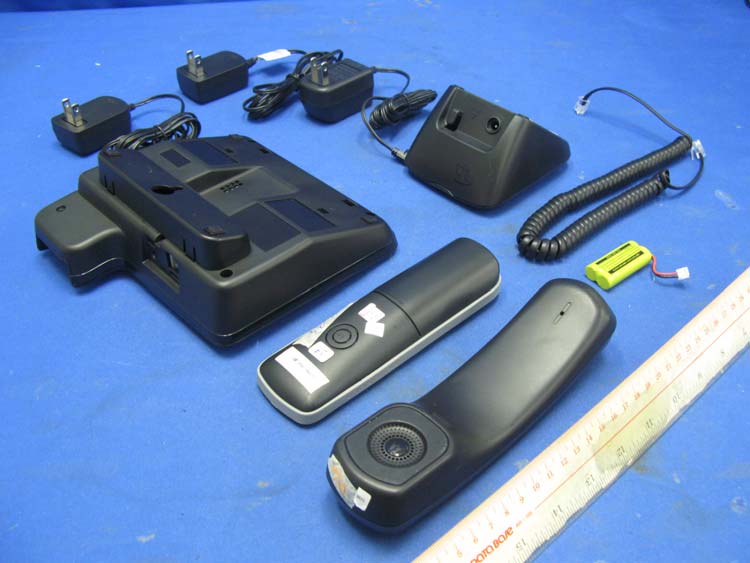

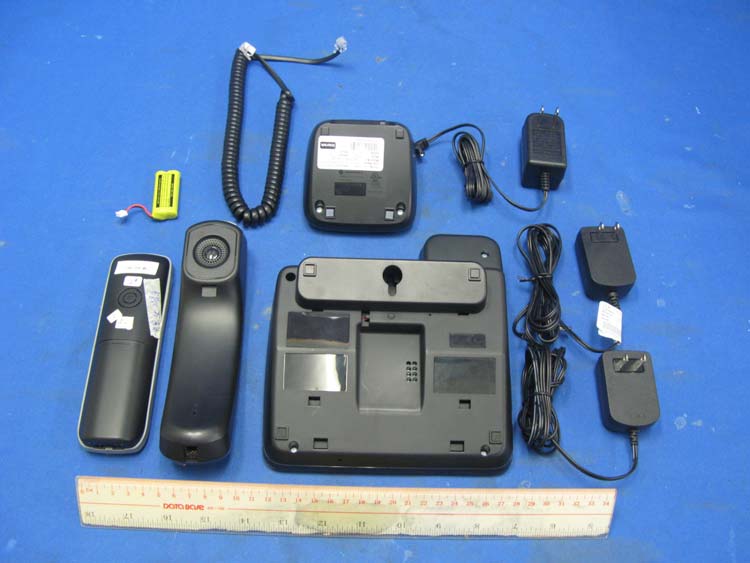

INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-8216-01 IC: 4522A-80821601 external photos - 1 of 2 HK11040031 Job Number HK11040031 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-8216-01 IC: 4522A-80821601 external photos - 2 of 2 HK11040031 Job Number

: : : : REV. : FRONTSURFACE BACKSURFACE : : : : : Engraving. NIL L702C BS BTM 30-012617-000-100 A 80-8216-00-00 Sheet1OF2 +/-0.1mm Details please see the MECH drawing # 30-012617. Plastic color please refer to latest color spec. POLYBAGPACKING FOR EACH INDIVIDUAL UNIT VTechTelecommunications Ltd DATE: Mar30,2011 : : : : REV. : FRONTSURFACE BACKSURFACE : : : : : Engraving. NIL L702C BS BTM 30-012617-000-100 A 80-8216-00-00 Sheet2OF2 +/-0.1mm Details please see the MECH drawing # 30-012617. Plastic color please refer to latest color spec. POLYBAGPACKING FOR EACH INDIVIDUAL UNIT VTechTelecommunications Ltd DATE: Mar30,2011 Recess 0.3mm,glossy TEL. LINE DC 6V Engraving D Raised 0.3mm TEL. LINE DC 6V L702C BASE FCC ID: VLJ80-8216-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE,AND 2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. CORDLESS TELEPHONE DC 6V 400mA MADE IN CHINA L704C 4H20 IC: 4522A-80821601 COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.:US: BINW401B80-821601 RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11C/W HAC Customer service number: US and Canada: 1-888-331-3383 Web: www.motorola.com FCC ID: VLJ80-8216-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE,AND 2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. Engraving A Recess 0.3mm,glossy 4H20 IC: 4522A-80821601 COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.:US: BINW401B80-821601 RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11C/W HAC Customer service number: US and Canada: 1-888-331-3383 Web: www.motorola.com Engraving B Recess 0.3mm,glossy S/N Label 23.4mmX9.40mm CORDLESS TELEPHONE DC 6V 400mA MADE IN CHINA Engraving C 42.00 26.50 42.00 42.00 23.0023.00 10.00 24.00 Engraving E Raised 0.3mm L702C BASE Model : L702CM S/N: XXXXXXXXXXX Model : L702C S/N: XXXXXXXXXXX Model : L703CM S/N: XXXXXXXXXXX Model : L703C S/N: XXXXXXXXXXX Model : L704CM S/N: XXXXXXXXXXX Model : L704C S/N: XXXXXXXXXXX Model : L705CM S/N: XXXXXXXXXXX Model : L705C S/N: XXXXXXXXXXX Model : L706CM S/N: XXXXXXXXXXX Model : L706C S/N: XXXXXXXXXXX

INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8216-01 IC: 4522A-80821601 internal photos - 1 of 6 Base Unit assembly (View 1) Base Unit assembly (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8216-01 IC: 4522A-80821601 internal photos - 2 of 6 Base Unit Main PCB comp side Base Unit Main PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8216-01 IC: 4522A-80821601 internal photos - 3 of 6 Base Unit Keypad front side Base Unit Keypad rear side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8216-01 IC: 4522A-80821601 internal photos - 4 of 6 Base Unit LCD Display front side (View 1) Base Unit LCD Display front side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8216-01 IC: 4522A-80821601 internal photos - 5 of 6 Base Unit LCD Display rear side Base Unit On/OFF Hook Switch front side INTERTEK TESTING SERVICES Internal photos FCC ID: VLJ80-8216-01 IC: 4522A-80821601 internal photos - 6 of 6 Base Unit On/OFF Hook Switch rear side Base Unit Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: VLJ80-8216-01 RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of L702C, the maximum field strength measured (FS) was 119.6 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-handsets operation is 37.5%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 273.60 mW The radiated (EIRP) source-based time-averaging output power = (273.60 * 0.375) mW = 102.60 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0204 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-8216-01 bw - 1 of 1 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier

Report no.: HK11040031-1 SIL Adaptor Ringing Mode AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 30.APR.2011 05:59:05 Report no.: HK11040031-1 SIL Adaptor Ringing Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average397.5 kHz 33.50 N -14.40 1 Quasi Peak 402 kHz 41.47 N -16.34 2 CISPR Average406.5 kHz 35.99 L1 -11.72 1 Quasi Peak 411 kHz 41.19 N -16.43 1 Quasi Peak 1.14 MHz 22.27 L1 -33.72 1 Quasi Peak 2.2785 MHz 29.56 L1 -26.43 1 Quasi Peak 4.929 MHz 32.64 N -23.35 2 CISPR Average4.9425 MHz 23.91 L1 -22.08 2 CISPR Average7.9125 MHz 32.64 L1 -17.35 1 Quasi Peak 7.944 MHz 36.67 L1 -23.32 2 CISPR Average8.007 MHz 32.57 N -17.42 1 Quasi Peak 8.3085 MHz 34.62 N -25.37 Date: 30.APR.2011 05:58:57 Report no.: HK11040031-1 Ten Pao Adaptor Speakerphone Online Mode (3-way Conference) AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 30.APR.2011 05:31:56 Report no.: HK11040031-1 Ten Pao Adaptor Speakerphone Online Mode (3-way Conference) AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 343.5 kHz 37.75 L1 -21.36 1 Quasi Peak 519 kHz 43.28 L1 -12.71 1 Quasi Peak 699 kHz 36.72 L1 -19.27 1 Quasi Peak 955.5 kHz 37.28 L1 -18.71 1 Quasi Peak 1.311 MHz 34.55 L1 -21.45 1 Quasi Peak 1.5585 MHz 34.11 L1 -21.88 1 Quasi Peak 2.1525 MHz 31.11 L1 -24.88 1 Quasi Peak 3.8265 MHz 30.38 L1 -25.62 1 Quasi Peak 4.6545 MHz 31.09 L1 -24.90 1 Quasi Peak 6.9405 MHz 33.90 L1 -26.09 Date: 30.APR.2011 05:31:49 Report no.: HK11040031-1 Ten Pao Adaptor Ringing Mode AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 30.APR.2011 05:24:03 Report no.: HK11040031-1 Ten Pao Adaptor Ringing Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 352.5 kHz 39.81 L1 -19.08 1 Quasi Peak 523.5 kHz 42.92 L1 -13.07 1 Quasi Peak 618 kHz 39.45 L1 -16.54 1 Quasi Peak 865.5 kHz 40.45 L1 -15.54 1 Quasi Peak 1.2075 MHz 40.00 L1 -15.99 1 Quasi Peak 1.554 MHz 35.76 L1 -20.24 1 Quasi Peak 2.1255 MHz 32.25 L1 -23.74 1 Quasi Peak 3.5655 MHz 30.76 L1 -25.23 1 Quasi Peak 4.2765 MHz 30.77 L1 -25.22 1 Quasi Peak 7.512 MHz 33.87 L1 -26.12 1 Quasi Peak 8.115 MHz 28.98 N -31.01 Date: 30.APR.2011 05:23:55 Report no.: HK11040031-1 Ten Pao Adaptor Answer Machine Recording AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 30.APR.2011 05:38:39 Report no.: HK11040031-1 Ten Pao Adaptor Answer Machine Recording AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 343.5 kHz 37.34 L1 -21.77 1 Quasi Peak 519 kHz 42.02 L1 -13.97 1 Quasi Peak 604.5 kHz 39.01 L1 -16.98 1 Quasi Peak 1.0365 MHz 35.97 L1 -20.02 1 Quasi Peak 1.203 MHz 40.04 L1 -15.95 1 Quasi Peak 1.7925 MHz 30.83 L1 -25.17 1 Quasi Peak 2.265 MHz 29.37 L1 -26.62 1 Quasi Peak 3.129 MHz 27.75 L1 -28.24 1 Quasi Peak 4.4835 MHz 31.01 L1 -24.99 1 Quasi Peak 7.2555 MHz 32.34 L1 -27.65 Date: 30.APR.2011 05:38:31 Report no.: HK11040031-1 SIL Adaptor Speakerphone Online Mode (3-way Conference) AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 30.APR.2011 05:49:59 Report no.: HK11040031-1 SIL Adaptor Speakerphone Online Mode (3-way Conference) AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average397.5 kHz 31.95 L1 -15.94 1 Quasi Peak 402 kHz 39.53 N -18.27 1 Quasi Peak 406.5 kHz 40.60 N -17.11 2 CISPR Average406.5 kHz 33.38 L1 -14.33 1 Quasi Peak 4.9875 MHz 30.09 N -25.90 1 Quasi Peak 6.3285 MHz 37.55 L1 -22.44 2 CISPR Average7.8855 MHz 30.71 L1 -19.28 1 Quasi Peak 7.998 MHz 36.12 L1 -23.87 2 CISPR Average8.025 MHz 31.01 L1 -18.98 Date: 30.APR.2011 05:49:50

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-8216-01 inband - 1 of 1 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID:VLJ80-8216-01 IC:4522A-80821601 peaktp - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID:VLJ80-8216-01 IC:4522A-80821601 peaktp - 2 of 2 A0 Base unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-8216-01 psd - 1 of 1 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Binatone Electronics International Limited Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Base Unit) FCC ID: VLJ80-8216-01 Model: L702C, L703C, L704C, L705C, L706C, L70XC, L702CM, L703CM, L704CM, L705CM, L706CM, L70XCM IC: 4522A-80821601 Model: L702C, L703C, L704C, L705C, L706C, L702CM, L703CM, L704CM, L705CM, L706CM Test Report Number: HK11040031-1 Issue Date: May 16, 2011 MN/ cl INTERTEK TESTING SERVICES Test Report Number: HK11040031-1 Page 1 of 54 FCC ID: VLJ80-8216-01 IC: 4522A-80821601 Table of Contents 1.0 Summary of Test Results........................................................................................ 4 2.0 General Description................................................................................................. 7 2.1 Product Description ................................................................................................. 7 2.2 Technical Description .............................................................................................. 7 2.3 Test Methodology.................................................................................................... 8 2.4 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission Test Configuration ................................................................ 11 3.3 Conducted Monitoring and Operational Test Configuration.................................... 11 3.4 EUT Exercising Software....................................................................................... 11 3.5 Details of EUT and Description of Peripherals....................................................... 12 3.6 Measurement Uncertainty ..................................................................................... 12 4.0 Measurement Results............................................................................................ 14 4.1 Antenna Requirement........................................................................................... 14 4.2 Digital Modulation Techniques............................................................................... 14 4.3 Emission Bandwidth.............................................................................................. 15 4.4 Directional Gain of the Antenna ............................................................................. 15 4.5 Peak Transmit Power ............................................................................................ 16 4.6 Power Spectral Density ......................................................................................... 17 4.7 Automatic Discontinuation of Transmission............................................................ 17 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 18 4.9 Emissions Outside the Sub-Band .......................................................................... 19 4.9.1 Radiated Emissions Configuration Photographs ................................................. 20 4.9.2 Radiated Emissions Data ................................................................................... 20 4.9.3 Field Strength Calculation................................................................................... 27 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 28 4.10 Radiated Emissions from Receiver ...................................................................... 28 4.10.1 Radiated Emission Configuration Photographs ................................................. 29 4.10.2 Radiated Emissions Data ................................................................................. 29 4.11 AC Power Line Conducted Emissions ................................................................. 32 4.11.1 AC Power Line Conducted Emissions Configuration Photographs .................... 33 4.11.2 AC Power Line Conducted Emissions Data ...................................................... 33 4.12 Radio Frequency Radiation Exposure.................................................................. 34 4.13 Radio Frequency Exposure Compliance.............................................................. 34 4.14 Frame Repetition Stability .................................................................................. 35 4.15 Frame Per…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VLJ80-8216-01 IC: 4522A-80821601 config photos (radiated emission – base unit) - 1 of 1 Radiated Emission – Base Unit (with adaptor “SIL”) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Ringing FCC ID: VLJ80-8216-01 IC: 4522A-80821601 config photos (conducted emission) - 1 of 2 Conducted Emission (with adaptor “SIL”) Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Ringing FCC ID: VLJ80-8216-01 IC: 4522A-80821601 config photos (conducted emission) - 2 of 2 Conducted Emission (with adaptor “SIL”) Left Side View
