VLJ80-8230-011.9GHz Digital Modulation Baby Monitor - Parent Unit

Userís Guide MBP11 Baby Monitor The features described in this user's guide are subject to modifications without prior notice. Welcome... to your new Motoro la Baby Monitor! Thank you for purchasing the MBP11. Now you c an hear your baby sleeping in the other room. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.For product-related questions, please call: US and Canada 1-888-331-3383On the Web: www.motorola.com This User's Guide provides you with all the information you need to get the most from your product.Before you can use the baby monitor, we recommend you insert and fully charge the battery in the parent unit, so that it continues to work if you disconnect it from the mains power to carry it to another location. Please read the Safety Instructions on page 6 before you install the units.Got everything?ï 1 x Parent unit (MBP11PU)ï 1 x Baby unit (MBP11BU)ï 1 x Rechargeable Ni-MH battery pack for the Parent unitï 1 x Power adapter for the Parent unitï 1 x Power adapter for the Baby unit Overview of your Parent unit 5 6 4213 1 Sound Level LED 3 GREEN and 2 RED LEDs turn on and off in real time to indicate the noise level in baby's room. When audio is being picked up by microphone of baby unit, the LEDs light up to in indicate audio level with reference to the sensitivity setting. The more LEDs light up, the stronger the sound is.No LED lights up means the sound level in baby's room does not exceed the thresholds set through the parent unit.The LEDs are also used for indicating the speaker volume setting on parent unit. The louder you set the speaker volume, the more LEDs light up. 2 Link Indicator On when the parent unit is powered on and linked to the baby unit.Flashes when the parent unit is out of range from baby unit.Off when the parent unit is powered off. 3Power Press and hold to power on/off the parent unit. 4 Volume +Press to increase the speaker volume. 5Volume - Press to decrease the speaker volume. 6 Charging Indicator On steadily when in charging mode. Flashes when low battery is detected.NOTEOff even if connected with power adapter but without battery pack installed. Overview of your Baby unit Important guidelines for installing our Baby Monitorï To use your baby unit and parent unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. ï Any large metal object, like a refrigerator, a mirror, a filing cabinet, a me tallic doors or reinforced concrete, between the baby and parent unit may block the radio signal. ï The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TV's, computers, cordless or mobile phones, fluorescent lights or dimmer switches. ï If the signal is poor, try moving the parent and/or the baby unit to different positions in the rooms. ï If the signal is poor, try moving the parent and/or the baby unit to different positions in the rooms. 1 Power Indicator On when the parent unit is switched on. Off when the parent unit is switched off. 2Power Press and hold to power on/off the baby unit. 12 5 1. SAFETY INSTRUCTIONS ................................... 62. GETTING STARTED............................................ 7 2.1 Baby unit power supply .......................................72.2 Parent unit battery installation.............................72.3 Belt clip on parent unit and baby unit ..................8 3. USING YOUR BABY MONITOR.......................... 9 3.1 Power on/off the parent unit................................93.2 Power on/off the baby unit ..................................93.3 Adjust speaker volume........................................9 4. DISPOSAL OF THE DEVICE (ENVIRONMENT)............................................... 10 5. CLEANING......................................................... 106. TROUBLESHOOTING ....................................... 117. GENERAL INFORMATION................................ 128. TECHNICAL SPECIFICATIONS........................ 16 6 SAFETY INSTRUCTIONS 1. SAFETY INSTRUCTIONS WARNING: STRANGULATION HAZARD - Keep the adapter cord out of baby's reach.NEVER place the baby monitor or its cord within the crib. Secure the cord some distance away from baby's reach.Never use extension cords with AC Adapters. Only use the AC Adapters provided.This baby monitor is complian t with all relevant standards regarding electromagnetic fi elds and is, when handled as described in the User's Guide, safe to use. Therefore, always read the instructions in this User's Guide carefully before using the device.ï Determine a location for the baby monitor that will provide the best audio reception of your baby in his crib. ï Place the baby monitor on a flat surface, such as a dresser, bureau, or shelf. ï NEVER place the baby monitor or its cord within the crib. ï Secure the cord to the wall to keep cord away from the baby's reach. ï Adult assembly is required. Keep small parts away from children when assembling. ï This product is not a toy. Do n't allow children to play with it. ï This baby monitor is not a substitute for responsible adult supervision. ï Keep this User's Guide for future reference.ï Do not cover the baby monitor with a towel or blanket.ï Never use extension cords with power adapters. Only use the power adapters provided. ï Test this monitor and all its functions so that you are familiar with it pr ior to actual use. ï Do not use the baby monitor near water.ï Do not install the baby monitor near a heat source.ï Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack. ï Only insert battery pack of the same type.ï Do not touch the plug contacts with sharp or metal objects. CAUTIONRisk of explosi…

Text truncated - open the document above for the full version.

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . May. 20, 2011 To whom it may concern, Declarations FCC ID: VLJ80-8230-01 IC: 4522A-80823001 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the parent unit will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Parent Unit 1 Switch-off companion device A 2 On hook by companion device NA 3 Remove power from companion device A 4 Switch-off device C 5 On hook device NA 6 Remove power from device C A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. If you have questions or need further information, please contact the undersigned. Regards, __________________ Paul Tsui Product Operation Director

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . Appendix B1 Letter of Agency for FCC Certification May. 20, 2011 To whom it may concern, Letter of Agency I, an officer of Binatone Electronics International Limited do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, __________________ Paul Tsui Product Operation Director

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . May. 20, 2011 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: VLJ80-8230-01 Request is hereby submitted by Binatone Electronics International Limited to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and Binatone Electronics International Limited reserves the right to discern which parties can obtain access to these information:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Binatone Electronics International Limited and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, __________________ Paul Tsui Product Operations Director

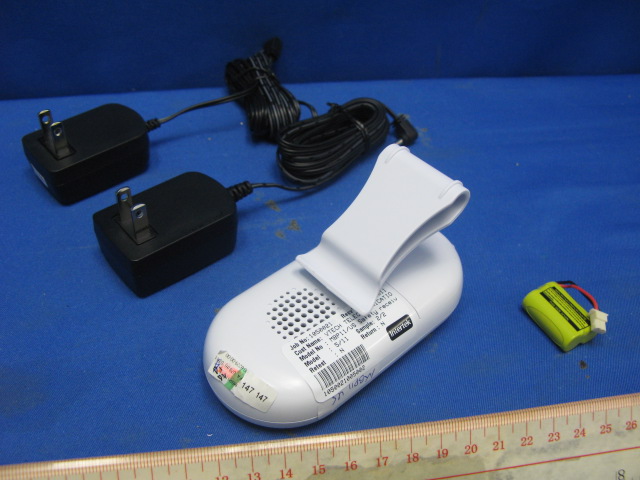

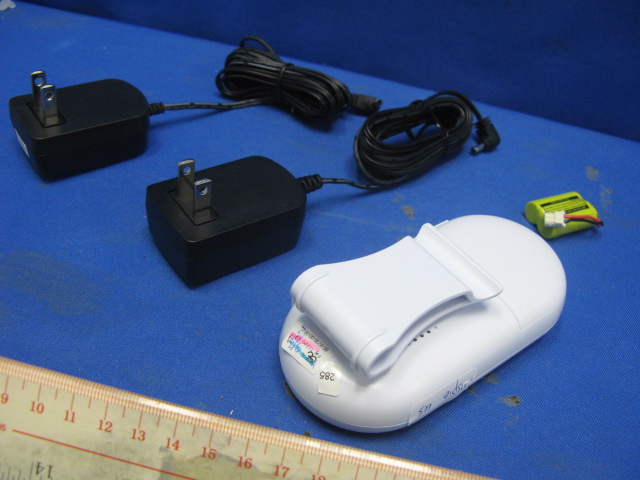

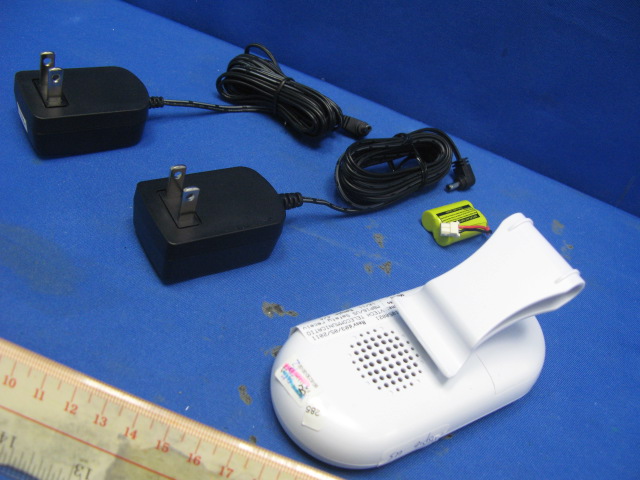

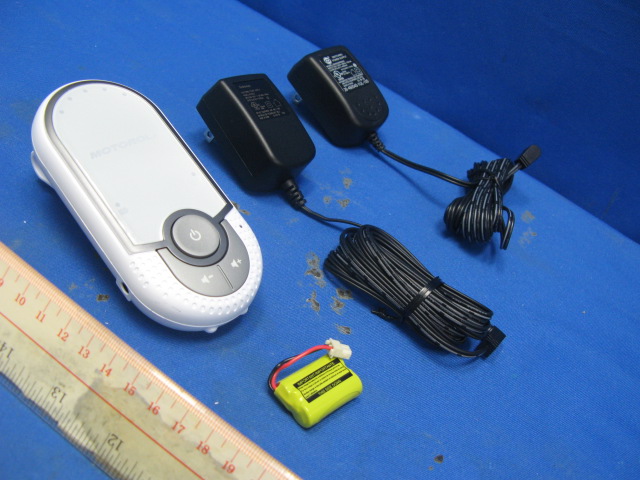

INTERTEK TESTING SERVICES External Photos – Model: MBP16PU FCC ID: VLJ80-8230-01 IC: 4522A-80823001 external photos - 1 of 4 INTERTEK TESTING SERVICES External Photos – Model: MBP16PU FCC ID: VLJ80-8230-01 IC: 4522A-80823001 external photos - 2 of 4 INTERTEK TESTING SERVICES External Photos – Model: MBP11PU FCC ID: VLJ80-8230-01 IC: 4522A-80823001 external photos - 3 of 4 INTERTEK TESTING SERVICES External Photos – Model: MBP11PU FCC ID: VLJ80-8230-01 IC: 4522A-80823001 external photos - 4 of 4

S/N : Use only power supplies listed in the user manual Input : DC6V Model : MBP16 450mA Made in China S/N : Use only power supplies listed in the user manual Model : MBP16 Input : DC6V 450mA Made in China S/N : Use only power supplies listed in the user manual Input : DC6V Model : MBP11 450mA Made in China S/N : Use only power supplies listed in the user manual Model : MBP11 Input : DC6V 450mA Made in China MBP11&16 LBL S/N : Model : MBP16PU DC 6V 450mA Made in China IC : 4522A-80823001 FCC ID : VLJ80-8230-01 S/N : Model : MBP16BU Made in China IC : 4522A-80823000 FCC ID : VLJ80-8230-00 DC 6V 450mA S/N : Model : MBP11PU DC 6V 450mA Made in China IC : 4522A-80823001 FCC ID : VLJ80-8230-01 S/N : Model : MBP11BU Made in China IC : 4522A-80823000 FCC ID : VLJ80-8230-00 DC 6V 450mA Engraved in glossy Raised 0.3mm Lable paper : 28 x 10 mm Engraved in glossy Raised 0.3mm Lable paper : 34 x 19 mm MBP11 US/CA PU MBP11 US/CA BU Engraved in glossy Raised 0.3mm Engraved in glossy Raised 0.3mm Engraved in glossy Raised 0.3mm Engraved in glossy Raised 0.3mm Engraved in glossy Raised 0.3mm Engraved in glossy Raised 0.3mm MBP11 EU/UK PU MBP11 EU/UK BU MBP16 EU/UK PU MBP16 EU/UK BU MBP16 US/CA PU MBP16 US/CA BU Engraved in glossy Raised 0.15mm MBP11 / 16 EU/UK/US/CA PU BATTERY DOOR Lable paper : 28 x 10 mm Lable paper : 34 x 19 mm Lable paper : 34 x 19 mm Lable paper : 28 x 10 mm Lable paper : 28 x 10 mm Lable paper : 34 x 19 mm

INTERTEK TESTING SERVICES Internal Photos – Model: MBP16PU FCC ID: VLJ80-8230-01 IC: 4522A-80823001 Internal photos - 1 of 6 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal Photos – Model: MBP16PU FCC ID: VLJ80-8230-01 IC: 4522A-80823001 Internal photos - 2 of 6 Internal Phone - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal Photos – Model: MBP16PU FCC ID: VLJ80-8230-01 IC: 4522A-80823001 Internal photos - 3 of 6 Internal Photo - 5 Internal Photo - 6 INTERTEK TESTING SERVICES Internal Photos – Model: MBP11PU FCC ID: VLJ80-8230-01 IC: 4522A-80823001 Internal photos - 4 of 6 Internal Photo – 1 Internal Photo – 2 INTERTEK TESTING SERVICES Internal Photos – Model: MBP11PU FCC ID: VLJ80-8230-01 IC: 4522A-80823001 Internal photos - 5 of 6 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal Photos – Model: MBP11PU FCC ID: VLJ80-8230-01 IC: 4522A-80823001 Internal photos - 6 of 6 Internal Photo – 5

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR EVALUATION REPORT Test Report No. ： 1106FS12 Applicant ： Binatone Electronics International Limited EUT Type ： 1.9GHz DECT 6.0 Baby Monitor FCC ID ： VLJ80-8230-01 Trade Name ： MOTOROLA Model Number ： MBP11PU Dates of Test ： May 24~25, 2011 Date of Issued ： Jun. 03, 2011 Test Environment ： Ambient Temperature： 22 ± 2 ° C Relative Humidity：40 - 70 % Test Specification ： Standard C95.1-1992 IEEE Std. 1528-2003 2.1093;FCC/OET Bulletin 65 Supplement C [July 2001] Max. SAR ： 0.000386 W/kg Muscle SAR Test Lab Location ： Chang-an Lab 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. The test results in the report only apply to the tested sample. Approved By ： Tested By ： (Sam Chuang ) (Alex Wu) Contents 1. Description of Equipment Under Test (EUT) ................................................................................................ 3 2. Introduction ................................................................................................................................................... 4 3. SAR Definition .............................................................................................................................................. 4 4. SAR Measurement Setup ............................................................................................................................. 5 5. System Components .................................................................................................................................... 7 5.1 DASY5 E-Field Probe System ............................................................................................................ 7 5.2 Data Acquisition Electronic (DAE) System ....................................................................................... 10 5.3 Robot ................................................................................................................................................ 10 5.4 Measurement Server ........................................................................................................................ 10 5.5 Device Holder for Transmitters ..........................................................................................................11 5.6 Phantom - SAM v4.0..........................................................................................................................11 5.7 Data Storage and Evaluation ............................................................................................................ 12 6. Test Equipment List .................................................................................................................................... 15 7. Tissue Simulating Liquids ........................................................................................................................... 16 7.1 Ingredients ........................................................................................................................................ 17 7.2 Recipes ............................................................................................................................................. 17 7.3 Liquid Confirmation ........................................................................................................................... 18 8. Measurement Process................................................................................................................................ 20 8.1 Device and Test Conditions .............................................................................................................. 20 8.2 General description of the test procedures....................................................................................... 20 8.3 System Performance Check ............................................................................................................. 21 8.4 Dosimetric Assessment Setup .......................................................................................................... 23 8.5 Spatial Peak SAR Evaluation............................................................................................................ 25 9. Measurement Uncertainty .......................................................................................................................... 26 10. SAR Test Results Summary ....................................................................................................................... 29 10.1 UPCS Muscle SAR ........................................................................................................................... 29 10.2 Std. C95.1-1992 RF Exposure Limit ................................................................................................. 30 11. Conclusion .................................................................................................................................................. 31 12. References ................................................................................................................................................. 31 Appendix A - System Performance Check .............................................................................................. 32 Appendix B - SAR Measurement Data.................................................................................…

Text truncated - open the document above for the full version.

SAR EUT Photographs 1.) EUT Photo ＋ 2.) EUT Photo ©2011 A Test Lab Techno Corp. Report Number: 1106FS12Page 1 of 3 3.) EUT Photo 4.) EUT Photo ©2011 A Test Lab Techno Corp. Report Number: 1106FS12Page 2 of 3 5.) EUT Photo 6.) EUT Photo ©2011 A Test Lab Techno Corp. Report Number: 1106FS12Page 3 of 3

SAR Test Setup Photographs EUT Setup up Photo EUT Back side EUT Front side EUT Top side ©2011 A Test Lab Techno Corp. Report Number: 1106FS12Page 1 of 2 UPCS Muscle SAR Figure 2. Muscle SAR Test Setup (Flat Section) _ Surface Back to phantom EUT Back side EUT Front side EUT Top side ©2011 A Test Lab Techno Corp. Report Number: 1106FS12Page 2 of 2

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR EVALUATION REPORT Test Report No. ： 1106FS11 Applicant ： Binatone Electronics International Limited EUT Type ： 1.9GHz DECT 6.0 Baby Monitor FCC ID ： VLJ80-8230-01 Trade Name ： MOTOROLA Model Number ： MBP16PU Dates of Test ： May 24, 2011 Date of Issued ： Jun. 03, 2011 Test Environment ： Ambient Temperature： 22 ± 2 ° C Relative Humidity：40 - 70 % Test Specification ： Standard C95.1-1992 IEEE Std. 1528-2003 2.1093;FCC/OET Bulletin 65 Supplement C [July 2001] Max. SAR ： 0.00018 W/kg Muscle SAR Test Lab Location ： Chang-an Lab 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. The test results in the report only apply to the tested sample. Approved By ： Tested By ： (Sam Chuang ) (Alex Wu) ©2011 A Test Lab Techno Corp. Report Number: 1106FS11Page 1 of 60 ©2011 A Test Lab Techno Corp. Report Number: 1106FS11Page 2 of 60 Contents 1. Description of Equipment Under Test (EUT) ................................................................................................ 3 2. Introduction ................................................................................................................................................... 4 3. SAR Definition .............................................................................................................................................. 4 4. SAR Measurement Setup ............................................................................................................................. 5 5. System Components .................................................................................................................................... 7 5.1 DASY5 E-Field Probe System............................................................................................................ 7 5.1.1 E-Field Probe Specification................................................................................................................. 8 5.1.2 E-Field Probe Calibration.................................................................................................................... 9 5.2 Data Acquisition Electronic (DAE) System .......................................................................................10 5.3 Robot ................................................................................................................................................ 10 5.4 Measurement Server ........................................................................................................................ 10 5.5 Device Holder for Transmitters ..........................................................................................................11 5.6 Phantom - SAM v4.0..........................................................................................................................11 5.7 Data Storage and Evaluation ............................................................................................................ 12 6. Test Equipment List .................................................................................................................................... 15 7. Tissue Simulating Liquids ........................................................................................................................... 16 7.1 Ingredients ........................................................................................................................................ 17 7.2 Recipes ............................................................................................................................................. 17 7.3 Liquid Confirmation ........................................................................................................................... 18 8. Measurement Process................................................................................................................................ 20 8.1 Device and Test Conditions .............................................................................................................. 20 8.2 General description of the test procedures....................................................................................... 20 8.3 System Performance Check ............................................................................................................. 21 8.4 Dosimetric Assessment Setup .......................................................................................................... 23 8.5 Spatial Peak SAR Evaluation............................................................................................................ 25 9. Measurement Uncertainty .......................................................................................................................... 26 10. SAR Test Results Summary ....................................................................................................................... 29 10.1 UPCS Muscle SAR ........................................................................................................................... 29 10.2 Std. C95.1-1992 RF Exposure Limit ................................................................................................. 30 11. Conclusion ...........................................................................................................................................…

Text truncated - open the document above for the full version.

SAR EUT Photographs 1.) EUT Photo ＋ 2.) EUT Photo ©2011 A Test Lab Techno Corp. Report Number: 1106FS11Page 1 of 3 3.) EUT Photo 4.) EUT Photo ©2011 A Test Lab Techno Corp. Report Number: 1106FS11Page 2 of 3 5.) EUT Photo 6.) EUT Photo ©2011 A Test Lab Techno Corp. Report Number: 1106FS11Page 3 of 3

SAR Test Setup Photographs EUT Setup up Photo EUT Back side EUT Front side EUT Top side ©2011 A Test Lab Techno Corp. Report Number: 1106FS11Page 1 of 2 UPCS Muscle SAR Figure 2. Muscle SAR Test Setup (Flat Section) _ Surface Back to phantom EUT Back side EUT Front side EUT Top side ©2011 A Test Lab Techno Corp. Report Number: 1106FS11Page 2 of 2

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-8230-01 bw - 1 of 1 A0 Parent unit, Lowest channel, Traffic carrier Parent unit, Highest channel, Traffic carrier

Report no.: HK11050016-2 Parent Unit Ten Pao Adaptor Talk Mode AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 20.MAY.2011 18:58:22

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VLJ80-8230-01 inband - 1 of 1 A0 Parent unit, Lowest channel, Traffic carrier Parent unit, Highest channel, Traffic carrier

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . 20 May, 2011 To whom it may concern, Label Location Justification FCC ID: VLJ80-8230-01 Request is hereby submitted by Binatone Electronics International Limited to request an alternative method of positively identifying the equipment, pursuant to 47 CFR § 2.925(f) of the FCC Rules. The FCC identifier for a parent unit will be placed in the battery compartment and the following requirements are confirmed to meet: a) The FCC identifier will visible at the time of purchase, by either of the following approaches:  Marketing the device without the battery installed, or  Providing instruction (stated on the box, user manual, or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements, pursuant to 47 CFR § 15.19(a)(3), 15.21 and 15.105(b). If you have questions or need further information, please contact the undersigned. Sincerely, __________________ Paul Tsui Product Operations Director

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VLJ80-8230-01 IC: 4522A-80823001 peaktp - 1 of 2 A0 Parent unit, Lowest channel, Traffic carrier Parent unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VLJ80-8230-01 IC: 4522A-80823001 peaktp - 2 of 2 A0 Parent unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-8230-01 psd - 1 of 1 A0 Parent unit, Lowest channel, Traffic carrier Parent unit, Highest channel, Traffic carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its m…

Text truncated - open the document above for the full version.
