Userís Guide MBP20 Baby Monitor The features described in this user's guide are subject to modifications without prior notice. Welcome... to your new Motorola Baby Monitor! Thank you for purchasing the MBP20. Now you can see and hear your baby sleeping in the other room or you can monitor your older children in their play room. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage. For product-related questions, please call: US and Canada1-888-331-3383 On the Web: www.motorola.com This User's Guide provides you with all the information you need to get the most from your product. Before you can use the baby monitor, we recommend you insert and fully charge the battery in the parent unit, so that it continues to work if you disconnect it from the mains power to carry it to another location. Please read the Safety Instructions on page 8 before you install the units. Got everything? ï 1 x Parent unit (MBP20PU) ï 1 x Baby unit (MBP20BU) ï 1 x Rechargeable Ni-MH battery pack for the Parent unit ï 1 x Belt clip for parent unit ï 1 x Battery door for parent unit ï 1 x Power adapter for the parent unit ï 1 x Power adapter for the baby unit Overview of your Parent unit 1 LCD Display 2 Link Indicator On when the parent unit is powered on and linked to the baby unit. Flashes when the parent unit is out of range from baby unit. Off when the parent unit is powered off. 7 8 9 6 5 4 3 2 1 3 UP / Volume + In idle mode: Press to increase the speaker volume. In menu mode: Press to view the previous menu item. 4Menu / OK In idle mode: Press to access the main menu. In menu mode: Press to access the sub-menu, or confirm the settings. 5 DOWN / Volume - In idle mode: Press to decrease the speaker volume. In menu mode: Press to view the next menu item. 6Talk In idle or menu mode: Press and hold to talk back with baby unit. Release to quit the talk mode. 7 Video On / Off In monitoring mode: Press to deactivate/activate the video feed or turn on/off the LCD display. In menu mode: Press to go to the monitoring mode. 8 Power / Back In idle or menu mode: Press and hold to power on/off the parent unit. In menu mode: Press to cancel settings and back to the previous level. Parent Unit Display Menu Structure of Parent Unit 9 Charging Indicator On steadily when in charging mode. Flashes when low battery is detected. NOTE Off even if connected with power adapter but without battery pack installed. Icons Behaviors Description Indicates the signal strength between baby unit and parent unit. The more blocks, the stronger connection signal. Flashes when parent unit is out of range. Indicates no connection between the baby unit and parent unit. Indicates when speaker of parent unit is muted. Indicates the speaker volume level of parent unit. Indicates when parent unit or baby unit is playing lullaby. Indicates when timer alarm is activated. Indicates when the sound alert is set on. Low battery, needs charging. 1/2 battery level. More internal bars mean high battery level. Full battery level. Animation in cycle. Battery is in charging. MAIN MENULANGUAGETIMERBRIGHTNESSSOUND ALERTALERT TONESRESET SUB MENUEnglish FranÁais EspaÒol Deutsch Italiano PortuguÍs Activation Set Timer Level 1 ~ 5On Off Low Battery No Link Overview of your Baby unit 6 5 4 8 9 2 7 3 1 1 Infrared Light 2Camera 3 Power Indicator On when the baby unit is switched on. Off when the baby unit is switched off. 4 UP / Volume + Press to increase the speaker volume. 5Power Press and hold to power on/off the baby unit. 6DOWN / Volume - Press to decrease the speaker volume. 7Stop Press to stop the lullaby playing. 8Play Press to play the lullaby. 9 Lullaby Press to select the lullaby and start playing the selected lullaby. During lullaby playing, press to select and play the other lullabies. Important guidelines for installing our Baby Monitor ï To use your baby unit and parent unit together, you must be able to establish a radio link between them, and the range will be affected by environmental conditions. ï Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic doors or reinforced concrete, between the baby and parent unit may block the radio signal. ï The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TV's, computers, cordless or mobile phones, fluorescent lights or dimmer switches. ï If the signal is poor, try moving the parent and/or the baby unit to different positions in the rooms. 7 1. SAFETY INSTRUCTIONS ................................... 8 2. GETTING STARTED............................................ 9 2.1 Baby unit power supply .......................................9 2.2 Parent unit battery installation.............................9 2.3 Belt clip on parent unit ......................................10 3. USING YOUR BABY MONITOR........................ 11 3.1 Power on/off the parent unit..............................11 3.2 Power on/off the baby unit ................................11 3.3 Adjust speaker volume of parent unit and baby unit ...........................................................11 3.4 Talk Back ..........................................................11 3.4.1 Adjust talk back volume .........................12 3.5 Temperature .....................................................12 3.6 Lullaby...............................................................12 3.7 Video on/off and video transfer .........................12 4. Parent unit settings .......................................... 13 4.1 Set the language...............................................13 4.2 Timer.................................................................13 4.2.1 Turn on the timer ...................................13 4.2.2 Set the timer ..............................…

Text truncated - open the document above for the full version.

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . June 28, 2011 To whom it may concern, Declarations FCC ID: VLJ80-8231-00 IC: 4522A-80823100 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the baby unit will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Baby Unit 1 Switch-off companion device B 2 On hook by companion device NA 3 Remove power from companion device B 4 Switch-off device A 5 On hook device NA 6 Remove power from device A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. If you have questions or need further information, please contact the undersigned. Regards, Paul Tsui Product Operation Director

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . Appendix B1 Letter of Agency for FCC Certification June 28, 2011 To whom it may concern, Letter of Agency I, an officer of Binatone Electronics International Limited do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Paul Tsui Product Operation Director

Binatone Electronics International Limited Floor 23A, 9 Des Voeux Road West, Hong Kong Tel: (852) 2802 7388 Fax: (852) 2802 8138 _______________________________________ . June 28, 2011 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: VLJ80-8231-00 Request is hereby submitted by Binatone Electronics International Limited to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and Binatone Electronics International Limited reserves the right to discern which parties can obtain access to these information:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Binatone Electronics International Limited and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Paul Tsui Product Operation Director

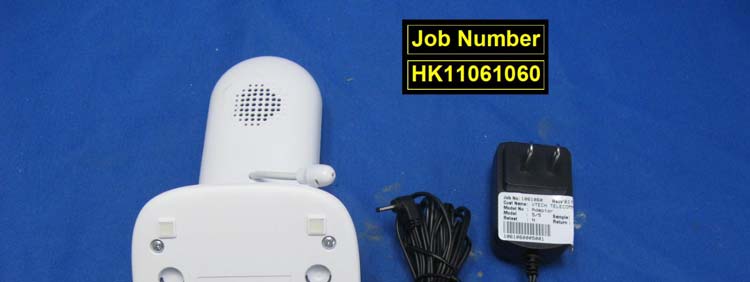

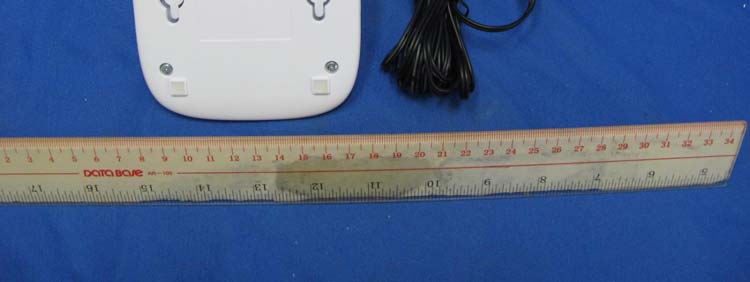

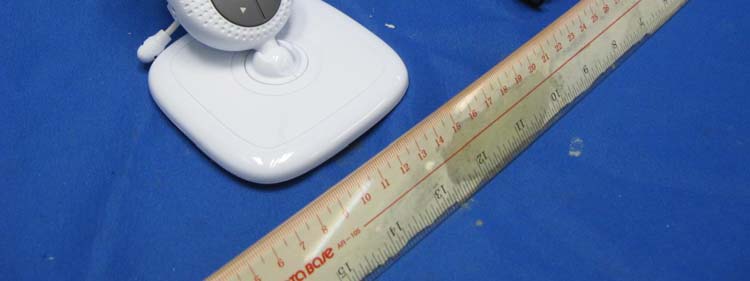

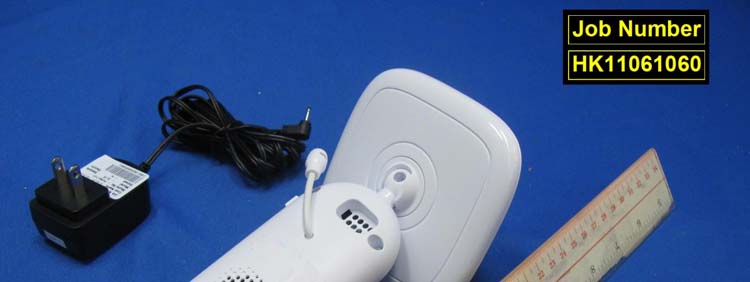

INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-8231-00 IC: 4522A-80823100 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: VLJ80-8231-00 IC: 4522A-80823100 external photos - 2 of 2

Lable paper : 40X20 mm   Engraved in glossy Raised 0.3mm MBP20 BU label area MBP20BU-(UK/EU) S/N : Use only power supplies listed in the user manual Model : MBP20 Input : DC6V 600mA Made in China S/N : Use only power supplies listed in the user manual Model : MBP20 Input : DC6V 600mA Made in China MBP20BU-(US/CA) S/N : Model : MBP20BU Made in China IC : 4522A-80823100 FCC ID : VLJ80-8231-00 DC 6V 600mA Lable paper : 40X20 mm   in glossy 3mm label area MFV700 BU MFV700BU-(UK/EU) S/N : Use only power supplies listed in the user manual Model : MFV700 Input : DC6V 600mA Made in China S/N : Use only power supplies listed in the user manual Model : MFV700 Input : DC6V 600mA Made in China MFV700BU-(US/CA) S/N : Model : MFV700BU Made in China IC : 4522A-80823100 FCC ID : VLJ80-8231-00 DC 6V 600mA Dimension: 40*20 mm Material: 80g art paper 92-0xxxxx-010-100 Camara label Dimension: 40*20 mm Material: 80g art paper 92-0xxxxx-010-100 Camara label

INTERTEK TESTING SERVICES Internal Photos FCC ID: VLJ80-8231-00 IC: 4522A-80823100 Internal photos - 1 of 4 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal Photos FCC ID: VLJ80-8231-00 IC: 4522A-80823100 Internal photos - 2 of 4 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal Photos FCC ID: VLJ80-8231-00 IC: 4522A-80823100 Internal photos - 3 of 4 Internal Photo - 5 Internal Photo - 6 INTERTEK TESTING SERVICES Internal Photos FCC ID: VLJ80-8231-00 IC: 4522A-80823100 Internal photos - 4 of 4 Internal Photo - 7 Internal Photo - 8

INTERTEK TESTING SERVICES FCC ID: VLJ80-8231-00 RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the baby unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the baby unit of tested model of MBP20BU, the maximum field strength measured (FS) was 116.5 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time- averaging duty factor in one parent unit operation is 37.5%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 134.01 mW The radiated (EIRP) source-based time-averaging output power = (134.01 * 0.375) mW = 50.25 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0100 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the baby unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VLJ80-8231-00 bw - 1 of 1 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier

Report no.: HK11061060 Talk Mode (Lullaby Playing) AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 8.JUL.2011 20:38:33 Report no.: HK11061060 Talk Mode (Lullaby Playing) AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 370.5 kHz 36.82 L1 -21.66 2 CISPR Average402 kHz 30.49 N -17.31 1 Quasi Peak 406.5 kHz 39.93 N -17.78 2 CISPR Average406.5 kHz 35.93 N -11.78 1 Quasi Peak 18.6675 MHz 36.75 L1 -23.25 Date: 8.JUL.2011 20:38:25 Report no.: HK11061060 Sound Receiving Mode AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 8.JUL.2011 20:35:21 Report no.: HK11061060 Sound Receiving Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 402 kHz 35.91 N -21.89 2 CISPR Average402 kHz 29.46 L1 -18.34 2 CISPR Average406.5 kHz 35.26 L1 -12.45 1 Quasi Peak 411 kHz 41.03 L1 -16.59 1 Quasi Peak 18.6675 MHz 37.39 L1 -22.60 Date: 8.JUL.2011 20:35:12

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID:VLJ80-8231-00 inband - 1 of 1 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID:VLJ80-8231-00 IC: 4522A-80823100 peaktp - 1 of 2 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID:VLJ80-8231-00 IC: 4522A-80823100 peaktp - 2 of 2 A0 Baby unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VLJ80-8231-00 psd - 1 of 1 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier
